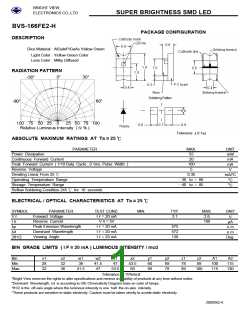

BRIGHT VIEW
ELECTRONICS CO.,LTD
SUPER BRIGHTNESS SMD LED
BVS-166FE2-H
PACKAGE CONFIGURATION
DESCRIPTION
Dice Material : AlGaInP/GaAs Yellow Green
Light Color : Yellow Green Color
Lens Color : Milky Diffused
RADIATION PATTERN
Tolerance ± 0.1㎜
ABSOLUTE MAXIMUM RATINGS AT Ta = 25 ℃
PARAMETER
Power Dissipation
MAX.
UNIT
mW
mA
mA
V
55
Continuous Forward Current
20
Peak Forward Current ( 1/10 Duty Cycle , 0.1ms Pulse Width )
Reverse Voltage
100
5
Derating Linear From 25 ℃
mA/oC
oC
oC
0.35
Operating Temperature Range
－30 to ＋ 80
－40 to ＋ 85
Storage Temperature Range
Reflow Soldering Condition 245 ℃ for 10 seconds
ELECTRICAL / OPTICAL CHARACTERISTICS AT Ta = 25 ℃
SYMBOL
V F
PARAMETER
Forward Voltage
TEST COND.
I F = 20 mA
V R = 5V
MIN.
TYP.
MAX.
2.6
UNIT
V
2.1
Reverse Current
100
I R
μA
Peak Emission Wavelength
Dominant Wavelength
Viewing Angle
I F = 20 mA
I F = 20 mA
I F = 20 mA
575
572
130
λp
n m
n m
Deg
λd
2θ1/2
BIN GRADE LIMITS ( I F = 20 mA ) LUMINOUS INTENSITY / mcd
Bin
v1
28
32
v2
32
36
w1
36
w2
41.5
47
x1
47
x2
53.5
60
y1
60
69
y2
69
78
z1
78
89
z2
89
A1
A2
115
130
Min.
Max.
100
115
41.5
53.5
100
Tolerance ± 15%mcd
*Bright View reserves the rights to alter specifications and remove availability of products at any time without notice.
*Dominant Wavelength, λd is according to CIE Chromaticity Diagram base on color of lamps.
*θ1/2 is the off-axis angle where the luminous intensity is one half the on-axis intensity.
*These products are sensitive to static electricity. Caution must be taken strictly to avoide static electricity.
2008/9/2-A
