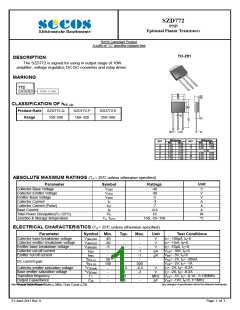

SZD772
PNP
Epitaxial Planar Transistors
Elektronische Bauelemente
RoHS Compliant Product
A suffix of “-C” specifies halogen-free
TO-251
DESCRIPTION
The SZD772 is signed for using in output stage of 10W
amplifier, voltage regulator, DC-DC converter and relay driver.
MARKING
772
ꢀꢀꢀꢀ
Date Code
A
B
C
D
CLASSIFICATION OF hFE (2)
G E
Product-Rank
SZD772-Q
SZD772-P
160~320
SZD772-E
250~500
K
Range
100~200
H
F
M
J
P
Millimeter
Millimeter
REF.
REF.
Min.
Max.
6.80
5.50
2.40
0.55
7.20
7.80
Min.
5.40
0.90
Max.
5.80
1.50
A
B
C
D
E
F
6.40
5.20
2.20
0.45
6.80
7.20
G
H
J
K
M
P
2.30
0.60
0.50
0.45
0.90
0.70
0.60
ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise specified)
Unit
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Symbol
VCBO
VCEO
VEBO
IC
Ratings
-40
-30
-5
-3
V
V
V
Collector Current
A
Collector Current (Pulse)
Base Current
ICP
IB
-7
-0.6
A
A
Total Power Dissipation(TC=25°C)
Junction & Storage temperature
PD
TJ, TSTG
10
W
°C
150, -55~150
ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified)
Parameter
Symbol Min.
Typ.
-
-
-
-
-
-
-
-0.3
-1
80
55
Max.
-
-
Unit
V
V
V
µA
µA
Test Conditions
IC= -100µA, IE=0
IC= -1mA, IB=0
IE= -10µA, IC=0
VCB= -30V, IE=0
VEB= -3V, IC=0
VCE= -2V, IC= -20mA
VCE= -2V, IC= -1A
IC= -2A, IB= -0.2A
IC= -2A, IB= -0.2A
Collector-base breakdown voltage
Collector-emitter breakdown voltage
Emitter-base breakdown voltage
Collector cut-off current
V(BR)CBO
V(BR)CEO
V(BR)EBO
ICBO
-40
-30
-5
-
-
-1
-1
-
500
-0.5
-2
-
Emitter cut-off current
IEBO
-
*hFE (1)
*hFE (2)
*VCE(sat)
*VBE(sat)
f T
30
100
-
-
-
-
DC current gain
Collector-emitter saturation voltage
Base-emitter saturation voltage
Transition frequency
V
V
MHz
pF
VCE= -5V, IC= -0.1A , f=100MHz
VCB= -10V, IE=0, f=1MHz
Output Capacitance
Cob
-
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
*Pulse Test: Pulse Width≦380s, Duty Cycle≦2%
21-June-2011 Rev. A
Page 1 of 3
