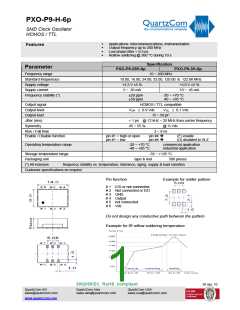

PXO-P9-H-6p
SMD Clock Oscillator
HCMOS / TTL
.
.
.
.
Applications: telecommunications, instrumentation
Output frequency up to 200 MHz
Low phase jitter < 0.5 ps
Features
Reflow soldering @ 260 °C during 10 s
Specification
Parameter
PXO-P9-25H-6p
PXO-P9-3H-6p
Frequency range
Standard frequencies
Supply voltage
10 ~ 200 MHz
10.00, 16.00, 24.00, 32.00, 120.00 & 122.88 MHz
+3.3 V 5 %
+5.0 V 5 %
Supply current
5 ~ 35 mA
10 ~ 45 mA
Frequency stability (*)
±20 ppm
±50 ppm
-20 ~ +70 °C
-40 ~ +85 °C
Output signal
Output level
Output load
Jitter (rms)
Symmetry
HCMOS / TTL compatible
VOH 0.9 Vdc VOL 0.1 Vdc
15 ~ 50 pF
< 1 ps @ 12 kHz ~ 20 MHz from carrier frequency
45 ~ 55 %
@ ½ Vdc
2 ~ 8 ns
pin #4
pin #4
-20 ~ +70 °C commercial application
-40 ~ +85 °C
Rise / Fall time
Enable / Disable function
pin #1 = high or open
pin #1 = low
(E) enable
(D) disabled to Hi-Z
Operating temperature range
industrial application
Storage temperature range
Packaging unit
-55 ~ +125 °C
tape & reel
500 pieces
(*) All inclusive:
frequency stability vs. temperature, tolerance, aging, supply & load variation
Customer specifications on request
Pin function
Example for solder pattern
# 1 E/D or not connected
# 2 Not connected or E/D
# 3 GND
# 4 Output
# 5 not connected
# 6 Vdc
Do not design any conductive path between the pattern
Example for IR reflow soldering temperature
2002/95/EC RoHS compliant
20 Apr. 10
