PXI-8108

型号：

PXI-8108

描述：

英特尔酷睿2双核T9400处理器（ 2.53 GHz双核）[ Intel Core 2 Duo T9400 processor(2.53 GHz dual core) ]

品牌：

NI[ National Instruments ]

页数：

7 页

PDF大小：

695 K

下载PDF手册

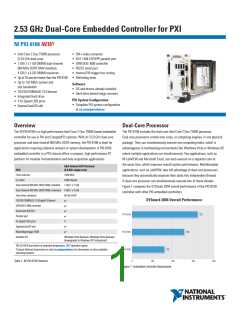

2.53 GHz Dual-Core Embedded Controller for PXI
NI PXI-8108 NEW!
◾◾
◾◾
◾◾
◾◾
◾◾
◾◾
◾◾
Intel Core 2 Duo T9400 processor
(2.53 GHz dual core)
DVI-I video connector
IEEE 1284 ECP/EPP parallel port
GPIB (IEEE 488) controller
RS232 serial port
Internal PXI trigger bus routing
Watchdog timer
◾◾
1 GB (1 x 1 GB DIMM) dual-channel
800 MHz DDR2 RAM standard,
4 GB (1 x 4 GB DIMM) maximum
Up to 25 percent faster than the PXI-8106
Up to 132 MB/s system and
slot bandwidth
10/100/1000BASE-TX Ethernet
Integrated hard drive
4 Hi-Speed USB ports
◾◾
◾◾
Software
◾◾
OS and drivers already installed
Hard-drive-based image recovery
◾◾
◾◾
◾◾
◾◾
◾◾
PXI System Configuration
◾◾
Complete PXI system configuration
at ni.com/pxiadvisor
ExpressCard/34 slot
Overview
Dual-Core Processor
The NI PXI-8108 is a high-performance Intel Core 2 Duo T9400-based embedded
controller for use in PXI and CompactPCI systems. With its 2.53 GHz dual-core
processor and dual-channel 800 MHz DDR2 memory, the PXI-8108 is ideal for
applications requiring intensive analysis or system development. A PXI-8108
embedded controller in a PXI chassis offers a compact, high-performance PC
platform for modular instrumentation and data acquisition applications.
The PXI-8108 includes the dual-core Intel Core 2 Duo T9400 processor.
Dual-core processors contain two cores, or computing engines, in one physical
package. They can simultaneously execute two computing tasks, which is
advantageous in multitasking environments like Windows Vista or Windows XP,
where multiple applications run simultaneously. Two applications, such as
NI LabVIEW and Microsoft Excel, can each execute on a separate core at
the same time, which improves overall system performance. Multithreaded
applications, such as LabVIEW, take full advantage of dual-core processors
because they automatically separate their tasks into independent threads.
A dual-core processor can simultaneously execute two of these threads.
Figure 1 compares the SYSmark 2004 overall performance of the PXI-8108
controller with other PXI embedded controllers.
Intel Celeron 575 Processor
(2.0 GHz single core)
CPU
Front-side bus
L2 cache
1066 MHz
6 MB shared
Dual-channel 800 MHz DDR2 RAM, standard 1 GB (1 x 1 GB)
Dual-channel 800 MHz DDR2 RAM, maximum 4 GB (1 x 4 GB)
Hard drive, minimum
10/100/1000BASE-TX (Gigabit) Ethernet
GPIB (IEEE 488) controller
Serial port (RS232)
80 GB SATA1
SYSmark 2004 Overall Performance
4
4
4
4
4
PXI-8108
PXI-8106
PXI-8196
322
Parallel port
Hi-Speed USB ports
ExpressCard/34 slot
Watchdog/trigger SMB
Installed OS
4
4
256
Windows Vista Business, Windows Vista Business
(downgraded to Windows XP Professional)2
180 GB SATA hard drive for extended temperature, 24/7 operation option.
2Contact National Instruments or visit ni.com/pxiadvisor for information on other available
operating systems.
159
Table 1. NI PXI-8108 Features
0
100
200
300
400
Figure 1. Embedded Controller Benchmarks
2.53 GHz Dual-Core Embedded Controller for PXI
Hardware
Memory
With state-of-the-art packaging, the PXI-8108 integrates the Intel Core 2 Duo
This controller uses dual-channel 800 MHz DDR2 SDRAM, which makes it ideal
T9400 processor and all standard and extended PC I/O ports into a single unit. By for data-intensive applications requiring significant analysis. It has a single
integrating many I/O ports on the controller, all active slots in the chassis remain SO-DIMM socket for the DDR2 SDRAM. 1 GB (1 x 1 GB DIMM) of RAM is
available for measurement and control modules. This rugged one-piece controller standard with upgrade options to 4 GB.
design minimizes integration issues and eliminates the need for complex cabling
Socket 479
CPU
to daughterboards. The PXI-8108 block diagram is shown in Figure 2.
Peripheral I/O
This module includes high-performance peripheral I/O such as
PCIe
CHIPSET
Graphics
Memory
Controller
Hub
PCIe-to-PCI
Bridge
GPIB
SO-DIMM
DDR2 SDRAM
PC2-6400
10/100/1000BASE-TX (gigabit) Ethernet and four Hi-Speed USB ports for
connection to a keyboard, a mouse, a CD-ROM/DVD-ROM drive for software
installation, or other standard PC peripherals such as speakers, printers, or
memory sticks. Use the IEEE 1284 ECP/EPP parallel port to connect to a wide
variety of devices, including tape backup drives, printers, and scanners. An
RS232 port is available for connecting to serial devices. Additionally, the
PXI-8108 controller includes an integrated GPIB (IEEE 488) controller, which
provides control of external instrumentation, saving additional cost and a slot.
Single CH
DVI-I
Connector
Gigabit
DMI
Ethernet
Flash ROM
PXI
CHIPSET
I/O
Controller
Hub
Connector
4 Hi-Speed
USB
PCI Bus
Connectors
PXI
Triggers
SATA
ExpressCard/34
Slot
LPC Bus
ExpressCard
This controller features an ExpressCard/34 slot. ExpressCard uses the PCI Express
and Hi-Speed USB serial interfaces to provide up to 2.5 Gb/s of bidirectional
throughput. Use the ExpressCard/34 slot to add a second gigabit Ethernet port
to your system or additional peripheral I/O such as external hard drives, RAID
arrays, 802.11 wireless LAN, IEEE 1394, Bluetooth, or various memory adapters.
SMB to
PXI Trigger
LPT 1
Super I/O
Watchdog
Timer
COM 1
SMB
Video
The PXI-8108 includes a Mobile Intel GM45 Express Chipset (Graphics and
Memory Controller Hub) that has an integrated graphics processing unit. It
delivers intense, realistic 3D graphics with sharp images, fast rendering,
smooth motion, and high detail, without the need for an additional video card or
peripheral. This unique architecture provides balanced memory usage between
graphics and the system for optimal performance. Additionally, the PXI-8108
features a DVI-I video connector, compatible with digital (DVI) and analog (VGA)
monitors. A DVI-I to VGA adapter is included with the controller for use with
VGA monitors.
Figure 2. NI PXI-8108 Block Diagram
Extended Temperature and
24/7 Operation Option
The PXI-8108 is available in two versions to address different environmental
and usage conditions. The primary difference is that the version for extended
temperature and 24/7 operation uses a different hard drive, designed for both
reliability in low- and high-temperature extremes and 24/7 operation. The
standard version of the controllers has an operating temperature of 5 to 50 °C
and a storage temperature of -40 to 65 °C. The extended temperature and 24/7
operation version has an operating temperature of 0 to 55 °C and a storage
temperature of -40 to 70 °C.
Dual Monitor Support
The DVI-I video port on the PXI-8110 is capable of supporting simultaneous DVI
and VGA output. With this built-in capability, you can connect a digital and an
analog monitor or two analog monitors to your PXI system at the same time with
independent displays. This negates the need for a separate PXI or CompactPCI
video module to connect two monitors to your PXI system. A DVI-I (male) to DVI-D
(female) and VGA (female) splitter is required for connecting the two monitors.
You can also use the extended temperature and 24/7 operation version for
applications that require continuous operation for up to 24 hours/day, seven
days/week because the hard drive is rated for 24/7 operation. The hard drive in
the standard version of the controllers is designed to be powered on for eight
hours/day, five days/week. Additionally, 24/7 operation applications may subject
the hard drive to a high duty cycle (the percentage of the maximum sustained
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
2
2.53 GHz Dual-Core Embedded Controller for PXI
throughput of the hard drive). The hard drive in the standard version of the
controllers is designed for a 20 percent duty cycle. The hard drive in the extended
temperature and 24/7 operation version has a capacity of 80 GB (minimum). See
specifications for further details.
USB Peripherals
National Instruments offers a USB-to-dual-PS/2 keyboard/mouse adapter cable
to connect a legacy PS/2 keyboard and mouse to a single USB port on your
embedded controller. Additionally, NI offers external USB CD-ROM/DVD-ROM
and USB floppy drives for use with your embedded controller. Connect these
drives to your embedded controller for easy software installation and upgrades.
Both are completely powered through the USB ports, so no external power
connections are required. Additional USB peripherals, such as USB speakers to
add audio or USB memory sticks to add easily removable memory, are widely
available from PC peripheral manufacturers.
Software
The PXI-8108 comes with the following minimum set of software already installed:
◾◾
Microsoft Windows OS (contact NI or visit ni.com/pxiadvisor for a list of
available Microsoft operating systems and for localized versions)
◾◾
NI-VISA and NI-488.2 drivers
◾◾
Drivers for all built-in I/O ports (Table 1)
With NI system assurance programs added to a PXI system order, your
embedded controller is shipped already configured with all software and drivers
applicable for your system. For example, assume you order a PXI system that
includes LabVIEW and NI TestStand software, as well as data acquisition
modules, a digitizer, an arbitrary waveform generator, and a digital multimeter
(DMM). With NI system assurance programs, NI not only assembles and
tests your system but also fully configures the embedded controller with the
appropriate NI-DAQmx, NI-SCOPE, NI-FGEN, and NI-DMM drivers, as well as
LabVIEW and NI TestStand.
Additional Peripheral I/O
National Instruments offers numerous plug-in modules to add more peripheral
I/O to your PXI system. With the wide variety of peripheral I/O modules
available, you can choose modules that add communication with serial, IEEE
1394, and SCSI, in addition to numerous others. You also can obtain modules for
controlling other PXI or VXI/VME systems. Visit ni.com/pxiadvisor to configure
a system with additional peripheral I/O modules.
To configure a complete PXI system with NI system assurance programs,
contact National Instruments or visit ni.com/pxiadvisor.
Hard-Drive-Based Recovery Image
The PXI-8108 embedded controller is shipped with a factory image of the
software installation stored on a separate partition of the hard drive. In the case
of software corruption, you can invoke a recovery tool during the controller’s
boot-up process that can use this backup image to restore the controller to its
shipping software configuration. You also can use this recovery tool to create
custom images that you can store on external mass storage devices such as a
USB memory stick, USB hard drives, and USB CD/DVD drives. With this ability,
you can create custom backup images that you can use to either recover a
PXI-8108 controller or replicate the installation on other PXI-8108 controllers.
For more information on this tool, refer to KnowledgeBase 2ZKC02OK.
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
3
2.53 GHz Dual-Core Embedded Controller for PXI
Ordering Information
For online configuration of a complete PXI system, including NI system
assurance programs, visit ni.com/pxiadvisor.
Step 1. Controller model – select one of the following.
NI PXI-8108
Base....................................................................................... 780446-xx
Extended Temperature and 24/7........................................... 780447-xx
Step 2. Replace “xx” to select installed OS.
Windows Vista Business (English).............................................................. 02
Windows Vista – downgraded to Windows XP Professional (English) ..... 01
Localized Windows XP or Other OS1........................................................... 00
1Contact National Instruments or visit ni.com/pxiadvisor for the latest operating systems.
Step 3. Memory upgrades – select the amount of upgrade memory.
Standard:
1 GB (1 x 1 GB DIMM)
Recommended upgraded memory configurations:
2 GB (1 x 2 GB DIMM must be purchased)
4 GB (1 x 4 GB DIMM must be purchased)
2 GB DDR2 RAM for PXI-8108 ...................................................780446-2048
4 GB DDR2 RAM for PXI-8108 ...................................................780446-4096
Step 4. Accessories1
60 GB (or greater) 2.5 in. SATA blank HDD
spare/replacement................................................................779175-03
80 GB (or greater) 2.5 in. SATA extended
temp hard-drive upgrade.......................................................779175-07
32 GB 2.5 in. SATA solid-state hard-drive upgrade.......................779175-08
250 GB (or greater) 2.5 in. SATA hard-drive upgrade ....................779175-06
USB-to-dual-PS/2 keyboard/mouse adapter cable........................778713-02
External USB CD-ROM/DVD-ROM drive........................................778492-01
External USB floppy drive ..............................................................778492-02
USB English keyboard and optical mouse .....................................779660-01
Parallel port adapter cable (6 in.)...................................................777169-01
NI MKD-1117 (rack-mount 1U LCD monitor,
keyboard, mouse drawer)......................................................779872-01
NI FPM-1017 (17 in. flat panel monitor) ........................................779559-01
NI FPT-1015 (flat panel touch screen with
VGA interface and USB)........................................................779560-01
GPIB port adapter cable, 2 m.........................................................183285-02
1For additional peripheral I/O modules, including serial, IEEE 1394, and SCSI,
visit ni.com/pxiadvisor.
BUY NOW
For complete product specifications, pricing, and accessory information,
call 800 813 3693 (U.S.) or go to ni.com/pxi.
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
4
2.53 GHz Dual-Core Embedded Controller for PXI
Environment
Maximum altitude................................. 2,000 m (800 mbar)
Specifications
Specifications subject to change without notice.
(at 25 °C ambient temperature)
Features
Pollution degree....................................
Indoor use only.
2
Processor............................................... Intel Core 2 Duo 2.53 GHz T9400
Chipset .................................................. Mobile Intel GM45 Express Chipset
Front-side bus........................................ 1066 MHz
System memory (RAM) ......................... 1 GB dual-channel DDR2 RAM PC2
6400 (standard); 4 GB dual-channel
Operating Environment
Ambient temperature range1
Base ...................................................... 5 to 50 °C2
(tested in accordance with
IEC-60068-2-1 and IEC-60068-2-2)
Extended temperature range ................ 0 to 55 °C
DDR2 RAM PC2 6400 (maximum)
Ethernet................................................. 10/100/1000BASE-TX, RJ45 connector
Hard drive
(tested in accordance with
IEC-60068-2-1 and IEC-60068-2-2)
Base.................................................. 80 GB minimum, internal 2.5 in.,
9.5 mm Serial ATA 1.0 interface
Relative humidity range........................ 10 to 90% noncondensing
(tested in accordance with
Extended Temperature and
24/7 Operation Option ................. 80 GB minimum, internal 2.5 in.,
9.5 mm Serial ATA 1.0 interface
IEC-60068-2-56)
1For chassis that are not available in the online catalog at ni.com, contact National Instruments for
supported operating temperatures.
Video ..................................................... Integrated Graphics (Mobile Intel
GM45 Express Chipset)
25 to 40 °C for the NI PXI-1000B DC.
Serial..................................................... 1 (RS232)
Parallel .................................................. IEEE 1284 Type C miniature connector
(adapter cable not included)
Storage Environment
Ambient temperature range
Base.................................................. -40 to 65 °C
(tested in accordance with
GPIB ...................................................... PCI-GPIB/TNT, micro D25 connector
IEEE 488 and HS488 transfers
IEC-60068-2-1 and IEC-60068-2-2)
Extended temperature range............ -40 to 70 °C
(tested in accordance with
Hi-Speed USB........................................
4
ExpressCard/34..................................... 1 (34 mm slot)
IEC-60068-2-1 and IEC-60068-2-2)
Relative humidity range........................ 5 to 95% noncondensing
(tested in accordance
Power Requirements
Current (A)
Voltage (V)
Typical
Maximum
with IEC-60068-2-56)
+3.3
+5
2
6
3
8
Shock and Vibration
+12
-12
0.1
0.00
0.3
0.00
Operating shock .................................... 30 g peak, half-sine, 11 ms pulse
(tested in accordance with
IEC-60068-2-27; test profile developed
in accordance with MIL-PRF-28800F)
Random vibration
Physical
Board dimensions.................................. 4-slot 3U PXI module
8.1 by 13 by 21.6 cm (3.2 by 5.1 by 8.5 in.)
Slot requirements.................................. One system slot plus three controller
expansion slots
Operating.......................................... 5 to 500 Hz, 0.3 grms
(with solid-state hard drive)
Nonoperating.................................... 5 to 500 Hz, 2.4 grms
(tested in accordance with
Compatibility......................................... Fully compatible with PXI Specification
Weight................................................... 0.914 kg (2.02 lb) typical
IEC-60068-2-64; nonoperating test
profile exceeds the requirements of
MIL-PRF-28800F, Class 3)
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
5
2.53 GHz Dual-Core Embedded Controller for PXI
Safety Compliance
This product is designed to meet the requirements of the following
standards of safety for electrical equipment for measurement, control,
and laboratory use:
◾◾
IEC 61010-1, EN 61010-1
◾◾
UL 61010-01, CSA 61010-1
Note: For UL and other safety certifications, refer to the product label or visit
ni.com/certification, search by model number or product line, and click the
appropriate link in the Certification column.
Electromagnetic Compatibility
This product is designed to meet the requirements of the following standards of
EMC for electrical equipment for measurement, control, and laboratory use:
◾◾
EN 61326 (IEC 61326): Class A emissions; Basic immunity
◾◾
EN 55011 (CISPR 11): Group 1, Class A emissions
◾◾
AS/NZS CISPR 11: Group 1, Class A emissions
◾◾
FCC 47 CFR Part 15B: Class A emissions
◾◾
ICES-001: Class A emissions
Note: For EMC compliance, operate this device according to product documentation.
CE Compliance
This product meets the essential requirements of applicable European Directives,
as amended for CE marking, as follows:
◾◾
2006/95/EC; Low-Voltage Directive (safety)
◾◾
2004/108/EC; Electromagnetic Compatibility Directive (EMC)
Note: Refer to the Declaration of Conformity (DoC) for this product for any
additional regulatory compliance information. To obtain the DoC for this product,
visit ni.com/certification, search by model number or product line, and click
the appropriate link in the Certification column.
Waste Electrical and Electronic Equipment (WEEE)
EU Customers: At the end of their life cycle, all products must be sent to a
WEEE recycling center. For more information about WEEE recycling centers and
National Instruments WEEE initiatives, visit ni.com/environment/weee.htm.
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
6
NI Services and Support
NI has the services and support to meet
Local Sales and Technical Support
In offices worldwide, our staff is local to the country, giving you access to
engineers who speak your language. NI delivers industry-leading technical
support through online knowledge bases, our applications engineers,
and access to 14,000 measurement and automation professionals within NI
Developer Exchange forums. Find immediate answers to your questions at
ni.com/support.
I
your needs around the globe and through
A
the application life cycle – from planning
and development through deployment and
SERVICE
NEEDS
ongoing maintenance. We offer services
and service levels to meet customer
requirements in research, design, validation,
and manufacturing.
P
E
V
Y
We also offer service programs that provide automatic upgrades to your
application development environment and higher levels of technical support.
Visit ni.com/ssp.
Visit ni.com/services.
Training and Certification
NI training is the fastest, most certain route to productivity with our products.
NI training can shorten your learning curve, save development time, and reduce
maintenance costs over the application life cycle. We schedule instructor-led
courses in cities worldwide, or we can hold a course at your facility. We also
offer a professional certification program that identifies individuals who have
high levels of skill and knowledge on using NI products.
Hardware Services
System Assurance Programs
NI system assurance programs are designed to make it even easier for you
to own an NI system. These programs include configuration and deployment
services for your NI PXI, CompactRIO, or Compact FieldPoint system. The NI Basic
System Assurance Program provides a simple integration test and ensures that
your system is delivered completely assembled in one box. When you configure
your system with the NI Standard System Assurance Program, you can select
from available NI system driver sets and application development environments
to create customized, reorderable software configurations. Your system arrives
fully assembled and tested in one box with your software preinstalled. When
you order your system with the standard program, you also receive system-
specific documentation including a bill of materials, an integration test report,
a recommended maintenance plan, and frequently asked question documents.
Finally, the standard program reduces the total cost of owning an NI system
by providing three years of warranty coverage and calibration service. Use the
online product advisors at ni.com/advisor to find a system assurance program
to meet your needs.
Visit ni.com/training.
Professional Services
Our NI Professional Services team is composed of NI applications and systems
engineers and a worldwide National Instruments Alliance Partner program of
more than 600 independent consultants and integrators. Services range from
start-up assistance to turnkey system
integration. Visit ni.com/alliance.
OEM Support
We offer design-in consulting and product integration assistance if you want to
use our products for OEM applications. For information about special pricing and
services for OEM customers, visit ni.com/oem.
Calibration Services
NI recognizes the need to maintain properly calibrated devices for high-
accuracy measurements. We provide manual calibration procedures, services
to recalibrate your products, and automated calibration software specifically
designed for use by metrology laboratories. Visit ni.com/calibration.
Repair and Extended Warranty
NI provides complete repair services for our products. Express repair and
advance replacement services are also available. We offer extended warranties
to help you meet project life-cycle requirements. Visit ni.com/services.
n
ni.com 800 813 3693
n
National Instruments info@ni.com
©2009 National Instruments. All rights reserved. CompactRIO, FieldPoint, HS488, National Instruments, National Instruments Alliance Partner, NI, NI-488, and ni.com are trademarks of National Instruments. Other product
and company names listed are trademarks or trade names of their respective companies. A National Instruments Alliance Partner is a business entity independent from National Instruments and has no agency, partnership,
or joint-venture relationship with National Instruments. 2009-11031-501-101-D
厂商 型号 描述 页数 下载

NI

 		PXI-1033 PXI机箱，集成MXI- Express远程控制器[ PXI Chassis with Integrated MXI-Express Remote Controller ] 6 页

NI

 		PXI-1050 PXI机箱，集成了信号调理[ PXI Chassis with Integrated Signal Conditioning ] 5 页

NI

 		PXI-1052 PXI机箱，集成了信号调理[ PXI Chassis with Integrated Signal Conditioning ] 5 页

ETC

 		PXI-2000 4 - CH十六分之十四位最多2 MS / s同步采样多功能数据采集卡[ 4-CH 14/16-Bit Up to 2 MS/s Simultaneous-Sampling Multi-Function DAQ Cards ] 2 页

ETC

 		PXI-2005 [ Supports a 32-bit 3.3 V or 5 V PCI bus (DAQ-2000 series) ] 3 页

ETC

 		PXI-2006 [ Supports a 32-bit 3.3 V or 5 V PCI bus (DAQ-2000 series) ] 3 页

ETC

 		PXI-2010 [ Supports a 32-bit 3.3 V or 5 V PCI bus (DAQ-2000 series) ] 3 页

ETC

 		PXI-2020 8月16日，通道16位250 kS / s的同步采样数据采集卡[ 8/16-CH 16-Bit 250 KS/s Simultaneous Sampling DAQ Cards ] 2 页

ETC

 		PXI-2022 8月16日，通道16位250 kS / s的同步采样数据采集卡[ 8/16-CH 16-Bit 250 KS/s Simultaneous Sampling DAQ Cards ] 2 页

ETC

 		PXI-2200 64通道12位/ 16位最多3个MS / s的多功能数据采集卡[ 64-CH 12/16-Bit Up to 3 MS/s Multi-Function DAQ Cards ] 2 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.234498s
