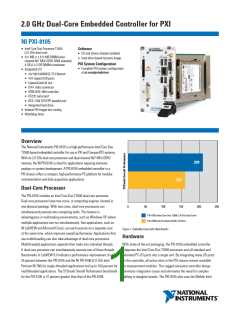

2.0 GHz Dual-Core Embedded Controller for PXI
NI PXI-8105
• Intel Core Duo Processor T2500
(2.0 GHz dual core)
Software
• OS and drivers already installed
• 512 MB (1 x 512 MB DIMM) dual-
channel 667 MHz DDR2 RAM standard,
4 GB (2 x 2 GB DIMMs) maximum
• Hard drive-based recovery image
PXI System Configuration
• Complete PXI system configuration
at ni.com/pxiadvisor
• Integrated I/O
• 10/100/1000BASE-TX Ethernet
• 4 Hi-Speed USB ports
• ExpressCard/34 slot
• DVI-I video connector
• GPIB (IEEE 488) controller
• RS232 serial port
• IEEE 1284 ECP/EPP parallel port
• Integrated hard drive
• Internal PXI trigger bus routing
• Watchdog timer
Overview
The National Instruments PXI-8105 is a high-performance Intel Core Duo
T2500-based embedded controller for use in PXI and CompactPCI systems.
With its 2.0 GHz dual-core processor and dual-channel 667 MHz DDR2
memory, the NI PXI-8105 is ideal for applications requiring intensive
analysis or system development. A PXI-8105 embedded controller in a
PXI chassis offers a compact, high-performance PC platform for modular
instrumentation and data acquisition applications.
209
159
Dual-Core Processor
The PXI-8105 includes an Intel Core Duo T2500 dual-core processor.
Dual-core processors have two cores, or computing engines, located in
one physical package. With two cores, dual-core processors can
simultaneously execute two computing tasks. This feature is
0
50
100
150
200
250
PXI-8105 (Intel Core Duo T2500, 2.0 GHz Dual Core)
PXI-8196 (Intel Pentium M 760, 2.0 GHz)
advantageous in multitasking environments, such as Windows XP, where
multiple applications can run simultaneously. Two applications, such as
NI LabVIEW and Microsoft Excel, can each execute on a separate core
at the same time, which improves overall performance. Applications that
use multithreading can also take advantage of dual-core processors.
Multithreaded applications separate their tasks into individual threads.
A dual-core processor can simultaneously execute two of these threads.
Figure 1. Embedded Controller Benchmarks
Hardware
With state-of-the-art packaging, the PXI-8105 embedded controller
integrates the Intel Core Duo T2500 processor and all standard and
Benchmarks in LabVIEW 8.0 indicate a performance improvement of up to extended PC I/O ports into a single unit. By integrating many I/O ports
25 percent between the PXI-8105 and the NI PXI-8196 (2.0 GHz Intel on the controller, all active slots in the PXI chassis remain available
Pentium M 760) for single-threaded applications and up to 100 percent for for measurement modules. This rugged one-piece controller design
multithreaded applications. The SYSmark Overall Performance benchmark minimizes integration issues and eliminates the need for complex
for the PXI-8105 is 31 percent greater than that of the PXI-8196.
cabling to daughter boards. The PXI-8105 also uses the Mobile Intel
2.0 GHz Dual-Core Embedded Controller for PXI
945GM Express chipset to deliver maximum performance, flexibility, and
stability. A block diagram of the PXI-8105 is shown in Figure 3.
CPU
Intel Core Duo Processor T2500
(2.0 GHz Dual Core)
667 MHz
Front-side bus
L2 cache
2048 KB
Dual-channel 667 MHz DDR2 RAM, standard
Dual-channel 667 MHz DDR2 RAM, maximum
Hard drive, minimum
512 MB (1 x 512 MB)
4 GB (2 x 2 GB)
60 GB SATA1
10/100/1000 BASE-TX Ethernet
GPIB (IEEE 488) controller
Serial port (RS232)
ꢀ
ꢀ
ꢀ
Parallel port
ꢀ
Hi-Speed USB ports
4
ExpressCard/34 slot
ꢀ
Figure 2. This PXI-8105 controls an 8-slot PXI modular instrumentation system.
_2
PS/2 keyboard/mouse connector
Watchdog/trigger SMB
Installed OS
130 GB PATA hard drive for extended temperature option
2For a legacy PS/2 keyboard and mouse, add the USB-to-dual-PS/2 adapter USP-to-dual-PS/2
ꢀ
Windows XP Professional3
Trigger Input/Output and Watchdog
The PXI-8105 includes an external SMB connection for use as a trigger
input, output, or watchdog timer. Use the external SMB to pass trigger
and timing signals into and out of the PXI trigger bus in your system.
3Contact National Instruments or visit ni.com/pxiadvisor for information on other available
operating systems
Table 1. PXI-8105 Features
Peripheral I/O
Intel Core 2 Duo
CPU
The PXI-8105 includes high-performance peripheral I/O such as
10/100/1000BASE-TX (gigabit) Ethernet and four Hi-Speed USB ports
for connection to a keyboard, a mouse, a CD-ROM/DVD-ROM drive for
software installation, or other standard PC peripherals such as USB
speakers, printers, or memory sticks. Use the IEEE 1284 ECP/EPP parallel
port to connect to a wide variety of devices, including tape backup
drives, printers, and scanners. An RS232 port is available for connecting
to serial devices. Additionally, the PXI-8105 includes an integrated GPIB
(IEEE 488) controller, which provides control of external instrumentation,
saving additional cost and a slot.
Chipset
2 SO-DIMM
DDR2 SDRAM
PC2 5400
Graphics
Memory
Controller
Hub
DUAL CH
DVI-I
Connector
GPIB
ExpressCard/34
DMI Interface
4 Hi-Speed
USB Ports
Chipset
I/O Controller
Hub
PXI
Connector/
Triggers
PCI Bus
ExpressCard
Gigabit
Ethernet
The PXI-8105 includes an ExpressCard/34 slot. ExpressCard uses
the PCI Express and Hi-Speed USB serial interfaces to provide up to
2.5 Gb/s of bidirectional throughput. Use the ExpressCard/34 slot
to add a second gigabit Ethernet port to your system or additional
peripheral I/O such as external SATA hard drives, 802.11 wireless
LAN, IEEE 1394, Bluetooth, or various memory adapters.
LPC Bus
Hard Drive
SMB to
Triggers
LPT 1
Super I/O
COM 1
Watchdog
SMB
Figure 3. PXI-8105 Block Diagram
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
2
2.0 GHz Dual-Core Embedded Controller for PXI
With NI Factory Installation Services (FIS) added to a PXI system order,
your embedded controller is shipped already configured with all software
and drivers applicable for your system. For example, assume you order
a PXI system that includes LabVIEW and NI TestStand software, as well
as data acquisition modules, a digitizer, an arbitrary waveform generator,
and a DMM. With FIS, NI not only assembles and ships your system
but also fully configures the embedded controller with the appropriate
NI-DAQmx, NI-SCOPE, NI-FGEN, and NI-DMM drivers, as well as
LabVIEW and NI TestStand. Additionally, your embedded controller is
configured with a hard drive-based recovery image, so you can restore
your controller to the as-shipped configuration at any time. This
combination of software configuration and recovery tools provides both a
productive and reliable development experience with your PXI system
out of the box. To configure a complete PXI system with FIS, contact
National Instruments or visit ni.com/pxiadvisor.
Video
The PXI-8105 features the integrated Intel Graphics Media Accelerator
950, which delivers intense, realistic 3D graphics with sharp images, fast
rendering, smooth motion, and high detail, without the need for an
additional video card or peripheral. This unique architecture provides
balanced memory usage between graphics and the system for optimal
performance. Additionally, the PXI-8105 includes a DVI-I video connector,
compatible with digital (DVI) and analog (VGA) monitors. A DVI-I to VGA
adapter is included with the controller for use with VGA monitors.
Memory
The PXI-8105 uses dual-channel 667 MHz DDR2 SDRAM. This feature
makes the controllers ideal for data-intensive applications requiring
significant analysis. The PXI-8105 has two SO-DIMM sockets for the
DDR2 SDRAM. 512 MB (1 x 512 MB DIMM) of RAM is standard with the
PXI-8105, with upgrade options to either 1, 2, 3, or 4 GB.
USB Peripherals
National Instruments offers a USB-to-dual-PS/2 keyboard/mouse
adapter cable to connect a legacy PS/2 keyboard and mouse to a single
USB port on your embedded controller. Additionally, NI offers external
USB CD-ROM/DVD-ROM and USB floppy drives for use with your
embedded controller. Using the USB interfaces, connect these drives
to your embedded controller for easy software installation and upgrades.
Both are completely powered through the USB port, so no external power
connections are required. Additional USB peripherals, such as USB
speakers to add audio or USB memory sticks to add easily removable
memory, are widely available from PC peripheral manufacturers.
Extended Temperature Option
The PXI-8105 is available in two versions to address different
environmental conditions. The basic version has an operating
temperature of 5 to 50 °C and a storage temperature of -40 to 65 °C.
The extended-temperature version has an operating temperature of 0 to
55 °C and a storage temperature of -40 to 85 °C. The primary difference
is that the extended-temperature option uses a hard drive designed for
reliability in low- and high-temperature extremes. This extended-
temperature hard drive has a capacity of 30 GB (minimum) versus 60 GB
(minimum) on the standard controller. Please see specifications for
further details.
Additional Peripheral Ports
National Instruments offers numerous plug-in modules to add more
peripherals and ports to your PXI system. With the wide variety of
peripheral devices available, you can choose modules that add
communication with serial, IEEE 1394, and SCSI, in addition to numerous
others. Modules are also available for controlling other PXI or VXI/VME
systems. Visit ni.com/pxiadvisor to configure a system with additional
peripheral modules.
Software
The PXI-8105 comes with the following minimum set of software
already installed:
• Microsoft Windows XP Professional OS (contact National Instruments
or visit ni.com/pxiadvisor for localized versions of Windows XP and
for other available operating systems)
• Hard drive-based recovery image
• NI-VISA and NI-488.2 drivers
• Drivers for all built-in I/O ports (Table 1)
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
3
2.0 GHz Dual-Core Embedded Controller for PXI
Ordering Information
4 GB (2 x 2 GB DIMMs must be purchased)
512 MB DDR2 RAM ............................................................779302-512
1 GB DDR2 RAM................................................................779302-1024
2 GB DDR2 RAM................................................................780031-2048
For online configuration of a complete PXI system, including Factory
Installation Services, visit ni.com/pxiadvisor.
Step 4. Accessories2
Step 1. Controller Model – select one of the following.
NI PXI-8105
USB-to-dual-PS/2 keyboard/mouse adapter cable ..............778713-02
External USB CD-ROM/DVD-ROM drive ..............................778492-01
External USB floppy drive......................................................778492-02
Spare DVI-I to VGA adapter ..................................................778713-03
Parallel port adapter cable (6 in.)..........................................777169-01
Micro-GPIB to GPIB adapter cable (0.2 m) ........................183285-0R2
Micro-GPIB to GPIB cable (1 m) ............................................183285-01
Micro-GPIB to GPIB cable (2 m) ............................................183285-02
ExpressCard strain-relief accessory
Base ..................................................................................779917-xx
Extended Temperature ......................................................779918-xx
Step 2. Replace “xx” to select installed OS.
01....................................................Windows XP Professional (English)
00..................................................Localized Windows XP or Other OS1
1Contact National Instruments or visit ni.com/pxiadvisor for the latest
operating systems.
for embedded controllers..................................................192524-01
NI FPT-1015 15 in. flat panel touch screen with VGA
Step 3. Memory upgrades – select the amount of
upgrade memory.
Interface and USB ............................................................779560-01
2For additional peripheral modules, including serial, IEEE 1394, and SCSI modules,
visit ni.com/pxiadvisor.
Standard:
512 MB (1 x 512 MB DIMM)
Recommended upgraded memory configurations:
1 GB (1 x 512 MB DIMM must be purchased)
2 GB (2 x 1 GB DIMMs must be purchased)
BUY NOW!
For complete product specifications, pricing, and accessory
information, call 800 813 3693 (U.S.) or go to ni.com/pxi.
Specifications
Specifications subject to change without notice.
Features
Processor................................................................................ Intel Core Duo Processor T2500 (2.0 GHz Dual Core)
Chipset ................................................................................... Mobile Intel 945GM Express chipset
Ethernet.................................................................................. 10/100/1000BASE-TX, RJ45 connector
Video ...................................................................................... Intel Graphics Media Accelerator 950
Serial...................................................................................... 1 (RS232)
Parallel port............................................................................ IEEE 1284 Type C connector (miniature) (adapter cable not included)
GPIB ....................................................................................... PCI-GPIB/TNT, micro D25 connector
IEEE 488 and HS488 transfers (adapter cable not included)
Hi-Speed USB ........................................................................
RAM ....................................................................................... 2 SO-DIMM sockets, DDR2 SDRAM, PC2 5400
512 MB (1 x 512 DIMM) standard, 4 GB (2 x 2 GB DIMMs) maximum
4
Hard drive
Base................................................................................... 60 GB minimum, internal 2.5 in., 9.5 mm Serial ATA 1.0 interface
Extended temperature option............................................ 30 GB minimum, internal 2.5 in., 9.5 mm Fast Ultra ATA100 interface
V (I/O) keying ......................................................................... Chassis V (I/O) = +5 VDC (blue key)
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
4
2.0 GHz Dual-Core Embedded Controller for PXI
Power Requirements
Current (A)
Voltage (V)
Typical
Maximum
+3.3
+5
+12
-12
2.8
5
0.002
0
3.5
7.6
0.01
0
Physical
Board dimensions .................................................................. PXI 3U-size module, 8.1 by 13 by 21.6 cm (3.2 by 5.1 by 8.5 in.)
Slot requirements .................................................................. 1 system slot, 3 controller expansion slots
Compatibility.......................................................................... Fully compatible with PXI Specification 2.0
Weight.................................................................................... 0.94 kg (2.1 lb) typical
Environment
Maximum altitude.................................................................. 2,000 m (at 25 °C ambient temperature)
Pollution degree.....................................................................
Indoor use only.
2
Operating Environment
Ambient temperature1
Base................................................................................... 5 to 50 °C2 (tested in accordance with IEC-60068-2-1 and IEC-60068-2-2)
Extended temperature....................................................... 0 to 55 °C (tested in accordance with IEC-60068-2-1 and IEC-60068-2-2)
Relative humidity................................................................... 10 to 90% noncondensing (tested in accordance with IEC-60068-2-56)
1For chassis that are not available in the online catalog at ni.com, contact National Instruments for supported operating temperatures.
25 to 40 °C for the PXI-1000B DC.
Storage Environment
Ambient temperature
Base................................................................................... -40 to 65 °C (tested in accordance with IEC-60068-2-1 and IEC-60068-2-2)
Extended temperature....................................................... -40 to 85 °C (tested in accordance with IEC-60068-2-1 and IEC-60068-2-2)
Relative humidity................................................................... 5 to 95% noncondensing (tested in accordance with IEC-60068-2-56)
Shock and Vibration
Operational shock.................................................................. 30 g peak, half-sine, 11 ms pulse (tested in accordance with IEC-60068-2-27;
test profile developed in accordance with MIL-PRF-28800F)
Random vibration
Operating........................................................................... 5 to 500 Hz, 0.3 grms (with solid-state hard drive)
Nonoperating..................................................................... 5 to 500 Hz, 2.4 grms (tested in accordance with IEC-60068-2-64; nonoperating test
profile exceeds the requirements of MIL-PRF-28800F, Class 3)
Safety Compliance
EN 61010-1, IEC 61010-1, UL 61010-01, CSA 61010-1
Electromagnetic Compatibility
Refer to the Declaration of Conformity (DoC) for regulatory compliance information. To obtain the DoC for this product, click Declaration
of Conformity at ni.com/certification.
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
5
NI Services and Support
NI has the services and support to meet
Local Sales and Technical Support
your needs around the globe and through
the application life cycle – from planning
and development through deployment
and ongoing maintenance. We offer
services and service levels to meet
customer requirements in research,
design, validation, and manufacturing.
Visit ni.com/services.
In offices worldwide, our staff is local to the country, giving you access
to engineers who speak your language. NI delivers industry-leading
technical support through online knowledge bases, our applications
engineers, and access to 14,000 measurement and automation
professionals within NI Developer Exchange forums. Find immediate
answers to your questions at ni.com/support.
We also offer service programs that provide automatic upgrades to
your application development environment and higher levels of technical
support. Visit ni.com/ssp.
Training and Certification
NI training is the fastest, most certain route to productivity with our
products. NI training can shorten your learning curve, save development
time, and reduce maintenance costs over the application life cycle. We
schedule instructor-led courses in cities worldwide, or we can hold a
course at your facility. We also offer a professional certification program
Hardware Services
NI Factory Installation Services
NI Factory Installation Services (FIS) is the fastest and easiest way to
use your PXI or PXI/SCXI combination systems right out of the box.
that identifies individuals who have high levels of skill and knowledge on Trained NI technicians install the software and hardware and configure
using NI products. Visit ni.com/training.
the system to your specifications. NI extends the standard warranty by
one year on hardware components (controllers, chassis, modules)
purchased with FIS. To use FIS, simply configure your system online
with ni.com/pxiadvisor.
Professional Services
Our NI Professional Services team is composed of NI applications
and systems engineers and a worldwide National Instruments Alliance
Partner program of more than 600 independent consultants and
integrators. Services range
Calibration Services
NI recognizes the need to maintain properly calibrated devices for
high-accuracy measurements. We provide manual calibration
procedures, services to recalibrate your products, and automated
calibration software specifically designed for use by metrology
laboratories. Visit ni.com/calibration.
from start-up assistance to
turnkey system integration.
Visit ni.com/alliance.
OEM Support
We offer design-in consulting and product integration assistance if you
want to use our products for OEM applications. For information about
special pricing and services for OEM customers, visit ni.com/oem.
Repair and Extended Warranty
NI provides complete repair services for our products. Express repair
and advance replacement services are also available. We offer
extended warranties to help you meet project life-cycle requirements.
Visit ni.com/services.
ni.com • 800 813 3693
*351339B-01*
351339B-001
2007-9288-501-101-D
National Instruments • info@ni.com
© 2007 National Instruments Corporation. All rights reserved. HS488, LabVIEW, National Instruments, National Instruments Alliance Partner, NI TestStand, NI, ni.com, and SCXI are
trademarks of National Instruments. Other product and company names listed are trademarks or trade names of their respective companies. A National Instruments Alliance
Partner is a business entity independent from NI and has no agency, partnership, or joint-venture relationship with NI.
厂商 型号 描述 页数 下载

NI

 		PXI-1033 PXI机箱，集成MXI- Express远程控制器[ PXI Chassis with Integrated MXI-Express Remote Controller ] 6 页

NI

 		PXI-1050 PXI机箱，集成了信号调理[ PXI Chassis with Integrated Signal Conditioning ] 5 页

NI

 		PXI-1052 PXI机箱，集成了信号调理[ PXI Chassis with Integrated Signal Conditioning ] 5 页

ETC

 		PXI-2000 4 - CH十六分之十四位最多2 MS / s同步采样多功能数据采集卡[ 4-CH 14/16-Bit Up to 2 MS/s Simultaneous-Sampling Multi-Function DAQ Cards ] 2 页

ETC

 		PXI-2005 [ Supports a 32-bit 3.3 V or 5 V PCI bus (DAQ-2000 series) ] 3 页

ETC

 		PXI-2006 [ Supports a 32-bit 3.3 V or 5 V PCI bus (DAQ-2000 series) ] 3 页

ETC

 		PXI-2010 [ Supports a 32-bit 3.3 V or 5 V PCI bus (DAQ-2000 series) ] 3 页

ETC

 		PXI-2020 8月16日，通道16位250 kS / s的同步采样数据采集卡[ 8/16-CH 16-Bit 250 KS/s Simultaneous Sampling DAQ Cards ] 2 页

ETC

 		PXI-2022 8月16日，通道16位250 kS / s的同步采样数据采集卡[ 8/16-CH 16-Bit 250 KS/s Simultaneous Sampling DAQ Cards ] 2 页

ETC

 		PXI-2200 64通道12位/ 16位最多3个MS / s的多功能数据采集卡[ 64-CH 12/16-Bit Up to 3 MS/s Multi-Function DAQ Cards ] 2 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.201597s
