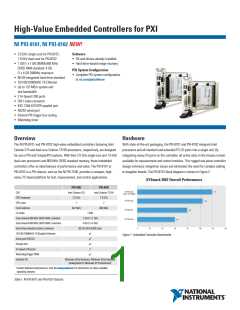

High-Value Embedded Controllers for PXI

NI PXI-8101, NI PXI-8102 NEW!

◾◾

2.0 GHz single-core for PXI-8101,

1.9 GHz dual-core for PXI-8102

1 GB (1 x 1 GB DIMM) 800 MHz

DDR2 RAM standard, 4 GB

(1 x 4 GB DIMMs) maximum

80 GB integrated hard-drive standard

10/100/1000BASE-TX Ethernet

Up to 132 MB/s system and

slot bandwidth

Software

◾◾

OS and drivers already installed

◾◾

Hard-drive-based image recovery

PXI System Conﬁguration

◾◾

Complete PXI system configuration

◾◾

at ni.com/pxiadvisor

◾◾

2 Hi-Speed USB ports

DVI-I video connector

IEEE 1284 ECP/EPP parallel port

RS232 serial port

Internal PXI trigger bus routing

Watchdog timer

Overview

Hardware

The NI PXI-8101 and PXI-8102 high-value embedded controllers featuring Intel

Celeron 575 and dual-core Celeron T3100 processors, respectively, are designed

for use in PXI and CompactPCI systems. With their 2.0 GHz single-core and 1.9 GHz

dual-core processors and 800 MHz DDR2 standard memory, these embedded

controllers offer an ideal balance of performance and value. The PXI-8101 or

PXI-8102 in a PXI chassis, such as the NI PXI-1036, provides a compact, high-

value, PC-based platform for test, measurement, and control applications.

With state-of-the-art packaging, the PXI-8101 and PXI-8102 integrate Intel

processors and all standard and extended PC I/O ports into a single unit. By

integrating many I/O ports on the controller, all active slots in the chassis remain

available for measurement and control modules. This rugged one-piece controller

design minimizes integration issues and eliminates the need for complex cabling

to daughter boards. The PXI-8101 block diagram is shown in Figure 2.

SYSmark 2007 Overall Performance

PXI-8101

Intel Celeron 575

2.0 GHz

PXI-8102

Intel Celeron T3100

1.9 GHz

NI PXI-8106

117

CPU

(with 1 GB RAM)

CPU frequency

NI PXI-8102

NI PXI-8101

NI PXI-8104

105

CPU cores

Front-side bus

667 MHz

800 MHz

L2 cache

1 MB

Dual-channel 800 MHz DDR2 RAM, standard

Dual-channel 800 MHz DDR2 RAM, maximum

Hard drive (standard option), minimum

10/100/1000BASE-TX (Gigabit) Ethernet

Serial port (RS232)

1 GB (1 x 1 GB)

4 GB (1 x 4 GB)

100

120

140

80 GB SATA (5400 rpm)

Figure 1. Embedded Controller Benchmarks

Parallel Port

Hi-Speed USB ports

Watchdog/trigger SMB

Installed OS

Windows Vista Business, Windows Vista Business

(downgraded to Windows XP Professional)¹

¹Contact National Instruments or visit ni.com/pxiadvisor for information on other available

operating systems.

Table 1. NI PXI-8101 and PXI-8102 Features

High-Value Embedded Controllers for PXI

Peripheral I/O

Hard-Drive-Based Recovery Image

These controllers include high-performance peripheral I/O such as

10/100/1000BASE-TX (Gigabit) Ethernet and two Hi-Speed USB ports for

connection to a keyboard, a mouse, a CD-ROM/DVD-ROM drive for software

installation, or other standard PC peripherals such as speakers, printers, or

memory sticks. Use the IEEE 1284 ECP/EPP parallel port to connect to a wide

variety of devices, including tape backup drives, printers, and scanners. An

RS232 port is available for connecting to serial devices.

PXI-8101 and PXI-8102 embedded controllers are shipped with a factory image of

the software installation stored on a separate partition of the hard drive. In the

case of software corruption, you can invoke a recovery tool during the controller’s

boot-up process that can use this backup image to restore the controller to its

shipping software configuration. You also can use this recovery tool to create

custom images that you can store on external mass storage devices such as a

USB memory stick, USB hard drives, and USB CD/DVD drives. With this ability,

you can create custom backup images that you can use to either recover the

specific embedded controller or replicate the installation on other similar

controllers. For more information on this tool, refer to KnowledgeBase 2ZKC02OK.

Memory

The PXI-8101 and PXI-8102 use 800 MHz DDR2 SDRAM, which makes the

controllers ideal for data-intensive applications requiring significant analysis.

They have a single SO-DIMM socket for the DDR2 SDRAM. 1 GB (1 x 1 GB

DIMM) of RAM is standard with upgrade options to 4 GB.

Socket 479

CPU

Video

The PXI-8101 and PXI-8102 include a Mobile Intel GM45 Express Chipset

(Graphics and Memory Controller Hub) that has an integrated graphics

processing unit. It delivers intense, realistic 3D graphics with sharp images, fast

rendering, smooth motion, and high detail, without the need for an additional

video card or peripheral. This unique architecture provides balanced memory

usage between graphics and the system for optimal performance. Additionally,

the PXI-8101 and PXI-8102 feature a DVI-I video connector that is compatible

with digital (DVI) and analog video (VGA) monitors. A DVI-I to VGA adapter is

included with the controller for use with VGA monitors.

Chipset

SO-DIMM

DDR2 SDRAM

PC2-6400

Graphics

Memory

Controller

Hub

Single CH

DVI-I

Connector

DMI

Flash ROM

2 Hi-Speed

USB

Connectors

PXI

Connector

Chipset

I/O

Controller

Hub

PCI Bus

PXI

Tr igger

SATA

Dual Monitor Support

LPC Bus

Gigabit

Ethernet

The DVI-I video port on the PXI-8101 and PXI-8102 is capable of supporting

simultaneous DVI and VGA outputs. With this built-in capability, you can

connect a digital and an analog monitor to your PXI system at the same time

with independent displays. This negates the need for a separate PXI or

CompactPCI video module to connect two monitors to your PXI system.

A DVI-I (male) to DVI-D (female) and VGA (female) splitter is required for

connecting the two monitors.

SMB to

PXI Tr igger

LPT 1

Super I/O

Watchdog

Timer

COM 1

SMB

Figure 2. NI PXI-8101 Block Diagram

BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)

High-Value Embedded Controllers for PXI

Software

Ordering Information

The PXI-8101 and PXI-8102 come with the following minimum set of software

already installed:

For online configuration of a complete PXI system, including NI system

assurance programs, visit ni.com/pxiadvisor.

◾◾

Microsoft Windows OS (contact National Instruments or visit

Step 1. Select controller model.

ni.com/pxiadvisor for a list of available Microsoft OSs and

NI PXI-8101 .................................................................................... 780955-xx

NI PXI-8102 .................................................................................... 781149-xx

Step 2. Replace “xx” to select installed OS.

for localized versions)

◾◾

NI-VISA and NI-488.2 drivers

◾◾

Drivers for all built-in I/O ports (Table 1)

Windows Vista Business (English).............................................................-02

Windows Vista – downgraded to Windows XP

System Assurance Programs

Professional (English)........................................................................-01

NI system assurance programs are designed to make it even easier for you

to own an NI system. These programs include configuration and deployment

services for your NI PXI, CompactRIO, or Compact FieldPoint system. The NI Basic

System Assurance Program provides a simple integration test and ensures that

your system is delivered completely assembled in one box. When you configure

your system with the NI Standard System Assurance Program, you can select

from available NI system driver sets and application development environments

to create customized, reorderable software configurations. Your system arrives

fully assembled and tested in one box with your software reinstalled. When

you order your system with the standard program, you also receive system-

specific documentation including a bill of materials, an integration test report,

a recommended maintenance plan, and frequently asked question documents.

Finally, the standard program reduces the total cost of owning an NI system

by providing three years of warranty coverage and calibration service. Use the

online product advisors at ni.com/advisor to find a system assurance program

to meet your needs.

Localized Windows XP or Other OS¹..........................................................-00

¹Contact National Instruments or visit ni.com/pxiadvisor for the latest operating systems.

Step 3. Memory upgrades – select the amount of upgrade memory.

Standard:

1 GB (1 x 1 GB DIMM)

Recommended upgraded memory configurations:

2 GB (1 x 2 GB DIMM must be purchased)

4 GB (1 x 4 GB DIMM must be purchased)

2 GB DDR2 RAM ........................................................................780446-2048

4 GB DDR2 RAM ........................................................................780446-4096

Step 4. Select Accessories.

80 GB (or greater) 2.5 in. SATA HDD spare/replacement..............779175-03

32 GB 2.5 in. SATA solid-state hard-drive upgrade.......................779175-08

250 GB (or greater) 2.5 in. SATA hard-drive upgrade ....................779175-06

DVI-I (male) to DVI-D (female) and VGA (female) splitter .............780868-01

USB-to-dual-PS/2 keyboard/mouse adapter cable........................778713-02

External USB CD-ROM/DVD-ROM drive........................................778492-01

External USB floppy drive ..............................................................778492-02

USB English keyboard and optical mouse .....................................779660-01

Parallel port adapter cable (6 in.)...................................................777169-01

NI MKD-1117 (rack-mount 1U LCD monitor,

keyboard, mouse drawer)......................................................779872-01

NI FPM-1017 (17 in. flat panel monitor) ........................................779559-01

NI FPT-1015 (flat panel touch screen with

VGA interface and USB)........................................................779560-01

²For additional peripheral I/O modules, including serial, IEEE 1394, and SCSI,

visit ni.com/pxiadvisor.

BUY NOW

For complete product speciﬁcations, pricing, and accessory information,

call 800 813 3693 (U.S.) or go to ni.com/pxi.

BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)

High-Value Embedded Controllers for PXI

Environment

Maximum altitude................................. 2,000 m (800 mbar)

Specifications

Specifications subject to change without notice.

(at 25 °C ambient temperature)

Features

Processor

Pollution degree....................................

Indoor use only.

PXI-8101............................................ Intel Celeron 575 2.0 GHz

PXI-8102............................................ Intel Celeron T3100 Dual Core 1.9 GHz

Chipset .................................................. Mobile Intel GM45 Express Chipset

Front-side bus

Operating Environment

Ambient temperature range¹................ 5 to 50 °C^{2, 3}

(tested in accordance with

IEC-60068-2-1 and IEC-60068-2-2)

Relative humidity range........................ 10 to 90% noncondensing

(tested in accordance with

PXI-8101............................................ 667 MHz

PXI-8102............................................ 800 MHz

System memory (RAM)

IEC-60068-2-56)

¹For chassis that are not available in the online catalog at ni.com, contact

National Instruments for supported operating temperatures.

²5 to 40 °C for the NI PXI-1000B DC.

³Processor should not throttle CPU frequency under reasonable, worst case

processor workloads in high operating temperature.

Standard ........................................... 1 GB 800 MHz DDR2 RAM PC2 6400

Maximum.......................................... 4 GB 800 MHz DDR2 RAM PC2 6400

Ethernet................................................. 10/100/1000BASE-TX, RJ45 connector

Hard drive.............................................. 80 GB minimum, 5400 rpm, internal

2.5 in., 9.5 mm Serial ATA 1.0 interface

Storage Environment

Ambient temperature range.................. -40 to 65 °C

Video ..................................................... Integrated Graphics (Mobile Intel

GM45 Express Chipset)

(tested in accordance with

Serial..................................................... 1 (RS232)

Parallel .................................................. IEEE 1284 Type C miniature connector

(adapter cable not included)

IEC-60068-2-1 and IEC-60068-2-2)

Relative humidity range........................ 5 to 95% noncondensing

(tested in accordance

Hi-Speed USB........................................

with IEC-60068-2-56)

Power Requirements

Shock and Vibration

Current (A)

Operating shock .................................... 30 g peak, half-sine, 11 ms pulse

Typical

Voltage

Maximum

(tested in accordance with

(V)

+3.3

PXI-8101

PXI-8102

2.50

PXI-8101

3.6

PXI-8102

4.80

IEC-60068-2-27; test profile developed

in accordance with MIL-PRF-28800F)

Random vibration

2.25

3.50

4.00

6.6

7.80

+12

-12

0.001

0.0

0.001

0 .0

0.075

0.0

0.075

0.0

Operating.......................................... 5 to 500 Hz, 0.3 g_rms

(with solid-state hard drive)

Nonoperating.................................... 5 to 500 Hz, 2.4 g_rms

(tested in accordance with

Physical

Board dimensions.................................. 2-slot 3U PXI module,

IEC-60068-2-64; nonoperating test

profile exceeds the requirements of

MIL-PRF-28800F, Class 3)

4.0 by 13 by 21.6 cm

(1.59 by 5.1 by 8.5 in.)

Slot requirements.................................. One system slot plus one controller

expansion slot

Compatibility......................................... Fully compatible with PXI Specification

Weight................................................... 0.645 kg (1.42 lb) typical

BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)

High-Value Embedded Controllers for PXI

Safety Compliance

◾◾

IEC 61010-1, EN 61010-1

◾◾

UL 61010-01, CSA 61010-1

Electromagnetic Compatibility

◾◾

EN 61326 (IEC 61326): Class A emissions; Basic immunity

◾◾

EN 55011 (CISPR 11): Group 1, Class A emissions

◾◾

AS/NZS CISPR 11: Group 1, Class A emissions

◾◾

FCC 47 CFR Part 15B: Class A emissions

◾◾

ICES-001: Class A emissions

CE Compliance

This product meets the essential requirements of applicable European Directives,

as amended for CE marking, as follows:

◾◾

2006/95/EC; Low-Voltage Directive (safety)

◾◾

2004/108/EC; Electromagnetic Compatibility Directive (EMC)

Note: Refer to the Declaration of Conformity (DoC) for this product for any

additional regulatory compliance information. To obtain the DoC for this product,

visit ni.com/certification, search by model number or product line, and click

the appropriate link in the Certification column.

Waste Electrical and Electronic Equipment (WEEE)

EU Customers: At the end of their life cycle, all products must be sent to a

WEEE recycling center. For more information about WEEE recycling centers and

National Instruments WEEE initiatives, visit ni.com/environment/weee.htm.

BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)

NI Services and Support

NI has the services and support to meet

Local Sales and Technical Support

In offices worldwide, our staff is local to the country, giving you access to

engineers who speak your language. NI delivers industry-leading technical

support through online knowledge bases, our applications engineers,

and access to 14,000 measurement and automation professionals within NI

Developer Exchange forums. Find immediate answers to your questions at

ni.com/support.

your needs around the globe and through

the application life cycle – from planning

and development through deployment and

SERVICE

NEEDS

ongoing maintenance. We offer services

and service levels to meet customer

requirements in research, design, validation,

and manufacturing.

We also offer service programs that provide automatic upgrades to your

application development environment and higher levels of technical support.

Visit ni.com/ssp.

Visit ni.com/services.

Training and Certification

NI training is the fastest, most certain route to productivity with our products.

NI training can shorten your learning curve, save development time, and reduce

maintenance costs over the application life cycle. We schedule instructor-led

courses in cities worldwide, or we can hold a course at your facility. We also

offer a professional certification program that identifies individuals who have

high levels of skill and knowledge on using NI products.

Hardware Services
