PXI-6682

型号：

PXI-6682

描述：

GPS， IEEE 1588和IRIG -B的定时和同步模块的PXI和PXI Express[ GPS, IEEE 1588, and IRIG-B Timing and Synchronization Modules for PXI and PXI Express ]

品牌：

NI[ National Instruments ]

页数：

4 页

PDF大小：

702 K

下载PDF手册

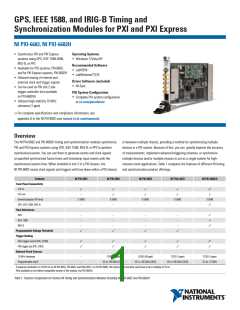

GPS, IEEE 1588, and IRIG-B Timing and
Synchronization Modules for PXI and PXI Express
NI PXI-6682, NI PXI-6682H
◾◾
Synchronize PXI and PXI Express
systems using GPS, IEEE 1588-2008,
IRIG-B, or PPS
Available for PXI systems, PXI-6682,
and for PXI Express systems, PXI-6682H
Onboard routing of internal and
external clock and trigger signals
Can be used as PXI slot 2 star
trigger controller (not available
on PXI-6682H)
Operating Systems
◾◾
Windows 7/Vista/XP
Recommended Software
◾◾
◾◾
◾◾
◾◾
LabVIEW
™
◾◾
LabWindows /CVI
Driver Software (included)
◾◾
NI-Sync
PXI System Configuration
◾◾
Complete PXI system configuration
◾◾
Onboard high-stability 10 MHz
reference (1 ppm)
at ni.com/pxiadvisor
>>For complete specifications and compliance information, see
appendix A in the NI PXI-6682 user manual at ni.com/manuals.
Overview
The NI PXI-6682 and PXI-6682H timing and synchronization modules synchronize
PXI and PXI Express systems using GPS, IEEE 1588, IRIG-B, or PPS to perform
synchronized events. You can use them to generate events and clock signals
at specified synchronized future times and timestamp input events with the
synchronized system time. When installed in slot 2 of a PXI chassis, the
NI PXI-6682 routes clock signals and triggers with low skew within a PXI chassis
or between multiple chassis, providing a method for synchronizing multiple
devices in a PXI system. Because of this, you can greatly improve the accuracy
of measurements, implement advanced triggering schemes, or synchronize
multiple devices and/or multiple chassis to act as a single system for high-
channel-count applications. Table 1 compares the features of different NI timing
and synchronization product offerings.
Features
Front Panel Connectivity
CLK in
NI PXI-6651
NI PXI-6652
NI PXI-6653
NI PXIe-6672
NI PXI-6682/H
3
–
3
3
3
3
3
3
32
3
CLK out
General-purpose PFI lines
GPS, IEEE 1588, IRIG-B
Time References
GPS
2 SMB
–
6 SMB
–
6 SMB
–
6 SMB
–
3 SMB
3
–
–
–
–
–
–
–
–
3
3
3
IEEE 1588
IRIG-B
–
–
–
–
Programmable Voltage Threshold
Trigger Routing
3
3
3
3
Star trigger source (PXI_STAR)
PXI trigger bus (PXI_TRIG)
Onboard Clock Sources
10 MHz timebase
3
3
3
3
3
3
3
3
32
3
–
–
TCXO (1 ppm)
OCXO (50 ppb)
TCXO (1 ppm)
TCXO (1 ppm)
DC to 1.5 MHz
Programmable clock1
DC to 105 MHz (DDS)
DC to 105 MHz (DDS)
DC to 105 MHz (DDS)
1Frequency resolution of <0.075 Hz for NI PXI-6652, PXI-6653, and PXIe-6672. For NI PXI-6682, the clock period and duty cycle have to be a multiple of 10 ns.
2Not available on the hybrid-compatible version of the module, the PXI-6682H.
Table 1. Features Comparison for Various NI Timing and Synchronization Modules Including the PXI-6682 and PXI-6682H
GPS, IEEE 1588, and IRIG-B Timing and Synchronization Modules for PXI and PXI Express
Synchronize PXI and PXI Express Systems
Using GPS, IEEE 1588, or IRIG-B
With the PXI-6682 and PXI-6682H, you can use GPS, IEEE 1588, IRIG-B, or PPS
signals as the time reference to synchronize with other devices or PXI and
PXI Express systems. You have not only a synchronized clock for multiple PXI
and PXI Express systems but also a common time reference. Because of this,
you can generate synchronized future time events and timestamp incoming
signals with the synchronized time.
The GPS receiver on the PXI-6682 and PXI-6682H can power an active GPS
antenna and receive and process the RF signals (1.575 GHz) from satellites. It
generates a very precise pulse-per-second (PPS) signal that the PXI-6682 and
PXI-6682H use to achieve submicrosecond synchronization. Because of this,
Figure 2. Functional Overview of the PXI-6682
you can use the PXI-6682 and PXI-6682H to synchronize spatially located PXI
and PXI Express systems as long as GPS satellites are visible to the antenna
from those locations. Furthermore, once the PXI-6682 and PXI-6682H are
synchronized to GPS, they can function as IEEE 1588 grandmasters to achieve
synchronization of external 1588 devices. NI-Sync 3.1 or later supports
IEEE 1588-2008. NI-Sync 3.0 is available on the Web for those who need
IEEE 1588-2002 support.
Note: The PXI-6682H does not have PXI_STAR trigger lines, shown as
PXI_STAR<0..12> in Figure 2. The PXI-6682H does not have the CLKIN circuitry
or the ability to drive PXI_CLK10_IN.
Star Trigger Bus
10 MHz
Clock
PXI-6682 as a Star Trigger Controller
The PXI-6682 provides full control of the timing and synchronization features
of the PXI backplane (Figure 3). To act as a PXI star trigger controller or to offer
a high-accuracy, free-running 10 MHz reference clock, the PXI-6682 must be
installed in slot 2 of the PXI chassis, as shown in Figure 1. It is capable of routing
signals to and from the front panel, the PXI star triggers, and the PXI triggers.
In addition, you can invert the polarity of the destination signal, which is useful
when handling active-low digital signals. The PXI-6682 can also route a 10 MHz
clock from CLKIN to the PXI 10 MHz reference clock and route the TCXO or PXI
10 MHz reference clock to CLKOUT. Refer to Figure 2 for the PXI-6682 functional
block diagram.
Local
Bus
132 MB/s, 33 MHz, 32-Bit PCI Bus
PXI Trigger Bus
Figure 3. Diagram of Synchronization Features in the PXI Backplane
Synchronizing PXI Express Systems
with the PXI-6682H
You can use the PXI-6682H in any PXI hybrid-compatible slot in PXI Express
chassis with PXI hybrid slots. By using the PXI-6682H in such a system, you
can timestamp events and create future time events on the PXI_TRIG lines as
well as reference your system time to GPS, IEEE 1588, or IRIG-B. The PXI-6682H
is essentially the same module as the PXI-6682 except NI has removed one
connector so the PXI-6682H can plug into PXI Express systems. For this reason,
you cannot drive PXI_CLK10, the PXI_STAR trigger lines, or any of the PXI
Express clocks and triggers. If you wish to override CLK_10 in a PXI Express
system, you can route a coaxial cable from CLKOUT on the PXI-6682H to the
10 MHz clock input on the rear of the PXI Express chassis (if the chassis you
have selected has this input). To drive the PXI_STAR trigger lines, you must also
incorporate a PXI Express timing module such as the NI PXIe-6672.
Figure 1. The PXI-6682 is connected to an active GPS antenna and installed in a system
timing slot (slot 2) of an NI PXI-1042 chassis.
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
2
GPS, IEEE 1588, and IRIG-B Timing and Synchronization Modules for PXI and PXI Express
Synchronization Accuracy
NI-Sync Software
Table 2 lists the synchronization accuracy that the PXI-6682 and PXI-6682H offer
while operating in various modes.
The included NI-Sync driver software provides powerful yet easy-to-use control
of PXI-6682 and PXI-6682H modules. You can use NI application development
environment (ADE) software such as LabVIEW or LabWindows/CVI, or other
ADEs such as Visual C/C++, for programming the PXI-6682 and PXI-6682H.
For NI-Sync example programs, visit ni.com/examples.
Mode1
Synchronization Accuracy
±100 ns, <13 ns std deviation
±±7 ns, <10 ns std deviation
±210 ns, <35 ns std deviation
±25 ꢀs, <150 ns std deviation
±55 ns, <13 ns std deviation
±1 ꢀs, <220 ns std deviation
±5 ꢀs, <500 ns std deviation
±±7 ns, <10 ns std deviation
GPS2
IEEE 1588 3 m Ethernet direct connection3
IEEE 1588 via hub3,±
IEEE 1588 via switch3,5
IRIG-B DC
>>For complete specifications and compliance information, see
appendix A in the NI PXI-6682 user manual at ni.com/manuals.
IRIG-B AM matching6,7
IRIG-B AM to source7
PPS
Ordering Information
NI PXI-6682 (GPS, IEEE 1588, IRIG-B) ............................................779929-01
NI PXI-6682H (GPS, IEEE 1588, IRIG-B)..........................................781059-01
GPS antenna with 30 m coaxial cable...........................................19630±-30
SMB 200
1All synchronization measurements were done by recording the offset between PPS signals generated
by two PXI-6682 modules inside a closed NI PXI-1031 chassis at ambient room temperature conditions.
Synchronization was performed for 15 minutes before testing began. All test durations were 12 hours.
2For the GPS test, two PXI-6682 modules were independently synchronized to GPS and configured to
generate a PPS signal. The specification above represents empirical results. Please note that GPS
satellites are guaranteed to be within only 100 ns of UTC. Therefore, the offset between any two
synchronized devices can be as high as 200 ns plus the offset of that device to GPS.
3Sync interval of 1 second was used for IEEE 1588 tests, and all Ethernet connections were 100 Mb/s.
±Netgear DS10± hub used.
SMB plug to SMB plug coax, 50 W, 1 m ..............................188859-01
SMB 210
Dual SMB plug to dual SMB plug coax, 50 W, 1 m..............188858-01
5Airlink101 gigabit over copper switch used. For this test, a moderate amount of non-1588 Ethernet
traffic was present on the switch.
6IRIG-B AM matching specification was obtained by setting two PXI-6682 modules to synchronize
independently to the same IRIG-B AM source and generate a PPS signal. The offset between their
PPS signals was then measured over a 12-hour period.
BUY NOW
For complete product specifications, pricing, and accessory information,
7IRIG-B performance depends on IRIG-B source stability and quality.
call 800 813 3693 (U.S.) or go to ni.com/pxi.
Table 2. NI PXI-6682 and PXI-6682H Synchronization Accuracy
High-Stability 10 MHz Timebase
When configured as a star trigger controller, the PXI-6682 can override the
built-in 10 MHz reference clock on a PXI chassis. Most PXI chassis provide a
10 MHz reference clock with 25 ppm accuracy (10 MHz ±250 Hz). This accuracy
is improved to 1 ppm with the PXI-6682. Many modules, such as NI PXI-5xxx
modular instruments, have phase-locked loop (PLL) circuitry to synchronize with
the 10 MHz reference clock.
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
3
NI Services and Support
NI has the services and support to meet
Local Sales and Technical Support
In offices worldwide, our staff is local to the country, giving you access to
engineers who speak your language. NI delivers industry-leading technical
support through online knowledge bases, our applications engineers,
and access to 1±,000 measurement and automation professionals within NI
Developer Exchange forums. Find immediate answers to your questions at
ni.com/support.
I
your needs around the globe and through
A
the application life cycle – from planning
and development through deployment and
SERVICE
NEEDS
ongoing maintenance. We offer services
and service levels to meet customer
requirements in research, design, validation,
and manufacturing.
P
E
V
Y
We also offer service programs that provide automatic upgrades to your
application development environment and higher levels of technical support.
Visit ni.com/ssp.
Visit ni.com/services.
Training and Certification
NI training is the fastest, most certain route to productivity with our products.
NI training can shorten your learning curve, save development time, and reduce
maintenance costs over the application life cycle. We schedule instructor-led
courses in cities worldwide, or we can hold a course at your facility. We also
offer a professional certification program that identifies individuals who have
high levels of skill and knowledge on using NI products.
Hardware Services
System Assurance Programs
NI system assurance programs are designed to make it even easier for you
to own an NI system. These programs include configuration and deployment
services for your NI PXI, CompactRIO, or Compact FieldPoint system. The NI Basic
System Assurance Program provides a simple integration test and ensures that
your system is delivered completely assembled in one box. When you configure
your system with the NI Standard System Assurance Program, you can select
from available NI system driver sets and application development environments
to create customized, reorderable software configurations. Your system arrives
fully assembled and tested in one box with your software preinstalled. When
you order your system with the standard program, you also receive system-
specific documentation including a bill of materials, an integration test report,
a recommended maintenance plan, and frequently asked question documents.
Finally, the standard program reduces the total cost of owning an NI system
by providing three years of warranty coverage and calibration service. Use the
online product advisors at ni.com/advisor to find a system assurance program
to meet your needs.
Visit ni.com/training.
Professional Services
Our NI Professional Services team is composed of NI applications and systems
engineers and a worldwide National Instruments Alliance Partner program of
more than 600 independent consultants and integrators. Services range from
start-up assistance to turnkey system
integration. Visit ni.com/alliance.
OEM Support
We offer design-in consulting and product integration assistance if you want to
use our products for OEM applications. For information about special pricing and
services for OEM customers, visit ni.com/oem.
Calibration Services
NI recognizes the need to maintain properly calibrated devices for high-
accuracy measurements. We provide manual calibration procedures, services
to recalibrate your products, and automated calibration software specifically
designed for use by metrology laboratories. Visit ni.com/calibration.
Repair and Extended Warranty
NI provides complete repair services for our products. Express repair and
advance replacement services are also available. We offer extended warranties
to help you meet project life-cycle requirements. Visit ni.com/services.
n
ni.com 800 813 3693
n
National Instruments info@ni.com
©2009 National Instruments. All rights reserved. CVI, LabVIEW, FieldPoint, National Instruments, National Instruments Alliance Partner, NI, and ni.com are trademarks of National Instruments. The mark LabWindows is used under a
license from Microsoft Corporation. Windows is a registered trademark of Microsoft Corporation in the United States and other countries. Other product and company names listed are trademarks or trade names of their respective
companies. A National Instruments Alliance Partner is a business entity independent from National Instruments and has no agency, partnership, or joint-venture relationship with National Instruments. 0718
厂商 型号 描述 页数 下载

NI

 		PXI-1033 PXI机箱，集成MXI- Express远程控制器[ PXI Chassis with Integrated MXI-Express Remote Controller ] 6 页

NI

 		PXI-1050 PXI机箱，集成了信号调理[ PXI Chassis with Integrated Signal Conditioning ] 5 页

NI

 		PXI-1052 PXI机箱，集成了信号调理[ PXI Chassis with Integrated Signal Conditioning ] 5 页

ETC

 		PXI-2000 4 - CH十六分之十四位最多2 MS / s同步采样多功能数据采集卡[ 4-CH 14/16-Bit Up to 2 MS/s Simultaneous-Sampling Multi-Function DAQ Cards ] 2 页

ETC

 		PXI-2005 [ Supports a 32-bit 3.3 V or 5 V PCI bus (DAQ-2000 series) ] 3 页

ETC

 		PXI-2006 [ Supports a 32-bit 3.3 V or 5 V PCI bus (DAQ-2000 series) ] 3 页

ETC

 		PXI-2010 [ Supports a 32-bit 3.3 V or 5 V PCI bus (DAQ-2000 series) ] 3 页

ETC

 		PXI-2020 8月16日，通道16位250 kS / s的同步采样数据采集卡[ 8/16-CH 16-Bit 250 KS/s Simultaneous Sampling DAQ Cards ] 2 页

ETC

 		PXI-2022 8月16日，通道16位250 kS / s的同步采样数据采集卡[ 8/16-CH 16-Bit 250 KS/s Simultaneous Sampling DAQ Cards ] 2 页

ETC

 		PXI-2200 64通道12位/ 16位最多3个MS / s的多功能数据采集卡[ 64-CH 12/16-Bit Up to 3 MS/s Multi-Function DAQ Cards ] 2 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.194913s
