PXI-665X

型号：

PXI-665X

描述：

PXI和PXI Express定时与同步控制[ PXI and PXI Express Timing and Synchronization Control ]

品牌：

NI[ National Instruments ]

页数：

4 页

PDF大小：

673 K

下载PDF手册

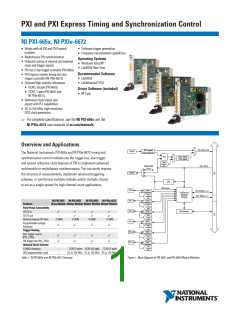

PXI and PXI Express Timing and Synchronization Control
NI PXI-665x, NI PXIe-6672
• Works with all PXI and PXI Express
modules
• Software trigger generation
• Frequency measurement capabilities
• Multichassis PXI synchronization
• Onboard routing of internal and external
clock and trigger signals
Operating Systems
• Windows Vista/XP
• LabVIEW Real-Time
• PXI slot 2 star trigger controller (PXI-665x)
Recommended Software
• PXI Express system timing slot star
trigger controller (NI PXIe-6672)
• LabVIEW
TM
• Onboard high-stability references
• OCXO, 50 ppb (PXI-6653)
• TCXO, 1 ppm (PXI-6652 and
NI PXIe-6672)
• LabWindows /CVI
Driver Software (included)
• NI-Sync
• Reference clock import and
export with PLL capabilities
• DC to 105 MHz, high-resolution
DDS clock generation
>> For complete specifications, see the NI PXI-665x and the
NI PXIe-6672 user manuals at ni.com/manuals.
Overview and Applications
PXI_CLK10_IN
PXI_CLK10
AC Coupled
Clock Detector
CLKIN
The National Instruments PXI-665x and NI PXIe-6672 timing and
synchronization control modules use the trigger bus, star trigger,
and system reference clock features of PXI to implement advanced
multimodule or multichassis synchronization. You can vastly improve
the accuracy of measurements, implement advanced triggering
schemes, or synchronize multiple modules and/or multiple chassis
to act as a single system for high-channel-count applications.
PLL
OCXO (6653)
TCXO (6652)
OCXO
Calibration
DAC
OCXO/TCXO
Clock
CLKOUT
DDS
DDS Clock
Driver/
Comparator
PFI 0
PFI 1
PFI 2
PFI 3
PFI 4
PFI 5
PXI_STAR<0...12>
PXI_TRIG<0...7>
CLOCK and
TRIGGER
Routing
PFI 0
Threshold
DAC
Driver/
Comparator
NI PXI-6651 NI PXI-6652
Slave Module Master Module Master Module Master Module
NI PXI-6653 NI PXIe-6672
Features
PFI 1
Threshold
DAC
Front Panel Connectivity
CLK10 in
Driver/
Comparator
PCI Interface
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
PFI 2
Threshold
DAC
CLK10 out
–
ꢀ
ꢀ
General-purpose PFI lines
2 SMB
6 SMB
6 SMB
6 SMB
Driver/
Comparator
Programmable voltage
threshold
ꢀ
ꢀ
ꢀ
ꢀ
PFI 3
Threshold
DAC
Trigger Routing
Driver/
Comparator
Star trigger source
(PXI_STAR)
PXI trigger bus (PXI_TRIG)
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
PFI 4
Threshold
DAC
Driver/
Comparator
Onboard Clock Sources
10 MHz timebase
DDS programmable clock
PFI 5
Threshold
DAC
–
–
TCXO (1 ppm) OCXO (50 ppb) TCXO (1 ppm)
DC to 105 MHz DC to 105 MHz DC to 105 MHz
Figure 1. Block Diagram of PXI-6652 and PXI-6653 Master Modules
Table 1. NI PXI-665x and NI PXIe-6672 Features
PXI and PXI Express Timing and Synchronization Control
Star Trigger Bus
10 MHz
Clock
Local
Bus
132 MB/s, 33 MHz, 32-Bit PCI Bus
PXI Trigger Bus
Figure 4. Diagram of Synchronization Features in the PXI Backplane
• Star trigger (PXI_STAR) – 13 or 17 equal-trace-length, point-to-point
lines for providing low-skew (<1 ns) trigger or clock signals from slot 2
to slots 3 through 15 in a PXI chassis or the system timing slot to
slots 2 through 17 in a PXI Express chassis.
• Trigger bus (PXI_TRIG) – Eight bused TTL lines for general-purpose
routing of triggers, clocks, and handshaking signals.
• 10 MHz clock (PXI_CLK10) – For improved accuracy, capable devices,
such as the NI PXI-5xxx modular instruments, can phase-lock to this
high-accuracy low-jitter 10 MHz reference clock.
Figure 2. Block Diagram of NI PXIe-6672 Master Module
PXI Backplane Overview
PXI-665x and NI PXIe-6672 modules provide full control of the following
timing and synchronization features of the PXI and the PXI Express
backplane, respectively.
To act as a PXI star trigger controller or to provide a high-accuracy
10 MHz reference clock, a PXI-665x module must be installed in slot 2
of the PXI chassis, as shown in Figure 4, and the NI PXIe-6672 must be
installed in the system timing slot of the PXI Express chassis.
High-Stability 10 MHz Timebase
When installed in slot 2 of a PXI chassis, the PXI-6652 and PXI-6653
modules can override the built-in 10 MHz reference clock on a PXI
chassis, and when installed in the system timing slot of a PXI Express
chassis, the NI PXIe-6672 can override the built-in 10 MHz reference
clock on a PXI Express chassis. Typically, most chassis provide a 10 MHz
reference clock with 25 ppm accuracy (10 MHz 250 Hz). This accuracy is
improved to 1 ppm with the PXI-6652 and NI PXIe-6672, and to 50 ppb
with the PXI-6653. Many modules, such as the PXI-5xxx modular
instruments, have phase-locked-loop (PLL) circuitry to synchronize with
the 10 MHz reference clock.
PXI_CLK10_IN
AC Coupled
CLKIN
Clock Detector
PXI_STAR
<0...12>
Driver/
PFI 0
Comparator
CLOCK and
PFI 0
Threshold
DAC
TRIGGER
Routing
PXI_TRIG<0...7>
Driver/
Comparator
PFI 1
PFI 1
Threshold
DAC
PCI Interface
Figure 3. Block Diagram of PXI-6651 Slave Module
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
2
PXI and PXI Express Timing and Synchronization Control
High-Resolution DDS Clock
Multichassis Synchronization
The onboard direct digital synthesis (DDS) clock of the PXI-6652,
PXI-6653, and NI PXIe-6672 modules provides an extremely high-
resolution programmable clock source that can generate clocks from
DC to 105 MHz in frequency with <1.1 µHz (PXI-6653 and PXI-6652)
or <0.075 Hz (NI PXIe-6672) resolution. Use this clock as a common
timebase for data acquisition modules.
Using a combination of master PXI-6652 and PXI-6653 modules with
slave PXI-6651 modules, you can tightly synchronize multiple PXI chassis,
and using a combination of NI PXIe-6672 modules, you can tightly
synchronize multiple PXI Express chassis. With these modules, you can
create very high-channel-count synchronized systems for data
acquisition, control, and instrumentation.
NI-Sync Software
The included NI-Sync driver software provides powerful and easy-to-
use control of PXI-665x and NI PXIe-6672 modules. You can use NI
application development environment (ADE) software such as
LabVIEW or LabWindows/CVI, or other ADEs such as Visual C/C++ for
programming these modules. For example programs specific to NI-Sync,
please visit ni.com/examples.
Figure 5. The NI-Sync driver software provides an easy-to-use interface to PXI-665x
and NI PXIe-6672 modules.
Ordering Information
Figure 6. In this example, three PXI chassis containing 13 PXI-4472 eight-channel
102.4 kS/s simultaneous-sampling dynamic signal acquisition modules are synchronized.
The result is a 312-channel synchronized acquisition system.
NI PXI-6653 (Master, OCXO)..................................................778715-01
NI PXI-6652 (Master, TCXO)..................................................778726-01
NI PXI-6651 (Slave)................................................................778725-01
NI PXIe-6672 (Master, TCXO)................................................780063-01
>> For complete specifications, see the NI PXI-665x and the
NI PXIe-6672 user manuals at ni.com/manuals.
Cables
SMB-210................................................................................188858-01
Dual SMB Plug to Dual SMB Plug Coax, 50 Ω, 1 m
SMB-200................................................................................188859-01
SMB Plug to SMB Plug Coax, 50 Ω, 1 m
BUY NOW!
For complete product specifications, pricing, and accessory
information, call 800 813 3693 (U.S.) or go to ni.com/pxi.
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
3
NI Services and Support
NI has the services and support to meet
Local Sales and Technical Support
your needs around the globe and through
the application life cycle – from planning
and development through deployment
and ongoing maintenance. We offer
services and service levels to meet
customer requirements in research,
design, validation, and manufacturing.
Visit ni.com/services.
In offices worldwide, our staff is local to the country, giving you access
to engineers who speak your language. NI delivers industry-leading
technical support through online knowledge bases, our applications
engineers, and access to 14,000 measurement and automation
professionals within NI Developer Exchange forums. Find immediate
answers to your questions at ni.com/support.
We also offer service programs that provide automatic upgrades to
your application development environment and higher levels of technical
support. Visit ni.com/ssp.
Training and Certification
NI training is the fastest, most certain route to productivity with our
products. NI training can shorten your learning curve, save development
time, and reduce maintenance costs over the application life cycle. We
schedule instructor-led courses in cities worldwide, or we can hold a
course at your facility. We also offer a professional certification program
Hardware Services
NI Factory Installation Services
NI Factory Installation Services (FIS) is the fastest and easiest way to
use your PXI or PXI/SCXI combination systems right out of the box.
that identifies individuals who have high levels of skill and knowledge on Trained NI technicians install the software and hardware and configure
using NI products. Visit ni.com/training.
the system to your specifications. NI extends the standard warranty by
one year on hardware components (controllers, chassis, modules)
purchased with FIS. To use FIS, simply configure your system online
with ni.com/pxiadvisor.
Professional Services
Our NI Professional Services team is composed of NI applications
and systems engineers and a worldwide National Instruments Alliance
Partner program of more than 600 independent consultants and
integrators. Services range
Calibration Services
NI recognizes the need to maintain properly calibrated devices for
high-accuracy measurements. We provide manual calibration
procedures, services to recalibrate your products, and automated
calibration software specifically designed for use by metrology
laboratories. Visit ni.com/calibration.
from start-up assistance to
turnkey system integration.
Visit ni.com/alliance.
OEM Support
We offer design-in consulting and product integration assistance if you
want to use our products for OEM applications. For information about
special pricing and services for OEM customers, visit ni.com/oem.
Repair and Extended Warranty
NI provides complete repair services for our products. Express repair
and advance replacement services are also available. We offer
extended warranties to help you meet project life-cycle requirements.
Visit ni.com/services.
ni.com • 800 813 3693
*351517A-01*
351517A-01
2007-8957-501-101-D
National Instruments • info@ni.com
© 2007 National Instruments Corporation. All rights reserved. CVI, LabVIEW, National Instruments, National Instruments Alliance Partner, NI, ni.com, and SCXI are trademarks of National
Instruments. The mark LabWindows is used under a license from Microsoft Corporation. Other product and company names listed are trademarks or trade names of their respective companies.
A National Instruments Alliance Partner is a business entity independent from NI and has no agency, partnership, or joint-venture relationship with NI.
厂商 型号 描述 页数 下载

NI

 		PXI-1033 PXI机箱，集成MXI- Express远程控制器[ PXI Chassis with Integrated MXI-Express Remote Controller ] 6 页

NI

 		PXI-1050 PXI机箱，集成了信号调理[ PXI Chassis with Integrated Signal Conditioning ] 5 页

NI

 		PXI-1052 PXI机箱，集成了信号调理[ PXI Chassis with Integrated Signal Conditioning ] 5 页

ETC

 		PXI-2000 4 - CH十六分之十四位最多2 MS / s同步采样多功能数据采集卡[ 4-CH 14/16-Bit Up to 2 MS/s Simultaneous-Sampling Multi-Function DAQ Cards ] 2 页

ETC

 		PXI-2005 [ Supports a 32-bit 3.3 V or 5 V PCI bus (DAQ-2000 series) ] 3 页

ETC

 		PXI-2006 [ Supports a 32-bit 3.3 V or 5 V PCI bus (DAQ-2000 series) ] 3 页

ETC

 		PXI-2010 [ Supports a 32-bit 3.3 V or 5 V PCI bus (DAQ-2000 series) ] 3 页

ETC

 		PXI-2020 8月16日，通道16位250 kS / s的同步采样数据采集卡[ 8/16-CH 16-Bit 250 KS/s Simultaneous Sampling DAQ Cards ] 2 页

ETC

 		PXI-2022 8月16日，通道16位250 kS / s的同步采样数据采集卡[ 8/16-CH 16-Bit 250 KS/s Simultaneous Sampling DAQ Cards ] 2 页

ETC

 		PXI-2200 64通道12位/ 16位最多3个MS / s的多功能数据采集卡[ 64-CH 12/16-Bit Up to 3 MS/s Multi-Function DAQ Cards ] 2 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.194046s
