PXI-5671

型号：

PXI-5671

描述：

250 kHz至2.7 GHz的/ 16位分辨率， 100 MS / s的任意波形发生器[ 250 kHz to 2.7 GHz/16-bit resolution, 100 MS/s arbitrary waveform generation ]

品牌：

NI[ National Instruments ]

页数：

5 页

PDF大小：

530 K

下载PDF手册

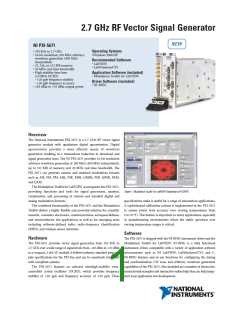

2.7 GHz RF Vector Signal Generator
NEW
NI PXI-5671
• 250 kHz to 2.7 GHz
Operating Systems
• 16-bit resolution, 100 MS/s arbitrary
waveform generation (400 MS/s
interpolated)
• 32, 256, or 512 MB memory
• 20 MHz real-time bandwidth
• High-stability time base
(10 MHz OCXO)
•Windows 2000/XP
Recommended Software
• LabVIEW
• LabWindows/CVI
Application Software (included)
• Modulation Toolkit for LabVIEW
•
•
20 ppb frequency stability
50 ppb frequency accuracy
Driver Software (included)
• NI-RFSG
•-145 dBm to +10 dBm output power
Overview
The National Instruments PXI-5671 is a 2.7 GHz RF vector signal
generator module with quadrature digital upconversion. Digital
upconversion provides a more efficient means of waveform
generation resulting in a tremendous reduction in download and
signal generation time. The NI PXI-5671 provides 16-bit resolution
arbitrary waveform generation at 100 MS/s (400 MS/s interpolated),
up to 512 MB of memory, and 20 MHz real-time bandwidth. The
PXI-5671 can generate custom and standard modulation formats
such as AM, FM, PM, ASK, FSK, MSK, GMSK, PSK, QPSK, PAM,
and QAM.
The Modulation Toolkit for LabVIEW accompanies the PXI-5671,
providing functions and tools for signal generation, analysis,
visualization, and processing of custom and standard digital and
analog modulation formats.
Figure 1. Modulation Toolkit for LabVIEW Displaying π/4 DQPSK
specifications make it useful for a range of automation applications.
The combined functionality of the PXI-5671 and the Modulation A sophisticated calibration scheme is implemented in the PXI-5671
Toolkit deliver a highly flexible and powerful solution for scientific to ensure power level accuracy over varying temperatures from
research, consumer electronics, communications, aerospace/defense, 0 to 55 °C. This feature is important to many applications, especially
and semiconductor test applications as well as for emerging areas in manufacturing environments where the stable operation over
including software-defined radio, radio-frequency identification varying temperature ranges is critical.
(RFID), and wireless sensor networks.
Software
Hardware
The PXI-5671 is shipped with the NI-RFSG instrument driver and the
The PXI-5671 provides vector signal generation from 250 kHz to Modulation Toolkit for LabVIEW. NI-RFSG is a fully functional
2.7 GHz over a wide range of signal levels from -145 dBm to +10 dBm instrument driver, compatible with a variety of application software
in a compact, 3 slot 3U module. It follows industry-standard plug and environments such as NI LabVIEW, LabWindows/CVI, and C.
play specifications for the PXI bus and can be seamlessly integrated NI-RFSG features easy-to-use functions for configuring the timing
with compliant systems.
and synchronization, CW tone, and arbitrary waveform generation
The PXI-5671 features an onboard ultrahigh-stability oven- capabilities of the PXI-5671. Also included are a number of interactive,
controlled crystal oscillator (OCXO), which provides frequency instructional examples and interactive online help that can help jump-
stability of 20 ppb and frequency accuracy of 50 ppb. These start your application test development.
2.7 GHz RF Vector Signal Generator
The Modulation Toolkit for LabVIEW provides functions for signal
generation, analysis, and visualization of custom and standard analog
and digital modulation. With the Modulation Toolkit, you can also
develop and analyze custom modulation formats and generate these
with the PXI-5671. Some of the standard measurement functions
include EVM (error vector magnitude), MER (modulation error
ratio), and ρ (rho). Functions are also available for injecting
impairments including IQ Gain Imbalance, Quadrature Skew, and
AWGN (additive white Gaussian noise). Visualization functions include
trellis, constellation, and 2D and 3D eye diagrams. This hardware and
software combination gives you access to customizable functionality
not available in traditional instrumentation.
NI Modulation Toolkit Functions1
Figure 3. RF test system – PXI-5671 and PXI-5660
Modulation/Demodulation
• AM, FM, PM
Visualization and Analysis
• Trellis diagrams
Superior Flexibility
• ASK, FSK, PSK
• Constellation plot
• 2D and 3D eye diagrams
Providing customers with a flexible platform is necessary to meet the
needs of today’s complex, rapidly evolving systems. The PXI-5671
consists of two components – the NI PXI-5610 2.7 GHz RF
upconverter and the NI PXI-5441 arbitrary waveform generator, a
high-spectral-purity baseband signal generator with onboard signal
processing. The PXI-5610 and the PXI-5441 work together to
provide vector signal generation from 250 kHz to 2.7 GHz. Because
of the flexible hardware and software, and with access to low-level
driver functionality, the PXI-5610 and the PXI-5441 can also be used
independently for RF upconversion and arbitrary waveform
sequencing. For advanced applications, combine additional modular
instruments in the same PXI chassis with the PXI-5671 and take
advantage of the tight synchronization between PXI modules. For
example, combine the PXI-5660 RF Vector Signal Analyzer with the
PXI-5671 to build an RF communications test system with complete
modulation and demodulation capabilities.
• MSK, GMSK
• PAM, QAM
• BPSK, QPSK, OQPSK,
Modulation Impairments
• Multitone
DQPSK, π/4DQPSK
• DC offset
Modulation Analysis
Functions
• Fading profile
• Frequency offset
• Quadrature skew
• IQ gain imbalance
• Additive white Gaussian
noise (AWGN)
• ρ (rho)
• DC offset
• Phase error
• Quadrature skew
• IQ gain imbalance
• Bit error rate (BER)
• Frequency deviation
• Burst timing measurements
• Modulation error ratio (MER)
• Error vector magnitude (EVM)
• Phase noise
Calibration
The PXI-5610 and the PXI-5441 are calibrated separately by
National Instruments with NIST-traceable and ISO-9002-certified
calibration certificates. Temperature variations are calibrated and
corrected during normal operation resulting in very high stability
and repeatability.
1A Modulation Toolkit datasheet is available separately.
Figure 2. A 3D IQ plot created by the Modulation Toolkit visually
separates the I and Q components for this PSK modulated signal.
2
National Instruments • Tel: (800) 813 3693 • info@ni.com • ni.com
2.7 GHz RF Vector Signal Generator
Specifications
Valid over specified Operating Environment (0 to 55 °C) unless otherwise stated.
Real-time bandwidth >10 MHz
Carrier Frequency = 1 GHz
–72 dBc/Hz maximum
Offset Frequency
100 Hz
1 kHz
Carrier Frequency = 2 GHz
–70 dBc/Hz maximum
–72 dBc/Hz maximum
–96 dBc/Hz maximum
–116 dBc/Hz maximum
General
Channels .......................................................... 1 RF, 1 IF
–75 dBc/Hz maximum
10 kHz
100 kHz
–98 dBc/Hz maximum
–116 dBc/Hz maximum
Frequency Characteristics
Frequency range............................................... 250 kHz to 2.7 GHz
Frequency minimum (performance below
250 kHz not guaranteed) ........................... 9 kHz
Real-time bandwidth (Digital vector
Residual FM ..................................................... 4.5 Hz rms maximum (continuous wave,
300 Hz to 3 kHz integration bandwidth)
modulation bandwidth) ............................. 20 MHz
Locking range ................................................... 5 Hz minimum
Warm-up time (typical) .................................... 30 minutes
Frequency resolution (dependent on NI PXI-5441 memory)
32 MB ........................................................ 355 nHz
>256 MB .................................................... 355 nHz
Spurious Responses
Second harmonic (>10 MHz) 0 to 55 °C .......... -40 dBc maximum
Output third-order distortion (IMD)
(two -3 dBm tones, >200 kHz apart) ......... -75 dBc typical
Residual spurious response
(no input signal, 0 dB attenuation/maximum
power level, excluding LO feedthrough) ... <80 dBc typical
NI PXI-5441 system clock rate......................... 100 MHz
Harmonic and spurious response.............. -105 dBm typical
Output-related spurious
response (nonharmonic) ............................ -80 dBc maximum
(IF – RF output frequency) ............................... -64 dBc typical, -58 dBc maximum
Tuning Speed
Sine wave, 50 Hz tolerance
Thermal correction disabled...................... 35 ms typical
Thermal correction enabled ...................... 50 ms max
1 MS record, phase continuity off
Digital IF equalization off.......................... 340 ms typical 370 ms max
Digital IF equalization on........................... 950 ms typical 1.6 s max
Note: The NI PXI-5671 tuning speed and tuning resolution depend on resampling done by the PC. This means that fine resolution
tuning speed is dependent on the speed and memory of the computer. Specifications below are the result of using an NI PXI 8186
Pentium IV controller 2.2 GHz with 1 GB RAM with the Windows XP operating system and NI-RFSG phase continuity disabled.
Close-in Spurious Responses (Carrier-Modulated)
Spurious Response
Real-Time Bandwidth
<10 MHz
Offset from Carrier
<100 Hz
Maximum Power (dBc)
-50
-60
-40
-50
100 Hz to 10 kHz
<400 Hz
Internal Frequency Reference
>10 MHz
Frequency ......................................................... 10 MHz
Temperature stability ....................................... 20 ppb max (referenced to 25 °C)
Aging
Per year...................................................... 100 ppb
Per day....................................................... 1 ppb
Initial achievable accuracy............................... 50 ppb
Lock time for the 5610
to ext frequency reference........................ 5 s max
Locking range ................................................... 5 Hz minimum
Reference Input................................................ 50
100 Hz to 2 kHz
RF Output Characteristics
Output power range ......................................... -145 dBm to +10 dBm minimum
Amplitude resolution
PXI-5671..................................................... 0.02 dB minimum
PXI-5610..................................................... 1 dB typical
Amplitude settling time PXI-5610
NI 5610 ...................................................... 0.1 dB within 5 ms, typical
NI 5441 ...................................................... 0.1 dB within 30 ms, typical
ΩSMA female
Input amplitude ......................................... -5 to +16 dBm
Input frequency range ............................... 10 MHz 0.5 ppm
Level Accuracy
Reference Output ............................................. 50
ΩSMA female
1
Signal......................................................... Square wave
Output Frequency ...................................... 10 MHz
Output Amplitude ...................................... 6.7 dBm into 50
0.8
0.6
0.4
0.2
0
Ω
load, fundamental frequency
(1 0.1 Vpp sine wave)
Spectral purity
Phase Noise
-50.0
-60.0
-0.2
-0.4
-0.6
-0.8
-1
-70.0
Carrier = 2 GHz
Carrier = 1 GHz
-80.0
-90.0
-100.0
-110.0
-120.0
-130.0
0
200 M 400 M 600 M 800 M 1 G
1.2 G 1.4 G 1.6 G 1.8 G
Frequency (MHz)
2 G
2.2 G 2.4 G 2.6 G
Figure 2. Typical Output Power Level Accuracy from -45 dBm to +10 dBm
Output Power Range
Output Frequency
250 kHz to 10 MHz
10 MHz to 2.7 GHz
25 °C 10 °C.
+7 to -30 dBm
1.2 dB
-30 to -80 dBm
1.3 dB
-80 to -127 dBm <-127 dBm (typical)
-140.0
100
1.5 dB
1 dB
2 dB
1.5 dB
1k
10k
100k
1M
0.7 dB
0.8 dB
Offset from Carrier (Hz)
Accuracy degrades by < 0.03 dB per °C over full temperature range.
Figure 1. Typical Phase Noise at 1 GHz with Real-Time Bandwidth <10 MHz
Accuracy degrades by 0.1 dB per dB above +7 dBm power levels, and by 0.15 dB per dB above +10 dBm power levels.
At nonsystem spur frequencies. Refer to the Spurious Responses section for more information.
Real-time bandwidth <10 MHz
Offset Frequency
100 Hz
1 kHz
10 kHz
100 kHz
Carrier Frequency = 1 GHz
–82 dBc/Hz maximum
–85 dBc/Hz maximum
–93 dBc/Hz maximum
–110 dBc/Hz maximum
Carrier Frequency = 2 GHz
–79 dBc/Hz maximum
–83 dBc/Hz maximum
–92 dBc/Hz maximum
–110 dBc/Hz maximum
Voltage Standing Wave Ratio (VSWR)
10 MHz to 2.3 GHz .................................... 1.6:1
2.3 to 2.7 GHz............................................ 1.7:1
National Instruments • Tel: (800) 813 3693 • info@ni.com • ni.com 3
2.7 GHz RF Vector Signal Generator
Output 1 dB Gain Compression Point (minimum)
Calibration
Self-calibration
Output Frequency (GHz)
Up to 2.0
15 to 35 °C (dBm)
0 to 55 °C (dBm)
PXI-5610..................................................... Correction for YIG offset and gain
PXI-5441..................................................... Correction for DC gain offset and timing errors
External calibration interval
16
14
13
14.5
12.5
11.5
2.0 to 2.5
2.5 to 2.7
PXI-5610..................................................... 1 year
PXI-5441..................................................... 2 years
Noise density (0 dBm output)
Physical
Output Power Level (dBm)
0
-20
15 to 35 °C (dBm/Hz)
0 to 55 °C (dBmHz)
PXI-5610 (2 slots) ............................................. 10 by 16 cm (3.9 by 6.3 in.)
-120
-140
-115
-135
PXI-5441 (1 slot) ............................................... 10 by 16 cm (3.9 by 6.3 in.)
Environmental
Operating Environment
Typical Noise Floor at 2 GHz
Operating temperature.............................. 0 to +55 °C
(Tested in accordance with IEC-60068-2-1 and IEC-60068-2-2)1
Relative humidity....................................... 10 to 90%, noncondensing
(Tested in accordance with IEC 60068-2-56)
Altitude (indoor use only) ......................... 0 to 2,000 m (at 25 °C ambient temperature)
Storage Environment
Ambient temperature ................................ -20 to 70 °C
(Tested in accordance with IEC-60068-2-1 and IEC-60068-2-2.)
Relative humidity....................................... 5 to 95%, noncondensing
(Tested in accordance with IEC-60068-2-56.)
Output Power Level (dBm)
Typical Noise Floor (dBm/Hz)
-57
-50
-40
-30
-20
-10
0
-158
-157
-154
-147
-140
-130
-120
-110
10
Shock and Vibration
Vector modulation bandwidth flatness............ 0.5 dB typical1
Group delay variation (within the vector
Nonoperational shock ............................... 30 g peak, half-sine, 11 ms pulse
(Tested in accordance with IEC-60068-2-27. Test profile
developed in accordance with MIL-PRF-28800F.)
Random vibration Non-operating.............. 5 to 500 Hz, 2.4 grms
(Tested in accordance with IEC-60068-2-64. Non-operating
test profile exceeds the requirements of MIL-PRF-2880F,
Class B)
modulation bandwidth) ............................. 20 ns typical
Group delay
PXI-5441..................................................... 750 ns typical
PXI-5610..................................................... 1200 ns typical
Overload protection on RF output
Maximum reverse RF power ..................... 4 W
Maximum DC input.................................... 50 VDC
1Equilization enabled. 1.8 dB maximum with equilization disabled.
1When installed in the NI PXI-101x or PXI-1000B chassis, the PXI-5441 operating temperature is 0 to +45 °C
Certifications and Compliances
CE Mark Compliance
Local Oscillator Output
Safety
Frequency range............................................... 3.2 to 5.9 GHz
Output power ................................................... -22 dBm (typical)
VSWR ............................................................... 1.5:1 maximum
This product is designed to meet the requirements of the following standards of safety for electrical
equipment for measurement, control, and laboratory use:
• IEC 61010-1, EN 61010-1
• UL 61010-1
• CAN/CSA C22.2 No. 61010-1
Phase noise – Local Oscillator
Electromagnetic Compatibility
Carrier Frequency
Emissions................................................... EN 55011 Class A at 10 m FCC Part 15A above 1 GHz
Immunity.................................................... EN 61326:1997 + A2:2001, Table 1
EMC/EMI ................................................... CE, C-Tick and FCC Part 15 (Class A) Compliant
Offset Frequency (kHz)
1
10
100
3.2 GHz (dBc/Hz)
4.2 GHz (dBc/Hz)
5.2 GHz (dBc/Hz)
-89
-98
-120
-88
-98
-120
-85
-95
-120
FM Modulation
FM Distortion (modulation
frequency 1 kHz, carrier frequency
1 GHz, FM deviation 100 kHz,
Ordering Information
NI PXI-5671
filter bandwidth 2 MHz.................................... <1% Typical
32 MB memory ........................................................779079-02
256 MB memory ......................................................779079-03
512 MB memory ......................................................779079-04
Includes PXI-5610, PXI-5441, NI-RFSG, Modulation Toolkit for LabVIEW,
and cables.
Digital Modulation
QPSK, 16-QAM, 64-QAM (root raised cosine Filter, alpha = 0.25,
carrier frequency = 1 GHz, 2,000 symbol PRBS, equalization: ON)
Symbol Rate
200 kS/s
EVM (%)
1.0
MER (dB)
37.0
1 MS/s
1.0
37.0
2.56 MS/s
5.12 MS/s
10 MS/s
1.0
1.0
1.2
37.0
37.0
36.0
BUY NOW!
For complete product specifications, pricing, and accessory
information, call (800) 813-3693 (U.S. only) or go to ni.com/rf.
Power Requirements
Typical
PXI-5610
PXI-5441
+3.3 VDC
150 mA
150 mA
+5 VDC
2.6 A
2.6 A
+12 VDC
900 mA
900 mA
-12 VDC
60 mA
60 mA
Total Power
25.0 W
25.0 W
4
National Instruments • Tel: (800) 813 3693 • info@ni.com • ni.com
NI Services and Support
NI has the services and support to meet your
needs around the globe and through the
application life cycle – from planning
and development through deployment
Local Sales and Technical Support
In offices worldwide, our staff is local to the country, giving you
access to engineers who speak your language. NI delivers industry-
leading technical support through online knowledge bases, our
applications engineers, and access to 14,000 measurement and
automation professionals within NI Developer Exchange forums.
Find immediate answers to your questions at ni.com/support.
We also offer service programs that provide automatic upgrades to
your application development environment and higher levels of
technical support. Visit ni.com/ssp.
and ongoing maintenance. We offer
services and service levels to meet
customer requirements in research,
design, validation, and manufacturing.
Visit ni.com/services.
SERVICE
NEEDS
Training and Certification
NI training is the fastest, most certain route to productivity with our Hardware Services
products. NI training can shorten your learning curve, save NI Factory Installation Services
development time, and reduce maintenance costs over the NI Factory Installation Services (FIS) is the fastest and easiest way to
application life cycle. We schedule instructor-led courses in cities use your PXI or PXI/SCXI combination systems right out of the box.
worldwide, or we can hold a course at your facility. We also offer a Trained NI technicians install the software and hardware and
professional certification program that identifies individuals who configure the system to your specifications. NI extends the standard
have high levels of skill and knowledge on using NI products. warranty by one year on hardware components (controllers, chassis,
Visit ni.com/training.
modules) purchased with FIS. To use FIS, simply configure your
system online with ni.com/pxiadvisor.
Professional Services
Our Professional Services Team is comprised of NI applications Calibration Services
engineers, NI Consulting Services, and a worldwide NI Alliance NI recognizes the need to maintain properly calibrated devices for
Partner Program of more than 600 independent consultants and high-accuracy measurements. We provide manual calibration
integrators. Services range procedures, services to recalibrate your products, and automated
from start-up assistance to calibration software specifically designed for use by metrology
turnkey system integration. laboratories. Visit ni.com/calibration.
Visit ni.com/alliance.
Repair and Extended Warranty
OEM Support
NI provides complete repair services for our products. Express repair
We offer design-in consulting and product integration assistance and advance replacement services are also available. We offer
if you want to use our products for OEM applications. For extended warranties to help you meet project life-cycle requirements.
information about special pricing and services for OEM customers, Visit ni.com/services.
visit ni.com/oem.
ni.com • (800) 813 3693
National Instruments • info@ni.com
© 2005 National Instruments Corporation. All rights reserved. CVI, LabVIEW, National Instruments Alliance Partner, NI, ni.com, and SCXI
are trademarks of National Instruments. Other product and company names listed are trademarks or trade names of their respective companies.
A National Instruments Alliance Partner is a business entity independent from NI and has no agency, partnership, or joint-venture relationship with NI.
厂商 型号 描述 页数 下载

NI

 		PXI-1033 PXI机箱，集成MXI- Express远程控制器[ PXI Chassis with Integrated MXI-Express Remote Controller ] 6 页

NI

 		PXI-1050 PXI机箱，集成了信号调理[ PXI Chassis with Integrated Signal Conditioning ] 5 页

NI

 		PXI-1052 PXI机箱，集成了信号调理[ PXI Chassis with Integrated Signal Conditioning ] 5 页

ETC

 		PXI-2000 4 - CH十六分之十四位最多2 MS / s同步采样多功能数据采集卡[ 4-CH 14/16-Bit Up to 2 MS/s Simultaneous-Sampling Multi-Function DAQ Cards ] 2 页

ETC

 		PXI-2005 [ Supports a 32-bit 3.3 V or 5 V PCI bus (DAQ-2000 series) ] 3 页

ETC

 		PXI-2006 [ Supports a 32-bit 3.3 V or 5 V PCI bus (DAQ-2000 series) ] 3 页

ETC

 		PXI-2010 [ Supports a 32-bit 3.3 V or 5 V PCI bus (DAQ-2000 series) ] 3 页

ETC

 		PXI-2020 8月16日，通道16位250 kS / s的同步采样数据采集卡[ 8/16-CH 16-Bit 250 KS/s Simultaneous Sampling DAQ Cards ] 2 页

ETC

 		PXI-2022 8月16日，通道16位250 kS / s的同步采样数据采集卡[ 8/16-CH 16-Bit 250 KS/s Simultaneous Sampling DAQ Cards ] 2 页

ETC

 		PXI-2200 64通道12位/ 16位最多3个MS / s的多功能数据采集卡[ 64-CH 12/16-Bit Up to 3 MS/s Multi-Function DAQ Cards ] 2 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.181004s
