PXI-2569

型号:

PXI-2569

描述:

100个独立的单刀单掷( SPST )继电器[ 100 independent single-pole single-throw (SPST) relays ]

品牌:

NI[ National Instruments ]

页数:

3 页

PDF大小:

533 K

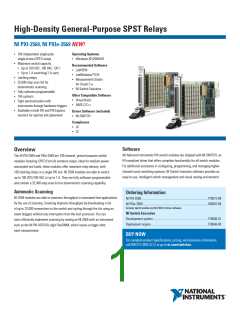

High-Density General-Purpose SPST Relays
NI PXI-2569, NI PXIe-2569 NEW!
100 independent single-pole
single-throw (SPST) relays
Maximum switch capacity
Operating Systems
Windows XP/2000/NT
Recommended Software
Up to 100 VDC, 100 VAC, CAT I
Up to 1 A switching/1 A carry
LabVIEW
LabWindows/CVI
Latching relays
32,000-step scan list for
deterministic scanning
Fully software programmable
145 cycles/s
Tight synchronization with
instruments through hardware triggers
Available in both PXI and PXI Express
versions for optimal slot placement
Measurement Studio
for Visual C++
NI Switch Executive
Other Compatible Software
Visual Basic
ANSI C/C++
Driver Software (included)
NI-SWITCH
Compliance
UL
CE
Software
Overview
All National Instruments PXI switch modules are shipped with NI-SWITCH, an
IVI-compliant driver that offers complete functionality for all switch modules.
For additional assistance in configuring, programming, and managing higher-
channel-count switching systems, NI Switch Executive software provides an
easy-to-use, intelligent switch management and visual routing environment.
The NI PXI-2569 and PXIe-2569 are 100-channel, general-purpose switch
modules featuring SPST (Form A) armature relays. Ideal for medium-power
automated test loads, these modules offer maximum relay density, with
100 latching relays in a single PXI slot. NI 2569 modules are able to switch
up to 100 VDC/100 VAC or up to 1 A. They are fully software-programmable
and contain a 32,000-step scan list for deterministic scanning capability.
Automatic Scanning
Ordering Information
NI 2569 modules are able to maximize throughput in automated test applications
by the use of scanning. Scanning improves throughput by downloading a list
of up to 32,000 connections to the switch and cycling through the list using an
event (trigger) without any interruption from the host processor. You can
most efficiently implement scanning by mating an NI 2569 with an instrument
such as the NI PXI-4070 6½-digit FlexDMM, which issues a trigger after
each measurement.
NI PXI-2569 ....................................................................................778572-69
NI PXIe-2569 ..................................................................................780587-69
Includes switch module and NI-SWITCH driver software.
NI Switch Executive
Development system......................................................................778546-01
Deployment engine........................................................................778548-00
BUY NOW
For complete product specifications, pricing, and accessory information,
call 800 813 3693 (U.S.) or go to ni.com/switches.
High-Density General-Purpose SPST Relays
Physical
Specifications
Relay types............................................ Electromechanical, latching
Contact material ................................... Palladium-ruthenium, gold covered
I/O connectors....................................... 200 POS LFH Matrix 50, receptacle
Dimensions............................................ 10 by 17.5 cm (3.9 by 6.9 in.), 1 3U slot
Specifications subject to change without notice. Visit ni.com/manuals for
the latest full specifications.
Input Characteristics
Maximum switching voltage
Environment
Channel-to-ground............................ 300 V, CAT I
Channel-to-channel .......................... 300 V
Maximum current ............................. 1 A
(switching or carry, per channel)
Operating temperature.......................... 0 to 55 ꢀC
Storage temperature............................. -20 to 70 ꢀC
Relative humidity .................................. 5 to 85% noncondensing
Pollution degree....................................
Approved at altitudes up to 2,000 m.
2
Simultaneous channels at
maximum current ( 35 ꢀC)................ 50
Maximum switching power .................. 60 W, 62.5 VA (DC to 60 Hz)
(per channel, resistive)
Safety Compliance
IEC 61010-1, EN 61010-1
UL 61010-01, CSA 61010-1
Typical DC path resistance
Initial................................................. <0.55 Ω
End of life.......................................... 1 Ω
Thermal EMF..................................... 12 μV
Bandwidth (-3 dB, typical at 23 ꢀC) ...... 20 MHz
Electromagnetic Compatibility
This product meets the requirements of the following EMC standards for
electrical equipment for measurement, control, and laboratory use:
EN 61326 (IEC 61326): Class A emissions; Basic immunity
EN 55011 (CISPR 11): Group 1, Class A emissions
AS/NZS CISPR 11: Group 1, Class A emissions
FCC 47 CFR Part 15B: Class A emissions
Dynamic Characteristics
Maximum speed.................................... 145 cycles
Relay operate plus debounce time
ICES-001: Class A emissions
Typical............................................... 1 ms
Maximum.......................................... 3.4 ms
Expected relay life
Note: For EMC compliance, operate this product according to the documentation.
CE Compliance
This product meets the essential requirements of applicable European Directives
Mechanical....................................... 108 cycles
as follows:
Electrical
2006/95/EC; Low-Voltage Directive (safety)
2004/108/EC; Electromagnetic Compatibility Directive (EMC)
10 VDC, 100 mADC, resistive........... 2.5x106 cycles
10 VDC, 1 ADC, resistive.................. 1x106 cycles
30 VDC, 1 ADC resistive................... 5x105 cycles
60 VDC, 1 ADC resistive................... 1x105 cycles
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
2
NI Services and Support
NI has the services and support to meet
Local Sales and Technical Support
In offices worldwide, our staff is local to the country, giving you access to
engineers who speak your language. NI delivers industry-leading technical
support through online knowledge bases, our applications engineers,
and access to 14,000 measurement and automation professionals within NI
Developer Exchange forums. Find immediate answers to your questions at
ni.com/support.
I
your needs around the globe and through
A
the application life cycle – from planning
and development through deployment and
SERVICE
NEEDS
ongoing maintenance. We offer services
and service levels to meet customer
requirements in research, design, validation,
and manufacturing.
P
E
V
Y
We also offer service programs that provide automatic upgrades to your
application development environment and higher levels of technical support.
Visit ni.com/ssp.
Visit ni.com/services.
Training and Certification
NI training is the fastest, most certain route to productivity with our products.
NI training can shorten your learning curve, save development time, and reduce
maintenance costs over the application life cycle. We schedule instructor-led
courses in cities worldwide, or we can hold a course at your facility. We also
offer a professional certification program that identifies individuals who have
high levels of skill and knowledge on using NI products.
Hardware Services
System Assurance Programs
NI system assurance programs are designed to make it even easier for you
to own an NI system. These programs include configuration and deployment
services for your NI PXI, CompactRIO, or Compact FieldPoint system. The NI Basic
System Assurance Program provides a simple integration test and ensures that
your system is delivered completely assembled in one box. When you configure
your system with the NI Standard System Assurance Program, you can select
from available NI system driver sets and application development environments
to create customized, reorderable software configurations. Your system arrives
fully assembled and tested in one box with your software preinstalled. When
you order your system with the standard program, you also receive system-
specific documentation including a bill of materials, an integration test report,
a recommended maintenance plan, and frequently asked question documents.
Finally, the standard program reduces the total cost of owning an NI system
by providing three years of warranty coverage and calibration service. Use the
online product advisors at ni.com/advisor to find a system assurance program
to meet your needs.
Visit ni.com/training.
Professional Services
Our NI Professional Services team is composed of NI applications and systems
engineers and a worldwide National Instruments Alliance Partner program of
more than 600 independent consultants and integrators. Services range from
start-up assistance to turnkey system
integration. Visit ni.com/alliance.
OEM Support
We offer design-in consulting and product integration assistance if you want to
use our products for OEM applications. For information about special pricing and
services for OEM customers, visit ni.com/oem.
Calibration Services
NI recognizes the need to maintain properly calibrated devices for high-
accuracy measurements. We provide manual calibration procedures, services
to recalibrate your products, and automated calibration software specifically
designed for use by metrology laboratories. Visit ni.com/calibration.
Repair and Extended Warranty
NI provides complete repair services for our products. Express repair and
advance replacement services are also available. We offer extended warranties
to help you meet project life-cycle requirements. Visit ni.com/services.
ni.com 800 813 3693
National Instruments info@ni.com
©2009 National Instruments. All rights reserved. CompactRIO, CVI, FieldPoint, FlexDMM, LabVIEW, Measurement Studio, National Instruments, National Instruments Alliance Partner, NI, and ni.com are trademarks of
National Instruments. The mark LabWindows is used under a license from Microsoft Corporation. Windows is a registered trademark of Microsoft Corporation in the United States and other countries. Other product and
company names listed are trademarks or trade names of their respective companies. A National Instruments Alliance Partner is a business entity independent from National Instruments and has no agency, partnership,
or joint-venture relationship with National Instruments. 2009-11145-101-D
