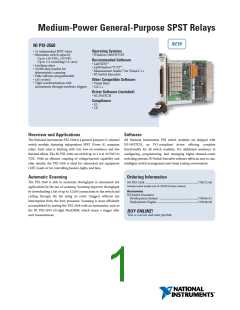

Medium-Power General-Purpose SPST Relays
NEW
NI PXI-2568
• 31 independent SPST relays
• Maximum switch capacity
Up to 150 VDC, 150 VAC
Up to 2 A switching/2 A carry
• Latching relays
• 32,000-step scanlist for
deterministic scanning
• Fully software programmable
• 145 cycles/s
• Tight synchronization with
instruments through hardware triggers
Operating Systems
• Windows 2000/NT/XP
Recommended Software
• LabVIEW™
• LabWindows/CVI™
• Measurement Studiofor Visual C++
• NI Switch Executive
Other Compatible Software
• Visual Basic
• C/C++
Driver Software (included)
• NI-SWITCH
Compliance
• UL
• CE
Overview and Applications
Software
The National Instruments PXI-2568 is a general-purpose 31-channel All National Instruments PXI switch modules are shipped with
switch module, featuring independent SPST (Form A) armature NI-SWITCH, an IVI-compliant driver offering complete
relays. Each relay is latching with very low on-resistance and low functionality for all switch modules. For additional assistance in
thermal offsets. The NI PXI-2568 can switch up to 2 A at 30 VAC/30 configuring, programming, and managing higher-channel-count
VDC. With an efficient coupling of voltage/current capability and switching systems, NI Switch Executive software offers an easy-to-use,
relay density, the PXI-2568 is ideal for automated test equipment intelligent switch management and visual routing environment.
(ATE) loads or for controlling heaters, lights, and fans.
Automatic Scanning
Ordering Information
The PXI-2568 is able to maximize throughput in automated test
applications by the use of scanning. Scanning improves throughput
by downloading a list of up to 32,000 connections to the switch and
cycling through the list using an event (trigger) without any
interruption from the host processor. Scanning is most efficiently
accomplished by mating the PXI-2568 with an instrument, such as
NI PXI-2568 ..................................................................778572-68
Includes switch module and NI-SWITCH driver software
Accessories
NI Switch Executive
Development System ................................................778546-01
Deployment Engine ..................................................778548-00
the NI PXI-4070 61⁄
2
-digit FlexDMM, which issues a trigger after
BUY ONLINE!
each measurement.
Visit ni.com/info and enter pxi2568.
Medium-Power General-Purpose SPST Relays
Specifications
Input Characteristics
Physical
Maximum switching voltage
Relay types ...................................................... electromechanical, latching
Contact material............................................... palladium-ruthenium, gold covered
I/O connectors.................................................. 62-pin D-Sub
Dimensions....................................................... 10 by 17.4 cm (3.9 by 6.9 in.) Single-slot, 3U
Channel-to-ground..................................... 150 V, CAT I
Channel-to-channel ................................... 150 V
Maximum switching/carry current................... 2 A
Simultaneous channels at
maximum switching current (25 ˚C) .......... 31
Maximum switching power
Environment
Operating temperature..................................... 0 to 55 ˚C
Storage temperature........................................ -20 to 70 ˚C
Relative humidity ............................................ 5 to 85% noncondensing
(per channel).............................................. 60 W, 62.5 VA
Pollution degree ...............................................
Indoor use only
2
Typical DC path resistance
Initial.......................................................... <0.15
End of life .................................................. 1 Ω
Thermal EMF .................................................... 12 µV
Bandwidth (-3 dB)............................................. 40 MHz
Safety
This product is designed to meet the requirements of the following standards of safety for electrical
equipment for measurement, control, and laboratory use:
Dynamic characteristics
• IEC 61010-1, EN 61010-1
• UL 3111-1, UL 61010B-1
• CAN/CSA C22.2 No. 1010.1
Maximum speed............................................... 145 cycles/s
Relay operate time
Typical........................................................ 1 ms
Maximum................................................... 3.4 ms
Expected relay life
CE Compliance
This product meets the essential requirements of applicable European Directives, as amended for
Mechanical................................................ 100,000,000 cycles
Electrical
10 VDC, 100 mADC, resistive............. 2,500,000 cycles
10 VDC, 1 ADC, resistive.................... 1,000,000 cycles
30 VDC, 1 ADC resistive..................... 500,000 cycles
60 VDC, 1 ADC resistive..................... 100,000 cycles
CE marking, as follows:
Low-voltage Directive (safety) ......................... 73/23/EEC
Electromagnetic Compatibility
Directive (EMC) ................................................ 89/336/EEC
2
National Instruments • Tel: (800) 433-3488 • Fax: (512) 683-9300 • info@ni.com • ni.com
NI Services and Support
NI has the services and support to meet your
needs around the globe and through the
application life cycle – from planning
and development through deployment
and ongoing maintenance. We offer
services and service levels to meet
customer requirements in research,
design, validation, and manufacturing.
Visit ni.com/services.
Local Sales and Technical Support
In offices worldwide, our staff is local to the country, giving you
access to engineers who speak your language. NI delivers industry-
leading technical support through online knowledge bases, our
applications engineers, and access to 14,000 measurement and
automation professionals within NI Developer Exchange forums.
Find immediate answers to your questions at ni.com/support.
We also offer service programs that provide automatic upgrades to
your application development environment and higher levels of
technical support. Visit ni.com/ssp.
Training and Certification
NI training is the fastest, most certain route to productivity with our Hardware Services
products. NI training can shorten your learning curve, save NI Factory Installation Services
development time, and reduce maintenance costs over the NI Factory Installation Services (FIS) is the fastest and easiest way to
application life cycle. We schedule instructor-led courses in cities use your PXI or PXI/SCXI™ combination systems right out of the
worldwide, or we can hold a course at your facility. We also offer a box. Trained NI technicians install the software and hardware and
professional certification program that identifies individuals who configure the system to your specifications. NI extends the standard
have high levels of skill and knowledge on using NI products. warranty by one year on hardware components (controllers, chassis,
Visit ni.com/training.
modules) purchased with FIS. To use FIS, simply configure your
system online with ni.com/pxiadvisor.
Professional Services
Our Professional Services Team is comprised of NI applications Calibration Services
engineers, NI Consulting Services, and a worldwide NI Alliance NI recognizes the need to maintain properly calibrated devices for
Partner Program of more than 600 independent consultants and high-accuracy measurements. We provide manual calibration
integrators. Services range procedures, services to recalibrate your products, and automated
from start-up assistance to calibration software specifically designed for use by metrology
turnkey system integration. laboratories. Visit ni.com/calibration.
Visit ni.com/alliance.
Repair and Extended Warranty
OEM Support
NI provides complete repair services for our products. Express repair
We offer design-in consulting and product integration assistance and advance replacement services are also available. We offer
if you want to use our products for OEM applications. For extended warranties to help you meet project life-cycle requirements.
information about special pricing and services for OEM customers, Visit ni.com/services.
visit ni.com/oem.
ni.com • (800) 433-3488
National Instruments • Tel: (512) 683-0100 • Fax: (512) 683-9300 • info@ni.com
© 2004 National Instruments Corporation. All rights reserved. Product and company names listed are trademarks or trade names of their respective companies.
