PX-5080

型号：

PX-5080

描述：

时钟振荡器[ Clock Oscillator ]

品牌：

VECTRON[ Vectron International, Inc ]

页数：

6 页

PDF大小：

232 K

下载PDF手册

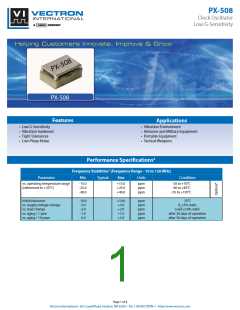

PX-508
Clock Oscillator
Low G-Sensitivity
PX-508
Features
Applications
• Vibration Environment
• Low G-Sensitivity
• Vibration hardened
• Tight Tolerances
• Low Phase Noise
• Airborne and Military Equipment
• Portable Equipment
• Tactical Weapons
Performance Specifications2
Frequency Stabilities1 (Frequency Range - 10 to 120 MHz)
Parameter
Min
Typical
Max
Units
Condition
vs. operating temperature range
(referenced to +25°C)
-15.0
-25.0
-40.0
+15.0
+25.0
+40.0
ppm
ppm
ppm
-20 to +70°C
-40 to +85°C
-55 to +105°C
Initial tolerance
vs. supply voltage change
vs. load change
vs. aging / 1 year
vs. aging / 10 years
-10.0
-3.0
-2.0
-1.0
-5.0
+10.0
+3.0
+2.0
+1.0
+5.0
ppm
ppm
ppm
ppm
ppm
25°C
VS 5ꢀ static
Load 10ꢀ static
after 30 days of operation
after 30 days of operation
Page 1 of 6
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Performance Specifications2
Supply Voltage (Vs)
Parameter
Min
Typical
3.3
Max
Units
Condition
Supply voltage (standard)
Current consumption
3.135
3.465
30
VDC
mA
@LVCMOS
Supply voltage
Current consumption
4.75
5.0
5.25
40
VDC
mA
@HCMOS
RF Output
Signal [standard]
LVCMOS/HCMOS
Load
13.5
3.0
15
16.5
0.3
pF
Signal Level (Vol) LVCMOS
Signal Level (Voh) LVCMOS
Signal Level (Vol) HCMOS
Signal Level (Voh) HCMOS
Duty Cycle
VDC
VDC
VDC
@ Vs=3.3V and 15pF Load
@ Vs=3.3V and 15pF Load
@ Vs=5.0V and 15pF Load
@ Vs=5.0V and 15pF Load
@ (Voh-Vol)/2
0.5
4.5
40
60
5
ꢀ
Rise and Fall time
ns
@15 pF 10 to 90 ꢀ
Additional Parameters
-100
-128
-143
-153
-155
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
10 Hz
100 Hz
1 kHz
10 kHz
100 kHz
@ 77.76
MHz
LVCMOS
3.3 V
Phase Noise3
Jitter
0.101
ps RMS
@ 12 kHz to 20 MHz
-90
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
10 Hz
100 Hz
1 kHz
10 kHz
100 kHz
-122
-142
-148
-155
@ 120
MHz
Phase Noise3
LVCMOS
3.3 V
Jitter
0.062
ps RMS
g
@ 12 kHz to 20 MHz
Weight
8.0
Handling & Processing Note
Processing & Packing
Additional Environmental Conditions
1g2/Hz / 43.92 grms guaranteed
(Qualification testing performed at
MIL-STD-202G; Method 214A;
Random Vibration
MIL-STD-202G; Method 214A; Condition II-J
Condition II-K, 1.5g2/Hz / 53.79 grms)
Test Condition B 50 g
(Qualification testing performed at MIL-
STD-883; Method 2007; Test Condition C 70 g)
Sine Vibration
Shock
MIL-STD-883; Method 2007
5000 g / 0.3 ms
higher values on request
MIL-STD-883G; Method 2002.4; Condition D
JEDEC J-STD-002
100ꢀ RoHS 6 compliant
Solderability
Solvent Resistance
non-washable device
Absolute Maximum Ratings
supply voltage (Vs)
6.0
50
V
Output Load
pF
°C
°C
Operable Temperature Range
Storage Temperature Range
-55
-55
+105
+105
Page 2 of 6
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Outline Drawing / Enclosure
PX-508
Height “H”
6.2
Pin Length “L”
NA
Pin Connections
1
N/C
2
3
N/C
N/C / Enable (optional)
4
Ground (Case)
5
NC
6
NC
RF-Output
NC
7
8
9
Supply Voltage (Vs)
NC
10
Enable true table (optional)
Pin 3
High
Open
Low
Pin 7
Data
Data
High Tristate
Dimensions in mm
Typical Phase Noise @ 120 MHz HCMOS
Typical Phasenoise: PX-508 @ 120MHz
-70
-80
-90
-100
-110
-120
-130
-140
-150
-160
-170
10
100
1000
10000
Offset Frequency [Hz]
100000
1000000
Page 3 of 6
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Typical G-Sensitivity @120 MHz; HCMOS
Vibration spectrum
G-Sensitivity: PX-508; 120MHz; 0,06g2/Hz
1,00
0,90
0,80
0,70
0,60
0,50
0,40
0,30
0,20
0,10
0,00
0,1
0,01
X-Axis
Y-Axis
Z-Axis
Total
0,001
0,0001
10
100
1.000
10.000
10
100
1.000
10.000
Frequency [Hz]
Frequency [Hz]
Phase noise: PX-508; 120MHz; 0,06g2/Hz
Calculation equation according to Vig-Tutorial
-60
-70
L( fv)
20
g-sensitivity:
2⋅ f
Apeak
v
X-Axis
Y-Axis
Z-Axis
G =
⋅10
0
⋅
f
Peak g-level:
-80
Apeak = PSD ⋅2
-90
Oscillator
Y
Z
-100
-110
-120
X
10
100
1.000
10.000
Offset Frequency [Hz]
Typical Frequency Stability vs Temperature
Frequency vs. temperature
-20°C to +70°C
Frequency vs. temperature
-40°C to +85°C
15,0
10,0
5,0
25,0
20,0
15,0
10,0
5,0
0,0
0,0
-5,0
-5,0
-10,0
-15,0
-20,0
-25,0
-10,0
-15,0
-20
-10
0
10
20
30
40
50
60
70
-40
-30
-20
-10
0
10
20
30
40
50
60
70
80
Temperature [°C]
Temperature [°C]
Page 4 of 6
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Standard Shipping Method (PX-508)
Lage im Gurt
Position in tape
Pin 1
Abwickelrichtung
Unwinding direction
A
X
B
Gurtunterseite
Tape buttom side
K
Gurtoberseite
Tape upper side
*bei W ≤ 24 mm nur untere Lochreihe
∗by W ≤ 24 mm only lower hole line
P
Enclosure Type
G301
Tape Width W (mm)
24
Quantity per meter
83,3
Quantity per reel
850
Dimension P
12
Recommended Reflow Profile
Profile Feature
Pb-Free Assembly/
Sn-Pb Assembly
Profile Feature
Pb-Free Assembly/
Sn-Pb Assembly
Average ramp-up rate (TL to TP)
3°C/second max.
Time 25°C to Peak Temperature
8 minutes max.
Preheat -Temperature Min TSmin
-Temperature Min TSmax
150°C
200°C
60-180 seconds
Time maintained above
-Temperature (TL)
-Time (tL)
217°C
60-150 seconds
-Time (min to max) tS
TSmax to TL -Ramp-up Rate
3°C/second max
Time maintained above
-Temperature (TL)
-Time (tL)
217°C
60-150 seconds
Time within 5°C of actual Peak
Temperature (tP)
20-40 seconds
Peak Temperature (TP)
max 260°C
Ramp-down Rate
6°C/ second max
Note: All temperatures refer to topside of the package, measured on the package body surface.
Page 5 of 6
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Ordering Information
PX - 508 0 - E A E - 405 X - 10M0000000
Frequency
Product Family
PX: XO
Package
Low G-Sensitivity
SMD version: 508
Frequency Control
X: NA
Height
0: 6.2 mm
Stability Code
J-155: 15 ppm
E-255: 25 ppm
B-405: 40 ppm
Supply Voltage
D: 5V
E: 3.3V
Temperature Range
RF Output Code
A: LVCMOS / HCMOS
J: -20°C to +70°C
E: -40°C to +85°C
B: -55°C to +105°C
Notes:
1. Contact factory for improved stabilities or additional product options. Not all options and codes are available at all
frequencies.
2. Unless other stated all values are valid after warm-up time and refer to typical conditions for supply voltage, load,
temperature (25°C).
3. Phase noise degrades with increasing output frequency.
4. Contact factory for availability.
Subject to technical modification.
For Additional Information, Please Contact
USA:
Europe:
Asia:
Vectron International
1589 Century Avenue, the 19th Floor
Chamtime International Financial Center
Shanghai, China
Vectron International
267 Lowell Road
Hudson, NH 03051
Tel: 1.888.328.7661
Vectron International
Landstrasse, D-74924
Neckarbischofsheim, Germany
Tel: +49 (0) 7268.801.100
Tel: 86.21.6081.2888
Fax: 86.21.6163.3598
Fax: 1.888.329.8328
Fax: +49 (0) 7268.801.282
Disclaimer
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application.
No rights under any patent accompany the sale of any such product(s) or information.
Rev: 06/2011
Page 6 of 6
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
