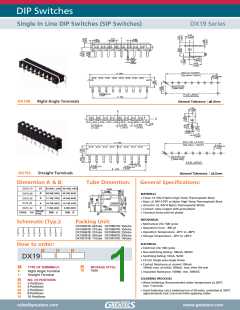

DIP Switches
Single In Line DIP Switches (SIP Switches)
DX19 Series
DX19R_ Right Angle Terminals
General Tolerance： 0.2mm
DX19S_ Straight Terminals
General Tolerance： 0.2mm
Dimention A & B:
Tube Dimention:
General Specifications:
DX19_10
DX19_08
DX19_06
Dx19_04
DX19_02
MATERIALS
» Cover: UL 94V-0 Nylon High-Temp Thermoplastic Black
» Base: UL 94V-0 PBT or Nylon High-Temp Thermoplastic Black
» Actuator: UL 94V-0 Nylon Thermoplastic White
» Contact: Alloy Copper with gold plated
» Terminal: Brass with tin plated
MECHANICAL
Schematic (Typ.):
How to order:
Packing Unit:
» Mechanical Life: 500 cycles
» Operation Force: 800 gf
DX19S02TB: 62/tube DX19R02TB: 56/tube
DX19S04TB: 37/tube DX19R04TB: 35/tube
DX19S06TB: 27/tube DX19R06TB: 25/tube
DX19S08TB: 20/tube DX19R08TB: 20/tube
DX19S10TB: 17/tube DX19R10TB: 16/tube
» Operation Temperature: -30°C to +80°C
» Storage Temperature: -30°C to +80°C
ELECTRICAL
» Electrical Life: 500 cycles
1
2
3
» Non-Switching Rating: 100mA, 50VDC
» Switching Rating: 10mA, 5VDC
» Circuit: Single pole single throw
DX19
» Contact Resistance at current 100mA:
100mȍꢀmax. at initial, 200mȍꢀ max. after life test
1
3
TYPE OF TERMINALS:
Right Angle Terminal
Straight Terminal
PACKAGE STYLE:
Tube
TB
R
S
» Insulation Resistance: 100Mȍ min. 500VDC
SOLDERING PROCESSES
2
NO. OF POSITIONS:
2 Positions
» Wave Soldering: Recommended solder temperature at 260°C
max. 5 seconds.
02
04
06
08
10
4 Positions
6 Positions
8 Positions
10 Positions
» Hand Soldering: Use a soldering iron of 30 watts, controlled at 350°C
approximately max 5 seconds while applying solder.
