Teccor® brandThyristors
15 / 20 / 25 Amp Rectifiers
Physical Specifications
Environmental Specifications
Test
Specifications and Conditions
Terminal Finish
Body Material
Lead Material
100% MatteTin Plated
HighTemperature
Voltage Blocking
MIL-STD-750: Method 1040, Condition A
Rated VRRM, 125°C, 1008 hours
UL recognized epoxy meeting flammability
classification 94V-0
MIL-STD-750: Method 1051
-40°C to 150°C, 15-minute dwell,
100 cycles
Temperature Cycling
Copper Alloy
BiasedTemperature & EIA/JEDEC: JESD22-A101
Humidity
320VDC, 85°C, 85%RH, 1008 hours
MIL-STD-750: Method 1031
150°C, 1008 hours
HighTemp Storage
Design Considerations
Low-Temp Storage
Thermal Shock
Autoclave
1008 hours; -40°C
Careful selection of the correct device for the application’s
operating parameters and environment will go a long way
toward extending the operating life of the rectifier. Good
design practice should limit the maximum continuous
current through the main terminals to 75% of the device
rating. Other ways to ensure long life for a power discrete
semiconductor are proper heat sinking and selection of
voltage ratings for worst case conditions. Overheating,
overvoltage (including dv/dt), and surge currents are
the main killers of semiconductors. Correct mounting,
soldering, and forming of the leads also help protect
against component damage.
MIL-STD-750: Method 1056
0°C to 100°C, 5-minute dwell,
10-second transfer, 10 cycles
EIA/JEDEC: JESD22-A102
(Pressure CookerTest) 121°C, 100%RH, 2atm, 168 hours
Resistance to
Solder Heat
MIL-STD-750: Method 2031
260°C, 10 seconds
Solderability
Lead Bend
ANSI/J-STD-002, Category 3, Test A
MIL-STD-750: Method 2036, Condition E
Dimensions —TO-220AB (L-Package) — Isolated MountingTab
T
C MEASURING POINT
AREA (REF.) 0.17 IN2
Inches
Millimeters
Min
Dimension
O
8.13
.320
Min
Max
0.420
0.115
0.250
0.620
0.147
0.130
0.575
0.035
0.205
0.105
0.075
0.095
0.024
0.188
0.060
0.048
Max
10.67
2.92
6.35
15.75
3.73
3.30
14.61
0.89
5.21
2.67
1.91
A
E
P
A
B
C
D
E
0.380
0.105
0.230
0.590
0.142
0.110
0.540
0.025
0.195
0.095
0.060
0.085
0.018
0.178
0.045
0.038
9.65
2.67
5.84
14.99
3.61
2.79
13.72
0.64
4.95
2.41
1.52
B
C
13.36
.526
D
7. 01
.276
F
F
G
H
J
R
G
L
H
K
Not Used
CATHODE ANODE
N
Note: Maximum torque to
be applied to mounting tab
is 8 in-lbs. (0.904 Nm).
L
K
J
M
M
N
O
P
2.16
0.46
4.52
1.14
2.41
0.61
4.78
1.52
R
0.97
1.22

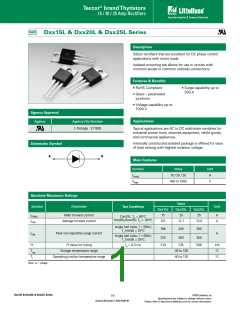

Dxx15L & Dxx20L & Dxx25L Series
©2010 Littelfuse, Inc
350
Specifications are subject to change without notice.
Please refer to http://www.littelfuse.com for current information.
Revised:November1, 2010 05:04PM
