EXPI9400PF

型号：

EXPI9400PF

描述：

可信1000BASE- SX PCI Express千兆光纤连接的服务器[ Trusted 1000BASE-SX PCI Express Gigabit Fiber Connection for Servers ]

品牌：

INTEL[ INTEL ]

页数：

4 页

PDF大小：

738 K

下载PDF手册

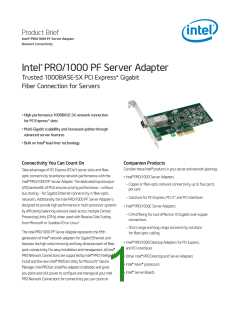

Product Brief
Intel® PRO/1000 PF Server Adapter
Network Connectivity
Intel® PRO/1000 PF Server Adapter
Trusted 1000BASE-SX PCI Express* Gigabit
Fiber Connection for Servers
• High-performance 1000BASE-SX network connection
for PCI Express* slots
• Multi-Gigabit scalability and increased uptime through
advanced server features
• Built on Intel® lead-free1 technology
Connectivity You Can Count On
Companion Products
Consider these Intel® products in your server and network planning:
Take advantage of PCI Express (PCIe*) server slots and fiber-
optic connectivity to enhance network performance with the
Intel® PRO/1000 PF Server Adapter. The dedicated input/output
(I/O) bandwidth of PCIe ensures priority performance – without
bus sharing – for Gigabit Ethernet connectivity in fiber-optic
networks. Additionally, the Intel PRO/1000 PF Server Adapter is
designed to provide high performance in multi-processor systems
by efficiently balancing network loads across multiple Central
Processing Units (CPUs) when used with Receive-Side Scaling
from Microsoft or Scalable I/O on Linux.*
• Intel® PRO/1000 Server Adapters
– Copper or fiber-optic network connectivity, up to four ports
per card
– Solutions for PCI Express, PCI-X,* and PCI interfaces
• Intel® PRO/10GbE Server Adapters
– CX4 offering for cost-effective 10 Gigabit-over-copper
connections
– Short-range and long-range connectivity solutions
for fiber-optic cabling
The Intel PRO/1000 PF Server Adapter represents the fifth
generation of Intel® network adapters for Gigabit Ethernet, and
features the high noise immunity and long-distance reach of fiber-
optic connectivity. For easy installation and management, all Intel®
PRO Network Connections are supported by Intel® PRO Intelligent
Install and the new Intel® PROSet Utility for Microsoft* Device
Manager. Intel PROSet simplifies adapter installation and gives
you point-and-click power to configure and manage all your Intel
PRO Network Connections for connectivity you can count on.
• Intel® PRO/1000 Desktop Adapters for PCI Express
and PCI interfaces
• Other Intel® PRO Desktop and Server Adapters
• Intel® Xeon® processors
• Intel® Server Boards
Network-Ready PCs
For Product Information
Top PC and server manufacturers offer Intel® adapters in their
new products. Specify or ask for Intel PRO Network Connections
with your next PC, server, or mobile PC purchase. To speak to a
customer service representative regarding Intel products, please
call 1-800-538-3373 (U.S. and Canada) or visit support.intel.com/
support/go/network/contact.htm for the telephone number in
your area. For additional product information on Intel Networking
Connectivity products, visit www.intel.com/go/ethernet.
To speak to a customer service representative regarding Intel
products, please call 1-800-538-3373 (U.S. and Canada) or visit
www.intel.com/support/9089.htm for the telephone number in
your area. For additional product information on Intel® Networking
Connectivity products, visit www.intel.com/go/ethernet.
Order Code
Single Unit: EXPI9400PF3
Customer Support
Intel® Customer Support Services offers a broad selection of
programs including phone support and warranty service. For
more information, contact us at intel.com/support/network/
adapter. Service and availability may vary by country.
Features
Benefits
Intel® 82572GI Gigabit Controller
• Enhances high performance and reliability
Load balancing on multiple CPUs
• Increases performance on multi-processor systems by efficiently balancing network loads across
CPU cores when used with Receive-Side Scaling from Microsoft or Scalable I/O on Linux*
Interrupt moderation
• Delivers increased performance while significantly reducing CPU utilization
• Allows operation in almost any PCI Express server slot, except x1 slots
• Enables widespread deployment
Compatible with x4, x8, and x161 PCI Express* slots
Support for most network operating systems (NOS)
Remote management support
LC connectors
• Reduces support costs with remote management based on industry-wide standards
• Small connector design is compatible with the latest fiber-optic cabling standards
• Ensures compatibility with fiber-optic cable lengths up to 275 meters
1000BASE-SX multi-mode fiber
RoHS compliant2
• Compliant with the new European Union directive 2009/95/EC to reduce the use of
hazardous materials
Intel® PROSet Utility for Microsoft* Device Manager
• Provides point-and-click power over individual adapters, advanced adapter features, connection
teaming, and virtual local area network (VLAN) configuration
Intel backing
• Backed by an Intel® limited lifetime warranty, 90-day, money-back guarantee (U.S. and Canada),
and worldwide support
Specifications
General
Intel Backing
Product code
EXPI9400PF3
LC
Limited lifetime warranty
•
•
Connectors
90-day, money-back guarantee
(U.S. and Canada)
IEEE standards/network topology
Wiring multi-mode fiber
1000BASE-SX
(62.5 µm or 50 µm)
Advanced Software Features
Adapter Fault Tolerance (AFT)
Switch Fault Tolerance (SFT)
Adaptive Load Balancing (ALB)
Fast EtherChannel*4 (FEC)
Gigabit EtherChannel*4 (GEC)
Teaming support
•
Adapter Product Features
•
Intel® PROSet Utility and Intel® PRO
Intelligent Install for easy installation
•
•
Intel® lead-free1 technology
•
•
Plug and play specification support
Auto-negotiation, full-duplex capable
Standard
•
•
•
Scales up to 4 connections
Integrated media access control (MAC)
and physical layer (PHY)
Multiple teams
Supports 2 separate teams, maximum
•
IEEE 802.3ad* (link aggregation
Includes a full-height bracket
Cabling Distance
•
control protocol)4
275 m at 62.5 µm; 550 m at 50 µm
Test switch configuration
Tested with major switch original
equipment manufacturers (OEMs)
Network Management
PCIe Hot Plug*/Active peripheral
component interconnect (PCI)
•
Wired for Management (WfM) baseline
v2.0 enabled for servers
•
•
IEEE 802.1Q* VLANs
•
•
•
DMI 2.0 support, Windows Management
Instrumentation (WMI) and SNMP-
manageable SMBus support
IEEE 802.3* (z, ab, u, x) flow control support
TCP checksum offload — transmission
control protocol (TCP), user datagram
protocol (UDP), Internet protocol (IP)
Remote Installation Services (RIS)
•
•
Diagnostics (loopback, testability,
PHY register access)
IEEE 802.1p*
•
•
•
TCP segmentation/large send offload
Interrupt moderation
Advanced configuration and power
interface (ACPI) 1.0 power management
•
Wake on LAN* support over PCI Express*
•
•
Technical Features
Data rate(s) supported per port
Bus type
PXE 2.0 enabled through boot
read-only memory (ROM)
1000 Mbps
PCI Express 1.0a
Network Operating Systems (NOS) Software Support
Bus width
x4 lane PCI Express operable in x4, x8,
x16 slots
Microsoft Windows Server* 2003,
Enterprise, Datacenter (32- and 64-bit)
•
Bus speed (x4, encoded rate)
10 Gbps uni-directional; 20 Gbps
bi-directional
Microsoft Windows 2000
•
•
•
•
•
•
EEPROM-SPI and single EEPROM support
Interrupt levels
•
Red Hat Linux* 2.4x or later (32- and 64-bit)
FreeBSD 4.x or later
INTA
Hardware certifications
Controller-processor
FCC B, UL, CE, VCCI, BSMI, MIC
Intel® 82572GI
Novell Netware* 5.x, 6.x
Sun Solaris* x86, OS 8 and later
Typical power consumption
Operating temperature
Storage temperature
3.3 W (3.3 V @ 1 A)
0–55° C
VMware ESX* 3.x supports SCO Open
Server 5, OpenUNIX* 8
-40° C to 70° C (-40° F to 158° F)
LED indicators
2 (1/port, link and speed) solid
and blinking
Physical Dimensions
Length
12.95 cm (5.1 in)
2.16 cm (0.85 in)
12.0 cm (4.725 in)
Width
Height of end bracket
To see the full line of Intel® PRO/1000 Network Adapters for PCI Express,
visit www.intel.com/go/ethernet
1Lead and other materials banned in EU RoHS Directive are either (1) below all applicable substance thresholds or (2) an approved exemption applies.
2Lead and other materials banned in RoHS Directive are either (1) below all applicable substance thresholds as proposed by the EU or (2) an approved/pending exemption applies.
3Bulk packs also available for minimum order quantities of five adapters. One driver CD per order of five units.
4Available only when used with a capable switch.
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROP-
ERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER,
AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A
PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS OTHERWISE AGREED IN WRITING BY INTEL,
THE INTEL PRODUCTS ARE NOT DESIGNED NOR INTENDED FOR ANY APPLICATION IN WHICH THE FAILURE OF THE INTEL PRODUCT COULD CREATE A SITUATION WHERE PERSONAL INJURY OR
DEATH MAY OCCUR.
Intel may make changes to specifications and product descriptions at any time, without notice. Designers must not rely on the absence or characteristics of any features or instructions marked “reserved” or “un-
defined.” Intel reserves these for future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them. The information here is subject to change without
notice. Do not finalize a design with this information.
The products described in this document may contain design defects or errors known as errata which may cause the product to deviate from published specifications.
Current characterized errata are available on request. Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your
product order. Copies of documents which have an order number and are referenced in this document, or other Intel literature, may be obtained by calling 1-800-548-4725,
or by visiting Intel’s Web Site at http://www.intel.com/.
Copyright © 2010 Intel Corporation. All rights reserved.
Intel, the Intel logo, and Xeon are trademarks of Intel Corporation in the U.S. and other countries.
*Other names and brands may be claimed as the property of others.
Printed in USA
0110/TAR/OCG/XX/PDF
Please Recycle
309027-004US
