EZ80F915050MOD

型号：

EZ80F915050MOD

描述：

eZ80F91模块结构紧凑，高性能的以太网模块[ eZ80F91 Module compact, high-performance Ethernet module ]

品牌：

ZILOG[ ZILOG, INC. ]

页数：

34 页

PDF大小：

505 K

下载PDF手册

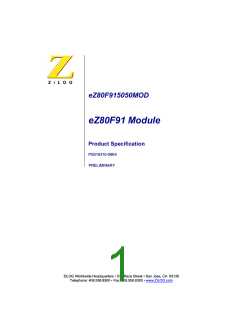

eZ80F915050MOD
eZ80F91 Module
Product Specification
PS019310-0904
PRELIMINARY
ZiLOG Worldwide Headquarters • 532 Race Street • San Jose, CA 95126
Telephone: 408.558.8500 • Fax: 408.558.8300 • www.ZiLOG.com
This publication is subject to replacement by a later edition. To determine whether
a later edition exists, or to request copies of publications, contact:
ZiLOG Worldwide Headquarters
532 Race Street
San Jose, CA 95126
Telephone: 408.558.8500
Fax: 408.558.8300
www.ZiLOG.com
ZiLOG is a registered trademark of ZiLOG Inc. in the United States and in other countries. All other
products and/or service names mentioned herein may be trademarks of the companies with which
they are associated.
Document Disclaimer
©2004 by ZiLOG, Inc. All rights reserved. Information in this publication concerning the devices,
applications, or technology described is intended to suggest possible uses and may be superseded.
ZiLOG, INC. DOES NOT ASSUME LIABILITY FOR OR PROVIDE A REPRESENTATION OF
ACCURACY OF THE INFORMATION, DEVICES, OR TECHNOLOGY DESCRIBED IN THIS
DOCUMENT. ZiLOG ALSO DOES NOT ASSUME LIABILITY FOR INTELLECTUAL PROPERTY
INFRINGEMENT RELATED IN ANY MANNER TO USE OF INFORMATION, DEVICES, OR
TECHNOLOGY DESCRIBED HEREIN OR OTHERWISE. Except with the express written approval
ZiLOG, use of information, devices, or technology as critical components of life support systems is
not authorized. No licenses or other rights are conveyed, implicitly or otherwise, by this document
under any intellectual property rights.
PS019310-0904
P R E L I M I N A R Y
eZ80F915050MOD
eZ80F91 Module Product Specification
iii
Revision History
Each instance in Table 1 reflects a change to this document from its previous revi-
sion. To see more detail, click the appropriate link in the table.
Table 1. Revision History of this Document
Revision
Level
Page
#
Date
Section
Description
July 2004
10
Formatted to current publication standards
All
12
Ethernet PHY and Part number change to AMD MII.
RJ45 Connector
section
Bill of Materials for Part number change to internal crystal at jumper
22
the eZ80F91
Module
location Y3.
PS019310-0904
P R E L I M I N A R Y
Revision History
eZ80F915050MOD
eZ80F91 Module Product Specification
iv
Table of Contents
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
List of Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
The eZ80F91 Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Module Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
eZ80F91 Controller Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Peripheral Bus Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
I/O Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Onboard Component Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Logic-Level I/Os . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Onboard Battery Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Ethernet PHY and RJ45 Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Ethernet LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Fast Buffer (U10) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
IrDA Transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Reset Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Serial Interface Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Document Number Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Change Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Module Bill of Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Customer Feedback Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
PS019310-0304
P R E L I M I N A R Y
Table of Contents
eZ80F915050MOD
eZ80F91 Module Product Specification
v
List of Figures
Figure 1. eZ80F91 Module Functional Block Diagram . . . . . . . . . . . . . . . . . . . 3
Figure 2. eZ80F91 Module Peripheral Bus Connector Pin Configuration—JP1 4
Figure 3. eZ80F91 Module I/O Connector Pin Configuration—JP2 . . . . . . . . . 8
Figure 4. Bus Contention Without the eZ80F91 Module Fast Buffer Feature . 15
Figure 5. Physical Dimensions of the eZ80F91 Module . . . . . . . . . . . . . . . . . 18
Figure 6. eZ80F91 Module—Top Layer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Figure 7. eZ80F91 Module—Bottom Layer . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Figure 8. eZ80F91 Module Schematic Diagram, #1 of 3—Connectors
and Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Figure 9. eZ80F91 Module Schematic Diagram, #2 of 3—CPU and PHY . . . 26
Figure 10. eZ80F91 Module Schematic Diagram, #3 of 3—Module Memory . . 27
PS019310-0304
P R E L I M I N A R Y
List of Figures
eZ80F915050MOD
eZ80F91 Module Product Specification
vi
List of Tables
Table 1. Revision History of this Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Table 2. eZ80F91 Module Peripheral Bus Connector Pin Identification* . . . . . . . 5
Table 3. eZ80F91 Module I/O Connector Pin Identification* . . . . . . . . . . . . . . . . 8
Table 4. eZ80F91 Ethernet Module MII Resistor Configuration. . . . . . . . . . . . . 12
Table 5. Flash Memory Programming Signals and Jumpers . . . . . . . . . . . . . . . 16
Table 6. Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Table 7. Bill of Materials for the eZ80F91 Module . . . . . . . . . . . . . . . . . . . . . . . 22
PS019310-0304
P R E L I M I N A R Y
List of Tables
eZ80F915050MOD
eZ80F91 Module Product Specification
1
The eZ80F91 Module
The eZ80F91 Module is a compact, high-performance Ethernet module specially
designed for the rapid development and deployment of embedded systems
requiring control and Internet/Intranet connectivity.
This expandable module is powered by ZiLOG’s latest power-efficient, high-
speed, optimized pipeline architecture eZ80F91 microcontroller, a member of
ZILOG’s family of eZ80Acclaim! Flash Microcontrollers.
The eZ80F91 is a high-speed single-cycle instruction-fetch microcontroller, which
can operate with a clock speed of 50MHz. It can operate in Z80-compatible
addressing mode (64KB) or full 24-bit addressing mode (16MB).
The rich peripheral set of the eZ80F91 Module makes it suitable for a variety of
applications, including industrial control, IrDA connectivity, communication, secu-
rity, automation, point-of-sale terminals, and embedded networking applications.
Module Features
•
Factory-default operating clock frequency at 50MHz
•
•
•
•
•
•
•
•
10/100 Base-T Ethernet PHY with RJ45 connector
512KB fast SRAM
256KB on-chip Flash memory
1MB off-chip NOR Flash memory
Battery-backed Real-Time Clock
I/O connector provides 32 general-purpose 5V-tolerant I/O pinouts
ZiLOG’s industry-leading IrDA transceiver—ZiLOG ZHX1810
Onboard connector provides I/O bus for external peripheral connections (IRQ,
CS, 24 address, 8 data)
•
•
•
•
Low-cost connection to carrier board via two 2x30pin headers
Small footprint 63.5mm x 78.7mm
3.3V power supply
Standard operating temperature range: 0ºC to +70ºC
PS019310-0904
P R E L I M I N A R Y
The eZ80F91 Module
eZ80F915050MOD
eZ80F91 Module Product Specification
2
eZ80F91 Controller Features
•
•
•
•
The eZ80F91 device contains 256KB of Flash memory and 8KB of SRAM
®
Single-cycle instruction fetch, high-performance, pipelined eZ80 CPU core
10/100 Mbps Ethernet MAC with 8KB frame buffer
Low power features including SLEEP mode, HALT mode, and selective peripher-
al power-down control
•
Two UARTs with independent baud rate generators and support for 9-bit opera-
tion
•
•
•
•
•
SPI with independent clock generator
2
I C with independent clock generator
Infrared Data Association (IrDA)-compliant infrared encoder/decoder
®
New DMA-like eZ80 instructions for efficient block data transfer
External interface with 4 chip selects, individual wait state generators, and an ex-
ternal WAIT input pin — supports Intel- and Motorola-style buses
•
•
Flexible-priority vectored interrupts (both internal and external) and interrupt con-
troller
Real-time clock with on-chip 32KHz oscillator, selectable 50/60Hz input, and sep-
arate VDD pin for battery backup
•
•
•
•
•
•
•
Four 16-bit Counter/Timers with prescalers and direct input/output drive
Watch-Dog Timer
32 bits of general-purpose I/O
JTAG and ZDI debug interfaces
144-pin LQFP package
3.0–3.6V supply voltage with 5V tolerant inputs
Standard operating temperature range: 0ºC to +70ºC
Block Diagram
Figure 1 provides a block diagram of the eZ80F91 Module.
PS019310-0904
P R E L I M I N A R Y
The eZ80F91 Module
eZ80F915050MOD
eZ80F91 Module Product Specification
3
Figure 1. eZ80F91 Module Functional Block Diagram
PS019310-0904
P R E L I M I N A R Y
The eZ80F91 Module
eZ80F915050MOD
eZ80F91 Module Product Specification
4
Pin Description
Peripheral Bus Connector
Figure 2 illustrates the pin layout of the 60-pin Peripheral Bus Connector (JP1) of
®
the eZ80F91 Module. The eZ80 Development Platform, however, features a 50-
pin connector. The eZ80F91 Module is designed to interface pin 60 of its JP1 con-
®
nector to pin 50 of the eZ80 Development Platform’s JP1 connector so that pins
®
1–10 of the eZ80F91 Module overlap the edge of the eZ80 Development Plat-
form. Table 2 identifies the pins and their functions.
Figure 2. eZ80F91 Module
Peripheral Bus Connector Pin Configuration—JP1
PS019310-0904
P R E L I M I N A R Y
Pin Description
eZ80F915050MOD
eZ80F91 Module Product Specification
5
Note:
All signals with an overline are active Low. For example, B/W, for which
WORD is active Low, and B/W, for which BYTE is active Low.
Table 2. eZ80F91 Module Peripheral Bus Connector Pin Identification*
Pull
Pin # Symbol
Up/Down* Signal Direction Comments
1
2
3
4
5
6
7
Reserved
Reserved
Reserved
Reserved
TRSTN
Input
Input
Reset for On-Chip Instrumentation (OCI).
Reserved
F91_WE
PU 10KΩ
A Low enables a Write to on-chip Flash
memory. If this pin is unconnected, on-chip
Flash memory is write-protected.
8
Reserved
GND
9
V
/Ground (0V).
SS
10
11
12
13
14
15
16
17
18
19
20
21
V
3.3V supply input pin.
CC
A6
Bidirectional
Bidirectional
Bidirectional
Bidirectional
A0
A10
A3
GND
V
/Ground (0V).
SS
V
3.3V supply input pin.
CC
A8
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
A7
A13
A9
A15
Notes: *External capacitive loads on RD, WR, IORQ, MREQ, D0–D7 and A0–A23 should be below 10pF to satisfy
timing requirements for the CPU.
All unused inputs should be pulled to either V
consumption and to reduce noise sensitivity.
or GND, depending on their inactive levels, to reduce power
DD
All inputs are CMOS level 3.3V (5V tolerant), except where otherwise noted.
PS019310-0904
P R E L I M I N A R Y
Pin Description
eZ80F915050MOD
eZ80F91 Module Product Specification
6
Table 2. eZ80F91 Module Peripheral Bus Connector Pin Identification* (Continued)
Pull
Pin # Symbol
Up/Down* Signal Direction Comments
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
A14
Bidirectional
Bidirectional
Bidirectional
Bidirectional
A18
A16
A19
GND
A2
V
/Ground (0V).
SS
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
A1
A11
A12
A4
A20
A5
A17
Reserved
DIS_Flash
PU 10KΩ
Input
A Low disables onboard Flash memory.
Flash is enabled if DIS_Flash is not
connected; CMOS Input 3.3V (5V tolerant).
37
38
39
40
41
42
43
44
45
A21
Bidirectional
V
3.3V supply input pin.
CC
A22
A23
CS0
CS1
CS2
D0
Bidirectional
Bidirectional
Output
Output
Output
PU 4kΩ
PU 4kΩ
Bidirectional
Bidirectional
D1
Notes: *External capacitive loads on RD, WR, IORQ, MREQ, D0–D7 and A0–A23 should be below 10pF to satisfy
timing requirements for the CPU.
All unused inputs should be pulled to either V
consumption and to reduce noise sensitivity.
or GND, depending on their inactive levels, to reduce power
DD
All inputs are CMOS level 3.3V (5V tolerant), except where otherwise noted.
PS019310-0904
P R E L I M I N A R Y
Pin Description
eZ80F915050MOD
eZ80F91 Module Product Specification
7
Table 2. eZ80F91 Module Peripheral Bus Connector Pin Identification* (Continued)
Pull
Pin # Symbol
Up/Down* Signal Direction Comments
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
D2
PU 4kΩ
PU 4kΩ
PU 4kΩ
PU 4kΩ
Bidirectional
Bidirectional
Bidirectional
Bidirectional
D3
D4
D5
GND
D7
V
V
/Ground (0V).
/Ground (0V).
SS
PU 4kΩ
Bidirectional
Bidirectional
Bidirectional
Bidirectional
D6
MREQ
IORQ
GND
RD
SS
Bidirectional
Bidirectional
Output
WR
INSTRD
BUSACK
BUSREQ
Output
PU 2kΩ
Input
Notes: *External capacitive loads on RD, WR, IORQ, MREQ, D0–D7 and A0–A23 should be below 10pF to satisfy
timing requirements for the CPU.
All unused inputs should be pulled to either V
consumption and to reduce noise sensitivity.
or GND, depending on their inactive levels, to reduce power
DD
All inputs are CMOS level 3.3V (5V tolerant), except where otherwise noted.
I/O Connector
Figure 3 illustrates the pin layout of the 60-pin I/O Connector (JP2) of the eZ80F91
®
Module. The eZ80 Development Platform, however, features a 50-pin connector.
The eZ80F91 Module is designed to interface pin 60 of its JP2 connector to pin 50
®
of the eZ80 Development Platform’s JP2 connector so that pins 1–10 of the
®
eZ80F91 Module overlap the edge of the eZ80 Development Platform
identifies the pins and their functions.
. Table 3
PS019310-0904
P R E L I M I N A R Y
Pin Description
eZ80F915050MOD
eZ80F91 Module Product Specification
8
Figure 3. eZ80F91 Module
I/O Connector Pin Configuration—JP2
Table 3. eZ80F91 Module I/O Connector Pin Identification*
Pull
Signal
Pin # Symbol
Up/Down Direction
Comments
1
2
3
4
PA7
PA6
PA5
PA4
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Notes: *External capacitive loads on RD, WR, IORQ, MREQ, D0–D7 and A0–A23 should be below 10pF to satisfy
timing requirements for the CPU.
All unused inputs should be pulled to either V
consumption and to reduce noise sensitivity.
or GND, depending on their inactive levels, to reduce power
DD
All inputs are CMOS level 3.3V (5V tolerant), except where otherwise noted.
PS019310-0904
P R E L I M I N A R Y
Pin Description
eZ80F915050MOD
eZ80F91 Module Product Specification
9
Table 3. eZ80F91 Module I/O Connector Pin Identification* (Continued)
Pull Signal
Pin # Symbol
Up/Down Direction
Comments
5
PA3
PA2
PA1
PA0
Bidirectional
6
Bidirectional
7
Bidirectional
8
Bidirectional
9
V
3.3V supply input pin.
V /Ground (0V).
CC
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
GND
PB7
PB6
PB5
PB4
PB3
PB2
PB1
PB0
GND
PC7
PC6
PC5
PC4
PC3
PC2
PC1
PC0
PD7
PD6
SS
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
V
/Ground (0V).
SS
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Notes: *External capacitive loads on RD, WR, IORQ, MREQ, D0–D7 and A0–A23 should be below 10pF to satisfy
timing requirements for the CPU.
All unused inputs should be pulled to either V
consumption and to reduce noise sensitivity.
or GND, depending on their inactive levels, to reduce power
DD
All inputs are CMOS level 3.3V (5V tolerant), except where otherwise noted.
PS019310-0904
P R E L I M I N A R Y
Pin Description
eZ80F915050MOD
eZ80F91 Module Product Specification
10
Table 3. eZ80F91 Module I/O Connector Pin Identification* (Continued)
Pull Signal
Pin # Symbol
Up/Down Direction
Comments
V /Ground (0V).
SS
30
31
32
33
34
35
36
37
38
39
40
41
GND
PD5
Bidirectional
PD4
PD 4kΩ
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Output
PD3
PD2
PD1
PD0
TDO
JTAG Data Output pin.
JTAG Data Input pin.
TDI/ZDA
GND
Input
V
/Ground (0V).
SS
TRIGOUT
TCK/ZCL
Output
Active High trigger event indicator.
PU 10KΩ Input
JTAG Input. High on reset enables ZDI mode; Low on
reset enables OCI debug.
42
43
TMS
PU 10KΩ Input
JTAG Test Mode Select Input.
RTC_V
RTC supply. For proper operation of the eZ80F91
Module, this pin must be connected to the same
power source that powers the module (as is done on
the ZiLOG development platform).
DD
44
45
46
47
48
49
EZ80CLK
Output
Synchronous CPU clock output.
2
2
I CSCL
PU 4kΩ
PU 4kΩ
Bidirectional
I C Bus Clock.
GND
V
/Ground (0V).
SS
2
2
I CSDA
Bidirectional
Power
I C Data Clock.
V /Ground (0V).
SS
GND
FlashWE
PU 10KΩ Input
A Low enables a Write to external Flash memory boot
block area. If this pin is unconnected, the Flash
memory boot block area is write-protected.
50
GND
V
/Ground (0V).
SS
Notes: *External capacitive loads on RD, WR, IORQ, MREQ, D0–D7 and A0–A23 should be below 10pF to satisfy
timing requirements for the CPU.
All unused inputs should be pulled to either V
consumption and to reduce noise sensitivity.
or GND, depending on their inactive levels, to reduce power
DD
All inputs are CMOS level 3.3V (5V tolerant), except where otherwise noted.
PS019310-0904
P R E L I M I N A R Y
Pin Description
eZ80F915050MOD
eZ80F91 Module Product Specification
11
Table 3. eZ80F91 Module I/O Connector Pin Identification* (Continued)
Pull Signal
Pin # Symbol
Up/Down Direction
Comments
51
CS3
Output
Used on the eZ80190, eZ80L92, eZ80F92, eZ80F93
devices and connected to the CS8900 EMAC.
52
DIS_IRDA
PU 10KΩ Input
A Low disables the onboard IRDA transceiver to use
PC0/PC1 UART pins externally.
53
54
RESET
WAIT
PU 2kΩ
PU 2kΩ
Bidirectional
Input
Reset Output from module or push-button reset.
Driving the WAIT pin Low forces the CPU to provide
additional clock cycles for an external peripheral or
external memory to complete its Read or Write opera-
tion.
55
56
57
V
3.3V supply input pin.
CC
GND
V
/Ground (0V).
SS
HALT_SLP
Output, Active A Low on this pin indicates that the CPU enters either
Low
HALT or SLEEP mode because of execution of either
a HALT or SLP instruction.
58
NMI
PU 10KΩ SchmittTrigger The NMI input is a higher priority input than the
Input, Active
Low
maskable interrupts. It is always recognized at the
end of an instruction, regardless of the state of the
interrupt enable control bits. This input includes a
Schmitt trigger to allow RC rise times. This external
NMI signal is combined with an internal NMI signal
generated from the WDT block before being con-
nected to the NMI input of the CPU.
59
60
V
3.3V supply input pin.
CC
Reserved
NC
Reserved—No Connection.
Notes: *External capacitive loads on RD, WR, IORQ, MREQ, D0–D7 and A0–A23 should be below 10pF to satisfy
timing requirements for the CPU.
All unused inputs should be pulled to either V
consumption and to reduce noise sensitivity.
or GND, depending on their inactive levels, to reduce power
DD
All inputs are CMOS level 3.3V (5V tolerant), except where otherwise noted.
PS019310-0904
P R E L I M I N A R Y
Pin Description
eZ80F915050MOD
eZ80F91 Module Product Specification
12
Onboard Component Description
Logic-Level I/Os
The I/O connector features 32 general-purpose 3.3V CMOS I/O pins that can be
used as outputs or inputs interfacing to external logic. All I/Os are 5V tolerant.
Some of the General-Purpose I/O pins support dual mode functions (SPI, Timer I/O,
UARTs and bit I/O with edge- or level-triggered interrupt functions on each pin). For
more information on eZ80F91 dual modes, please refer to the eZ80F91 Product
Specification (PS0192).
Onboard Battery Backup
An onboard Panasonic VL-1220-1VC 3V Lithium battery powers the 32kHz Real-
Time Clock when external power is removed. The battery is charged through
diode CR1 and resistor R28 when external power is applied to the board.
Ethernet PHY and RJ45 Connector
The eZ80F91 Ethernet Module contains Advanced Micro Devices’ Am79C874
Media-Independent Interface (MII) and a HALO RJ45 with integrated magnetics
(transformer and common-mode chokes) and two LED indicators.
The MII enables different modes of Ethernet communication, configurable by
resistors R19, R21, R23, and R24. The eZ80F91 Ethernet Module is shipped with
all four resistors installed. Table 4, which lists the available resistor settings, is
excerpted from the Am79C874 data sheet published by AMD.
Table 4. eZ80F91 Ethernet Module MII Resistor Configuration
R24
R19
R23
R21
Full-
ANEG (Tech[2]) (Tech[1]) (Tech[0]) Speed Duplex ANEG-EN Capabilities
ANEG
1
1
IN
IN
IN
IN
IN
IN
IN
IN
OUT
IN
Yes
No
Yes
No
No
No
No
All
Disabled
Disabled
Disabled
10HD
100HD
IN
OUT
No
No
Notes:
1. MII Register 0 (Speed and Duplex Bits) must be set by a MAC to achieve a link.
2. When autonegotiation is enabled, these bits can be written but will be ignored by PHY.
3. The advertised abilities of MII Register 4 cannot exceed the abilities of MII Register 1. Autonegotiation should
always be enabled.
PS019310-0904
P R E L I M I N A R Y
Onboard Component Description
eZ80F915050MOD
eZ80F91 Module Product Specification
13
Table 4. eZ80F91 Ethernet Module MII Resistor Configuration (Continued)
R19 R23 R21 Full-
R24
ANEG (Tech[2]) (Tech[1]) (Tech[0]) Speed Duplex ANEG-EN Capabilities
ANEG
IN
IN
OUT
IN
OUT
IN
No
Yes
No
No
Yes
No
No
No
100HD
All
Disabled
Disabled
Disabled
Disabled
Disabled
Enabled
Enabled
Enabled
Enabled
Enabled
Enabled
Enabled
Enabled
1
1
IN
OUT
OUT
OUT
OUT
IN
IN
IN
OUT
IN
No
10FD
IN
OUT
OUT
IN
No
No
No
100FD
100FD
None
IN
OUT
IN
No
No
No
2
2
2
2
2
2
2
3
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
Notes:
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
IN
IN
OUT
IN
10HD
IN
OUT
OUT
IN
100HD
100HD, 10HD
None
IN
OUT
IN
OUT
OUT
OUT
OUT
IN
OUT
IN
10FD/HD
100FD/HD
All
OUT
OUT
OUT
1. MII Register 0 (Speed and Duplex Bits) must be set by a MAC to achieve a link.
2. When autonegotiation is enabled, these bits can be written but will be ignored by PHY.
3. The advertised abilities of MII Register 4 cannot exceed the abilities of MII Register 1. Autonegotiation should
always be enabled.
Ethernet LEDs
The Ethernet connection is provided by the HALO RJ45 connector. It contains two
green LEDs that are located next to each other on the eZ80F91 Module. When
PHY is receiving data, the left LED is on. When the PHY is transmitting data, the
right LED is on.
Fast Buffer (U10)
The eZ80F91 Module’s fast buffer (see Figure 1 on page 3) exists to prevent bus
contention that will occur because of slow turn-off time of the module’s external
Flash and the fast bus turn-around time of the eZ80F91 (generic feature of the
®
eZ80 family when it is used in native mode).
Below is a short explanation of the problem related to bus contention when using
®
eZ80 family of the microprocessors in native eZ80 mode. Refer to Figure 4 on
PS019310-0904
P R E L I M I N A R Y
Onboard Component Description
eZ80F915050MOD
eZ80F91 Module Product Specification
14
page 15 while reading the following discussion. Also see the eZ80F91 Product
Specification (PS0192) for further details.
Bus contention occurs when two or more devices drive a common bus. The
eZ80F91's CS0 drives the Flash CE. After the access to Flash, CS0 is driven High
a maximum of 8.8ns after the next rising edge of the Clock (T6, Figure 4). The
Flash turn-off time (T ) is 25ns, which is the time from OE or CE going High to
OD
the Flash output drivers going into High-Z mode. In other words, after the end of
the eZ80F91 Read access to Flash, it takes 8.8ns+25ns = 33.8ns before Flash
stops driving the data bus. At this point, the eZ80F91 device is already well into
the next bus cycle.
Assume that the next cycle is Memory Write. During the Memory Write cycle, Data
(output) from the eZ80F91 device is valid not later than T3 = 7.5ns, and the Write
pulse is asserted not later than 4.5ns after the falling edge of the Clock (14.5ns
from the Rising edge if Clock is 50MHz). It means that during T
= (33.8ns –
CON
7.5ns) = 26.3ns; two devices drive the common Data Bus—the eZ80F91 device
and Flash. In turn, data that is being written during the Write operation might be
corrupted. The part used to isolate a slow Flash data bus from a fast eZ80F91 bus
has 5.5ns turn-off time, which reduces 25ns part of the T
to 5.5ns. As a result,
CON
bus contention still occurs, but its duration is not 26.3ns, as the following equation
shows:
Time of contention = (8.8ns - 7.5ns + 5.5ns) = 6.8ns
Data being written is not corrupted because the Write pulse is not yet asserted.
PS019310-0904
P R E L I M I N A R Y
Onboard Component Description
eZ80F915050MOD
eZ80F91 Module Product Specification
15
Figure 4. Bus Contention Without the eZ80F91 Module Fast Buffer Feature
Memory
The eZ80F91 Module contains external Flash memory, and the eZ80F91 MCU
contains internal Flash memory. To allow Read/Write access to Flash memory on
the eZ80F91 Module, there are two signals provided, on connectors JP1 and JP2.
A jumper JP3 on the module enables programming of on-chip Flash.
There is also a signal that duplicates the function of this jumper. Table 5 describes
the states of the signals and the status of the jumper for different modes.
PS019310-0904
P R E L I M I N A R Y
Onboard Component Description
eZ80F915050MOD
eZ80F91 Module Product Specification
16
Table 5. Flash Memory Programming Signals and Jumpers
Signal/Jumper
Function
Controls Read/Write access to eZ80F91 Module external Flash When Low, access
memory is enabled
Controls Write operations to the boot block of eZ80F91 Module When Low, Write is
external Flash memory enabled
State/Status
DIS_FLASH
FlashWE
JP3
Controls Write access to eZ80F91 MCU on-chip Flash memory When IN, Write is
enabled
F91_WE
Controls Write access to eZ80F91 MCU on-chip Flash memory When Low, Write is
enabled
The eZ80F91 Module’s external Flash memory has an access time of 100ns. At
least five wait states must be added to the cycle when accessing external Flash at
the 50MHz clock speed. eZ80F91 MCU on-chip Flash is faster; its minimum
access time is 60ns, which requires only three wait states at 50MHz.
There is 512KB of fast SRAM on the eZ80F91 Module. Access time is 12ns,
which requires one wait-state access. The eZ80F91 on-chip SRAM can be used
with zero wait states.
IrDA Transceiver
An onboard IrDA transceiver (ZiLOG ZHX1810) is connected to PD0 (TX), PD1
(RX), and PD2 (Shutdown, R_SD). The IrDA transceiver is of the LED type
870nm Class 1.
The receiver supply current is 90–150µA and the transmitter supply current is
260mA when the LED is active.The IrDA transceiver is accessible via the IrDA
controller attached to UART0 on the eZ80F91 device. The UART0 console and
the IrDA transceiver cannot be used simultaneously.
To use the UART0 for console or to save power, the transceiver can be disabled
by the software or by an off-board signal when using the proper jumper selection.
The transceiver is disabled by setting PD2 (IR_SD) High or by pulling the
DIS_IRDA pin on the I/O connector Low. The shutdown is used for power savings.
To enable the IrDA transceiver, DIS_IRDA is left floating and PD2 is set to Low.
Reset Generator
The onboard Reset Generator Chip performs reliable Power-On Reset. The chip
generates a reset pulse with a duration of 200ms if the power supply drops below
PS019310-0904
P R E L I M I N A R Y
Onboard Component Description
eZ80F915050MOD
eZ80F91 Module Product Specification
17
2.93V. This reset pulse ensures that the board always starts in a defined condi-
tion. The RESET pin on the I/O connector reflects the status of the RESET line. It
is a bidirectional pin for resetting external peripheral components or for resetting
the eZ80F91 Module with a low-impedance output (e.g. a 100-Ohm pushbutton).
Serial Interface Ports
The CPU contains two UARTs with programmable baud rate generators. UART0
is connected to GPIO PD[0:7] on the I/O connector. UART1 is connected to GPIO
PC[0:7] on the I/O connector.
Do not connect an RS-232 interface without level shifters. There are no
RS232-level shifters on the eZ80F91 Module.
Note:
Physical Dimensions
The footprint of the eZ80F91 Module PCB is 63.5mmx78.7cm. With an RJ-45
Ethernet connector, the overall height is 25mm. See Figure 5.
PS019310-0904
P R E L I M I N A R Y
Onboard Component Description
eZ80F915050MOD
eZ80F91 Module Product Specification
18
16.5 mm
56.0 mm
eZ80F91 MODULE
JP1
JP2
2
1
1
R15
R23
R16
R24
R25
R14
R21
R13
R19
R28
U6
+
P2
R17
R18
R36
R22
R20
CR1
JP3
ISO
VL1
U8
Y2
78.7 mm
U5
C22
U1
R37
U4
Y3
C12
C11
R3
C3
R10
R6
U2
C1
C42
R29
U3
31.8 mm
63.5 mm
Figure 5. Physical Dimensions of the eZ80F91 Module
PS019310-0904
P R E L I M I N A R Y
Onboard Component Description
eZ80F915050MOD
eZ80F91 Module Product Specification
19
Figure 6 illustrates the top layer silkscreen of the eZ80F91 Module.
JP1
JP2
eZ80F91 MODULE
2
1
1
R15
R23
R16
R24
R25
R14
R21
R13
R19
R28
U6
+
P2
R17
R18
R36
R22
R20
CR1
JP3
ISO
VL1
U8
Y2
U5
C22
R37
U1
Y3
U4
C12
C11
R3
C1
C3
R10
R6
C42
U2
R29
U3
Figure 6. eZ80F91 Module—Top Layer
PS019310-0904
P R E L I M I N A R Y
Onboard Component Description
eZ80F915050MOD
eZ80F91 Module Product Specification
20
Figure 7 illustrates the bottom layer silkscreen of the eZ80F91 Module.
JP2
JP1
R35
R34
DJP 2002
1
2
C4
C7
C16
C14
C39
C51
C50
R11
R33
R32
C15
R31
C17
C49
C48
C44
C45
C47
C46
C34
C35
C26
C33
C29
C27
U9
L1
C32
C9
C38
C28
C5
R26
C23
R8
R7
R2
C6
C37
R1
R30
R12
R5
C41
MADE IN U.S.A.
ZiLOG FAB: 98C0879-001 REV A
C2
Figure 7. eZ80F91 Module—Bottom Layer
Absolute Maximum Ratings
Stresses greater than those listed in Table 6 can cause permanent damage to the
device. These ratings are stress ratings only. Operation of the device at any con-
dition outside those indicated in the operational sections of these specifications is
not implied. Exposure to absolute maximum rating conditions for extended peri-
ods may affect device reliability. For improved reliability, unused inputs should be
tied to one of the supply voltages (VDD or VSS).
Table 6. Absolute Maximum Ratings
Parameter
Min
0
Max
+70
+85
90%
3.6
Units
ºC
Standard operating temperature
Storage temperature
–45
25%
—
ºC
Operating Humidity (RH @ 50ºC)
Operating Voltage
V
PS019310-0904
P R E L I M I N A R Y
Onboard Component Description
eZ80F915050MOD
eZ80F91 Module Product Specification
21
Document Number Description
The Document Control Number that appears in the footer of each page of this
document contains unique identifying attributes, as indicated in the following
table:
PS
Product Specification
Unique Document Number
Revision Number
0193
10
0904
Month and Year Published
Change Log
Rev
Date
Purpose
01
02
03
04
05
06
07
08
09
10
December 2002 Original issue
January 2003
February 2003
June 2003
Minor content revision
Minor content revision
Minor content revision
Minor content revision
Hyperlink correction
June 2003
August 2003
December 2003 Typo correction
December 2003 Correction to BOM
March 2004
Correction to schematic
September 2004 Corrections to PHY section
PS019310-0904
P R E L I M I N A R Y
Document Number Description
eZ80F915050MOD
eZ80F91 Module Product Specification
22
Module Bill of Materials
Table 7 lists the installed components of the eZ80F91 Module.
Table 7. Bill of Materials for the eZ80F91 Module
Jumper
Part Number Part Name
Qty. Location Manufacturer
Prime Technologies
Alliance Semi.
98C0879-001 Fab, eZ80F91 Module, Rev. B
1
—
35-0180-12
35-0016-05
35-0720-10
35-0719-00
ZHX1810
IC, SRAM, 512Kx8, 12ns, 3V, 36-SOJ
IC, 74LVC04, 3.3V, GATE, 14-SOIC
IC, Flash, 1Mx8, 100ns, 3V, 40-TSSOP
IC, MAX6328, RESET, SOT-23
1
U8
AS7C34096-12JC
1
1
1
1
1
U1
U9
U3
U2
U4
Texas Instruments
SN74LVC04AD
Micron Technologies
MT28F008B3VG-10B
Maxim Inc.
MAX6328UR29-T
IC, IR Transceiver, Low Profile
ZiLOG Inc.
ZHX1810MV115THTR
35-0062-01
IC, 74LCX32, LV, QUAD OR, 14-TSSOP
Fairchild Semi.
74LCX32MTC
35-0022-01
eZ80F91
IC, AM7C874, PHY XCVR, 80QFP
IC, eZ80F91, 50MHZ, 144VQFP
IC, 74CBTLV3861PWR, 24-TSSOP
1
1
1
U6
U5
AMD AM79C874VC
ZiLOG Inc. eZ80F91
35-0731-00
U10
Texas Instruments
SN74CBTLV3861PWR
48-1013-01
17-2005-70
17-2005-66
Diode, TVS Array, XCVR Prot, 8-SOIC
CAP, 1000pF, 50V, Ceramic Chip, 0603
CAP, 0.1µF, 16V, Ceramic Chip, 0603
1
U9
Semtec
LCDA15C-6
15 C13, C14, Panasonic
C31-43 ECJ-1VC1H561J
28
C2,10, Kemet Inc.
C15-30, C0603C104K5RAC
C44-53
17-2005-54
17-2005-83
17-2005-63
CAP, 0.01µF, 50V, Ceramic Chip, 0603
CAP, 0.33µF, 16V, Ceramic Chip, 0603
CAP, 560pF, 50V, Ceramic Chip, 0603
1
1
1
C3
C1
C6
Panasonic
ECJ-1VB1C103K
Panasonic
ECJ-1VF1C334Z
Panasonic
ECJ-1VC1H563K
PS019310-0904
P R E L I M I N A R Y
Document Number Description
eZ80F915050MOD
eZ80F91 Module Product Specification
23
Table 7. Bill of Materials for the eZ80F91 Module (Continued)
Jumper
Part Number Part Name
Qty. Location Manufacturer
17-2001-03
17-2001-05
17-2001-20
17-2001-01
48-0051-00
16-9005-33
46-3001-03
CAP, 12pF, 50V, Ceramic Chip, 0603
4
2
1
1
1
1
C9, C11, Panasonic
C12
ECJ-1VC1H120J
CAP, 22PF, 50V, CER CHIP, 0603
CAP, 270PF, 50V, CER CHIP, 0603
CAP, 5PF, 50V, CER CHIP, 0603
DIODE, 1N5817, RCTFR
C4, C7 PANASONIC
ECJ-1VC1H220J
C5
PANASONIC
ECJ-1VC1H271J
C8
PANASONIC
ECJ-1VC1H050C
CR1
L1
MOTOROLA
1N5817
INDUCTOR, 3.3µH, 20%, 1210 SMD
Resistor, 10KΩ, 1%, 1/16W, 0603 SMT
PANASONIC
ELJ-PA3R3MF
15 R3, 8, 10, Sprague
R12-18, 420CK472X2PD
R20, 25,
29, 30, 37
46-3000-00
Resistor, 0Ω, 1%, 1/16W, 0603 SMT
4
R19, 21,
23, 24
"
46-3000-71
46-3000-35
46-3000-02
46-3000-32
Resistor, 2.21KΩ, 1%, 1/16W, 0603 SMT
Resistor, 68Ω, 1%, 1/16W, 0603 SMT
RES, 2.2Ω, 1%, 1/16W, 0603 SMT
RES, 49.9Ω, 1%, 1/16W, 0603 SMT
2
1
1
4
R5, R6
R3
"
"
"
"
R4
R11, 31,
32, 33
46-3000-63
46-3000-56
46-3001-34
46-3000-47
46-3000-51
46-3001-75
23-0000-25
RES, 1KΩ, 1%, 1/16W, 0603 SMT
RES, 499Ω,1%, 1/16W, 0603 SMT
RES, 200KΩ, 1%, 1/16W, 0603 SMT
RES, 221Ω, 1%, 1/16W, 0603 SMT
RES, 332Ω, 1%, 1/16W, 0603 SMT
RES, 10MΩ, 1%, 1/16W, 0603 SMT
XTAL, 25.0000MHz, SER/RESN, HC49S
1
1
1
1
2
1
1
R22
R26
"
"
"
"
"
"
R27
R28
R34, R35
R38
Y1
CITIZEN
HC49US25.000MABJ
23-0000-50
XTAL, 50.0000MHz, SER/RESN, HC49S
1
Y2
CITIZEN
HC49US50.000MABJ
PS019310-0904
P R E L I M I N A R Y
Document Number Description
eZ80F915050MOD
eZ80F91 Module Product Specification
24
Table 7. Bill of Materials for the eZ80F91 Module (Continued)
Jumper
Part Number Part Name
Qty. Location Manufacturer
23-0006-00
21-0907-01
21-0055-02
Internal crystal, 32.768KHz, SER/RESN,
TF case
1
1
2
Y3
Fox NC-38
Connector, RJ45, Fast jack,10/100 Base-T
P2
Halo Electronics
HFJ11-2450E-L11
Connector, HDR/PIN, .025SQ, double row
JP1, JP2 Harwin
(backside) M-20-976-3622
PS019310-0904
P R E L I M I N A R Y
Document Number Description
eZ80F915050MOD
eZ80F91 Module Product Specification
Schematics
25
Figures 8 through 10 diagram the layout of the eZ80F91 Module. Ethernet circuiting devices are not loaded on the
eZ80F91 Module. However, these devices appear in the following schematics for reference purposes.
VCCVCC
A[0..23]
D[0..7]
A[0..23]
D[0..7]
U1A
Connector 1
Connector 2
JP2
R1
-F91_WP
R2
4.7K
-F91_WE
1
2
-F91_WP
JP1
-CS[0..3]
4.7K
-CS[0..3]
PA7
PA5
PA3
PA1
VCC
PB7
PB5
PB3
PB1
PA6
PA4
PA2
PA0
GND
PB6
PB4
PB2
PB0
PC7
PC5
PC3
PC1
PD7
GND
PD4
PD2
PD0
TDI
TRIGOUT
TMS
EZ80CLK
74LCX04
TSSOP14
1
3
5
7
9
2
4
6
8
1
3
5
7
9
2
4
6
8
IICSDA
IICSCL
IICSDA
IICSCL
R37
10K
IICSDA
IICSCL
-TRSTN
-F91_WE
GND
A6
A10
GND
A8
A13
A15
A18
A19
A2
A11
A4
VCC
A0
A3
VCC
A7
A9
A14
A16
GND
A1
A12
A20
A17
-DIS_FLASH
VCC
A23
-CS1
D0
D2
D4
GND
D6
-IOREQ
-RD
CLK_OUT
EZ80CLK
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
CLK_OUT
VCC
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51
53
55
57
59
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
-DIS_FLASH
JP3
-DIS_FLASH
1
2
R3
C1
GND
PC6
-FLASHWE
RTC_VDD
PA[0..7]
PC4
PC2
PC0
PD6
PD5
PD3
PD1
TDO
R4
68R
WR_EN
-FLASHWE
RTC_VDD
PA[0..7]
330nF
U2
2R7
5
1
2
4
3
6
VCC
LEDA
TXD
SD
(MMA 0204)
A5
PB[0..7]
PB[0..7]
A21
A22
-CS0
-CS2
D1
D3
D5
PD0
PC[0..7]
GND
PC[0..7]
IRDA_SD
PD1
TCK
RTC_VDD
IICSCL
IICSDA
-FLASHWE
-CS3
-RESET
VCC
PD[0..7]
43
45
47
PD[0..7]
VCC
RXD
GND
-RESE
T
GND
-RESET
49
-DIS_IRDA
-WAIT
GND
-RD
-WR
D7
51
53
55
57
59
-RD
-WR
-MREQ
ZHX181
0
GND
-HALT_SL
VCC
P
-IOREQ
-MREQ
-INSTRD
R5
2.2K
R6
2.2K
-WR
-BUSACK
-INSTRD
-BUSREQ
-NMI
-IOREQ
-MREQ
-INSTRD
-WAIT
-HALT_SL
-WAIT
-WAIT
P
HEADER 30x2/SM
HEADER 30x2/SM
-HALT_SL
P
-BUSREQ
-BUSACK
-BUSREQ
VCC VCC
-BUSREQ
-BUSACK
-NMI
-NMI
R7
R8
10K
VCC
10K
U1B
U4A
TDI
TD
TRIGOUT
1
TDI
TDO
O
R20
10K
3
4
3
2
TRIGOUT
TCK
TMS
TCK
TM
S
74LCX04
TSSOP14
U1F
74LCX32
TSSOP14
U4D
-TRST
N
-TRST
N
12
13
R9
4.7K
VCC
13
12
11
VCC
74LCX04
TSSOP14
74LCX32
TSSOP14
GND
GND
R12
10K
VCC
R10
10K
U3
U1C
U4B
DISABLE_IRDA
-DIS_IRDA
C2
0.1µF
-RESET
5
6
4
5
2
RESET
IRDA_SD
open-drain
6
PD2
=
IR_SD
74LCX04
TSSOP14
C3
0.01µF
74LCX32
TSSOP14
MAX6328UR29
SOT-23-L3
VCC
alternative: Maxim MAX6802UR29D3
VCC
VCC
GND
GND
GND
Figure 8. eZ80F91 Module Schematic Diagram, #1 of 3—Connectors and Miscellaneous
PS019310-0904
P R E L I M I N A R Y
Schematics
eZ80F915050MOD
eZ80F91 Module Product Specification
26
GND
D[0:7]
A[0:23]
U5
VCC
D0
D1
D2
D3
D4
D5
D6
D7
A0
A1
A2
A3
A4
A5
A6
A7
39
40
41
42
43
44
45
46
1
2
3
4
5
8
9
10
11
12
13
16
17
18
19
20
21
24
25
26
27
28
29
30
D0
D1
D2
D3
D4
D5
D6
D7
A0
A1
A2
A3
A4
A5
A6
A7
A8
R13 R14 R15
R16 R17
10K
R18
10K
10K
10K
10K
VCC
U6
R19
R23
0
10K 0.1%
1
2
3
5
7
8
9
14
15
16
17
18
19
20
43
53
54
55
56
PCSB
ISODEF
ISO
REFCLK
BURN_IN
RST
PWRDN
PHYAD4_0RXD-
PHYAD3_10RXD+
PHYAD2_10TXD++
PHYAD1_10TXD-
PHYAD0_10TXD--
GPIO0_10TXD--
GPIO1_TP125
INTR
TECH_SEL2
TECH_SEL1
TECH_SEL0
ANEGA
0
A8
A9
R21
R24
0
0
-WAIT
-BUSREQ
-NMI
54
57
56
-WAIT
-BUSREQ
-NMI
WAIT
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
-RESET
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
R22 1K
72
61
44
45
46
47
48
57
58
BUSREQ
NMI
IBREF
RPTR
GND
TM
TCK
TDI
S
R25 10K
66
67
69
71
TM
S
TMS
TCK
TDI
LEDSPD0_LEDBTA_FXSEL
LECOL_SCRAMEN
TCK
TDI
-TRSTN
-TRST
N
TRSTN
-LEDR
X
LEDRX_LEDSEL
-RESET
-F91_WP
MDI0
MDC
RXCLK
55
21
22
30
-RESE
T
RESET
WP
MDIO
MDC
RXCLK
LEDTX_LEDBTB
144
-F91_WP
-LEDLNK
LEDLNK_LED_10LNK
LESPD1_LEDTXA_CLK25EN
LEDDPX_LEDTXB
CRS
COL
RXD3
RXD2
RXD1
RXD0
124
125
135
137
141
140
139
138
136
131
23
24
25
26
MII_CRS
MII_COL
RXD3
RXD2
RXD1
RXD0
TXD3
126
127
128
129
130
132
142
143
MII_TXD3
MII_TXD2
MII_TXD1
MII_TXD0
MII_TXEN
MII_TXER
MII_MDC
MII_MDIO
RXER
RXDV
RXD
RXD
RXD
RXD
TXD2
TXD1
TXD0
TXEN
TXER
MDC
MDI0
MII_RXER
MII_RXDV
MII_RXD3
MII_RXD2
MII_RXD1
MII_RXD0
MII_RXCLK
MII_TXCLK
C6
GND
3
2
1
0
C4
RXDV
RXER
TXCLK
18pF
29
31
33
62
68
67
66
69
70
74
75
77
78
RXDV
RXER_RXD4
TXCLK_PCSBPCLK
TEST3_SDI+
TEST2
TEST1_FXR+
TEST0_FXR-
FXT+
0.056µF
C5
R26
499
RXCL
TXCL
K
K
TXD3
TXD2
TXD1
TXD0
Y1
25 MHz
40
39
38
37
TXD3
TXD2
TXD1
TXD0
220pF
-IORQ
-MREQ
-RD
49
50
51
52
58
33
34
35
36
-IORQ
-MREQ
-RD
-WR
-BUSACK
-CS0
-CS1
-CS2
-CS3
IORQ
MRQ
RD
WR
BUSACK
CS0
CS1
CS2
CS3
FXT-
XTL-
XTL+
TX+
C7
18pF
83
FILT_IN
GND
VCC
-WR
Y2
TXEN
TXER
COL
85
86
34
32
41
42
XOUT
XIN
TXEN
TXER_TXD4
COL
TX-
-CS0
-CS1
-CS2
-CS3
50MHz
64
63
RX+
RX-
CRS
C17
0.1µF
CRS
R27
SCL
SDA
110
109
AM79C87
4
IICSCL
IICSDA
SCL
SDA
L1
200K
6
14
22
31
47
59
81
87
88
VDD
VDD
VDD
VDD
VDD
VDD
VDD
PLL_VDD
VDD
VDD
VDD
VDD
VDD
P2
R11
49.9
PA7
PA6
PA5
PA4
PA3
PA2
PA1
PA0
C8
121
120
119
118
117
116
115
114
PA7_PWM3
PA6_PWM2_EC1
PA5_PWM1_TOUT1
PA4_PWM0_TOUT0
PA3_PWM3_OC3
PA2_PWM2_OC2
PA1_PWM1_OC1
PA0_PWM0_OC0
GND
C9
1
4
2
5pF
TX+
TXCT
TX-
3.3µH
10pF
VCC
C44
C45
C46
C47
C48
R32
49.9
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
VCC
R31 49.9
3
5
6
RX+
RXCT
RX-
R34
R35
330
330
C10
0.1µF
98
PA[0:7]
PB[0:7]
PC[0:7]
PB7
PB6
PB5
PB4
PB3
PB2
PB1
PB0
C49
0.1µF
C50
0.1µF
GND
C51
0.1µF
C52
0.1µF
C53
0.1µF
R33
C15
0.1µF
49.9
C16
0.1µF
112
122
133
107
106
105
104
103
102
101
100
8
PB7_MOSI
PB6_MISO
PB4_ICB3
PB4_ICA3
PB3_SCK
PB2_SS
PB0_IC1
GND
VCC
9
10
11
12
AN1
CT1
AN2
CT2
Put caps between pairs of U6, 10:11, 51:52, 59:65
and 71:73 as close to the pins as possible
RTC_VDD
RTC_VDD
VCC
7
15
23
32
38
48
60
64
72
82
84
89
99
108
113
123
134
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
PLL_VSS
VSS
VSS
VSS
VSS
VSS
VSS
PB0_IC0_EC0
-LEDRX
HFJ11-2450E-L11
PC7
PC6
PC5
PC4
PC3
PC2
PC1
PC0
CR1
1N5817
97
96
95
94
93
92
91
90
PC7_RI1
PC6_DCD1
PC5_DSR1
PC4_DTR1
PC3_CTS1
PC2_RTS1
PC1_RXD1
PC0_TXD1
-LEDLNK
VCC
R28
22
0
C31
0.001µF
C32
0.001µF
C33
0.001µF
C34
0.001µF
C35
0.001µF
C36
0.001µF
C37
0.001µF
C38
0.001µF
C39
0.001µF
C40
0.001µF
C41
0.001µF
C42
C43
0.001µF
GND
0.001µF
PD7
PD6
PD5
PD4
PD3
PD2
PD1
PD0
80
79
78
77
76
75
74
73
PD7_RI0
PD6_DCD0
PD5_DSR0
PD4_DTR0
PD3_CTS0
Y3
32.768KHz
C18
0.1µF
C19
0.1µF
C20
0.1µF
C21
0.1µF
C22
0.1µF
C23
0.1µF
C24
0.1µF
C25
0.1µF
C26
0.1µF
C27
0.1µF
C28
0.1µF
C29
0.1µF
C30
0.1µF
VL1
PD2_RTS0
VCC
R38
10M
63
62
61
RTC_VDD
RTC_XOUT
RTC_XIN
PD1_RXD0_IRRXD
PD0_TXD0_IRTXD
PD[0:7]
65
111
53
70
68
-HALT_SL
CLK_OUT
-INSTRD
TDO
P
HALT_SLP
PHI
INSTRD
TDO
TRIGOUT
VCC
VCC
VCC
GND
C11
12pF
C12
12pF
GND
GND
TRIGOUT
EZ80F91
GND
Figure 9. eZ80F91 Module Schematic Diagram, #2 of 3—CPU and PHY
PS019310-0904
P R E L I M I N A R Y
Schematics
eZ80F915050MOD
eZ80F91 Module Product Specification
27
U8
A18
A0
A1
A2
A3
-CS1
D0
D1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
A0
A1
A2
A3
N.C.
A18
A17
A16
A15
OE
I/O7
I/O6
VSS
VDD
I/O5
I/O4
A14
A13
A12
A11
A10
N.C.
A16
A15
A14
A13
-RD
D7
A4
-CS1
-CS1
CE
I/O0
I/O1
VDD
VSS
I/O2
I/O3
WE
A5
A6
A7
A8
A9
VCC
VCC
D6
VCC
D2
D3
-WR
A12
A9
A6
A4
D5
D4
A11
A8
A10
A7
A5
C13
0.001uF
A17
512KB x 8 SRAM
SOJ36.400
D[0:7]
VCC
A[0..23]
A[0..23]
A[0:23]
U9
U10
A0
A1
A2
A3
A4
A5
A6
A7
DFLASH0
DFLASH1
DFLASH2
DFLASH3
DFLASH4
DFLASH5
DFLASH6
DFLASH7
D0
D1
D2
D3
D4
D5
D6
D7
21
20
19
18
17
16
15
14
8
7
36
6
5
4
3
2
1
40
13
37
25
26
27
28
32
33
34
35
2
5
6
3
4
7
8
11
14
17
18
21
22
A0
A1
A2
A3
A4
A5
A6
A7
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
1B1
1A1
1A2
1A3
1A4
1A5
2A1
2A2
2A3
2A4
2A5
1B2
1B3
1B4
1B5
2B1
2B2
2B3
2B4
2B5
9
10
15
16
19
20
23
VCC
A8
A9
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
-CSFLASH
-RD
-WR
-RESET
-WP
22
24
9
10
12
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
CE
OE
WE
RP
C14
0.001µF
1
13
1OE
2OE
-CSFLASH
74CBTLV3384
SO24.300
WP
11
VCC
VPP
A21
A20
29
38
N.C.
N.C.
VCC
Flash 1Mx8 3.3V
TSOP40.20MM
MT28F008B3VG
R29
10K
U4C
9
U1D
9
-CS0
-CSFLASH
8
-DIS_FLASH
-FLASH_EN
8
10
-DIS_FLASH
74LCX32
TSSOP14
-RD
-RD
74LCX04
TSSOP14
-WR
-WR
VCC
VCC
-CS0
-CS0
VCC
GND
R30
10K
-RESET
-RESET
U1E
GND
-FLASHWE
-WP
11
10
-FLASHWE
74LCX04
TSSOP14
Figure 10. eZ80F91 Module Schematic Diagram, #3 of 3—Module Memory
PS019310-0904
P R E L I M I N A R Y
Schematics
eZ80F915050MOD
eZ80F91 Module Product Specification
28
Customer Feedback Form
The eZ80F91 Module Product Specification
If you experience any problems while operating this product, or if you note any inaccuracies
while reading this Product Specification, please copy and complete this form, then mail or fax it to
ZiLOG (see Return Information, below). We also welcome your suggestions!
Customer Information
Name
Country
Phone
Fax
Company
Address
City/State/Zip
Email
Product Information
Serial # or Board Fab #/Rev. #
Software Version
Document Number
Host Computer Description/Type
Return Information
ZiLOG
System Test/Customer Support
532 Race Street
San Jose, CA 95126
Phone: (408) 558-8500
Fax: (408) 558-8536
ZiLOG Customer Support
Problem Description or Suggestion
Provide a complete description of the problem or your suggestion. If you are reporting a specific
problem, include all steps leading up to the occurrence of the problem. Attach additional pages
as necessary.
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
PS019310-0904
P R E L I M I N A R Y
Customer Feedback Form
厂商 型号 描述 页数 下载

ZILOG

 		EZ80190 eZ80190模块是一个紧凑的，高性能的以太网模块[ eZ80190 Module is a compact, high-performance Ethernet module ] 36 页

ZILOG

 		EZ801905050MOD eZ80190模块是一个紧凑的，高性能的以太网模块[ eZ80190 Module is a compact, high-performance Ethernet module ] 36 页

IXYS

 		EZ80190AZ050EC [ Microcontroller, 8-Bit, Z80 CPU, 50MHz, CMOS, PQFP100, LQFP-100 ] 219 页

IXYS

 		EZ80190AZ050EG [ Microcontroller, 8-Bit, 50MHz, CMOS, PQFP100, LQFP-100 ] 219 页

IXYS

 		EZ80190AZ050SC [ Microcontroller, 8-Bit, Z80 CPU, 50MHz, CMOS, PQFP100, LQFP-100 ] 219 页

ZILOG

 		EZ80F91 eZ80Acclaim -TM闪存微控制器[ eZ80Acclaim-TM Flash Microcontrollers ] 396 页

ZILOG

 		EZ80F910200ZCO eZ80Acclaim -TM闪存微控制器[ eZ80Acclaim-TM Flash Microcontrollers ] 396 页

IXYS

 		EZ80F9105005MODG [ Microcontroller, CMOS ] 384 页

IXYS

 		EZ80F9105050MODG [ IC MICROCONTROLLER, Microcontroller ] 384 页

ZILOG

 		EZ80F915005MOD eZ80F91迷你Enet模块[ eZ80F91 Mini Enet Module ] 25 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.256717s
