IXLD02SI

型号：

IXLD02SI

描述：

差2A超快激光二极管驱动器[ Differential 2A Ultra Fast Laser Diode Driver ]

品牌：

IXYS[ IXYS CORPORATION ]

页数：

6 页

PDF大小：

164 K

下载PDF手册

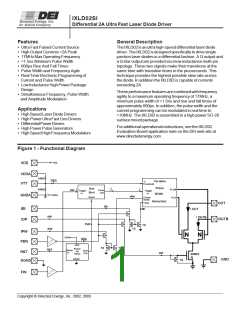

IXLD02SI
Differential 2A Ultra Fast Laser Diode Driver
General Description
Features
TheIXLD02isanultrahigh-speeddifferentiallaserdiode
driver. The IXLD02 is designed specifically to drive single
junction laser diodes in a differential fashion. A Q output and
a Q-Bar output are provided via a low inductance multi-pin
topology. These two signals make their transitions at the
same time with transition times in the picoseconds. This
technique provides the highest possible slew rate across
the diode. In addition the IXLD02 is capable of currents
exceeding 2A.
• Ultra Fast Pulsed Current Source
• High Output Currents >2A Peak
• 17MHzMaxOperatingFrequency
• <1.5ns Minimum Pulse Width
• 600ps Rise And Fall Times
• Pulse Width and Frequency Agile
• RealTimeElectronicProgrammingof
Current and Pulse Width
• LowInductanceHighPowerPackage
Design
Theseperformancefeaturesarecombinedwithfrequency
agility to a maximum operating frequency of 17MHz, a
minimum pulse width of <1.5ns and rise and fall times of
approximately 600ps. In addition, the pulse width and the
current programming can be modulated in real time to
>10MHz. The IXLD02 is assembled in a high power SO-28
surfacemountpackage.
• Simultaneous Frequency, Pulse Width
and Amplitude Modulation
Applications
• HighSpeedLaserDiodeDrivers
• High Power Ultra Fast Line Drivers
• DifferentialPowerDrivers
For additional operational instructions, see the IXLD02
Evaluation Board application note on the DEI web site at
www.directedenergy.com
• HighPowerPulseGenerators
• HighSpeedHighFrequencyModulators
Figure 1 - Functional Diagram
Copyright © Directed Energy, Inc. 2002, 2003
First Release
IXLD02SI
Absolute Maximum Ratings (Note 1)
Name
VDD
Definition
Logic supply input voltage
Min
-0.4
Typ
Max
5.5
Units Test Conditions
V
VDDA
Analog bias supply input voltage
-0.4
5.5
V
VTT
IBI
Internal bias voltage input
Internal bias current input
Applied IBI terminal voltage
-0.4
-10
VDDA/2 VDDA+.5
V
mA
V
0.1
10
VIBI
-0.4
VDDin+0.5
Pulse width programming
IPW
VIPW
IOP
-10
-0.4
-10
0.1
10
VDDin+0.5
10
mA
V
current input
Applied IPW terminal voltage
Output current programming
1
mA
input
VIOP
VPDN
VRST
VFIN
VOUT
VOUT
Applied IOP terminal voltage
Power-down logic input
Reset logic input
Pulse frequency logic input
Pulse current true output
OUT terminal voltage
-0.4
-0.4
-0.4
-0.4
-0.1
-0.4
VDDin+0.5
VDDin+0.5
VDDin+0.5
VDDin+0.5
3
V
V
V
V
Amps
V
9
Pulse current complement
OUTB
VOUTB
-0.1
-0.4
3
9
Amps
output
OUTB terminal voltage
V
Measured at the
bottom of the
oC
TC
Device Case Temperature
-40
25
85
SO28 package
heat slug insert.
SO28 package
Package power dissipation @
TC=85C
PD
32
2
Watts
oC/W
heat slug insert
held at TC=85oC.
Thermal resistance, junction to
case
RTHJC
TJ
TS
Junction Temperature
Storage temperature
150
150
oC
oC
-55
Lead temperature (soldering, 10
TL
300
oC
sec)
Note 1: Operating the device beyond parameters with listed “Absolute Maximum Ratings” may cause permanent
damage to the device. Typical values indicate conditions for which the device is intended to be functional, but do not
guarantee specific performance limits. The guaranteed specifications apply only for the test conditions listed.
Exposure to absolute maximum rated conditions for extended periods may affect device reliability.
CAUTION: These devices are sensitive to electrostatic discharge; follow proper ESD procedures
when handling and assembling this component.
Ordering Information
Part Number Package Type Temp. Range
Grade
IXLD02SI
28-Pin SOIC
Industrial
-40 C to +85 C
°
°
2
IXLD02SI
Recommended Operating Conditions
Unless otherwise noted, VDD=VDDA=5V, TC=25C
Name
Definition
Min
Typ
Max Units
Test Conditions
VDD Logic supply input voltage
VDDA Analog bias supply input voltage
VTT Internal bias voltage input
RVTT VTT terminal resistance
4.5
4.5
2
5.5
5.5
3
V
V
V
VDDA/2
50
Measured with Zin>10meg DVM.
30
70 Kohms Measured with VDDin=VDDA=0V.
IIBI Internal bias current input range
10
100
300
uA External current source between
VDDA and IBI terminal.
VIBI Measured IBI terminal voltage
0.6
-1
1.7
400
V
IIBI=100uA.
IIPW Pulse width programming current input
range.
VIPW Measured IPW terminal voltage
100
uA External current source between
VDDA and IPW terminal.
0.6
0
1.7
3
V
IIPW=100uA.
tPW IOUT=2A peak, Output current pulse width
1
1
ns IIBI=400uA, IIPW=300uA, IIOP=1mA.
IIOP OUT and OUTB output current, IOUT
,
mA External current source between
programming current.
VDDA and IBI terminals.
IBI=100uA.
VIOP Measured IOP terminal voltage
0.6
1.7
V
IOUT/IIOP Output current to programming current gain
1800
2000
2200
I/I IIOP=1mA, VOUT=VOUTB=10V.
VIH Logic input high threshold for PDN, RST, & 0.7*VDD
FIN inputs.
V
V
VIL Logic input high threshold for PDN, RST, &
.3*VDD
10
FIN inputs.
ILIN Logic input bias current for PDN, RST, &
FIN inputs.
-10
uA For logic inputs, PDN, RST, & FIN
held at:-0.5V<VLIN<VDD
tPDN IXLD02 power down delay, VPDN logical low
to high transition.
50
30
ns
IXLD02 power up delay, VPDN logical high to
ns
low transition.
tRST IXLD02 reset logic delay, VRST logical low to
high transition.
100
100
50
ns
IXLD02 reset logic delay, VRST logical low to
high transition.
ns
tFIN IXLD02 pulse frequency input, VFIN, logical
low to high transition to IOUT pulse delay.
fFINmax Maximum pulse frequency, FIN, logic input.
ns IIBI=400uA, IIPW=300uA, IIOP=1mA..
MHz IIBI=400uA, IIPW=300uA, IIOP=1mA..
17
IOUT Peak true pulse current output.
1.6
2
2.4
Amps IIBI=400uA, IIPW=300uA, IIOP=1mA.,
VOUT=VOUTB=10V.
tR
tF
Rise time
Fall time
600
600
ps
ps
TONDLY On-time propagation delay
TOFFDLY Off-time propagation delay
PWmax Pulse width maximum
30
30
ns
ns
us
ps
>1
Tj
Jitter
<300
VOUT OUT terminal voltage
8
0
8
12
0.4
12
V
IIBI=400uA, IIPW=300uA, IIOP=1mA,
1.4A<IOUT<2.6A peak.
IOUTB Minimum complement pulse current output.
VOUTB OUTB terminal voltage
0.2
Amps IIBI=400uA, IIPW=300uA, IIOP=1mA.,
VOUT=VOUTB=10V.
V
IIBI=400uA, IIPW=300uA, IIOP=1mA,
0A<IOUT<0.6A minimum.
3
IXLD02SI
Pin Configurations And Package Outline
NOTE: Bottom-side heat sinking metalization is connected to ground
Pin Description
Pins Nam e
Description
1,2,
This pin is a high current, low inductance pin designed to accept peaks
VDD
13, 14
of 2Amps at 5V.
This is a low current analog power input. Circuit com ponents sensitive
to the noise present on VDD in are supplied by this pin.
3
4
5
VDDA
VTT This pin is the 1/2VDDA internal analog com parator reference point.
Low current, low noise analog return. Noise sensitive circuit
GNDA
components are returned here.
The current, IIBI, flowing into the IBI pin acts as a baseline current with
6
7
IBI
respect to IIPW current to com pensate for internal delays. See Figure 2.
A current, IIOP, into the IOP pin program s the laser diode output
IOP switches, pin 19 through pin 24. The program ratio is 1:1000X. This
m eans a 1m A current will produce 1Am p. See Figure 2.
A current, IIPW , flowing into the IPW pin determ ines the output current
pulse width, tPW , with respect to IIBI. If IIPW =IIBI, the pulse width is 0. As
8
IPW
IIPW approaches IIBI but less than IIBI, the pulse width becom es non-
zero. See Figure 2 for tPW as a function of IIBI and IIPW
.
A TTL high on this pin will power down the device so that only leakage
PDN current will flow from VDD to DGND. A TTL low will turn on the device
within 30ns. See Figure 3.
9
A system reset pin, which initializes the device so that it starts in a
10
11
RST
predeterm ined initial state.
This pin is the return for the input logic, IIBI, IIO P, and IIPW currents. It is
DGND internally connected to the other grounds, AGND or GND, through the
substrate.
W ith PDN low, a positive edge of a TTL compatible signal here will
produce the pulse current output available at the OUT and a
12
FIN
complem ent of it at OUTb pins. Refer to Figure 3 for FIN and PDN
tim ing.
15, 16,
17, 18,
25, 26,
27, 28
GND Output ground pins designed for low inductance.
19, 20.
21
True laser diode drive output current. Designed for low inductance and
OUT
output voltage compliance to +12V.
22, 23,
24
Com plem entary laser diode drive output current. Designed for low
OUTb
inductance and output voltage compliance to +12V.
4
IXLD02SI
Figure 2 - Programmed IOUT pulse width, tPW as a function of IIPW and IIBI
Figure 2 is an illustration of the pulse width vs. programming current. The programming current is typically a DC
level, however it could just as well be a time varying signal. The bandwidth of this portion of the IXLD02 is equivalent
to the maximum operating frequency of 17MHz. For the fastest response time this pin should be driven from a low
sourceimpedance.
Figure 3 - Control Gate Timing Diagram
Figure 3 is a timing chart for the IXLD02. The proper gating of the IXLD02 is extremely important. The device is
capable of 2A of current and may consume in excess of 3A during the pulse. If the supply voltage is at 7V with 3A of
current, the total power dissipated is 21W. Therefore ample heat sinking must be provided, and/or the duty cycle
must be limited so that the power dissipation capability of the device is not exceeded.
The Power Up Gate (PDN) is applied to activate the device. Time interval “A” can be >30ns. At the end of this time
period the control gate “B” (FIN), can be applied. The range of “B” is from 1ns to several µs. The maximum frequency
1/C is approximately 17MHz.
5
IXLD02SI
Figure 4 - Duty Cycle
Figure 4 illustrates the Duty Cycle (DC), FIN and PDN relation ships. The PDN command must be in a TTL “High”
state 30ns prior to the first FIN pulse. It must stay in this state for the duration of the laser light burst, T1 to T2.
T2 − T1
The Duty cycle is defined as: DC =
T3 − T1
Power in the IC is:
Total dc Power X DC
Figure 5 - IPW And IOP Modulation
Figure 5 illustrates the simultaneous modulation of both the IPW control current and the IOP control current. The FIN
frequency in this figure is held constant. At T0 the IPW and the IOP signals are near zero, both begin to ramp up at
T1 and reach their maximums at T2. As illustrated, the output current rises in amplitude with the increasing IOP and
the pulse width widens with the IPW ramp.
An additional mode of modulation can be added to the two above by also modulating the frequency of the FIN signal.
This will allow three mode of simultaneous modulation. The three modes do not have to be used together; each is
fully independent. The obvious caveat is that the pulse width must be consistent with the chosen frequency. This
agility provides the designer with a broad range of design choices.
Directed Energy, Inc.
An IXYS Company
2401 Research Blvd. Ste. 108
Ft. Collins, CO 80526
Tel: 970-493-1901; Fax: 970-493-1903
e-mail: deiinfo@directedenergy.com
www.directedenergy.com
Doc #9200-0258 Rev 2
6
厂商 型号 描述 页数 下载

ETC

 		IXLD1426COA 双MOSFET驱动器\n[ Dual MOSFET Driver ] 24 页

LITTELFUSE

 		IXLD1426CPA [ MOSFET Driver, CMOS, PDIP8, ] 24 页

ETC

 		IXLD1427COA 双MOSFET驱动器\n[ Dual MOSFET Driver ] 24 页

LITTELFUSE

 		IXLD1427CPA [ MOSFET Driver, CMOS, PDIP8, ] 24 页

LITTELFUSE

 		IXLD1428CPA [ MOSFET Driver, CMOS, PDIP8, ] 24 页

LITTELFUSE

 		IXLD426C/Y [ MOSFET Driver, CMOS, ] 24 页

LITTELFUSE

 		IXLD426CPA [ MOSFET Driver, CMOS, PDIP8, ] 24 页

LITTELFUSE

 		IXLD426IJA [ MOSFET Driver, CMOS, CDIP8 ] 24 页

LITTELFUSE

 		IXLD426IJA/BI [ MOSFET Driver, CMOS, CDIP8 ] 24 页

LITTELFUSE

 		IXLD426MJA [ Buffer/Inverter Based MOSFET Driver, 1.5A, CMOS, CDIP8, DIP-8 ] 24 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.173092s
