IXFH22N60P

型号：

IXFH22N60P

描述：

PolarHV HiPerFET功率MOSFET[ PolarHV HiPerFET Power MOSFETs ]

品牌：

IXYS[ IXYS CORPORATION ]

页数：

5 页

PDF大小：

295 K

下载PDF手册

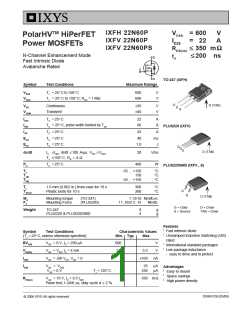

PolarHVTM HiPerFET
Power MOSFETs
IXFH 22N60P
IXFV 22N60P
IXFV 22N60PS
VDSS = 600
ID25 = 22 A
V
RDS(on) ≤ 350 mΩ
N-Channel Enhancement Mode
Fast Intrinsic Diode
trr
≤ 200 ns
Avalanche Rated
TO-247 (IXFH)
Symbol
Test Conditions
Maximum Ratings
VDSS
VDGR
TJ = 25° C to 150° C
600
600
V
TJ = 25° C to 150° C; RGS = 1 MΩ
V
G
D (TAB)
VGS
Continuous
Tranisent
30
40
V
V
D
S
VGSM
ID25
IDM
TC =25° C
22
66
A
A
TC = 25° C, pulse width limited by TJM
PLUS220 (IXFV)
IAR
TC =25° C
22
A
EAR
EAS
TC =25° C
TC =25° C
40
mJ
J
1.0
G
D
S
D (TAB)
dv/dt
PD
IS ≤IDM, di/dt ≤100 A/µs, VDD ≤VDSS
TJ ≤150° C, RG = 4 Ω
20
V/ns
TC =25° C
400
W
PLUS220SMD (IXFV...S)
TJ
TJM
Tstg
-55 ... +150
150
-55 ... +150
°C
°C
°C
TL
TSOLD
1.6 mm (0.062 in.) from case for 10 s
Plastic body for 10 s
300
260
°C
°C
G
S
D (TAB)
M
Mounting torque
Mounting Force
(TO-247)
(PLUS220)
1.13/10 Nm/lb.in.
FCd
11..65/2.5..15
Nm/lb.
G = Gate
S = Source
D = Drain
TAB = Drain
Weight
TO-247
PLUS220 & PLUS220SMD
6
4
g
g
Features
l
Fast intrinsic diode
Unclamped Inductive Switching (UIS)
rated
International standard packages
Low package inductance
- easy to drive and to protect
Symbol
Test Conditions
Characteristic Values
l
(TJ = 25° C, unless otherwise specified)
Min. Typ.
Max.
BVDSS
VGS(th)
IGSS
VGS = 0 V, ID = 250 µA
VDS = VGS, ID = 4 mA
VGS = 30 VDC, VDS = 0
600
V
V
l
l
3.0
5.5
100
nA
IDSS
VDS = VDSS
VGS = 0 V
25
250
µA
µA
Advantages
l
TJ = 125° C
Easy to mount
Space savings
l
RDS(on)
VGS = 10 V, ID = 0.5 ID25
Pulse test, t ≤300 µs, duty cycle d ≤ 2 %
350 mΩ
l
High power density
DS99315E(03/06)
© 2006 IXYS All rights reserved
IXFH 22N60P IXFV22N60P
IXFV 22N60PS
TO-247 AD (IXFH) Outline
Symbol
gfs
Test Conditions
Characteristic Values
(TJ = 25°C, unless otherwise specified)
Min. Typ. Max.
VDS = 20 V; ID = 0.5 ID25, pulse test
15
20
S
1
2
3
Ciss
Coss
Crss
3600
305
38
pF
pF
pF
VGS = 0 V, VDS = 25 V, f = 1 MHz
td(on)
tr
td(off)
tf
20
20
60
23
ns
ns
ns
ns
VGS = 10 V, VDS = 0.5 VDSS, ID = ID25
Terminals: 1 - Gate
3 - Source
2 - Drain
Tab - Drain
RG = 4 Ω (External)
Dim.
Millimeter
Inches
Min. Max.
Min. Max.
A
A1
A2
4.7
2.2
2.2
5.3
2.54
2.6
.185 .209
.087 .102
.059 .098
Qg(on)
Qgs
58
20
22
nC
nC
nC
VGS = 10 V, VDS = 0.5 VDSS, ID = 0.5 ID25
b
b1
b2
1.0
1.65
2.87
1.4
2.13
3.12
.040 .055
.065 .084
.113 .123
Qgd
RthJC
RthCS
0.31 ° C/W
° C/W
C
D
E
.4
.8
.016 .031
.819 .845
.610 .640
20.80 21.46
15.75 16.26
0.21
e
5.20
5.72 0.205 0.225
L
L1
19.81 20.32
4.50
.780 .800
.177
Source-Drain Diode
Characteristic Values
(TJ = 25°C, unless otherwise specified)
Min. Typ. Max.
∅P 3.55
3.65
.140 .144
Q
5.89
6.40 0.232 0.252
R
S
4.32
6.15 BSC
5.49
.170 .216
242 BSC
Symbol
IS
Test Conditions
VGS = 0 V
Repetitive
22
66
A
PLUS220 (IXFV) Outline
ISM
A
V
VSD
IF = IS, VGS = 0 V,
1.5
Pulse test, t ≤300 µs, duty cycle d≤ 2 %
trr
IF = 26A
200
ns
-di/dt = 100 A/µs
VR = 100V, VGS = 0 V
QRM
1.0
µC
PLUS220SMD (IXFV_S) Outline
IXYS reserves the right to change limits, test conditions, and dimensions.
IXYS MOSFETs and IGBTs are covered by 4,835,592 4,931,844
one or moreof the following U.S. patents: 4,850,072 5,017,508
4,881,106 5,034,796
5,049,961
5,063,307
5,187,117
5,237,481
5,381,025
5,486,715
6,162,665
6,259,123 B1
6,306,728 B1
6,404,065 B1 6,683,344
6,534,343
6,583,505
6,727,585
6,710,405B2 6,759,692
6,710,463 6,771,478 B2
IXFH 22N60P IXFV22N60P
IXFV 22N60PS
Fig. 1. Output Characteristics
Fig. 2. Extended Output Characteristics
@ 25
º
C
@ 25 C
º
22
20
18
16
14
12
10
8
45
40
35
30
25
20
15
10
5
V
= 10V
8V
V
= 10V
9V
GS
GS
8V
7.5V
7V
7.5V
7V
6
6.5V
6V
4
6V
7
2
0
0
0
0
0
1
2
3
4
5
6
8
9
0
3
6
9
12 15 18 21 24 27 30
VD S - Volts
VD S - Volts
Fig. 3. Output Characteristics
@ 125
Fig. 4. RDS(on Norm alized to ID = 11A
)
º
C
Value vs. Junction Tem perature
22
20
18
16
14
12
10
8
3.4
3.1
2.8
2.5
2.2
1.9
1.6
1.3
1
V
= 10V
8V
GS
V
= 10V
GS
7V
6.5V
6V
I
= 22A
D
I
= 11A
D
6
4
5.5V
5V
0.7
0.4
2
0
2
4
6
8
10 12 14 16 18 20
-50
-25
0
25
50
75
100 125 150
VD S - Volts
TJ - Degrees Centigrade
Fig. 5. RDS(on) Norm alized to
ID = 11A Value vs. Drain Current
Fig. 6. Drain Current vs. Case
Tem perature
3
2.8
2.6
2.4
2.2
2
24
20
16
12
8
V
= 10V
GS
º
T = 125 C
J
1.8
1.6
1.4
1.2
1
4
º
T = 25 C
J
0.8
0
5
10
15
20
25
30
35
40
45
-50
-25
0
25
50
75
100 125 150
I D - Amperes
TC - Degrees Centigrade
© 2006 IXYS All rights reserved
IXFH 22N60P IXFV22N60P
IXFV 22N60PS
Fig. 8. Transconductance
Fig. 7. Input Adm ittance
30
27
24
21
18
15
12
9
30
27
24
21
18
15
12
9
º
= -40 C
T
J
º
25 C
º
125 C
º
= 125 C
T
J
º
25 C
6
6
º
-40 C
3
3
0
0
4.5
0.4
0
5
5.5
6
6.5
7
7.5
8
0
3
6
9
12 15 18 21 24 27 30
VG S - Volts
I D - Amperes
Fig. 9. Source Current vs.
Source-To-Drain Voltage
Fig. 10. Gate Charge
10
9
8
7
6
5
4
3
2
1
0
70
60
50
40
30
20
10
0
V
= 300V
DS
I
I
= 11A
D
G
= 10mA
º
T = 125 C
J
º
T = 25 C
J
0.5
0.6
0.7
0.8
0.9
1
1.1
0
10
20
30
40
50
60
VS D - Volts
Q G - nanoCoulombs
Fig. 12. Forw ard-Bias
Safe Operating Area
Fig. 11. Capacitance
100
10
1
10000
1000
100
f = 1MHz
R
Limit
DS(on)
C
C
iss
25µs
100µs
oss
rss
1ms
10ms
DC
T
T
= 150ºC
= 25ºC
C
J
C
10
10
100
1000
5
10
15
20
25
30
35
40
VD S - Volts
VD S - Volts
IXYS reserves the right to change limits, test conditions, and dimensions.
IXFH 22N60P IXFV22N60P
IXFV 22N60PS
Fig. 13. Maximum Transient Thermal Resistance
1.00
0.10
0.01
0.0001
0.001
0.01
0.1
1
10
Pulse Width - Seconds
© 2006 IXYS All rights reserved
IXYSREF:T_22N60P(6J)02-17-06-B
