IXFK44N50F_09

型号：

IXFK44N50F_09

描述：

HiPerRF功率MOSFET F级：兆赫切换[ HiPerRF Power MOSFETs F-Class: MegaHertz Switching ]

品牌：

IXYS[ IXYS CORPORATION ]

页数：

5 页

PDF大小：

125 K

下载PDF手册

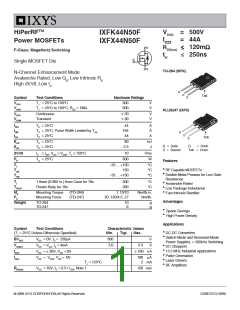

HiPerRFTM
Power MOSFETs
F-Class: MegaHertz Switching
VDSS = 500V
ID25 = 44A
IXFK44N50F
IXFX44N50F
RDS(on) ≤ 120mΩ
trr
≤ 250ns
Single MOSFET Die
TO-264 (IXFK)
N-Channel Enhancement Mode
Avalanche Rated, Low Qg, Low Intrinsic Rg
High dV/dt, Low trr
G
D
Tab
S
Symbol
VDSS
Test Conditions
Maximum Ratings
TJ = 25°C to 150°C
TJ = 25°C to 150°C, RGS = 1MΩ
500
500
V
V
VDGR
PLUS247 (IXFX)
VGSS
VGSM
Continuous
Transient
± 20
± 30
V
V
ID25
IDM
IAR
TC = 25°C
TC = 25°C, Pulse Width Limited by TJM
TC = 25°C
44
184
44
A
A
A
Tab
EAR
EAS
TC = 25°C
TC = 25°C
60
mJ
J
G = Gate
S = Source
D
= Drain
2.5
Tab = Drain
dV/dt
PD
IS ≤ IDM, VDD ≤ VDSS, TJ ≤ 150°C
TC = 25°C
10
V/ns
W
500
Features
TJ
- 55 ... +150
150
°C
°C
°C
TJM
Tstg
z RF Capable MOSFETs
z Double Metal Process for Low Gate
Resistance
- 55 ... +150
TL
1.6mm (0.062 in.) from Case for 10s
Plastic Body for 10s
300
260
°C
°C
z Avalanche Rated
TSOLD
z Low Package Inductance
z Fast Intrinsic Rectifier
Md
FC
Mounting Torque
Mounting Force
(TO-264)
(TO-247)
1.13/10
20..120/4.5..27
Nm/lb.in.
Nm/lb.
Advantages
Weight
TO-264
TO-247
10
6
g
g
z
Space Savings
z
High Power Density
Applications
Symbol
Test Conditions
Characteristic Values
z DC-DC Converters
(TJ = 25°C Unless Otherwise Specified)
Min.
500
3.0
Typ.
Max.
z Switch-Mode and Resonant-Mode
Power Supplies, > 500kHz Switching
z DC Choppers
BVDSS
VGS(th)
IGSS
VGS = 0V, ID = 250μA
VDS = VGS, ID = 4mA
VGS = ± 20V, VDS = 0V
VDS = VDSS, VGS = 0V
TJ = 125°C
VGS = 10V, ID = 0.5 • ID25, Note 1
V
V
5.5
z 13.5 MHz Industrial Applications
z Pulse Generation
z Laser Drivers
z RF Amplifiers
± 100 nA
100 μA
IDSS
2
mA
RDS(on)
120 mΩ
DS98731C(10/09)
© 2009 IXYS CORPORATION,All Rights Reserved
IXFK44N50F
IXFX44N50F
Symbol
Test Conditions
Characteristic Values
TO-264 AA Outline
(TJ = 25°C Unless Otherwise Specified)
Min.
Typ.
Max.
gfs
VDS = 10V, ID = 0.5 • ID25, Note 1
VGS = 0V, VDS = 25V, f = 1MHz
22
32
S
Ciss
Coss
Crss
5500
990
pF
pF
pF
330
td(on)
tr
td(off)
tf
23
18
53
8
ns
ns
ns
ns
Resistive Switching Times
VGS = 10V, VDS = 0.5 • VDSS, ID = 0.5 • ID25
RG = 1Ω (External)
Millimeter
Inches
Dim.
Qg(on)
Qgs
156
37
nC
nC
nC
Min.
Max.
Min.
Max.
A
A1
A2
b
b1
b2
c
D
E
e
4.82
2.54
2.00
5.13
2.89
2.10
.190
.100
.079
.202
.114
.083
VGS = 10V, VDS = 0.5 • VDSS, ID = 0.5 • ID25
Qgd
90
1.12
2.39
2.90
1.42
2.69
3.09
.044
.094
.114
.056
.106
.122
RthJC
RthCS
0.26 °C/W
°C/W
0.53
0.83
.021
1.020
.780
.033
1.030
.786
0.15
25.91 26.16
19.81 19.96
5.46 BSC
.215 BSC
J
K
0.00
0.00
0.25
0.25
.000
.000
.010
.010
L
L1
20.32 20.83
.800
.090
.820
.102
Source-Drain Diode
2.29
2.59
P
3.17
3.66
.125
.144
Q
Q1
R
R1
6.07
8.38
3.81
1.78
6.27
8.69
4.32
2.29
.239
.330
.150
.070
.247
.342
.170
.090
Symbol
Test Conditions
Characteristic Values
(TJ = 25°C Unless Otherwise Specified)
Min.
Typ.
Max.
IS
VGS = 0V
44
A
A
V
S
T
6.04
1.57
6.30
1.83
.238
.062
.248
.072
ISM
VSD
Repetitive, Pulse Width Limited by TJM
IF = IS, VGS = 0V, Note 1
164
1.5
PLUS 247TM (IXFX) Outline
trr
QRM
IRM
250
ns
μC
A
IF = 22A, -di/dt = 100A/μs
1.1
12.0
VR = 100V, VGS = 0V
Note 1. Pulse test, t ≤ 300μs; duty cycle, d ≤ 2%.
Terminals: 1 - Gate
2 - Drain (Collector)
3 - Source (Emitter)
4 - Drain (Collector)
Dim.
Millimeter
Inches
Min. Max.
Min. Max.
A
A1
A2
4.83
2.29
1.91
5.21
2.54
2.16
.190 .205
.090 .100
.075 .085
b
b1
b2
1.14
1.91
2.92
1.40
2.13
3.12
.045 .055
.075 .084
.115 .123
C
D
E
0.61
20.80 21.34
15.75 16.13
0.80
.024 .031
.819 .840
.620 .635
e
5.45 BSC
.215 BSC
L
L1
19.81 20.32
.780 .800
.150 .170
3.81
4.32
Q
R
5.59
4.32
6.20
4.83
.220 0.244
.170 .190
IXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.
IXYS MOSFETs and IGBTs are covered
by one or more of the following U.S. patents: 4,850,072 5,017,508
4,881,106 5,034,796
4,835,592 4,931,844
5,049,961
5,063,307
5,187,117
5,237,481
5,381,025
5,486,715
6,162,665
6,259,123 B1
6,306,728 B1
6,404,065 B1 6,683,344
6,534,343
6,583,505
6,727,585
6,710,405 B2 6,759,692
6,710,463
7,005,734 B2 7,157,338B2
7,063,975 B2
6,771,478 B2 7,071,537
IXFK44N50F
IXFX44N50F
Fig. 1. Output Characteristics @ TJ = 25ºC
Fig. 2. Extended Output Characteristics @ TJ = 25ºC
45
40
35
30
25
20
15
10
5
140
120
100
80
VGS = 10V
9V
VGS = 10V
8V
9V
60
8V
7V
6V
40
7V
6V
20
0
0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
0
5
10
15
20
25
30
VDS - Volts
VDS - Volts
Fig. 4. RDS(on) Normalized to ID = 22A Value vs.
Junction Temperature
Fig. 3. Output Characteristics @ TJ = 125ºC
45
40
35
30
25
20
15
10
5
3.0
2.6
2.2
1.8
1.4
1.0
0.6
0.2
VGS = 10V
VGS = 10V
9V
8V
I D = 44A
I D = 22A
7V
6V
5V
0
0
1
2
3
4
5
6
7
8
9
10
11
12
-50
-25
0
25
50
75
100
125
150
VDS - Volts
TJ - Degrees Centigrade
Fig. 5. RDS(on) Normalized to ID = 22A Value vs.
Drain Current
Fig. 6. Maximum Drain Current vs.
Case Temperature
50
45
40
35
30
25
20
15
10
5
3.0
2.6
2.2
1.8
1.4
1.0
0.6
VGS = 10V
TJ = 125ºC
TJ = 25ºC
0
0
10
20
30
40
50
60
70
80
90 100 110 120 130
-50
-25
0
25
50
75
100
125
150
ID - Amperes
TC - Degrees Centigrade
© 2009 IXYS CORPORATION,All Rights Reserved
IXFK44N50F
IXFX44N50F
Fig. 7. Input Admittance
Fig. 8. Transconductance
100
90
80
70
60
50
40
30
20
10
0
70
60
50
40
30
20
10
0
TJ = - 40ºC
25ºC
TJ = 125ºC
25ºC
- 40ºC
125ºC
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
8.5
9.0
0
10
20
30
40
50
60
70
80
90
100
VGS - Volts
ID - Amperes
Fig. 10. Gate Charge
Fig. 9. Forward Voltage Drop of Intrinsic Diode
140
120
100
80
16
14
12
10
8
VDS = 250V
I D = 22A
I G = 10mA
60
6
TJ = 125ºC
40
4
TJ = 25ºC
2
20
0
0
0
20
40
60
80
100
120
140
160
180
200
220
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
VSD - Volts
QG - NanoCoulombs
Fig. 12. Forward-Bias Safe Operating Area
Fig. 11. Capacitance
1,000.0
100.0
10.0
1.0
10,000
1,000
100
RDS(on) Limit
C
iss
25µs
C
oss
rss
100µs
100ms
1ms
TJ = 150ºC
DC
10ms
C
TC = 25ºC
= 1 MHz
5
f
Single Pulse
0.1
0
10
15
20
25
30
35
40
10
100
VDS - Volts
1,000
VDS - Volts
IXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.
IXFK44N50F
IXFX44N50F
Fig. 13. Maximum Transient Thermal Impedance
1.000
0.100
0.010
0.001
0.00001
0.0001
0.001
0.01
0.1
1
10
Pulse Width - Seconds
© 2009 IXYS CORPORATION,All Rights Reserved
IXYS REF: F_44N50F(8F)10-09-09
