IXFX170N20P

型号:

IXFX170N20P

描述:

Polar功率MOSFET HiperFET[ Polar Power MOSFET HiperFET ]

品牌:

IXYS[ IXYS CORPORATION ]

页数:

5 页

PDF大小:

142 K

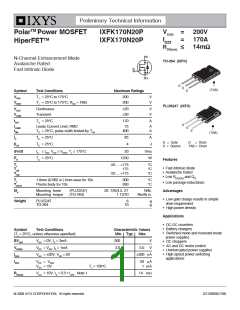

Preliminary Technical Information
PolarTM Power MOSFET
HiperFETTM
IXFK170N20P
IXFX170N20P
VDSS = 200V
ID25 = 170A
RDS(on) 14mΩ
N-Channel Enhancement Mode
Avalanche Rated
TO-264 (IXFK)
Fast Intrinsic Diode
G
D
(TAB)
S
Symbol
VDSS
Test Conditions
Maximum Ratings
TJ = 25°C to 175°C
TJ = 25°C to 175°C, RGS = 1MΩ
200
200
V
V
VDGR
PLUS247 (IXFX)
VGSS
VGSM
Continuous
Transient
±20
±30
V
V
ID25
TC = 25°C
170
A
ILRMS
IDM
Leads Current Limit, RMS
TC = 25°C, pulse width limited by TJM
75
400
A
A
(TAB)
IA
TC = 25°C
TC = 25°C
85
4
A
J
G = Gate
D
= Drain
EAS
S = Source
TAB = Drain
dV/dt
PD
IS IDM, VDD VDSS, TJ 175°C
TC = 25°C
20
V/ns
W
1250
Features
TJ
TJM
Tstg
-55 ... +175
175
-55 ... +175
°C
°C
°C
Fast intrinsic diode
Avalanche Rated
Low RDS(ON) and QG
TL
TSOLD
1.6mm (0.062 in.) from case for 10s
Plastic body for 10s
300
260
°C
°C
Low package inductance
Md
Mounting force
Mounting torque
(PLUS247)
(TO-264)
20..120/4.5..27
N/lb.
Nm/lb.in.
Advantages
1.13/10
Low gate charge results in simple
drive requirement
High power density
Weight
PLUS247
TO-264
6
10
g
g
Applications
DC-DC coverters
Battery chargers
Switched-mode and resonant-mode
power supplies
Symbol
Test Conditions
Characteristic Values
Min. Typ. Max.
(TJ = 25°C, unless otherwise specified)
BVDSS
VGS(th)
IGSS
VGS = 0V, ID = 3mA
VDS = VGS, ID = 1mA
VGS = ±20V, VDS = 0V
200
3.0
V
DC choppers
AC and DC motor control
Uninterrupted power supplies
High speed power switching
applications
5.0
V
±200 nA
IDSS
VDS = VDSS
VGS = 0V
50 μA
1 mA
TJ = 150°C
RDS(on)
VGS = 10V, ID = 0.5 • ID25, Note 1
14 mΩ
DS100008(7/08)
© 2008 IXYS CORPORATION, All rights reserved
IXFK170N20P
IXFX170N20P
Symbol
Test Conditions
Characteristic Values
TO-264 (IXFK) Outline
(TJ = 25°C, unless otherwise specified)
Min.
Typ. Max.
gfs
VDS = 10V, ID = 60A, Note 1
VGS = 0V, VDS = 25V, f = 1MHz
45
75
S
Ciss
Coss
Crss
11.4
2440
70
nF
pF
pF
td(on)
40
ns
Resistive Switching Times
VGS = 10V, VDS = 0.5 • VDSS, ID = 0.5 • ID25
RG = 1Ω (External)
tr
td(off)
25
50
ns
ns
tf
14
ns
Qg(on)
Qgs
185
80
nC
nC
nC
VGS = 10V, VDS = 0.5 • VDSS, ID = 0.5 • ID25
Qgd
60
RthJC
RthCS
0.12 °C/W
°C/W
0.15
Source-Drain Diode
Symbol
Test Conditions
Characteristic Values
(TJ = 25°C, unless otherwise specified)
Min. Typ.
Max.
170
510
1.3
IS
VGS = 0V
A
A
V
ISM
VSD
Repetitive, pulse width limited by TJM
IF = 85A, VGS = 0V, Note 1
PLUS 247TM (IXFX) Outline
trr
QRM
IRM
200 ns
IF = 85A, -di/dt = 150A/μs
1.6
20
μC
A
VR = 100V, VGS = 0V
Note 1: Pulse test, t 300μs; duty cycle, d 2%.
Terminals: 1 - Gate
2 - Drain (Collector)
3 - Source (Emitter)
4 - Drain (Collector)
Dim.
Millimeter
Inches
Min. Max.
Min. Max.
A
A1
A2
4.83
2.29
1.91
5.21
2.54
2.16
.190 .205
.090 .100
.075 .085
PRELIMINARY TECHNICAL INFORMATION
b
b1
b2
1.14
1.91
2.92
1.40
2.13
3.12
.045 .055
.075 .084
.115 .123
The product presented herein is under development. The Technical Specifications offered are derived
from data gathered during objective characterizations of preliminary engineering lots; but also may yet
contain some information supplied during a pre-production design evaluation. IXYS reserves the right
to change limits, test conditions, and dimensions without notice.
C
D
E
0.61
20.80 21.34
15.75 16.13
0.80
.024 .031
.819 .840
.620 .635
e
5.45 BSC
.215 BSC
L
L1
19.81 20.32
.780 .800
.150 .170
3.81
4.32
Q
R
5.59
4.32
6.20
4.83
.220 0.244
.170 .190
IXYS reserves the right to change limits, test conditions, and dimensions.
IXYS MOSFETs and IGBTs are covered
by one or more of the following U.S. patents: 4,850,072 5,017,508
4,881,106 5,034,796
4,835,592 4,931,844
5,049,961
5,063,307
5,187,117
5,237,481
5,381,025
5,486,715
6,162,665
6,259,123 B1
6,306,728 B1
6,404,065 B1 6,683,344
6,534,343
6,583,505
6,727,585
6,710,405 B2 6,759,692
6,710,463
7,005,734 B2 7,157,338B2
7,063,975 B2
6,771,478 B2 7,071,537
IXFK170N20P
IXFX170N20P
Fig. 1. Output Characteristics
@ 25ºC
Fig. 2. Extended Output Characteristics
@ 25ºC
180
160
140
120
100
80
300
270
240
210
180
150
120
90
VGS = 15V
10V
9V
VGS = 15V
10V
9V
8V
8V
60
7V
6V
7V
6V
40
60
20
30
0
0
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4
VDS - Volts
0
2
4
6
8
10
12
14
175
175
VDS - Volts
Fig. 4. RDS(on) Normalized to ID = 85A Value
vs. Junction Temperature
Fig. 3. Output Characteristics
@ 150ºC
180
160
140
120
100
80
3.4
3.0
2.6
2.2
1.8
1.4
1.0
0.6
0.2
VGS = 15V
10V
9V
VGS = 10V
8V
7V
I D = 170A
I D = 85A
60
6V
5V
40
20
0
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0
VDS - Volts
-50
-25
0
25
50
75
100
125
150
TJ - Degrees Centigrade
Fig. 5. RDS(on) Normalized to ID = 85A Value
vs. Drain Current
Fig. 6. Maximum Drain Current vs.
Case Temperature
90
80
70
60
50
40
30
20
10
0
3.8
3.4
3.0
2.6
2.2
1.8
1.4
1.0
0.6
External Lead Current Limit
VGS = 10V
15V
- - - -
TJ = 175ºC
TJ = 25ºC
-50
-25
0
25
50
75
100
125
150
0
25
50
75 100 125 150 175 200 225 250 275
ID - Amperes
TC - Degrees Centigrade
© 2008 IXYS CORPORATION, All rights reserved
IXFK170N20P
IXFX170N20P
Fig. 8. Transconductance
Fig. 7. Input Admittance
180
160
140
120
100
80
140
120
100
80
TJ = - 40ºC
TJ = 150ºC
25ºC
- 40ºC
25ºC
150ºC
60
60
40
40
20
20
0
0
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
0
20
40
60
80
100
120
140
160
180
VGS - Volts
ID - Amperes
Fig. 9. Forward Voltage Drop of
Intrinsic Diode
Fig. 10. Gate Charge
10
9
8
7
6
5
4
3
2
1
0
350
300
250
200
150
100
50
VDS = 100V
I D = 85A
I G = 10mA
TJ = 150ºC
TJ = 25ºC
0
0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5
VSD - Volts
0
20
40
60
80
100 120 140 160 180 200
QG - NanoCoulombs
Fig. 11. Capacitance
Fig. 12. Forward-Bias Safe Operating Area
100,000
10,000
1,000
100
1,000.0
100.0
10.0
1.0
RDS(on) Limit
C
iss
25µs
100µs
C
oss
1ms
10ms
TJ = 175ºC
100ms
DC
TC = 25ºC
Single Pulse
C
rss
= 1 MHz
5
f
10
0.1
0
10
15
20
25
30
35
40
10
100
1000
VDS - Volts
VDS - Volts
IXYS reserves the right to change limits, test conditions, and dimensions.
IXFK170N20P
IXFX170N20P
Fig. 13. Maximum Transient Thermal Impedance
1.000
0.100
0.010
0.001
0.00001
0.0001
0.001
0.01
0.1
1
10
Pulse Width - Seconds
© 2008 IXYS CORPORATION, All rights reserved
IXYS REF: T_170N20P(93)7-16-08
