IXFX66N50Q2

型号：

IXFX66N50Q2

描述：

HiPerFET功率MOSFET Q2级[ HiPerFET Power MOSFETs Q2-Class ]

品牌：

IXYS[ IXYS CORPORATION ]

页数：

5 页

PDF大小：

123 K

下载PDF手册

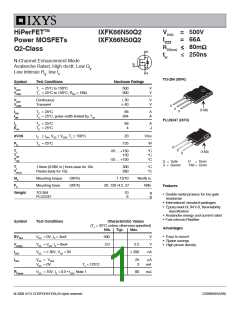

HiPerFETTM
Power MOSFETs
Q2-Class
IXFK66N50Q2
IXFX66N50Q2
VDSS = 500V
ID25 = 66A
RDS(on) ≤ 80mΩ
trr
≤ 250ns
N-Channel Enhancement Mode
Avalanche Rated, High dv/dt, Low Qg
Low intrinsic Rg, low trr
TO-264 (IXFK)
Symbol
Test Conditions
Maximum Ratings
VDSS
VDGR
TJ = 25°C to 150°C
TJ = 25°C to 150°C, RGS = 1MΩ
500
500
V
V
VGSS
VGSM
Continuous
Transient
± 30
± 40
V
V
G
D
S
(TAB)
ID25
IDM
TC = 25°C
66
264
A
A
TC = 25°C, pulse width limited by TJM
PLUS247 (IXFX)
IA
EAS
TC = 25°C
TC = 25°C
66
4
A
J
dV/dt
PD
IS ≤ IDM, VDD ≤ VDSS, TJ ≤ 150°C
TC = 25°C
20
V/ns
W
735
TJ
TJM
Tstg
-55 ... +150
150
-55 ... +150
°C
°C
°C
(TAB)
G = Gate
D
= Drain
S = Source
TAB = Drain
TL
TSOLD
1.6mm (0.062 in.) from case for 10s
Plastic body for 10s
300
260
°C
°C
Md
Mounting torque
Mounting force
(IXFK)
(IXFX)
1.13/10
Nm/lb.in.
N/lb.
FC
20..120 /4.5..27
Features
Weight
TO-264
PLUS247
10
6
g
g
• Double metal process for low gate
resistance
• International standard packages
• EpoxymeetUL94V-0, flammability
classification
• Avalanche energy and current rated
• Fast intrinsic Rectifier
Symbol
Test Conditions
Characteristic Values
(TJ = 25°C unless otherwise specified)
Advantages
Min. Typ.
Max.
• Easy to mount
• Space savings
• High power density
BVDSS
VGS(th)
IGSS
VGS = 0V, ID = 3mA
VDS = VGS, ID = 8mA
500
V
V
3.0
5.5
VGS = ± 30V, VDS = 0V
± 200
nA
IDSS
VDS = VDSS
VGS = 0V
25
3
μA
mA
TJ = 125°C
RDS(on)
VGS = 10V, ID = 0.5 • ID25, Note 1
80
mΩ
DS98983B(5/08)
© 2008 IXYS CORPORATION,All rights reserved
IXFK66N50Q2
IXFX66N50Q2
Symbol
Test Conditions
Characteristic Values
TO-264 (IXFK) Outline
(TJ = 25°C unless otherwise specified)
Min.
Typ.
Max.
gfs
VDS= 10V, ID = 0.5 • ID25, Note 1
VGS = 0V, VDS = 25V, f = 1MHz
30
44
S
Ciss
Coss
Crss
9125
1200
318
pF
pF
pF
td(on)
tr
td(off)
tf
Resistive Switching Times
VGS = 10V, VDS = 0.5 • VDSS, ID = 0.5 • ID25
RG = 1Ω (External)
32
16
60
10
ns
ns
ns
ns
Millimeter
Inches
Dim.
Min.
Max.
Min.
Max.
A
A1
A2
b
b1
b2
4.82
2.54
2.00
1.12
2.39
2.90
5.13
2.89
2.10
1.42
2.69
3.09
.190
.100
.079
.044
.094
.114
.202
.114
.083
.056
.106
.122
Qg(on)
Qgs
200
47
nC
nC
nC
VGS = 10V, VDS = 0.5 • VDSS, ID = 0.5 • ID25
Qgd
98
c
0.53
0.83
.021
1.020
.780
.033
1.030
.786
RthJC
RthCS
0.17
°C/W
°C/W
D
E
e
25.91 26.16
19.81 19.96
5.46 BSC
0.15
.215 BSC
J
0.00
0.00
0.25
0.25
.000
.000
.010
.010
K
L
L1
20.32 20.83
.800
.090
.820
.102
Source-Drain Diode
Characteristic Values
2.29
2.59
P
3.17
3.66
.125
.144
TJ = 25°C unless otherwise specified)
Q
Q1
R
R1
6.07
8.38
6.27
8.69
.239
.330
.150
.070
.247
.342
.170
.090
Symbol
IS
Test Conditions
Min.
Typ.
Max.
3.81
1.78
4.32
2.29
VGS = 0V
66
A
A
V
S
T
6.04
1.57
6.30
1.83
.238
.062
.248
.072
ISM
Repetitive, pulse width limited by TJM
IF = IS, VGS = 0V, Note 1
264
1.5
PLUS247TM (IXFX) Outline
VSD
trr
QRM
IRM
250
ns
μC
A
IF = 25A, -di/dt = 100A/μs
VR = 100V, VGS = 0V
1
10
Note 1: Pulse test, t ≤ 300μs; duty cycle, d ≤ 2%.
Terminals: 1 - Gate
2 - Drain (Collector)
3 - Source (Emitter)
4 - Drain (Collector)
Dim.
Millimeter
Inches
Min. Max.
Min. Max.
A
A1
A2
4.83
2.29
1.91
5.21
2.54
2.16
.190 .205
.090 .100
.075 .085
b
b1
b2
1.14
1.91
2.92
1.40
2.13
3.12
.045 .055
.075 .084
.115 .123
C
D
E
0.61
20.80 21.34
15.75 16.13
0.80
.024 .031
.819 .840
.620 .635
e
5.45 BSC
.215 BSC
L
L1
19.81 20.32
.780 .800
.150 .170
3.81
4.32
Q
R
5.59
4.32
6.20
4.83
.220 0.244
.170 .190
IXYS reserves the right to change limits, test conditions, and dimensions.
IXYS MOSFETs and IGBTs are covered
by one or more of the following U.S. patents: 4,850,072 5,017,508
4,881,106 5,034,796
4,835,592 4,931,844
5,049,961
5,063,307
5,187,117
5,237,481
5,381,025
5,486,715
6,162,665
6,259,123 B1
6,306,728 B1
6,404,065 B1 6,683,344
6,534,343
6,583,505
6,727,585
6,710,405 B2 6,759,692
6,710,463
7,005,734 B2 7,157,338B2
7,063,975 B2
6,771,478 B2 7,071,537
IXFK66N50Q2
IXFX66N50Q2
Fig. 1. Output Characteristics
Fig. 2. Extended Output Characteristics
@ 25 C
@ 25 C
°
°
70
60
50
40
30
20
10
0
160
140
120
100
80
V
GS
= 10V
8V
V
GS
= 10V
8V
7V
6V
7V
5.5V
60
5V
6V
5V
40
4.5V
20
0
0
1
2
3
4
5
6
7
0
2
4
6
8
10
12
VD S - Volts
14
16
18
20
VD S - Volts
Fig. 3. Output Characteristics
Fig. 4. RDS(on) Normalized to 0.5 ID25 Value
vs. Junction Temperature
@ 125 C
°
70
60
50
40
30
20
10
0
3.0
2.8
2.6
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
V
= 10V
7V
GS
V
= 10V
GS
6V
I
= 66A
D
5V
I
= 33A
D
4.5V
3.5V
12
0
2
4
6
8
10
14
-50 -25
0
25
50
75
100 125 150
VD S - Volts
TJ - Degrees Centigrade
Fig. 5. RDS(on) Normalized to 0.5 ID25 Value
vs. ID
Fig. 6. Drain Current vs. Case
Temperature
70
60
50
40
30
20
10
0
3.0
2.8
2.6
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.8
V
GS
= 10V
T = 125 C
°
J
T = 25 C
°
J
0
20
40
60
80 100 120 140 160
-50 -25
0
25
50
75
100 125 150
I D - Amperes
TC - Degrees Centigrade
© 2008 IXYS CORPORATION,All rights reserved
IXFK66N50Q2
IXFX66N50Q2
Fig. 8. Transconductance
Fig. 7. Input Admittance
100
90
80
70
60
50
40
30
20
10
0
90
80
70
60
50
40
30
20
10
0
T = - 40 C
°
J
25 C
°
T = 125 C
°
125 C
°
J
25 C
°
- 40 C
°
0
20
40
60
80
100
120
140
3.0
3.5
4.0
4.5 5.0
VG S - Volts
5.5
6.0
6.5
7.0
I D - Amperes
Fig. 9. Source Current vs.
Source-To-Drain Voltage
Fig. 10. Gate Charge
10
9
8
7
6
5
4
3
2
1
0
180
160
140
120
100
80
V
= 250V
DS
I = 33A
D
I
G
= 10mA
60
T = 125 C
°
J
40
T = 25 C
°
J
20
0
0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3
VS D - Volts
0
20 40 60 80 100 120 140 160 180 200
Q G - nanoCoulombs
Fig. 12. Forward-Bias Safe Operating Area
Fig. 11. Capacitance
100000
10000
1000
1000
100
10
f
= 1MHz
R
Limit
DS(on)
C
iss
25µs
100µs
1ms
C
oss
10ms
T =
J
150ºC
DC
T =
C
Single Pulse
25ºC
C
rss
1
100
10
100
VD S - Volts
1000
0
5
10
15
20
VD S - Volts
25
30
35
40
IXYS reserves the right to change limits, test conditions, and dimensions.
IXFK66N50Q2
IXFX66N50Q2
Fig. 13. Maximum Transient Thermal Impedance
1.00
0.10
0.01
0.00
0.1
1
10
100
1000
10000
Pulse Width - milliseconds
© 2008 IXYS CORPORATION,All rights reserved
IXYS REF: F_66N50Q2(94)5-28-08-C
