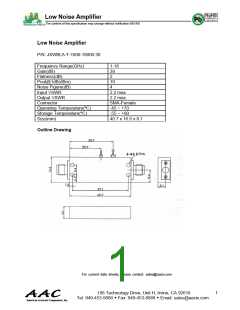

Low Noise Amplifier
The content of this specification may change without notification 8/01/09
Low Noise Amplifier
P/N: JXWBLA-T-1000-18000-38
Frequency Range(GHz)
Gain(dB)
1-18
38
Flatness(dB)
2
Pout@1dB(dBm)
Noise Figure(dB)
Input VSWR
Output VSWR
Connector
Operating Temperature(ºC)
Storage Temperature(ºC)
Size(mm)
10
4
2.2 max
2.2 max
SMA-Female
-45 ~ +70
-55 ~ +80
40.7 x 16.8 x 8.1
Outline Drawing
