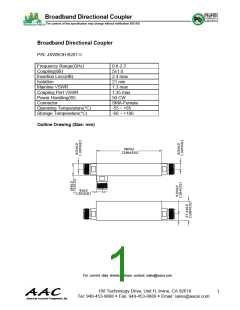

Broadband Directional Coupler
The content of this specification may change without notification 8/01/09
Broadband Directional Coupler
P/N: JXWBOH-B201-5
Frequency Range(GHz)
Coupling(dB)
0.8-2.5
5±1.0
Insertion Loss(dB)
Isolation
2.4 max
21 min
Mainline VSWR
1.3 max
1.35 max
50 CW
SMA-Female
-55 ~ +85
-60 ~ +100
Coupling Port VSWR
Power Handling(W)
Connector
Operating Temperature(°C)
Storage Temperature(°C)
Outline Drawing (Size: mm)
For current data sheets, please contact: sales@aacix.com
188 Technology Drive, Unit H, Irvine, CA 92618
1
Tel: 949-453-9888 Fax: 949-453-8889 Email: sales@aacix.com
American Accurate Components, Inc.
