KYL-200L_1

型号：

KYL-200L_1

描述：

低PowerWireless数据收发模块[ Low PowerWireless Transceiver Data Module ]

品牌：

KYL[ SHENZHEN KYL COMMUNICATION EQUIPMENT CO,LTD. ]

页数：

11 页

PDF大小：

114 K

下载PDF手册

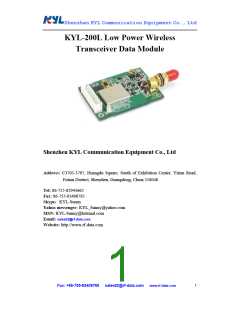

ShenzhenKYLCommunicationEquipmentCo.,Ltd
KYL-200L Low Power Wireless
Transceiver Data Module
Shenzhen KYL Communication Equipment Co., Ltd
Address: C3705-3707, Huangdu Square, South of Exhibition Center, Yitian Road,
Futian District, Shenzhen, Guangdong, China 518048
Tel: 86-755-82943662
Fax: 86-755-83408785
Skype：KYL-Sunny
Yahoo messenger: KYL_Sunny@yahoo.com
MSN: KYL-Sunny@hotmail.com
Email: sales02@rf-data.com
Website: http://www.rf-data.com
1
Fax: +86-755-83408785 sales02@rf-data.com
www.rf-data.com
ShenzhenKYLCommunicationEquipmentCo.,Ltd
Before using our products, please read the user manual carefully. Any questions,
Welcome to contact us.
I．About KYL-200L
KYL-200L is a kind of low power wireless transceiver data module. With small size,
low power consumption as well as good stability and reliability, it is widely used as
wireless data transmitter in long-ranges such as AMR and wireless telemetry system.
Its channel spacing is as low as 25 KHz and the frequency stability is 2.5ppm
II．Data Sheet of KYL-200L
PERFORMANCE
Power Output:
RF Line-of-sight Range:
RF Effective Rate:
Space Channel:
Bandwidth:
500mW(Default), (500mW~1W optional)
3Km@1200bps; 2Km@9600bps
1200/2400/4800/9600/19200bps
1MHz(Default), (12.5/25KHz/other Customization )
25KHz
-123dBm@1200bps (1% BER)
Receiver Sensitivity:
NETWORKING
Networking Topology:
COMPATIBILITY
HAC-LAN
Point-to-point, point-to-multipoint
POWER
Supply Voltage:
Transmit Current:
Receive Current:
Sleep current:
5V DC (Default); (7.5~9V optional)
<400mA
<28mA
<20uA
GENERAL
Communication Mode:
Frequency Band:
Channel:
Half-duplex
400-470MHz,868MHz, 915MHz
8(default),16/32/64(optional)
TTL/UART, Non-Standard RS232/RS485
Interface:
PHYSICAL PROPERTIES
Size:
53mm×38mm×10mm
22g
Weight:
Antenna Base:
Operating Temperature:
Frequency Stability:
CERTIFICATIONS
50Ω, SMA
Industrial:-40℃~+80℃(TCXO)
±2.5ppm Industrial
FCC/RoHS/CE
2
Fax: +86-755-83408785 sales02@rf-data.com
www.rf-data.com
ShenzhenKYLCommunicationEquipmentCo.,Ltd
III．Features of KYL-200L
1. Low power transmission: 500mW (default), 600mW~1W (optional).
2. Carrier frequency: 433MHz (default), 400-470MHz, 868MHz, 915MHz
(optional)
3. High anti- interference and Low BER (Bit Error Rate)
Based on GFSK modulation, high-efficiency forward error correction channel
encoding technology is used to ensure the data’s resistance against both transient
interference and random interference. The actual BER can be achieved to 10-5~ 10-6
when channel BER is 10-2.
4. Long Transmission Distance
Within the visible range, when the height of antenna is higher than 2m and the BER
-3
is 10 , the reliable transmission distance is 3000m @1200bps and 2000m@9600bps
respectively.
5. Transparent data transmission
Transparent data interface used in transceivers is to satisfy many standard and
nonstandard user protocols. Any false data generated in air can be filtrated
automatically (What has been received is exactly what has been transmitted).
6. Multi-channels
KYL-200L provides 8 channels, expandable for 16, 32 channels according to
requirements of users.
7. 2 ports with three connection methods
KYL-200L transceivers provide 2 ports with three connections: a UART interface
of TTL level, a non-standard RS-232 port and a non-standard RS-485 port.
8. Big data buffer area
With optional interface baud rates: 1200/4800/9600/19200bps and 8N1/8E1/8O1
data format (decide by user), the transceiver can transmit unlimited data frames
with flexible user program.
Note: the RF data rate is only settled down before delivery; please specify our sales
your requirements when placing your orders.
9. Intelligent data control system and no other extra programs required
Even for half duplex communication, no other excessive programs are required.
All RF system data transmission/reception and other On-the-Fly conversion and
control are performed by KYL-200L transceivers automatically.
10. Lower power consumption & nice sleep function
With +5V power, the receiving current is less than 25mA, the transmitting current
is less than 300mA, and the sleeping current is less than 20uA.
11. High reliability, small size and excellent performance
By using monolithic radio-frequency integrated circuit and single-chip MCU, the
transceivers have less peripheral circuits, high reliability, and low failure rate.
12. Various options for configurable antennas.
3
Fax: +86-755-83408785 sales02@rf-data.com
www.rf-data.com
ShenzhenKYLCommunicationEquipmentCo.,Ltd
III: Application of KYL-200L:
KYL-200L is suitable for:
* Automatic Meter Reading (AMR);
* Wireless alarm and security systems;
* Building automation, security systems, wireless monitor;
* Wireless data transmission, automatic data collection system;
* Wireless POS, PDA wireless smart terminal;
* RF transmitter, Wireless electronic display screen and Queuing machine;
* Wireless telemetry; remote control and access control system;
* Wireless modem automobile inspection and four-wheel orientation;
* Wireless sensor, Industrial wireless remote control;
* Data communication in the aspects of railway, oil field, dock and army.
* LED display in thruway and public place;
* Point to multi-point wireless network.
IV: How to use the KYL-200L
KYL-200L provide RS-232, RS-485 and UART/TTL level interface ports which can
be direct connected with PC, RS485 devices, monolithic processors and other UART
components. Please find the schematic diagram below:
1. Power supply
The factory setting is +5V (needing 7.5V-12V, please notify us when placing the
order).
2. Connection Definition with terminal
KYL-200L transceivers supply one 9-pin connector (JP1), their definitions and
connection methods with terminals are shown in Table 1.
4
Fax: +86-755-83408785 sales02@rf-data.com
www.rf-data.com
ShenzhenKYLCommunicationEquipmentCo.,Ltd
Table 1: JP1 Pin Definitions and connection methods
Pin No. Signal Name Function
Level
Connection
with terminal
Ground
Remarks
1
2
3
4
GND
Grounding of power supply
Power supply DC
Vcc
5V
RxD/TTL
TxD/TTL
Serial data input to the transceiver
TTL
TxD
RxD
Transmitted data out of theTTL
transceiver
Signal
5
6
SGND
A (TXD)
A of RS-485(TxD of RS-232)
B of RS-485(RxD of RS-232)
A(RxD)
7
8
B (RXD)
SLEEP
B(TxD)
Sleep control (input)
TTL
TTL
Sleep signal
High
sleep
level
9
RESET
Reset signal(input)
Negative
pulse reset
3. The connection schematic diagram between computer and our RF module
4. Setting of channel, interface, and data format
Before using KYL-200L, the user needs to make simple configuration to
determine the channel, interface mode and data format based on his own needs.
You can view or change the module's interface baud rate, channel and address
code, parameter setting or reading as per the testing software KYLCOM in the PC
(in products box).
i. Channel configuration:
5
Fax: +86-755-83408785 sales02@rf-data.com
www.rf-data.com
ShenzhenKYLCommunicationEquipmentCo.,Ltd
Channel No.
Frequency
Channel No.
Frequency
1
2
3
4
429.0325MHZ
430.0325MHZ
431.0325MHZ
432.0325MHZ
5
6
7
8
433.0325MHZ
434.0325MHZ
435.0325MHZ
436.0325MHZ
Note: the frequency points corresponding to each channel can be adjusted
based on the user’s needs.
ⅱYou can read and change some data sheet by our software. If needed, please
find the instruction on our website.
5. Installation dimension:
6. The Function-indicator light
a. The LED indicator light will turn red for 0.5S once switch on.
b. The LED indicator light will turn green continually while receiving data from air.
c. The LED indicator light will turn red continually when transmitting data into air
after receiving from COM.
d. If the module keeps sleep function, LED indicator light is always dark.
7. Supported protocol and Transmit capability
KYL-200L standard transceivers offer transparent protocol to support various
applications and protocols of users. If you need to decrease his cost or ease the
workload of terminal CPU, we can add other specific functions based on the
transparent protocol, such as addressing, data acquisition, command interpretation,
etc.
6
Fax: +86-755-83408785 sales02@rf-data.com
www.rf-data.com
ShenzhenKYLCommunicationEquipmentCo.,Ltd
8. Sleep function
In order to reduce consumption, KYL-200L transceivers support sleep function. In
sleep mode, the current consumption is less than 20uA.
a. How to use sleep function:
The Pin8 ‘SLP’ in JP1 is the signal of sleep control. At high power level,
transceiver stays in working mode. At low power level (<0.5V), transceiver stays
in sleep mode. The SLP signal can convert transceiver from working to sleep
mode in 1ms after falling edge. If the Sleep signal arrives when the transceiver is
transmitting data, the module will move to sleep mode after finishing
transmission. From sleep moves to working, it takes the transceiver 1ms after
rising edge.
To disable the opened sleep function of KYL-200L, the SLP (SLEEP) pin should
be definitely connected with 0 or ground.
b. Attentions about using sleep function:
When the sleep function enabled, or any supply glitches, such as switch dithering,
fire striking or quick switching on and off, may cause the transceiver switch to
wrong sleep mode.
After switching on, users can avoid this error by making a compulsive restoration
once after the CPU delays 100ms.
Sleep Timing Diagram:
9. Attentions about data transmission
a. The delay time (tc) of conversion between transmitting and receiving is less
than 1ms.
Timing diagram:
7
Fax: +86-755-83408785 sales02@rf-data.com
www.rf-data.com
ShenzhenKYLCommunicationEquipmentCo.,Ltd
b. The delay time of transceivers between the first bit sent by TxD to the first
bit received by RxD.
As data processing will be made on user’s data by KYL-200L transceiver using
FEC (Forward Error Correction) or other correction algorithm, when RxD of a
KYL-200L transceiver ‘A’ receives the data, then transmits it, the other one
transceiver ‘B’ will have a delay (ts) to receive and transmit by TxD. Different
RF data rate causes different delay time. Please see the specific delay time
below:
RF Date Rate Delay
RF Date Rate Delay
(bps)
1200
Ts(mS)
90
(bps)
9600
Ts(mS)
16
2400
4800
48
30
19200
10
Timing diagram:
c. Error dealing procedure:
To enhance the reliability and stability of user’s systems, a verify bit or a Cyclic
Redundancy Check (CRC) mode is highly recommended to prevent wrong
8
Fax: +86-755-83408785 sales02@rf-data.com
www.rf-data.com
ShenzhenKYLCommunicationEquipmentCo.,Ltd
information while using KYL-200L modules.
d. Large-number data transmission
In theory, when the interface data rate is faster than the RF data rate, KYL-200L
transceivers can sent unlimited-long data package, but long packages more than
120B are not recommended. The length of each package should be between
60~100B. We also recommend our users to use Automatic Error Request
Equipment (ARQ) to prevent wrong information.
Reasons:
-4
What if the actual transmission BER (Bit Error Rate) is 10 , 1 packet with 1KB
data which is about 10-thousand bits, is sent, theoretically, at least 1 bit will be
received wrongly, then the 1KB information will never be received correctly.
But if we package the data into 10 packets with 100B for each, when all 10
packets are sent, there will be only 1 packet wrong according to this probability.
After that, resend this wrong packet using ARQ mode. So by resending one more
packet and the efficiency rate is reduced 10%, all data will be absolutely received
correctly.
10. Antenna configuration:
Many appropriative antennas for low power RF modules are selected to meet
different users’ antenna configurations. Please ask our Sales for more information
about the antenna’s dimension and performance.
a. Helical SMA antennas
KYL-ANT-433-10-SMA: 100mm helical SMA antennas with high gain and low
cost, reach a long distance.
KYL-ANT-433-3-SMA: 28mm SMA helical antenna with magnetic core, small
size, beautiful appearance (like the mobile phone antenna)
KYL-ANT-433-10-ZSMA: 100mm SMA helical antenna with folding joint, easy
for adjusting the direction and fixing.
9
Fax: +86-755-83408785 sales02@rf-data.com
www.rf-data.com
ShenzhenKYLCommunicationEquipmentCo.,Ltd
b. Magnetic vehicle antenna
KYL-ANT-O433S-300H1.5-SMA: include magnetic antenna base, suitable for
equipment with metal shell, easy for fixing, effective to enhance the transmission
distance.
For
more
kinds
of
antennas ， please
go
to
our
website:
http://www.rf-data.com/Products_list_en.asp?classid=163
If you have special requirements on antennas, we can design and produce for you
individually.
V. Network Application of KYL-200L
The communication channel of KYL-200L is half duplex, which is most suitable
for the communication mode of point to multi-point. Under this mode, one
master station must be set, and all of the rest are slave stations. A unique address
is given to each station. The coordination of communication is controlled by
master station that uses data frames containing address code to transmit data or
command. Slave station will receive all of the data and command and compare
the received address code with local address code. If they are different, the data
will be deserted without any response. If those address codes are the same, it
means the data is sent to the local. Slave station will make different responses
according to the transmitted data or command and send back the data of response.
All these jobs must be performed by upper protocol, and it is assured that there is
only one transmitter-receiver in the state of transmission in the communication
network at any instant moment so as to avoid the cross-interference.
KYL-200L can also be used for point-to-point communication with easier
operation. For the programming of serial port, all you have to do is to remember
that its communication mode is semi duplex while always observing the time
sequence of come-and-go for receiving and transmitting.
10
Fax: +86-755-83408785 sales02@rf-data.com
www.rf-data.com
ShenzhenKYLCommunicationEquipmentCo.,Ltd
VII. Description of type
KYL-200L-96
Baud Rate
12:1200bps
24:2400bps
48:4800bps
96:9600bps
192:19200bps
Manufacture
Type
11
Fax: +86-755-83408785 sales02@rf-data.com
www.rf-data.com
厂商 型号 描述 页数 下载

KYL

 		KYL-200L KYL- 200L低PowerWireless收发器DataModule中[ KYL-200L Low PowerWireless Transceiver DataModule ] 15 页

KYL

 		KYL-200L-12 KYL- 200L低PowerWireless收发器DataModule中[ KYL-200L Low PowerWireless Transceiver DataModule ] 15 页

KYL

 		KYL-200L-192 KYL- 200L低PowerWireless收发器DataModule中[ KYL-200L Low PowerWireless Transceiver DataModule ] 15 页

KYL

 		KYL-200L-24 KYL- 200L低PowerWireless收发器DataModule中[ KYL-200L Low PowerWireless Transceiver DataModule ] 15 页

KYL

 		KYL-200L-48 KYL- 200L低PowerWireless收发器DataModule中[ KYL-200L Low PowerWireless Transceiver DataModule ] 15 页

KYL

 		KYL-200L-96 KYL- 200L低PowerWireless收发器DataModule中[ KYL-200L Low PowerWireless Transceiver DataModule ] 15 页

KYL

 		KYL-200U KYL- 200UMicro PowerWireless收发器DataModule中[ KYL-200UMicro PowerWireless Transceiver DataModule ] 15 页

KYL

 		KYL-200U-12 KYL- 200UMicro PowerWireless收发器DataModule中[ KYL-200UMicro PowerWireless Transceiver DataModule ] 15 页

KYL

 		KYL-200U-192 KYL- 200UMicro PowerWireless收发器DataModule中[ KYL-200UMicro PowerWireless Transceiver DataModule ] 15 页

KYL

 		KYL-200U-24 KYL- 200UMicro PowerWireless收发器DataModule中[ KYL-200UMicro PowerWireless Transceiver DataModule ] 15 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.253866s
