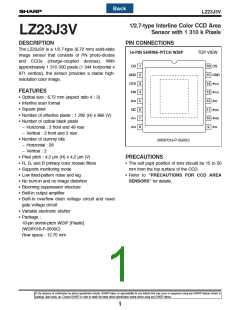

LZ23J3V
1/2.7-type Interline Color CCD Area
Sensor with 1 310 k Pixels
LZ23J3V
DESCRIPTION
PIN CONNECTIONS
The LZ23J3V is a 1/2.7-type (6.72 mm) solid-state
image sensor that consists of PN photo-diodes
and CCDs (charge-coupled devices). With
approximately 1 310 000 pixels (1 344 horizontal x
971 vertical), the sensor provides a stable high-
resolution color image.
16-PIN SHRINK-PITCH WDIP
TOP VIEW
OD
GND
OFD
PW
1
2
3
4
5
6
7
8
16 OS
15 GND
14 ØV1A
13 ØV1B
12 ØV2
FEATURES
• Optical size : 6.72 mm (aspect ratio 4 : 3)
• Interline scan format
ØRS
• Square pixel
NC
11 ØV3A
10 ØV3B
• Number of effective pixels : 1 292 (H) x 966 (V)
• Number of optical black pixels
– Horizontal : 3 front and 49 rear
– Vertical : 3 front and 2 rear
• Number of dummy bits
ØH1
ØH2
9
ØV4
(WDIP016-P-0500C)
– Horizontal : 28
– Vertical : 2
• Pixel pitch : 4.2 µm (H) x 4.2 µm (V)
• R, G, and B primary color mosaic filters
• Supports monitoring mode
• Low fixed-pattern noise and lag
• No burn-in and no image distortion
• Blooming suppression structure
• Built-in output amplifier
PRECAUTIONS
• The exit pupil position of lens should be 15 to 50
mm from the top surface of the CCD.
• Refer to "PRECAUTIONS FOR CCD AREA
SENSORS" for details.
• Built-in overflow drain voltage circuit and reset
gate voltage circuit
• Variable electronic shutter
• Package :
16-pin shrink-pitch WDIP [Plastic]
(WDIP016-P-0500C)
Row space : 12.70 mm
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP devices shown in
catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
1
LZ23J3V
PIN DESCRIPTION
SYMBOL
PIN NAME
OD
OS
Output transistor drain
Output signals
ØRS
Reset transistor clock
ØV1A, ØV1B, ØV2, ØV3A, ØV3B, ØV4
Vertical shift register clock
Horizontal shift register clock
Overflow drain
ØH1, ØH2
OFD
PW
P-well
GND
NC
Ground
No connection
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Output transistor drain voltage
Overflow drain voltage
(TA = +25 ˚C)
UNIT NOTE
V
SYMBOL
VOD
VOFD
VØRS
VØV
RATING
0 to +18
Internal output
Internal output
VPW to +18
–0.3 to +12
–29 to 0
0 to +17
–40 to +85
–20 to +70
V
V
1
2
Reset gate clock voltage
Vertical shift register clock voltage
Horizontal shift register clock voltage
Voltage difference between P-well and vertical clock
Voltage difference between vertical clocks
Storage temperature
V
V
V
VØH
VPW-VØV
VØV-VØV
TSTG
V
3
˚C
˚C
Ambient operating temperature
TOPR
NOTES :
1. Do not connect to DC voltage directly. When OFD is connected to GND, connect VOD to GND. Overflow drain clock is
applied below 33 Vp-p.
2. Do not connect to DC voltage directly. When ØRS is connected to GND, connect VOD to GND. Reset gate clock is
applied below 8 Vp-p.
3. When clock width is below 10 µs, and clock duty factor is below 0.1%, voltage difference between vertical clocks will be
below 28 V.
2
LZ23J3V
RECOMMENDED OPERATING CONDITIONS
PARAMETER
Ambient operating temperature
Output transistor drain voltage
Overflow drain clock p-p level
Ground
SYMBOL
MIN.
TYP. MAX. UNIT NOTE
TOPR
VOD
VØOFD
25.0
15.5
30.0
0.0
˚C
V
V
V
V
15.0
28.0
16.0
32.0
1
2
GND
P-well voltage
VPW
–10.0
–8.5
VØVL
–7.5
VØV1AL, VØV1BL, VØV2L
VØV3AL, VØV3BL, VØV4L
VØV1AI, VØV1BI, VØV2I
VØV3AI, VØV3BI, VØV4I
VØV1AH, VØV1BH
VØV3AH, VØV3BH
VØH1L, VØH2L
VØH1H, VØH2H
VØRS
LOW level
–8.0
0.0
V
V
V
Vertical shift
register clock
INTERMEDIATE level
HIGH level
15.0
15.5
16.0
Horizontal shift
register clock
LOW level
HIGH level
Reset gate clock p-p level
–0.05
4.5
4.5
0.0
5.0
5.0
0.05
5.5
5.5
V
V
V
1
fØV1A, fØV1B, fØV2
fØV3A, fØV3B, fØV4
fØH1, fØH2
Vertical shift register clock frequency
7.87
kHz
Horizontal shift register clock frequency
Reset gate clock frequency
12.27
12.27
MHz
MHz
fØRS
NOTES :
1. Use the circuit parameter indicated in "SYSTEM CONFIGURATION EXAMPLE", and do not connect to DC voltage directly.
2. VPW is set below VØVL that is low level of vertical shift register clock, or is used with the same power supply that is connected
to VL of V driver IC.
* To apply power, first connect GND and then turn on VOD. After turning on VOD, turn on PW first and then turn on other powers
and pulses. Do not connect the device to or disconnect it from the plug socket while power is being applied.
3
LZ23J3V
CHARACTERISTICS (Drive method : 1/30 s frame accumulation)
(TA = +25 ˚C, Operating conditions : The typical values specified in "RECOMMENDED OPERATING CONDITIONS".
Color temperature of light source : 3 200 K, IR cut-off filter (CM-500, 1 mmt) is used.)
PARAMETER
Standard output voltage
Photo response non-uniformity
SYMBOL
VO
PRNU
MIN.
TYP. MAX. UNIT NOTE
150
mV
%
2
3
10
470
340
550
420
0.5
0.5
200
–75
mV
mV
mV
mV
mV
dB
%
4
5
1, 6
1, 7
8
9
10
11
Saturation output voltage
VSAT
Dark output voltage
VDARK
DSNU
R
SMR
AI
3.0
2.0
Dark signal non-uniformity
Sensitivity (green channel)
Smear ratio
Image lag
Blooming suppression ratio
Output transistor drain current
140
500
–65
1.0
ABL
IOD
4.0
8.0
mA
NOTES :
• Within the recommended operating conditions of VOD,
VOFD of the internal output satisfies with ABL larger than
500 times exposure of the standard exposure conditions,
and VSAT larger than 340 mV.
6. The average output voltage under non-exposure
conditions.
7. The image area is divided into 10 x 10 segments under
non-exposure conditions. DSNU is defined by (Vdmax –
Vdmin), where Vdmax and Vdmin are the maximum and
minimum values of each segment's voltage respectively.
8. The average output voltage of G signal when a 1 000
lux light source with a 90% reflector is imaged by a lens
of F4, f50 mm.
9. The sensor is exposed only in the central area of V/10
square with a lens at F4, where V is the vertical image
size. SMR is defined by the ratio of the output voltage
detected during the vertical blanking period to the
maximum output voltage in the V/10 square.
10. The sensor is exposed at the exposure level
corresponding to the standard conditions. AI is defined
by the ratio of the output voltage measured at the 1st
field during the non-exposure period to the standard
output voltage.
11. The sensor is exposed only in the central area of V/10
square, where V is the vertical image size. ABL is
defined by the ratio of the exposure at the standard
conditions to the exposure at a point where blooming is
observed.
1. TA = +60 ˚C
2. The average output voltage of G signal under uniform
illumination. The standard exposure conditions are
defined as when Vo is 150 mV.
3. The image area is divided into 10 x 10 segments under
the standard exposure conditions. Each segment's
voltage is the average output voltage of all pixels within
the segment. PRNU is defined by (Vmax – Vmin)/Vo,
where Vmax and Vmin are the maximum and minimum
values of each segment's voltage respectively.
4. The image area is divided into 10 x 10 segments. Each
segment's voltage is the average output voltage of all
pixels within the segment. VSAT is the minimum
segment's voltage under 10 times exposure of the
standard exposure conditions. The operation of OFDC is
high. (for still image capturing)
5. The image area is divided into 10 x 10 segments. Each
segment's voltage is the average output voltage of all
pixels within the segment. VSAT is the minimum
segment's voltage under 10 times exposure of the
standard exposure conditions. The operation of OFDC is
low.
4
LZ23J3V
PIXEL STRUCTURE
OPTICAL BLACK
(2 PIXELS)
OPTICAL BLACK
(3 PIXELS)
OPTICAL BLACK
(49 PIXELS)
1 292 (H) x 966 (V)
1 pin
OPTICAL BLACK
(3 PIXELS)
COLOR FILTER ARRAY
(1, 966)
(1 292, 966)
Pin arrangement
of the vertical
readout clock
ØV3A
G
B
G
B
G
B
G
B
G
B
ØV1B
R
G
B
G
B
G
R
G
R
G
R
G
B
G
B
G
R
G
R
G
R
G
B
G
B
G
R
G
R
G
R
G
B
G
B
G
R
G
R
G
R
G
B
G
B
G
ØV3B
G
ØV1A
R
ØV3A
G
R
ØV1B
ØV3A
ØV1B
G
B
G
B
G
B
G
B
G
B
R
G
R
G
R
G
B
G
B
G
R
G
R
G
R
G
B
G
B
G
R
G
R
G
R
G
B
G
B
G
R
G
R
G
R
G
B
G
B
G
R
G
R
G
R
G
B
G
B
G
ØV3B
ØV1A
ØV3A
ØV1B
(1, 1)
(1 292, 1)
5
LZ23J3V
TIMING CHART
TIMING CHART EXAMPLE
Pulse diagram in more detail is shown in figures qto rafter the next page.
Field accumulation mode Frame accumulation
Frame accumulation mode
Field accumulation Field accumulation
mode at first
mode at first
mode
q
q
w
e
r
q'
q
525 1
525 1
525 1
525 1
525 1
525 1
525 1
VD
ØV1A
ØV1B
ØV2
ØV3A
ØV3B
ØV4
ØOFD
(at OFD shutter operation)
OFDC
OS
Frame accumulation mode
Not for use
(NOTE 1)
Not for use
(NOTE 2)
(Number of
vertical line)
Field accumulation mode
Field accumulation
..
..
(2, 3, 6, )
...
(1, 4, , 964, 965)
...
(2, 3, , 963, 966)
..
)
(2, 3, 6,
)
mode (2, 3, 6,
NOTES :
1. Do not use these signals immediately after field accumulation mode is transferred to frame
accumulation mode for still image capturing.
2. Do not use these signals immediately after frame accumulation mode is transferred to field
accumulation mode for monitoring image.
* Start the exposure period after 10 ms later that OFDC is high, and finish before charge swept
transfer.
* Apply at least an OFD shutter pulse to OFD in each field accumulation mode.
q
VERTICAL TRANSFER TIMING ¿FIELD ACCUMULATION MODE¡ Shutter speed
1/15 s
...
...
...
503 504 505 506 507 508 509 510 511
525
1
8
9
10 11 12
18 19 20 21 22 23 24 25
HD
VD
ØV1A
ØV1B
ØV2
ØV3A
ØV3B
ØV4
OFDC
ØOFD
963 966 OB1
RG GB
OB1 OB2
2
3
6
7
GB RG GB RG
OS
6
LZ23J3V
w
VERTICAL TRANSFER TIMING ¿FRAME ACCUMULATION MODE AT FIRST¡ Shutter speed
1/15 s
...
...
...
503 504 505 506 507 508 509 510 511
525
1
8
9
10 11 12
18 19 20 21 22 23 24 25
HD
VD
ØV1A
ØV1B
ØV2
ØV3A
ØV3B
ØV4
OFDC
ØOFD
963 966 OB1
RG GB
OS
Not for use
* Do not use the frame signals immediately after field accumulation mode is transferred to frame
accumulation mode.
e VERTICAL TRANSFER TIMING ¿FRAME ACCUMULATION MODE¡
...
...
...
18 19 20 21 22 23 24 25
503 504 505 506 507 508 509 510 511
525
1
8
9
10 11 12
HD
VD
ØV1A
ØV1B
ØV2
ØV3A
ØV3B
ØV4
OFDC
ØOFD
Charge swept transfer (780 stages)
OB3
1
4
5
8
GB RG GB RG
OS
Not for use
* Do not use the frame signals immediately after field accumulation mode is transferred to frame
accumulation mode.
7
LZ23J3V
r VERTICAL TRANSFER TIMING ¿FRAME ACCUMULATION MODE¡
...
...
...
503 504 505 506 507 508 509 510 511
525
1
8
9
10 11 12
18 19 20 21 22 23 24 25
HD
VD
ØV1A
ØV1B
ØV2
ØV3A
ØV3B
ØV4
Charge swept transfer (780 stages)
OFDC
ØOFD
964 965 OB2
RG GB
OB1 OB2
2
3
6
7
GB RG GB RG
OS
Not for use
q' VERTICAL TRANSFER TIMING ¿FIELD ACCUMULATION MODE AT FIRST¡ Shutter speed
1/15 s
...
...
...
18 19 20 21 22 23 24 25
503 504 505 506 507 508 509 510 511
525
1
2
9
10 11 12
HD
VD
ØV1A
ØV1B
ØV2
ØV3A
ØV3B
ØV4
OFDC
ØOFD
963 966 OB1
RG GB
OS
Not for use
* Do not use the field signals immediately after frame accumulation mode is transferred to field
accumulation mode.
8
LZ23J3V
READOUT TIMING ¿ q, w, r, q'¡
156
1560, 1
156
HD 1560, 1
676 740
596
68 116
436
68 116
ØV1A
ØV1B
ØV2
100 148
52 132
468
628
100 148
52 132
500 564
612
420
ØV3A
ØV3B
ØV4
452
644
84 164
84 164
5.22 µs
(64 bits)
40.7 µs (500 bits)
55.1 µs (676 bits)
5.22 µs
(64 bits)
127.1 µs (1 560 bits)
READOUT TIMING ¿e¡
HD1560, 1
156
68 116
1560, 1
156
436
596
68 116
ØV1A
ØV1B
676 740
100 148
468
420
628
100 148
52 132
ØV2
612
52
132
ØV3A
500 564
ØV3B
ØV4
452
644
84 164
84 164
5.22 µs
40.7 µs (500 bits)
(64 bits)
5.22 µs
55.1 µs (676 bits)
(64 bits)
127.1 µs (1 560 bits)
9
LZ23J3V
HORIZONTAL TRANSFER TIMING-1
1560, 1
156
52
HD
ØH1
ØH2
ØRS
OS
πππππ1292
OB (49)
68
116
ØV1A
ØV1B
100
148
ØV2
52
132
ØV3A
ØV3B
84
ØV4
140
108
ØOFD
1 clk = 81.5 ns ( = 1/12.27 MHz)
HORIZONTAL TRANSFER TIMING-2
156
240
HD
ØH1
ØH2
ØRS
OS
PRE SCAN (28)
OB (3)
OUTPUT (1 292) 1ππππππππ
ØV1A
ØV1B
148
ØV2
132
ØV3A
ØV3B
164
ØV4
140
ØOFD
1 clk = 81.5 ns ( = 1/12.27 MHz)
10
LZ23J3V
CHARGE SWEPT TRANSFER TIMING
510H
1
511H 512H
• • • • •
524H 525H 1H 2H 3H
• • • • •
7H 8H 9H
1560
156
HD
2
26 50 74 98
1538
1550
1538
1550
ØV1A
ØV1B
14 38 62 86
26 50 74 98
14 38 62 86
ØV2
2
ØV3A
ØV3B
ØV4
1
2
3
4
• • • • • • •
778
779
780
11
LZ23J3V
SYSTEM CONFIGURATION EXAMPLE
+
OS
OD
GND
ØV1A
ØV1B
ØV2
GND
OFD
PW
ØRS
NC
ØV3A
ØV3B
ØV4
ØH1
ØH2
+
+
POFD
VMb
VL
VOFDH
VH3BX
OFDX
V2X
V2
V4
V1X
NC
V3B
V3A
V1B
V1A
VMa
VH
VH1AX
V3X
VDD
+
GND
VH3AX
V4X
VH1BX
+
12
PACKAGES FOR CCD AND CMOS DEVICES
PACKAGE
(Unit : mm)
16 WDIP (WDIP016-P-0500C)
0.04
±0.075
7.00
Center of effective imaging area
and center of package
(◊ : Lid's size)
±0.60
1.40
Glass Lid
9
16
CCD
Package
θ
CCD
0.04
Cross section A-A'
8
1
±0.10
11.20
(◊)
MAX.
Rotation error of die : θ = 1.0˚
±0.10
14.00
A
±0.10
0.25
TYP.
P-1.78
+0.5
–0
12.70
A'
±0.10
±0.10
16-0.46
12-0.90
0.25
M
13
PRECAUTIONS FOR CCD AREA SENSORS
PRECAUTIONS FOR CCD AREA SENSORS
(In the case of plastic packages)
1. Package Breakage
– The leads of the package are fixed with
package body (plastic), so stress added to a
lead could cause a crack in the package
body (plastic) in the jointed part of the lead.
In order to prevent the package from being broken,
observe the following instructions :
1) The CCD is a precise optical component and
the package material is ceramic or plastic.
Therefore,
Glass cap
Package
ø Take care not to drop the device when
mounting, handling, or transporting.
Lead
Fixed
ø Avoid giving a shock to the package.
Especially when leads are fixed to the socket
or the circuit board, small shock could break
the package more easily than when the
package isn’t fixed.
Stand-off
2) When applying force for mounting the device or
any other purposes, fix the leads between a
joint and a stand-off, so that no stress will be
given to the jointed part of the lead. In addition,
when applying force, do it at a point below the
stand-off part.
3) When mounting the package on the housing,
be sure that the package is not bent.
– If a bent package is forced into place
between a hard plate or the like, the pack-
age may be broken.
4) If any damage or breakage occurs on the sur-
face of the glass cap, its characteristics could
deteriorate.
(In the case of ceramic packages)
– The leads of the package are fixed with low
melting point glass, so stress added to a
lead could cause a crack in the low melting
point glass in the jointed part of the lead.
Therefore,
ø Do not hit the glass cap.
ø Do not give a shock large enough to cause
distortion.
ø Do not scrub or scratch the glass surface.
– Even a soft cloth or applicator, if dry, could
cause dust to scratch the glass.
Low melting point glass
Lead
2. Electrostatic Damage
As compared with general MOS-LSI, CCD has
lower ESD. Therefore, take the following anti-static
measures when handling the CCD :
Fixed
1) Always discharge static electricity by grounding
the human body and the instrument to be used.
To ground the human body, provide resistance
of about 1 M$ between the human body and
the ground to be on the safe side.
Stand-off
2) When directly handling the device with the
fingers, hold the part without leads and do not
touch any lead.
14
PRECAUTIONS FOR CCD AREA SENSORS
3) To avoid generating static electricity,
a. do not scrub the glass surface with cloth or
plastic.
ø The contamination on the glass surface
should be wiped off with a clean applicator
soaked in Isopropyl alcohol. Wipe slowly and
gently in one direction only.
b. do not attach any tape or labels.
c. do not clean the glass surface with dust-
cleaning tape.
– Frequently replace the applicator and do not
use the same applicator to clean more than
one device.
4) When storing or transporting the device, put it in
a container of conductive material.
◊ Note : In most cases, dust and contamination
are unavoidable, even before the device
is first used. It is, therefore, recommended
that the above procedures should be
taken to wipe out dust and contamination
before using the device.
3. Dust and Contamination
Dust or contamination on the glass surface could
deteriorate the output characteristics or cause a
scar. In order to minimize dust or contamination on
the glass surface, take the following precautions :
1) Handle the CCD in a clean environment such
as a cleaned booth. (The cleanliness level
should be, if possible, class 1 000 at least.)
2) Do not touch the glass surface with the fingers.
If dust or contamination gets on the glass
surface, the following cleaning method is
recommended :
4. Other
1) Soldering should be manually performed within
5 seconds at 350 °C maximum at soldering iron.
2) Avoid using or storing the CCD at high tem-
perature or high humidity as it is a precise
optical component. Do not give a mechanical
shock to the CCD.
ø Dust from static electricity should be blown
off with an ionized air blower. For anti-
electrostatic measures, however, ground all
the leads on the device before blowing off
the dust.
3) Do not expose the device to strong light. For
the color device, long exposure to strong light
will fade the color of the color filters.
15
厂商 型号 描述 页数 下载

YAGEO

LZ200M0150ST [ Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 150uF, Through Hole Mount ] 1 页

YAGEO

LZ200M0270ST [ Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 270uF, Through Hole Mount ] 1 页

YAGEO

LZ200M0560ST [ Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 560uF, Through Hole Mount ] 1 页

ETC

LZ2018 线阵CCD图像阵列\n[ Linear CCD Image Array ] 4 页

ETC

LZ2019 线阵CCD图像阵列\n[ Linear CCD Image Array ] 4 页

YEASHIN

LZ20V 500毫瓦LL- 34密封式玻璃齐纳稳压器[ 500 mW LL-34 Hermetically Sealed Glass Zener Voltage Regulators ] 4 页

EBMPAPST

LZ210 特殊部位 - TUBEAXIAL范[ SPECIAL PARTS - TUBEAXIAL FAN ] 1 页

ETC

LZ2111J 面阵CCD图像阵列\n[ Area CCD Image Array ] 7 页

ETC

LZ2112J 面阵CCD图像阵列\n[ Area CCD Image Array ] 7 页

SHARP

LZ2113Y [ Analog Circuit, 1 Func, CDIP20, WINDOWED, CERAMIC, DIP-20 ] 1 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.186419s
