PX0959/P

型号:

PX0959/P

描述:

面板安装插头[ Panel Mount Plugs ]

品牌:

BULGIN[ ELEKTRON COMPONENTS LTD. ]

页数:

1 页

PDF大小:

58 K

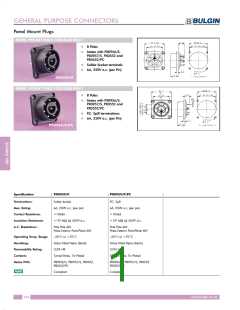

GENERAL PURPOSE CONNECTORS
Panel Mount Plugs
PANEL MOUNT MALE CIRCULAR INLET
8 Poles
Mates with PX0956/S,
PX0957/S, PX0552 and
PX0552/PC
Solder bucket terminals
6A, 250V a.c. (per Pin)
PX0959/P
PANEL MOUNT MALE CIRCULAR INLET
8 Poles
Mates with PX0956/S,
PX0957/S, PX0552 and
PX0552/PC
P.C. Spill terminations
6A, 250V a.c. (per Pin)
PX0959/P/PC
Specification
PX0959/P
PX0959/P/PC
Terminations:
Solder bucket
P.C. Spill
Max. Rating:
6A, 250V a.c. (per pin)
6A, 250V a.c. (per pin)
Contact Resistance:
Insulation Resistance:
A.C. Breakdown:
<10m
<10m
>104 M@ 500V d.c.
>104 M@ 500V d.c.
Pole-Pole 6kV
Pole-Pole 6kV
Poles-Exterior Parts/Panel 6kV
Poles-Exterior Parts/Panel 6kV
Operating Temp. Range:
Mouldings:
–20˚C to
+
70˚C
–20˚C to +70˚C
Glass Filled Nylon (black)
UL94 HB
Glass Filled Nylon (black)
UL94 HB
Flammability Rating:
Contacts:
Turned Brass, Tin Plated
Turned Brass, Tin Plated
Mates With:
PX0956/S, PX0957/S, PX0552,
PX0552/PC
PX0956/S, PX0957/S, PX0552
PX0552/PC
RoHS
Compliant
Compliant
www.bulgin.co.uk
146
