PX0803

型号:

PX0803

描述:

迷你海盗?[ Mini Buccaneer? ]

品牌:

BULGIN[ ELEKTRON COMPONENTS LTD. ]

页数:

4 页

PDF大小:

333 K

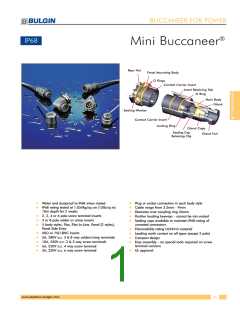

BUCCANEER FOR POWER
®
IP68
Mini Buccaneer
Rear Nut
Panel Mounting Body
O Rings
Contact Carrier Insert
Insert Retaining Tab
O Ring
Main Body
Gland
Sealing Washer
Contact Carrier Insert
Locking Ring
Gland Cage
Sealing Cap
Retaining Clip
Gland Nut
ᔢ
ᔢ
Water and dustproof to IP68 when mated
IP68 rating tested at 1.054kg/sq cm (15lb/sq in)
10m depth for 2 weeks
2, 3, 4 or 6 pole screw terminal inserts
3 or 8 pole solder or crimp inserts
5 body styles, Flex, Flex In-Line, Panel (2 styles),
Panel Side Entry
ᔢ
ᔢ
ᔢ
ᔢ
ᔢ
Plug or socket connection in each body style
Cable range from 3.5mm - 9mm
Diameter over coupling ring 26mm
Positive locating keyways - cannot be mis-mated
Sealing caps available to maintain IP68 rating of
unmated connectors
Flammability rating UL94V-0 material
Leading earth contact on all types (except 2 pole)
Compact design
Easy assembly - no special tools required on screw
terminal versions
ᔢ
ᔢ
ᔢ
ᔢ
ᔢ
ᔢ
ᔢ
ᔢ
ᔢ
ᔢ
ᔢ
ᔢ
50Ω or 75Ω BNC inserts
5A, 380V a.c. 3 & 8 way solder/crimp terminals
10A, 250V a.c. 2 & 3 way screw terminals
6A, 250V a.c. 4 way screw terminal
3A, 250V a.c. 6 way screw terminal
ᔢ
UL approval
www.elektron-bulgin.com
35
BUCCANEER FOR POWER
®
Mini Buccaneer
FLEX CABLE CONNECTOR
ᔢ
ᔢ
PX0800 Connector body
Mates with Flex In-line or Panel
Mounting versions
ᔢ
ᔢ
ᔢ
Screw locking ring
Suitable for Pin or Socket inserts
Cable Acceptance 3.5-9mm
(Standard 5-7mm)
ᔢ
Contact inserts supplied separately
PX0800 - shown with insert
IN-LINE FLEX CABLE CONNECTOR
ᔢ
ᔢ
PX0801 Connector body
Mates with PX0800 - Flex Cable
connector
ᔢ
ᔢ
Suitable for Pin or Socket inserts
Cable Acceptance 3.5-9mm
(Standard 5-7mm)
ᔢ
Contact inserts supplied separately
PX0801 - shown with insert
PANEL MOUNTING
ᔢ
ᔢ
PX0802 Connector body
Mates with PX0800 - Flex Cable
connector
ᔢ
ᔢ
ᔢ
Single hole fixing
Suitable for Pin or Socket inserts
Contact inserts supplied separately
PX0802 - shown with insert
PANEL MOUNTING
ᔢ
ᔢ
PX0803 Connector body
Mates with PX0800 - Flex Cable
connector
ᔢ
ᔢ
ᔢ
ᔢ
Right angle cable entry
Single hole fixing
Suitable for Pin or Socket inserts
Contact inserts supplied separately
PX0803 - shown with insert
PANEL MOUNTING
ᔢ
ᔢ
ᔢ
PX0804 and PX0805 Connector
bodies
Mates with PX0800 - Flex Cable
connector
PX0804 without sealing cap
retaining clip, PX0805
with sealing cap retaining clip
Single hole fixing
Suitable for Pin or Socket inserts
Contact inserts supplied separately
ᔢ
ᔢ
ᔢ
PX0805 - shown with insert
www.elektron-bulgin.com
36
BUCCANEER FOR POWER
®
Mini Buccaneer
Screw Terminal Inserts - fit all body styles
SCREW TERMINAL INSERTS
ᔢ
ᔢ
ᔢ
2, 3, 4 and 6 Poles
Fits all Body Styles
Leading Earth Pin on 3,
4 and 6 pole inserts
No. Poles
Socket
Pin
2
3
4
6
SA3319
SA3229
SA3242
SA3244
SA3320
SA3230
SA3241
SA3243
ᔢ
Nickel Plated contacts
Solder & Crimp Contact Carrier Inserts - fit
all body styles.
CONTACT CARRIER INSERTS
ᔢ
ᔢ
ᔢ
ᔢ
For Solder or Crimp Contacts
3 or 8 Pin
Fits all Body Styles
No. Poles Solder
Colour
Crimp
Colour
8 pin
12734/1
Black
Black
Black
Black
12734
Grey
Grey
Grey
Grey
Contacts Supplied Separately
8 socket
3 pin
12735/1
12735
12734/3/1
12735/3/1
12734/3
12735/3
Inserts shown with
contacts fitted
3 socket
Contacts - Solder & Crimp - for contact
carrier inserts
CONTACTS, POLARISING/BLANKING PINS
ᔢ
ᔢ
ᔢ
Gold Plated contacts
Solder or Crimp
Polarising/Blanking pins
Contacts (Supplied in packs of 10) Solder
Crimp
Pins
SA3148/1 SA3148
SA3149/1 SA3149
SA3147
Sockets
Polarising/Blanking Pins
Contact Insertion Tool:
SA3150
Must be used to load contacts into inserts.
Crimping Tool
SA2800
BNC Inserts - fit all body styles except
PX0803
BNC INSERT KIT
ᔢ
ᔢ
ᔢ
BNC inserts for 50Ω and
75Ω co-ax cables
Includes gland and washer
to suit coax cable
Fits all Body Styles (except
PX0803)
Imp. Cable Type
Contacts Part No.
50Ω
50Ω
75Ω
75Ω
RG58/CU, URM43, URM76 Plug
RG58/CU, URM43, URM76 Socket
SA3159/1
SA3157/1
SA3159
URM70
URM70
Plug
Socket
SA3157
Inserts Shown assembled
SEALING CAPS
PX0810
PX0811
Fits PX0801, PX0802, PX0803, PX0804 &
PX0805. Ensure “O” Ring is in place on
main body.
Fits PX0800. Ensure “O” Ring is in place
in cap.
To maintain IP rating
www.elektron-bulgin.com
37
BUCCANEER FOR POWER
®
Mini Buccaneer Contact Inserts and Accessories
SPECIFICATION
Electrical
Solder/Crimp Terminals
Screw Terminals
BNC
No Poles:
3, 8
2, 3
4
6
Current Rating:
Voltage Rating:
Contact Resistance:
Insulation Resistance:
Voltage Proof:
5A
10A
6A
3A
380V ac
<5mΩ
250V ac
250V ac 250V ac
6
>10 MΩ @ 500V d.c.
2kV @ 50Hz
Operating Temp. Range:
Approvals:
–20°C to +70°C
E214972
Materials
Solder/Crimp Terminals
Screw Terminals
BNC
Body Mouldings:
Inserts:
Polyamide UL94V-0
Polyamide UL94V-0
Polyamide UL94V-0
Brass, Nickel Plated
Polyamide UL94V-0
Contacts:
Copper Alloy, Gold Plated (0.1µm) on Nickel
Brass, Silver Plated.
O Rings:
Nitrile
Compliant
Compliant
Compliant
Mechanical
Solder/Crimp Terminals
Screw Terminals
BNC
Sealing:
Protection Classification IP68, BS EN60529:1992. Tested @ 1.054kg/sq.cm. (15lb/sq.in.) 10m depth for 2 weeks.
Cable Acceptance
5-7mm dia - standard gland
3.5-9mm dia - alternative glands
2
2
Contact Accommodation:
Insertion Force (typical):
Withdrawal Force (typical):
0.2 - 0.5mm (20 - 24 AWG)
1mm max (18 AWG)
50Ω: RG58/CU,
URM43, URM76
75Ω: URM70
3 way: 5N (1.1lbf)
8 way: 14N (3.1lbf)
3 way: 45N (10lbf)
4 way: 50N (11lbf)
6 way: 140N (31lbf)
3 way: 3N (0.66lbf)
8 way: 12N (2.6lbf)
3 way: 32N (7lbf)
4 way: 40N (9lbf)
6 way: 150N (34lbf)
Tightening Torques
Gland Nut, PX0800, 801:
Rear Nut, PX0802, 803, 804, 805:
Sealing Cap, PX0810, 811:
1.13Nm (10lbf in)
0.7Nm min, 1.7Nm max (6.2lbf in min, 15lbf in max)
0.23Nm min, 1.13Nm max (2lbf in min, 10lbf in max)
HOW TO ORDER
CABLE GLANDS
ᔢ
ᔢ
Choose body type, check cable diameter and sealing gland size.
Cable gland for 5-7mm fitted as standard.
BNC Insert Kit includes gland & washer to fit coax cable.
Determine contact carrier inserts. Choose number of poles, and type of
contacts (solder, crimp, screw terminal or BNC).
Cable
Gland
Gland
Colour
Additional
Suffix
ᔢ
ᔢ
Choose pins or sockets. Solder and crimp contacts are supplied
separately in packs of ten.
Diameter
Part No.
Choose polarising/blanking pins. If required for solder/crimp contact
inserts. Supplied in packs of ten.
5-7mm
12023/1
SA3426
12023
White
Grey
Fitted as standard
†
3.5-5mm
6-8mm
Suffix /04
Suffix /06
Suffix /07
ᔢ
ᔢ
ᔢ
Is an insertion tool required (for solder or crimp contacts)?
Is a crimp tool required?
Black
Yellow
Is a sealing cap required?
7-9mm
12023/2
PX0812
Gland Pack
Pack of 3 glands to suit cables
†
3.5-5mm, 6-8mm, 7-9mm dia
To order body with alternative cable gland add suffix to part no. e.g.
PX0800/06 = PX0800 body with cable gland to suit 6-8mm dia. cable.
†
Includes additional black gland cage for 3.5-5mm dia. cable range.
www.elektron-bulgin.com
38
