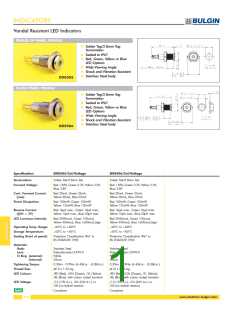

INDICATORS
Vandal Resistant LED Indicators
PROUD OF PANEL PROFILE
ᔢ Solder Tag/2.8mm Tag
Termination
ᔢ Sealed to IP67
ᔢ Red, Green, Yellow or Blue
LED Options
ᔢ Wide Viewing Angle
ᔢ Shock and Vibration Resistant
ᔢ Stainless Steel body
DX0505
FLUSH PANEL PROFILE
ᔢ Solder Tag/2.8mm Tag
Termination
ᔢ Sealed to IP67
ᔢ Red, Green, Yellow or Blue
LED Options
ᔢ Wide Viewing Angle
ᔢ Shock and Vibration Resistant
ᔢ Stainless Steel body
DX0506
Specification
DX0505/Col/Voltage
DX0506/Col/Voltage
Terminations:
Solder Tab/2.8mm Tab
Solder Tab/2.8mm Tab
Forward Voltage:
Red 1.85V, Green 2.2V, Yellow 2.0V,
Blue 3.8V
Red 1.85V, Green 2.2V, Yellow 2.0V,
Blue 3.8V
Cont. Forward Current:
(max)
Red 30mA, Green 25mA,
Yellow 30mA, Blue 25mA
Red 30mA, Green 25mA,
Yellow 30mA, Blue 25mA
Power Dissipation:
Red 100mW, Green 105mW,
Yellow 125mW, Blue 120mW
Red 100mW, Green 105mW
Yellow 125mW, Blue 120mW
Reverse Current:
(@Vr = 5V)
Red 10µA max., Green 10µA max.,
Yellow 10µA max., Blue 50µA max.
Red 10µA max., Green 10µA max.
Yellow 10µA max., Blue 50µA max.
LED Luminous Intensity:
Red 2000mcd, Green 100mcd,
Red 2000mcd, Green 100mcd,
Yellow 400mcd, Blue 1600mcd (typ)
Yellow 400mcd, Blue 1600mcd (typ)
Operating Temp. Range:
Storage Temperature:
Sealing (Front of panel):
–40ºC to +80ºC
–40ºC to +85ºC
–40ºC to +80ºC
–40ºC to +85ºC
Protection Classification IP67 to
BS EN60529:1992
Protection Classification IP67 to
BS EN60529:1992
Materials:
Body:
Lens:
O Ring (external):
(internal):
Stainless Steel
Polycarbonate UL94V-0
Nitrile
Stainless Steel
Polycarbonate UL94V-0
Nitrile
Silicon
Silicon
Tightening Torque:
Thread Size:
0.5Nm - 0.9Nm (4.4lbf.in. - 8.0lbf.in.)
M12 x 1.25-6g
0.5Nm - 0.9Nm (4.4lbf.in. - 8.0lbf.in.)
M12 x 1.25-6g
LED Colours:
/RD (Red), /GN (Green), /YL (Yellow)
/BL (Blue), with colour coded insulator
/RD (Red), /GN (Green), /YL (Yellow)
/BL (Blue), with colour coded insulator
LED Voltage:
/12 (12V d.c.), /24 (24V d.c.) or
/00 (no ballast resistor)
/12 (12V d.c.), /24 (24V d.c.) or
/00 (no ballast resistor)
RoHS
Compliant
Compliant
