FZT7053

型号:

FZT7053

描述:

在SOT223 100V NPN达林顿晶体管[ 100V NPN Darlington transistor in SOT223 ]

品牌:

DIODES[ DIODES INCORPORATED ]

页数:

5 页

PDF大小:

131 K

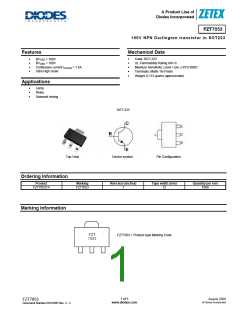

A Product Line of
Diodes Incorporated
FZT7053
100V NPN Darlington transistor in SOT223
Features
Mechanical Data
Case: SOT-223
BVCEO > 100V
BVCBO > 100V
Continuous current IC(cont) = 1.5A
Ultra High Grain
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Matte Tin Finish
Weight: 0.112 grams (approximate)
Applications
Lamp
Relay
Solenoid driving
SOT-223
Top View
Device symbol
Pin Configuration
Ordering Information
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
FZT7053TA
FZT7053
7
12
1000
Marking Information
FZT7053 = Product type Marking Code
1 of 5
www.diodes.com
August 2009
© Diodes Incorporated
FZT7053
Document Number DS31895 Rev. 2 - 2
A Product Line of
Diodes Incorporated
FZT7053
100V NPN Darlington transistor in SOT223
Maximum Ratings @TA = 25°C unless otherwise specified
Characteristic
Collector-Base Voltage
Symbol
VCBO
VCEO
VEBO
IC
Value
100
100
12
Unit
V
Collector-Emitter Voltage
Emitter-Base Voltage
V
V
Continuous Collector Current
Peak Pulse Current
1.5
A
1.8
A
ICM
Thermal Characteristics
Characteristic
Symbol
Value
1.0
8.0
Unit
W
mW /°C
W
mW /°C
W
mW /°C
Power Dissipation at TA = 25°C (Note 1)
PD
Linear derating factor
1.25
10
Power Dissipation at TA = 25°C (Note 2)
PD
PD
Linear derating factor
6.25
50
Power Dissipation at TA = 25°C (Note 3)
Linear derating factor
Thermal Resistance, Junction to Ambient (Note 1)
Thermal Resistance, Junction to Ambient (Note 2)
Thermal Resistance, Junction to Lead (Note 3)
Operating and Storage Temperature Range
125
100
°C/W
°C/W
°C/W
°C
Rθ
Rθ
JA
JA
20
Rθ
JL
-55 to +150
TJ, TSTG
Notes:
1. For a device surface mounted on 15mm X 15mm X 1.6mm FR4 PCB with high coverage of single sided 1 oz copper, in still air conditions
2. Mounted on 25mm X 25mm X 1.6mm FR4 PCB with high coverage of single sided 1 oz copper, in still air conditions.
3. Junction to lead (collector Tab). Typical.
Electrical Characteristics @TA = 25°C unless otherwise specified
Characteristic
Symbol
V(BR)CBO
V(BR)CEO
V(BR)EBO
Min
100
100
12
Typ
Max
Unit
V
Test Condition
IC = 100µA
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage (Note 4)
Emitter-Base Breakdown Voltage
V
IC = 100mA
IE = 100µA
V
V
CB = 80V
<1
<1
<1
100
0.5
nA
µA
Collector-Base Cutoff Current
ICBO
VCB = 80V, Tamb = 100°C
V
V
CB = 80V
CB = 80V, Tamb = 100°C
200
0.5
nA
µA
Collector-Emitter Cutoff Current
Emitter Cutoff Current
ICES
IEBO
hFE
100
nA
VEB = 7V
IC = 100mA, VCE = 5V
IC = 1A, VCE = 5V
10000
1000
DC Current Gain (Note 4)
Collector-Emitter Saturation Voltage (Note 4)
Base-Emitter Turn-On Voltage (Note 4)
Output Capacitance (Note 4)
1.5
2.0
8.0
V
mV
pF
VCE(SAT)
VBE(ON)
Cobo
fT
IC = 100mA, IB = 0.1mA
IC = 100mA, VCE = 5V
VCB = 10V. f = 1MHz
VCE = 5V, IC = 100mA
6.0
Current Gain-Bandwidth Product (Note 4)
Turn-On Time
200
MHz
µs
0.7
2.5
ton
V
CC = 10V, IC = 100µA
Turn-Off Time
µs
toff
I
B1 = -IB2 = 0.1mA
Notes:
1. For a device surface mounted on 15mm X 15mm X 1.6mm FR4 PCB with high coverage of single sided 1 oz copper, in still air conditions
2. Mounted on 25mm X 25mm X 1.6mm FR4 PCB with high coverage of single sided 1 oz copper, in still air conditions.
3. Junction to lead (collector Tab). Typical.
4. Measured under pulsed conditions. Pulse width = 300 µs. Duty cycle 2%
2 of 5
www.diodes.com
August 2009
© Diodes Incorporated
FZT7053
Document Number DS31895 Rev. 2 - 2
A Product Line of
Diodes Incorporated
FZT7053
100V NPN Darlington transistor in SOT223
Typical Characteristics
3 of 5
www.diodes.com
August 2009
© Diodes Incorporated
FZT7053
Document Number DS31895 Rev. 2 - 2
A Product Line of
Diodes Incorporated
FZT7053
100V NPN Darlington transistor in SOT223
Package Outline Dimensions
Suggested Pad Layout
4 of 5
www.diodes.com
August 2009
© Diodes Incorporated
FZT7053
Document Number DS31895 Rev. 2 - 2
A Product Line of
Diodes Incorporated
FZT7053
100V NPN Darlington transistor in SOT223
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other
changes without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising
out of the application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under
its patent or trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such
applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are
represented on Diodes Incorporated website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales
channel. Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall
indemnify and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising
out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and
markings noted herein may also be covered by one or more United States, international or foreign trademarks.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the
express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in
the labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause
the failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems,
and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their
products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices-
or systems-related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes
Incorporated and its representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life
support devices or systems.
Copyright © 2009, Diodes Incorporated
www.diodes.com
5 of 5
www.diodes.com
August 2009
© Diodes Incorporated
FZT7053
Document Number DS31895 Rev. 2 - 2
