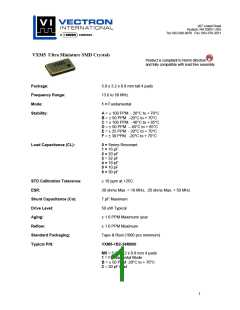

VXM5 Ultra Miniature SMD Crystals
Product is compliant to RoHS directive
and fully compatible with lead free assembly
Package:
5.0 x 3.2 x 0.8 mm tall 4 pads
Frequency Range:
Mode:
13.0 to 50 MHz
1 = Fundamental
Stability:
A = ± 100 PPM - 20°C to + 70°C
B = ± 50 PPM –20°C to + 70°C
C = ± 100 PPM - 40°C to + 85°C
D = ± 50 PPM – 40°C to + 85°C
E = ± 25 PPM - 20°C to + 70°C
F = ± 30 PPM -20°C to + 70°C
Load Capacitance (CL):
0 = Series Resonant
1 = 16 pF
2 = 20 pF
3 = 32 pF
4 = 18 pF
5 = 10 pF
6 = 30 pF
STD Calibration Tolerance:
ESR:
± 10 ppm at +25C
30 ohms Max. > 18 MHz, 20 ohms Max. > 50 MHz
7 pF Maximum
Shunt Capacitance (Co):
Drive Level:
50 uW Typical
Aging:
± 1.0 PPM Maximum/ year
± 1.0 PPM Maximum
Reflow:
Standard Packaging:
Typical P/N:
Tape & Reel (1000 pcs minimum)
VXM5-1B2-24M000
M5 = 5.0 x 3.2 x 0.8 mm 4 pads
1 = Fundamental Mode
B = ± 50 PPM -20°C to + 70°C
2 = 20 pF load
