UWQ-12-Q48

型号:

UWQ-12-Q48

描述:

宽电压输入,隔离DOSA 1/4砖DC / DC转换器[ Wide Input, Isolated DOSA Quarter Brick DC/DC Converters ]

品牌:

MURATA[ muRata ]

页数:

18 页

PDF大小:

1003 K

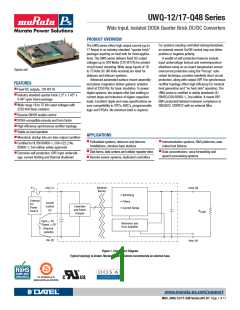

UWQ-12/17-Q48 Series
Wide Input, Isolated DOSA Quarter Brick DC/DC Converters
s
PRODUCT OVERVIEW
The UWQ series offers high output current (up to
17 Amps) in an industry standard “quarter brick”
package requiring no heat sink for most applica-
tions. The UWQ series delivers fixed DC output
voltages up to 204 Watts (12V @17A) for printed
circuit board mounting. Wide range inputs of 18
to 75 Volts DC (48 Volts nominal) are ideal for
datacom and telecom systems.
Advanced automated surface mount assembly
and planar magnetics deliver galvanic isolation
rated at 2250 Vdc for basic insulation. To power
digital systems, the outputs offer fast settling to
current steps and tolerance of higher capacitive
loads. Excellent ripple and noise specifications as-
sure compatibility to CPU’s, ASIC’s, programmable
logic and FPGA’s. No minimum load is required.
For systems needing controlled startup/shutdown,
an external remote On/Off control may use either
positive or negative polarity.
A wealth of self-protection features include
input undervoltage lockout and overtemperature
shutdown using an on-board temperature sensor;
overcurrent protection using the “hiccup” auto-
restart technique, provides indefinite short-circuit
protection, along with output OVP. The synchronous
rectifier topology offers high efficiency for minimal
heat generation and “no heat sink” operation. The
UWQ series is certified to safety standards UL/
EN/IEC/CSA 60950-1, 2nd edition. It meets RFI/
EMI conducted/radiated emission compliance to
EN55022, CISPR22 with an external filter.
Typical unit
FEATURES

Fixed DC outputs, 12V @17A

Industry standard quarter brick 2.3x 1.45x
0.46open frame package

Wide range 18 to 75 Vdc input voltages with
2250 Volt Basic isolation

Remote ON/Off enable control

DOSA-compatible pinouts and form factor

High efficiency synchronous rectifier topology

Stable no-load operation
APPLICATIONS

Monotonic startup into pre-bias output condition

Embedded systems, datacom and telecom
installations, wireless base stations

Instrumentation systems, R&D platforms, auto-
mated test fixtures

Certified to UL/EN 60950-1, CSA-C22.2 No.
60950-1, 2nd edition safety approvals


Disk farms, data centers and cellular repeater sites
Data concentrators, voice forwarding and
speech processing systems

Extensive self-protection, OVP, input undervolt-
age, current limiting and thermal shutdown

Remote sensor systems, dedicated controllers
F1
+Vin (1)
+Vout (8)
Barrier
External
DC
Power
Source
On/Off
Control
(2)
Controller
and Power
Open = On
Reference and
Error Amplifier
polarity)
-Vin (3)
-Vout (4)
Figure 1. Connection Diagram
Typical topology is shown. Murata Power Solutions recommends an external fuse.
For full details go to
www.murata-ps.com/rohs
www.murata-ps.com/support
MDC_UWQ-12/17-Q48 Series.A01.D7 Page 1 of 17
UWQ-12/17-Q48 Series
Wide Input, Isolated DOSA Quarter Brick DC/DC Converters
ORDERING GUIDE ➀
Output
R/N (mV
pk-pk)
(Volts) max.) (Watts) Typ. Max.
UWQ-12/17-Q48 12 17 204 100 120
Input
IOUT
IIN full
load
Regulation (Max.) ➁
Efficiency
Dimensions
(inches)
90ꢀ 92ꢀ 2.30x1.45x0.46 max. 58.4x36.8x11.7
VOUT (Amps, Power
VIN Nom. Range
IIN no
Line
Load
(Volts) (Volts) load (mA) (Amps) Min. Typ.
(mm)
Root Model ➀
1ꢀ
1.5ꢀ
48 18-75 80 4.62
Please refer to the part number structure for additional ordering information and options.
All specifications are typical at nominal line voltage and full load, +25°C unless otherwise noted.
See detailed specifications. Output capacitors are 1 μF ceramic || 10 μF electrolytic with a 22uF input
capacitor. These caps are necessary for our test equipment and may not be needed for your application.
PART NUMBER STRUCTURE
UWQ - 12 / 17 Q48 N B Lx - C
-
RoHS Hazardous Materials compliance
C = RoHS-6 (does not claim EU RoHS exemption 7b–lead in solder), standard
Family
Series:
Wide Input
Quarter Brick
Pin length option
Blank = standard pin length 0.180 in. (4.6 mm)
L1 = 0.110 in. (2.79 mm)*
Nominal Output Voltage
L2 = 0.145 in. (3.68 mm)*
*Special quantity order is required;
no sample quantities available.
Maximum Rated Output :
Current in Amps
Baseplate (optional)
Blank = No baseplate, standard
B = Baseplate installed, optional
Note:
Some model number combinations
may not be available. Please contact
Murata Power Solutions.
Input Voltage Range:
Q48 = 18-75 Volts (48V nominal)
On/Off Control Polarity
N = Negative polarity
P = Positive polarity
UWQ-12/17-Q48NBL1-C
Complete Model Number Example:
Negative On/Off logic, baseplate installed, 0.110˝ pin length, RoHS-6 compliance
www.murata-ps.com/support
MDC_UWQ-12/17-Q48 Series.A01.D7 Page 2 of 17
UWQ-12/17-Q48 Series
Wide Input, Isolated DOSA Quarter Brick DC/DC Converters
FUNCTIONAL SPECIFICATIONS
ABSOLUTE MAXIMUM RATINGS
Input Voltage, Continuous
Minimum
18
Typical/Nominal
Maximum
80
Units
Vdc
Conditions ➀
Full power operation
48
Operating or non-operating,
100 mS max. duration
Input to output
None, install external fuse
Power on or off, referred to -Vin
Input Voltage, Transient
100
Vdc
Isolation Voltage
2250
Vdc
Vdc
Vdc
W
Input Reverse Polarity
On/Off Remote Control
Output Power
None
0
0
13.5
210
Current-limited, no damage,
short-circuit protected
Vin = Zero (no power)
Output Current
0
17
A
Storage Temperature Range
-55
125
°C
Absolute maximums are stress ratings. Exposure of devices to greater than any of these conditions may adversely affect long-term reliability. Proper operation under conditions other than those
listed in the Performance/Functional Specifications Table is not implied or recommended.
INPUT
Conditions ➀ ➂
Operating voltage range
Recommended External Fuse
Start-up threshold, measured at 50% load
Undervoltage shutdown, measured at 50% load
Overvoltage protection
Reverse Polarity Protection
Internal Filter Type
18
48
20
17.5
16
None
None
L-C
75
Vdc
A
Vdc
Vdc
Vdc
Vdc
Fast blow
Rising input voltage
Falling input voltage
Rising input voltage
None, install external fuse
16.5
15
17.9
17
Input current
Full Load Conditions
Low Line
Inrush Transient
Output in Short Circuit
No Load input current
Shut down mode input current
Vin = nominal
Vin = minimum
Vin = 48V.
4.52
12.06
0.05
50
80
5
4.76
12.69
TBD
100
150
6.5
A
A
A2-Sec.
mA
mA
Iout = minimum, unit=ON
mA
Measured at input with specified filter
15
500
25
525
mA, RMS
mA-p-p
Reflected (back) ripple current ➁
Back Ripple Current, No Filtering
Back Ripple Current, with 22uF external
input capacitor
300
400
mA-p-p
Pre-biased startup
External output voltage < Vset
Monotonic
GENERAL and SAFETY
Efficiency
Vin=48V, full load
Vin=18V
90
90
92
92
Isolation
Isolation Voltage, input to output
Isolation Voltage, input to baseplate
Isolation Voltage, output to baseplate
Insulation Safety Rating
Isolation Resistance
No baseplate
With baseplate
With baseplate
2250
1500
1500
Vdc
Vdc
Vdc
basic
100
1500
MΩ
pF
Isolation Capacitance
Safety (certified to the following
requirements)
UL-60950-1, CSA-C22.2 No.60950-1,
IEC/EN60950-1, 2nd edition
Yes
Per Telcordia SR-332, issue 1, class 3, ground
fixed, Tambient=+25°C
Calculated MTBF
TBC
Hours x 103
DYNAMIC CHARACTERISTICS
Fixed Switching Frequency
160
180
60
200
65
KHz
mS
Power On, to Vout regulation band,
100ꢀ resistive load
Startup Time
Startup Time
Remote ON to Vout Regulated
50-75-50ꢀ load step to 3ꢀ error band
same as above
60
220
1100
65
275
1300
mS
μSec
mV
Dynamic Load Response
Dynamic Load Peak Deviation
FEATURES and OPTIONS
Remote On/Off Control ➃
“N” suffix:
Negative Logic, ON state
Negative Logic, OFF state
Control Current
ON = pin grounded or external voltage
OFF = pin open or external voltage
open collector/drain
0
3.5
1
13.5
2
Vdc
Vdc
mA
1
“P” suffix:
Positive Logic, ON state
Positive Logic, OFF state
Control Current
ON = pin open or external voltage
OFF = ground pin or external voltage
open collector/drain
3.5
0
13.5
1
2
V
V
mA
1
Base Plate
"B" suffix
optional
www.murata-ps.com/support
MDC_UWQ-12/17-Q48 Series.A01.D7 Page 3 of 17
UWQ-12/17-Q48 Series
Wide Input, Isolated DOSA Quarter Brick DC/DC Converters
FUNCTIONAL SPECIFICATIONS, (CONT.)
OUTPUT
Total Output Power
Conditions ➀
Minimum
0.0
Typical/Nominal
Maximum
210
Units
W
204
Voltage
Setting Accuracy, fixed output
Overvoltage Protection
Current
At 50ꢀ load, not user adjustable
Via magnetic feedback
11.64
12
12.36
15
Vdc
Vdc
Output Current Range
Minimum Load
Current Limit Inception
Short Circuit
0.0
19
17
No minimum load
21
17
23
A
A
97ꢀ of Vnom., cold condition
Hiccup technique, autorecovery within 1.25ꢀ
of Vout
Short Circuit Current
5
6
A
Short Circuit Duration
(remove short for recovery)
Short circuit protection method
Output shorted to ground, no damage
Hiccup current limiting
Continuous
Non-latching
Regulation ➄
Line Regulation
Load Regulation
Vin=min. to max., Vout=nom., full load
Iout=min. to max., Vin=nom.
5 Hz- 20 MHz BW, Cout=1μF MLCC paralleled
with 10μF tantalum
0.65
1.5
ꢀ of Vout
ꢀ of Vout
100
120
mV pk-pk
Ripple and Noise ➅
Temperature Coefficient
At all outputs
Full resistive load, low ESR
0.02
5000
ꢀ of Vout./°C
ꢁF
Maximum Capacitive Loading
MECHANICAL (Through Hole Models)
Outline Dimensions (no baseplate)
(Please refer to outline drawing)
Outline Dimensions (with baseplate)
0
2.3x1.45x0.46 max.
58.4x36.8x11.68
2.3x1.45x0.5
58.4x36.8x12.7
1.6
Inches
mm
Inches
mm
Ounces
Grams
Ounces
Grams
Inches
mm
LxWxH
Weight
No baseplate
No baseplate
With baseplate
With baseplate
45
2.24
63.5
Through Hole Pin Diameter
0.04 & 0.06
1.016 & 1.52
Copper alloy
50
Through Hole Pin Material
TH Pin Plating Metal and Thickness
Nickel subplate
Gold overplate
μ-inches
μ-inches
5
Baseplate Material
Aluminum
ENVIRONMENTAL
Operating Ambient Temperature Range
Operating Case Temperature
Storage Temperature
Thermal Protection/Shutdown
Electromagnetic Interference
Conducted, EN55022/CISPR22
Radiated, EN55022/CISPR22
RoHS rating
See derating curves
With baseplate, no derating
Vin = Zero (no power)
Measured in center
-40
-40
-55
115
85
°C
°C
°C
°C
110
125
130
125
External filter is required
B
B
Class
Class
RoHS-6
Notes
Unless otherwise noted, all specifications apply at Vin = nominal, nominal output voltage and full
output load. General conditions are near sea level altitude, no base plate installed and natural
convection airflow unless otherwise specified. All models are tested and specified with external
parallel 1 ꢁF and 10 ꢁF multi-layer ceramic output capacitors and a 22uF external input capacitor
(see Technical Notes). All capacitors are low-ESR types wired close to the converter. These capaci-
tors are necessary for our test equipment and may not be needed in the user’s application.
Input (back) ripple current is tested and specified over 5 Hz to 20 MHz bandwidth. Input filtering is
Cin = 33 μF/100V, Cbus = 220μF/100V and Lbus = 12 μH.
All models are stable and regulate to specification under no load.
The Remote On/Off Control is referred to -Vin.
Regulation specifications describe the output voltage changes as the line voltage or load current
is varied from its nominal or midpoint value to either extreme. The load step is 25ꢀ of full load
current.
Output Ripple and Noise is measured with Cout = 1μF MLCC paralleled with 10μF tantalum, 20
MHz oscilloscope bandwidth and full resistive load.
www.murata-ps.com/support
MDC_UWQ-12/17-Q48 Series.A01.D7 Page 4 of 17
UWQ-12/17-Q48 Series
Wide Input, Isolated DOSA Quarter Brick DC/DC Converters
PERFORMANCE DATA, UWQ-12/17-Q48NB-C
Efficiency vs. Line Voltage and Load Current @ +25°C
Maximum Current Temperature Derating at sea level
(Vin = 24V, air flow from Pin 1 to Pin 4 on PCB, with baseplate)
94
92
90
88
86
84
82
80
78
76
74
72
70
68
66
64
62
60
18
17
16
15
14
V
V
V
V
V
V
IN = 18V
IN = 24V
IN = 36V
IN = 48V
IN = 60V
IN = 75V
13
12
11
10
9
65 LFM
100 LFM
200 LFM
300 LFM
400 LFM
8
30
35
40
45
50
55
60
65
70
75
80
85
1
2
3
4
5
6
7
8
9
10 11 12 13 14 15 16 17
Ambient Temperature (°C)
Load Current (Amps)
Maximum Current Temperature Derating at sea level
(Vin = 36V, air flow from Pin 1 to Pin 4 on PCB, with baseplate)
Maximum Current Temperature Derating at sea level
(Vin = 48V, air flow from Pin 1 to Pin 4 on PCB, with baseplate)
18
18
17
16
15
14
13
12
11
10
9
17
16
15
14
13
12
11
10
9
65 LFM
100 LFM
200 LFM
300 LFM
400 LFM
65 LFM
100 LFM
200 LFM
300 LFM
400 LFM
8
8
30
35
40
45
50
55
60
65
70
75
80
85
30
35
40
45
50
55
60
65
70
75
80
85
Ambient Temperature (°C)
Ambient Temperature (°C)
Maximum Current Temperature Derating at sea level
(Vin = 60V, air flow from Pin 1 to Pin 4 on PCB, with baseplate)
Maximum Current Temperature Derating at sea level
(Vin = 75V, air flow from Pin 1 to Pin 4 on PCB, with baseplate)
18
17
16
15
14
13
12
11
10
9
18
16
14
12
10
8
65 LFM
100 LFM
200 LFM
300 LFM
400 LFM
65 LFM
100 LFM
200 LFM
300 LFM
400 LFM
6
4
2
8
30
35
40
45
50
55
60
65
70
75
80
85
30
35
40
45
50
55
60
65
70
75
80
85
Ambient Temperature (°C)
Ambient Temperature (°C)
www.murata-ps.com/support
MDC_UWQ-12/17-Q48 Series.A01.D7 Page 5 of 17
UWQ-12/17-Q48 Series
Wide Input, Isolated DOSA Quarter Brick DC/DC Converters
PERFORMANCE DATA, UWQ-12/17-Q48NB-C
Maximum Current Temperature Derating at sea level
Vin = 24V (air flow from Pin 1 to Pin 4 on PCB), no baseplate
Maximum Current Temperature Derating at sea level
Vin = 36V (air flow from Pin 1 to Pin 4 on PCB), no baseplate
18
17
16
15
14
13
18
17
16
15
14
13
65 LFM
12
65 LFM
12
100 LFM
100 LFM
200 LFM
300 LFM
400 LFM
200 LFM
300 LFM
400 LFM
11
11
10
10
9
8
9
8
30
35
40
45
50
55
60
65
70
75
80
85
30
35
40
45
50
55
60
65
70
75
80
85
Ambient Temperature (°C)
Ambient Temperature (°C)
Maximum Current Temperature Derating at sea level
(Vin = 48V, air flow from Pin 1 to Pin 4 on PCB, no baseplate)
Stepload Transient Response (Vin=48V, Iout=50-75-50% of Imax, Cload=1uF || 10uF,
Ta=+25°C) Ch2=Vout, Ch4=Iout
18
17
16
15
14
13
12
11
10
9
65 LFM
100 LFM
200 LFM
300 LFM
400 LFM
8
30
35
40
45
50
55
60
65
70
75
80
85
Ambient Temperature (°C)
Stepload Transient Response (Vin=48V, Iout=25-75-25% of Imax, Cload=1uF || 10uF,
Ta=+25°C) Ch2=Vout, Ch4=Iout
Stepload Transient Response (Vin=48V, Iout=50-75-50% of Imax, Cload=5000uF,
Io=5A/div Ta=+25°C) Ch2=Vout, Ch4=Iout
www.murata-ps.com/support
MDC_UWQ-12/17-Q48 Series.A01.D7 Page 6 of 17
UWQ-12/17-Q48 Series
Wide Input, Isolated DOSA Quarter Brick DC/DC Converters
PERFORMANCE DATA, UWQ-12/17-Q48NB-C
Start-up Delay (Vin=48V, Iout=0A, Cload=0,Ta=+25°C) Ch1= Vin, Ch2= Vout
Start-up Delay (Vin=48V, Iout=17A, Cload=0,Ta=+25°C) Ch1= Vin, Ch2= Vout
Start-up Delay (Vin=48V, Iout=17A, Cload=5000uF,Ta=+25°C) Ch1= Vin, Ch2= Vout On/Off Enable Delay (Vin=48V, Vout=nom, Iout=0A,Ta=+25°C) Ch1= Enable, Ch2= Vout.
On/Off Enable Delay (Vin=48V, Vout=nom, Iout=17A,Ta=+25°C) Ch1= Enable, Ch2= Vout. On/Off Enable Delay (Vin=48V, Vout=nom, Iout=17A, Cload=5000uF,Ta=+25°C) Ch1=
Enable, Ch2= Vout.
www.murata-ps.com/support
MDC_UWQ-12/17-Q48 Series.A01.D7 Page 7 of 17
UWQ-12/17-Q48 Series
Wide Input, Isolated DOSA Quarter Brick DC/DC Converters
PERFORMANCE DATA, UWQ-12/17-Q48NB-C
Output ripple and Noise (Vin=48V, Iout=0A, Cload= 1uF || 10uF,Ta=+25°C, BW=20Mhz) Output ripple and Noise (Vin=48V, Iout=17A, Cload= 1uF || 10uF,Ta=+25°C, BW=20Mhz)
Thermal image with hot spot at 9.56A with 25°C ambient temperature. Natural convention is used with no forced airflow. Identifiable and recommended
maximum value to be verified in application. Vin=48V, Q5 max temp=128°C/IPC9592 guidelines.
(+Vin)
(+Vo)
(-Vin)
(-Vo)
www.murata-ps.com/support
MDC_UWQ-12/17-Q48 Series.A01.D7 Page 8 of 17
UWQ-12/17-Q48 Series
Wide Input, Isolated DOSA Quarter Brick DC/DC Converters
MECHANICAL SPECIFICATIONS (OPEN FRAME)
END VIEW
TOP VIEW
END VIEW
58.4
2.30
[11.68]
0.46
4.78
0.188*
36.8
1.45
1° MAX
(ALL PINS)
0.26
0.010
MIN
BOTTOM
CLEARANCE
Mtg Plane
SIDE VIEW
*Alternate pin lengths available (Contact Murata Power Solutions for information).
Pin location dimensions apply at circuit board level.
.062 SHOULDER
(AT 40 MIL PINS)
.083 SHOULDER
(AT 60 MIL PINS)
MATERIAL:
.040 PINS: COPPER ALLOY
.060 PINS: COPPER ALLOY
1.02 0.05
0.040 .002
@ PINS 1-3, 9
1.52 0.05
0.060 .002
@ PINS 4 & 8
FINISH: (ALL PINS)
GOLD (5u"MIN) OVER NICKEL (50u" MIN)
50.80
2.000
REF
3.8
0.15
50.80
2.000
7.61
0.300
3
4
8
15.24
0.600
C
L
2
1
BOTTOM VIEW
Dimensions are in inches (mm) shown for ref. only.
Third Angle Projection
I/O Connections (pin side view)
Pin
1
Function
Pin
Function
Positive Input
4
Negative Output
Tolerances (unless otherwise specified):
.XX 0.02 (0.5)
.XXX 0.010 (0.25)
Angles 2ꢂ
2
Remote On/Off Control
Negative Input
3
8
Positive Output
www.murata-ps.com/support
MDC_UWQ-12/17-Q48 Series.A01.D7 Page 9 of 17
UWQ-12/17-Q48 Series
Wide Input, Isolated DOSA Quarter Brick DC/DC Converters
MECHANICAL SPECIFICATIONS (BASEPLATE)
4x M3x0.5 THREADED HOLE
(.10 MAX SCREW PENETRATION)
TOP VIEW
58.4
2.30
END VIEW
END VIEW
12.7
0.50
47.24
1.860
4.78
0.188*
36.8
1.45
26.16
1.030
1° MAX
(ALL PINS)
0.26
0.010
MIN
BOTTOM
CLEARANCE
Mtg Plane
SIDE VIEW
OPTIONAL
BASEPLATE
'B' OPTION
*Alternate pin lengths available (Contact Murata Power Solutions for information).
Pin location dimensions apply at circuit board level.
.062 SHOULDER
(AT 40 MIL PINS)
.083 SHOULDER
(AT 60 MIL PINS)
MATERIAL:
.040 PINS: COPPER ALLOY
.060 PINS: COPPER ALLOY
1.02 0.05
0.040 .002
@ PINS 1-3, 9
1.52 0.05
.060 .002
@ PINS 4 & 8
FINISH: (ALL PINS)
GOLD (5u"MIN) OVER NICKEL (50u" MIN)
50.80
2.000
REF
3.8
0.15
50.80
2.000
7.61
0.300
3
2
4
8
15.24
0.600
C
L
1
BOTTOM VIEW
Dimensions are in inches (mm) shown for ref. only.
Third Angle Projection
I/O Connections (pin side view)
Pin
1
Function
Pin
Function
Positive Input
4
Negative Output
2
Remote On/Off Control
Negative Input
Tolerances (unless otherwise specified):
.XX 0.02 (0.5)
3
8
Positive Output
.XXX 0.010 (0.25)
Angles 2ꢂ
www.murata-ps.com/support
MDC_UWQ-12/17-Q48 Series.A01.D7 Page 10 of 17
UWQ-12/17-Q48 Series
Wide Input, Isolated DOSA Quarter Brick DC/DC Converters
RECOMMENDED FOOTPRINT
Recommended Footprint
(view through converter)
REF: DOSA Standard Specification
for Quarter-Brick DC/DC Converters
FINISHED HOLE SIZES
@ PINS 1-3
(PER IPC-D-275, LEVEL C)
TOP VIEW
0.048-0.062
C
L
(PRI)
(SEC)
1
8
4
7.62
0.300
37.3
1.47
2
C
L
C
L
7.62
0.300
3
FINISHED HOLE SIZES
@ PINS 4 & 8
(PER IPC-D-275, LEVEL C)
0.070-0.084
0.100 MIN
@ 1-4, 8
FOR PIN
25.4
1.00
50.80
2.000
SHOULDERS
58.9
2.32
It is recommended that no parts be placed beneath converter (hatched area).
Dimensions are in inches (mm) shown for ref. only.
Third Angle Projection
I/O Connections (pin side view)
Pin
1
Function
Positive Input
Pin
Function
4
Negative Output
2
Remote On/Off Control
Negative Input
Tolerances (unless otherwise specified):
.XX 0.02 (0.5)
3
8
Positive Output
.XXX 0.010 (0.25)
Angles 2ꢂ
www.murata-ps.com/support
MDC_UWQ-12/17-Q48 Series.A01.D7 Page 11 of 17
UWQ-12/17-Q48 Series
Wide Input, Isolated DOSA Quarter Brick DC/DC Converters
STANDARD PACKAGING
9.92
(251.97)
REF
9.92
(251.97)
REF
Each static dissipative polyethylene
foam tray accommodates
15 converters in a 3 x 5 array.
0.88 (22.35)
REF
2.75 (69.85) .25
closed height
10.50 (266.7) .25
11.00 (279.4) .25
Carton accommodates two (2) trays yielding 30 converters per carton
Dimensions are in inches (mm) shown for ref. only.
Third Angle Projection
Tolerances (unless otherwise specified):
.XX 0.02 (0.5)
.XXX 0.010 (0.25)
Angles 2ꢂ
www.murata-ps.com/support
MDC_UWQ-12/17-Q48 Series.A01.D7 Page 12 of 17
UWQ-12/17-Q48 Series
Wide Input, Isolated DOSA Quarter Brick DC/DC Converters
all applications, some experimentation may be needed. Note that external input
capacitors must accept high speed switching currents.
TECHNICAL NOTES
Input Fusing
Because of the switching nature of DC/DC converters, the input of these
converters must be driven from a source with both low AC impedance and
adequate DC input regulation. Performance will degrade with increasing input
inductance. Excessive input inductance may inhibit operation. The DC input
regulation specifies that the input voltage, once operating, must never degrade
below the Shut-Down Threshold under all load conditions. Be sure to use
adequate trace sizes and mount components close to the converter.
Certain applications and/or safety agencies may require fuses at the inputs of
power conversion components. Fuses should also be used when there is the
possibility of sustained input voltage reversal which is not current-limited. For
greatest safety, we recommend a fast blow fuse installed in the ungrounded
input supply line.
The installer must observe all relevant safety standards and regulations. For
safety agency approvals, install the converter in compliance with the end-user
safety standard.
I/O Filtering, Input Ripple Current and Output Noise
All models in this converter series are tested and specified for input reflected
ripple current and output noise using designated external input/output compo-
nents, circuits and layout as shown in the figures below. External input capaci-
tors (CIN in the figure) serve primarily as energy storage elements, minimizing
line voltage variations caused by transient IR drops in the input conductors.
Users should select input capacitors for bulk capacitance (at appropriate
frequencies), low ESR and high RMS ripple current ratings. In the figure below,
the CBUS and LBUS components simulate a typical DC voltage bus. Your specific
system configuration may require additional considerations. Please note that the
values of CIN, LBUS and CBUS may vary according to the specific converter model.
Input Reverse-Polarity Protection
If the input voltage polarity is reversed, an internal diode will become forward
biased and likely draw excessive current from the power source. If this source
is not current-limited or the circuit appropriately fused, it could cause perma-
nent damage to the converter.
Input Under-Voltage Shutdown and Start-Up Threshold
Under normal start-up conditions, converters will not begin to regulate properly
until the rising input voltage exceeds and remains at the Start-Up Threshold
Voltage (see Specifications). Once operating, converters will not turn off until
the input voltage drops below the Under-Voltage Shutdown Limit. Subsequent
restart will not occur until the input voltage rises again above the Start-Up
Threshold. This built-in hysteresis prevents any unstable on/off operation at a
single input voltage.
TO
CURRENT
PROBE
OSCILLOSCOPE
+INPUT
−INPUT
L
BUS
+
+
Users should be aware however of input sources near the Under-Voltage Shut-
down whose voltage decays as input current is consumed (such as capacitor
inputs), the converter shuts off and then restarts as the external capacitor re-
charges. Such situations could oscillate. To prevent this, make sure the operating
input voltage is well above the UV Shutdown voltage AT ALL TIMES.
VIN
CBUS
CIN
C
IN = 33μF, ESR < 200mꢃ @ 100kHz
BUS = 220μF, 100V
C
Start-Up Delay
LBUS = 12μH
Assuming that the output current is set at the rated maximum, the Vin to Vout Start-
Up Delay (see Specifications) is the time interval between the point when the rising
input voltage crosses the Start-Up Threshold and the fully loaded regulated output
voltage enters and remains within its specified regulation band. Actual measured
times will vary with input source impedance, external input capacitance, input volt-
age slew rate and final value of the input voltage as it appears at the converter.
Figure 2. Measuring Input Ripple Current
In critical applications, output ripple and noise (also referred to as periodic and
random deviations or PARD) may be reduced by adding filter elements such
as multiple external capacitors. Be sure to calculate component temperature
rise from reflected AC current dissipated inside capacitor ESR. In figure 3, the
two copper strips simulate real-world printed circuit impedances between the
power supply and its load. In order to minimize circuit errors and standardize
tests between units, scope measurements should be made using BNC connec-
tors or the probe ground should not exceed one half inch and soldered directly
to the fixture.
These converters include a soft start circuit to moderate the duty cycle of the
PWM controller at power up, thereby limiting the input inrush current.
The On/Off Remote Control interval from inception to VOUT regulated assumes
that the converter already has its input voltage stabilized above the Start-Up
Threshold before the On command. The interval is measured from the On com-
mand until the output enters and remains within its specified regulation band.
The specification assumes that the output is fully loaded at maximum rated
current.
Floating Outputs
Since these are isolated DC/DC converters, their outputs are “floating” with
respect to their input. The essential feature of such isolation is ideal ZERO
CURRENT FLOW between input and output. Real-world converters however do
exhibit tiny leakage currents between input and output (see Specifications).
These leakages consist of both an AC stray capacitance coupling component
and a DC leakage resistance. When using the isolation feature, do not allow
the isolation voltage to exceed specifications. Otherwise the converter may
Input Source Impedance
These converters will operate to specifications without external components,
assuming that the source voltage has very low impedance and reasonable in-
put voltage regulation. Since real-world voltage sources have finite impedance,
performance is improved by adding external filter components. Sometimes only
a small ceramic capacitor is sufficient. Since it is difficult to totally characterize
www.murata-ps.com/support
MDC_UWQ-12/17-Q48 Series.A01.D7 Page 13 of 17
UWQ-12/17-Q48 Series
Wide Input, Isolated DOSA Quarter Brick DC/DC Converters
most applications. Sometimes it is possible to estimate the effective airflow if
you thoroughly understand the enclosure geometry, entry/exit orifice areas and
the fan flowrate specifications.
COPPER STRIP
+OUTPUT
−OUTPUT
CAUTION: If you exceed these Derating guidelines, the converter may have an
unplanned Over Temperature shut down. Also, these graphs are all collected
near Sea Level altitude. Be sure to reduce the derating for higher altitude.
RLOAD
SCOPE
C1
C2
Output Overvoltage Protection (OVP)
COPPER STRIP
This converter monitors its output voltage for an over-voltage condition using
an on-board electronic comparator. The signal is optically coupled to the pri-
mary side PWM controller. If the output exceeds OVP limits, the sensing circuit
will power down the unit, and the output voltage will decrease. After a time-out
period, the PWM will automatically attempt to restart, causing the output volt-
age to ramp up to its rated value. It is not necessary to power down and reset
the converter for this automatic OVP-recovery restart.
C1 = 1μF CERAMIC
C2 = 10μF LOW ESR
LOAD 2-3 INCHES (51-76mm) FROM MODULE
Figure 3. Measuring Output Ripple and Noise (PARD)
be damaged. Designers will normally use the negative output (-Output) as
the ground return of the load circuit. You can however use the positive output
(+Output) as the ground return to effectively reverse the output polarity.
If the fault condition persists and the output voltage climbs to excessive levels,
the OVP circuitry will initiate another shutdown cycle. This on/off cycling is
referred to as “hiccup” mode.
Minimum Output Loading Requirements
Output Fusing
These converters employ a synchronous rectifier design topology. All models
regulate within specification and are stable under no load to full load conditions.
Operation under no load might however slightly increase output ripple and noise.
The converter is extensively protected against current, voltage and temperature
extremes. However, your application circuit may need additional protection. In the
extremely unlikely event of output circuit failure, excessive voltage could be applied
to your circuit. Consider using an appropriate external protection.
Thermal Shutdown
To protect against thermal over-stress, these converters include thermal shut-
down circuitry. If environmental conditions cause the temperature of the DC/
DC’s to rise above the Operating Temperature Range up to the shutdown tem-
perature, an on-board electronic temperature sensor will power down the unit.
When the temperature decreases below the turn-on threshold, the converter
will automatically restart. There is a small amount of hysteresis to prevent
rapid on/off cycling. CAUTION: If you operate too close to the thermal limits, the
converter may shut down suddenly without warning. Be sure to thoroughly test
your application to avoid unplanned thermal shutdown.
Current Limiting (Power limit with current mode control)
As power demand increases on the output and enters the specified “limit
inception range” (current in voltage mode and power in current mode) limiting
circuitry activates in the DC-DC converter to limit/restrict the maximum current
or total power available. In voltage mode, current limit can have a “constant or
foldback” characteristic. In current mode, once the current reaches a certain
range the output voltage will start to decrease while the output current con-
tinues to increase, thereby maintaining constant power, until a maximum peak
current is reached and the converter enters a “hiccup” (on off cycling) mode of
operation until the load is reduced below the threshold level, whereupon it will
return to a normal mode of operation. Current limit inception is defined as the
point where the output voltage has decreased by a pre-specified percentage
(usually a 2ꢀ decrease from nominal).
Temperature Derating Curves
The graphs in this data sheet illustrate typical operation under a variety of condi-
tions. The Derating curves show the maximum continuous ambient air temperature
and decreasing maximum output current which is acceptable under increasing
forced airflow measured in Linear Feet per Minute (“LFM”). Note that these are
AVERAGE measurements. The converter will accept brief increases in temperature
and/or current or reduced airflow as long as the average is not exceeded.
Short Circuit Condition (Current mode control)
The short circuit condition is an extension of the “Current Limiting” condition.
When the monitored peak current signal reaches a certain range, the PWM
controller’s outputs are shut off thereby turning the converter “off.” This is
followed by an extended time out period. This period can vary depending on
other conditions such as the input voltage level. Following this time out period,
the PWM controller will attempt to re-start the converter by initiating a “normal
start cycle” which includes softstart. If the “fault condition” persists, another
“hiccup” cycle is initiated. This “cycle” can and will continue indefinitely until
such time as the “fault condition” is removed, at which time the converter will
resume “normal operation.” Operating in the “hiccup” mode during a fault
condition is advantageous in that average input and output power levels are
held low preventing excessive internal increases in temperature.
Note that the temperatures are of the ambient airflow, not the converter itself
which is obviously running at higher temperature than the outside air. Also note
that “natural convection” is defined as very low flow rates which are not using
fan-forced airflow. Depending on the application, “natural convection” is usu-
ally about 30-65 LFM but is not equal to still air (0 LFM).
Murata Power Solutions makes Characterization measurements in a closed
cycle wind tunnel with calibrated airflow. We use both thermocouples and an
infrared camera system to observe thermal performance. As a practical matter,
it is quite difficult to insert an anemometer to precisely measure airflow in
www.murata-ps.com/support
MDC_UWQ-12/17-Q48 Series.A01.D7 Page 14 of 17
UWQ-12/17-Q48 Series
Wide Input, Isolated DOSA Quarter Brick DC/DC Converters
Remote On/Off Control
On the input side, a remote On/Off Control can be specified with either positive
or negative logic as follows:
+VCC
Positive: Models equipped with Positive Logic are enabled when the On/Off
pin is left open or is pulled high to +13.5VDC with respect to –VIN. An internal
bias current causes the open pin to rise to +VIN. Positive-polarity devices are
disabled when the On/Off is grounded or brought to within a low voltage (see
Specifications) with respect to –VIN.
ON/OFF
CONTROL
Negative: Models with negative polarity are on (enabled) when the On/Off is
grounded or brought to within a low voltage (see Specifications) with respect to
–VIN. The device is off (disabled) when the On/Off is left open or is pulled high
to +13.5VDC Max. with respect to –VIN.
-INPUT
Figure 4. Driving the On/Off Control Pin (suggested circuit)
Dynamic control of the On/Off function should be able to sink the specified
signal current when brought low and withstand specified voltage when brought
high. Be aware too that there is a finite time in milliseconds (see Specifications)
between the time of On/Off Control activation and stable, regulated output. This
time will vary slightly with output load type and current and input conditions.
There are two CAUTIONs for the On/Off Control:
CAUTION: While it is possible to control the On/Off with external logic if you
carefully observe the voltage levels, the preferred circuit is either an open
drain/open collector transistor or a relay (which can thereupon be controlled
by logic). The On/Off prefers to be set at approx. +13.5V (open pin) for the ON
state, assuming positive logic.
CAUTION: Do not apply voltages to the On/Off pin when there is no input power
voltage. Otherwise the converter may be permanently damaged.
www.murata-ps.com/support
MDC_UWQ-12/17-Q48 Series.A01.D7 Page 15 of 17
UWQ-12/17-Q48 Series
Wide Input, Isolated DOSA Quarter Brick DC/DC Converters
[3] Conducted Emissions Test Results
Emissions Performance
Murata Power Solutions measures its products for radio frequency emissions
against the EN 55022 and CISPR 22 standards. Passive resistance loads are
employed and the output is set to the maximum voltage. If you set up your
own emissions testing, make sure the output load is rated at continuous power
while doing the tests.
[
4
]
La
y
o
ut R
e
c
o
m
m
e
n
d
a
t
i
o
n
s
The recommended external input and output capacitors (if required) are includ-
ed. Please refer to the fundamental switching frequency. All of this information
is listed in the Product Specifications. An external discrete filter is installed and
the circuit diagram is shown below.
UWQ EMI 200W Test Card
48Vdc in, 12Vout, 17Amps
Resistive
Load
UUT
V+
Resistive
Load
Black
Vin
+
Vout
+
C16
C17
C8
C8
C8
C7
C8
C8
C8
inside
a
L3
L1
metal
container
V-
Vin
-
Vout
-
Graph 1. Conducted emissions performance,
CISPR/EN55022, Class B, full load
Most applications can use the filtering which is already installed inside the
converter or with the addition of the recommended external capacitors. For
greater emissions suppression, consider additional filter components and/or
shielding. Emissions performance will depend on the user’s PC board layout,
the chassis shielding environment and choice of external components. Please
refer to Application Note GEAN02 for further discussion.
Figure 5. Conducted Emissions Test Circuit
[1] Conducted Emissions Parts List
Reference
L1
L3
C8
Part Number
PE-62913
500uH,10A, MPS
Description
1mH, 6A
Vendor
Since many factors affect both the amplitude and spectra of emissions, we
recommend using an engineer who is experienced at emissions suppression.
Pulse
Murata
Murata
500uH,10A
2.2ufd
Qty 2 - Electrolytic Capacitor
22ufd, 100V
C7
VZ Series
Panasonic
Unknown
C16, C17
.22ufd
[2] Conducted Emissions Test Equipment Used
Rohde & Schwarz EMI Test Receiver (9KHz – 1000MHz) ESPC
Rohde & Schwarz Software ESPC-1 Ver. 2.20
HP11947A Transient Limiter (Agilent)
OHMITE 25W – Resistor combinations
DC Source Programmable DC Power Supply Model 62012P-100-50
www.murata-ps.com/support
MDC_UWQ-12/17-Q48 Series.A01.D7 Page 16 of 17
UWQ-12/17-Q48 Series
Wide Input, Isolated DOSA Quarter Brick DC/DC Converters
Vertical Wind Tunnel
Murata Power Solutions employs a custom-designed enclosed
vertical wind tunnel, infrared video camera system and test
instrumentation for accurate airflow and heat dissipation
analysis of power products. The system includes a precision
low flow-rate anemometer, variable speed fan, power supply
ꢀ,Ê/À>˜Ã«>Ài˜Ì
œ«ÌˆV>Ê܈˜`œÜ
input and load controls, temperature gauges and adjustable
heating element.
6>Àˆ>Li
ëii`Êv>˜
1˜ˆÌÊ՘`iÀ
ÌiÃÌÊ­11/®
The IR camera can watch thermal characteristics of the
Unit Under Test (UUT) with both dynamic loads and static
steady-state conditions. A special optical port is used which is
transparent to infrared wavelengths. The computer files from
the IR camera can be studied for later analysis.
ꢀ,Ê6ˆ`iœÊ
ꢁ>“iÀ>
Both through-hole and surface mount converters are soldered
down to a host carrier board for realistic heat absorption and
spreading. Both longitudinal and transverse airflow studies
are possible by rotation of this carrier board since there are
often significant differences in the heat dissipation in the two
airflow directions. The combination of both adjustable airflow,
adjustable ambient heat and adjustable Input/Output currents
and voltages mean that a very wide range of measurement
conditions can be studied.
ꢂi>̈˜}Ê
ii“i˜Ì
*ÀiVˆÃˆœ˜
œÜ‡À>Ìi
>˜i“œ“iÌiÀ
λÊLiœÜÊ11/
ꢃ“Lˆi˜ÌÊ
Ìi“«iÀ>ÌÕÀi
Ãi˜ÃœÀ
The airflow collimator mixes the heat from the heating ele-
ment to make uniform temperature distribution. The collima-
tor also reduces the amount of turbulence adjacent to the UUT
by restoring laminar airflow. Such turbulence can change the
effective heat transfer characteristics and give false readings.
Excess turbulence removes more heat from some surfaces and
less heat from others, possibly causing uneven overheating.
ꢃˆÀvœÜ
Vœˆ“>̜À
Both sides of the UUT are studied since there are different thermal
gradients on each side. The adjustable heating element and fan, built-in
temperature gauges and no-contact IR camera mean that power supplies are
tested in real-world conditions.
Figure 6. Vertical Wind Tunnel
Soldering Guidelines
Murata Power Solutions recommends the specifications below when installing these converters. These specifications vary depending on the solder type. Exceeding these specifica-
tions may cause damage to the product. Your production environment may differ; therefore please thoroughly review these guidelines with your process engineers.
Wave Solder Operations for through-hole mounted products (THMT)
For Sn/Ag/Cu based solders:
For Sn/Pb based solders:
Maximum Preheat Temperature 115° C.
Maximum Preheat Temperature 105° C.
Maximum Pot Temperature
Maximum Solder Dwell Time
270° C.
Maximum Pot Temperature
250° C.
7 seconds Maximum Solder Dwell Time
6 seconds
Murata Power Solutions, Inc.
11 Cabot Boulevard, Mansfield, MA 02048-1151 U.S.A.
ISO 9001 and 14001 REGISTERED
Murata Power Solutions, Inc. makes no representation that the use of its products in the circuits described herein, or the use of other
technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not imply
the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without
notice.
© 2012 Murata Power Solutions, Inc.
www.murata-ps.com/support
MDC_UWQ-12/17-Q48 Series.A01.D7 Page 17 of 17
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Murata:
UWQ-12/17-Q48NB-C UWQ-12/17-Q48N-C UWQ-12/17-Q48PB-C UWQ-12/17-Q48P-C
厂商 型号 描述 页数 下载

MURATA

UWQ-12-Q48T-C 宽电压输入,隔离DOSA 1/4砖DC-DC与修剪和检测转换器[ Wide Input, Isolated DOSA Quarter Brick DC-DC Converters with Trim and Sense ] 17 页

MURATA

UWQ-17-Q48T-C 宽电压输入,隔离DOSA 1/4砖DC-DC与修剪和检测转换器[ Wide Input, Isolated DOSA Quarter Brick DC-DC Converters with Trim and Sense ] 17 页

ETC

UWQN11001 [ Heavy duty switches & pilot lights offer both variety and reliability Endures harsh environments ] 51 页

ETC

UWQN11010 [ Heavy duty switches & pilot lights offer both variety and reliability Endures harsh environments ] 51 页

ETC

UWQN12002 [ Heavy duty switches & pilot lights offer both variety and reliability Endures harsh environments ] 51 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.194865s
