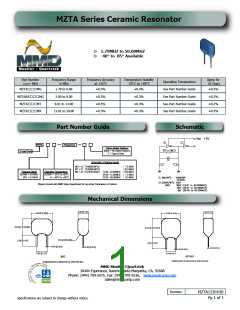

MZTA Series Ceramic Resonator
1.79MHZ to 50.00MHZ
-40° to 85° Available
Part Number
□□□= MHz
Frequency Range
in MHz
Frequency Accuracy
at +25°C
Temperature Stability
-25°C to +85°C
Aging for
10 Years
Operating Temperature
See Part Number Guide
See Part Number Guide
MZTA
MG
1.79 to 8.00
±0.5%
±0.3%
±0.3%
MZTAWS
MG
2.00 to 9.00
±0.5%
±0.3%
±0.3%
MZTA
MZTA
MT
MX
8.01 to 13.00
13.01 to 50.00
±0.5%
±0.5%
±0.3%
±0.3%
See Part Number Guide
See Part Number Guide
±0.3%
±0.3%
Part Number Guide
Schematic
Frequency
MZTA
Value Added Options
Blank = No Added Options
T = Tape & Reel
2 Lead Part
Schematic / Package Height
MG = IC: TC4069UBPX2
MT = IC: TC4069UBPX2
MX = IC: TC74HCU04X2 12.00 - 23.99MHZ / 10.0 MAX
/
7.5 MAX
/ 10.0 MAX
Package Depth
BLANK = 5.0 MAX
WS = 5.5 MAX
Operating Tempurature
BLANK = -25°C to +85°C
A = -40°C to +85°C
24.00 - 31.99MHZ
32.00 - 50.00MHZ
/
/
7.5 MAX
6.5 MAX
Please Consult with MMD Sales Department for any other Parameters or Options
Mechanical Dimensions
5.00 [0.197]
5.00 [0.197]
10.00 [0.394]
10.00 [0.394]
8.00 [0.315] MAX
10.00 [0.394] MAX
R2.50 [R0.098]
5.00 [0.197]
6.00 [0.236]
0.60 [0.024]
0.30 [0.012]
0.30 [0.012]
0.60 [0.024]
5.00 [0.197]
5.00 [0.197]
MT/MX
MG
DIMENSIONS IN BRACKETS ARE INCHES
DIMENSIONS IN BRACKETS ARE INCHES
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536, www.mmdcomp.com
Sales@mmdcomp.com
Revision:
MZTA123010D
Pg 1 of 1
Specifications are subject to change without notice.
