ZXTP2041FTA

型号:

ZXTP2041FTA

描述:

40V PNP硅平面中功率晶体管[ 40V PNP SILICON PLANAR MEDIUM POWER TRANSISTOR ]

品牌:

DIODES[ DIODES INCORPORATED ]

页数:

6 页

PDF大小:

221 K

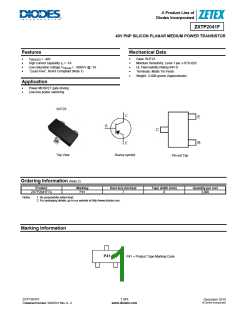

A Product Line of
Diodes Incorporated
ZXTP2041F
40V PNP SILICON PLANAR MEDIUM POWER TRANSISTOR
Features
Mechanical Data
Case: SOT23
V(BR)CEO > -40V
High current capability IC = -1A
Low saturation voltage VCE(sat) < -500mV @ -1A
“Lead Free”, RoHS Compliant (Note 1)
Moisture Sensitivity: Level 1 per J-STD-020
UL Flammability Rating 94V-0
Terminals: Matte Tin Finish
Weight: 0.008 grams (Approximate)
Application
Power MOSFET gate driving
Low loss power switching
SOT23
Top View
Device symbol
Pin-out Top
Ordering Information (Note 2)
Product
ZXTP2041FTA
Marking
P41
Reel size (inches)
Tape width (mm)
Quantity per reel
3,000
7
8
Notes:
1. No purposefully added lead.
2. For packaging details, go to our website at http://www.diodes.com.
Marking Information
P41
P41 = Product Type Marking Code
ZXTP2041F
Datasheet Number: DS33721 Rev. 6 - 2
1 of 6
www.diodes.com
December 2010
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTP2041F
Maximum Ratings @TA = 25°C unless otherwise specified
Characteristic
Collector-Base Voltage
Symbol
VCBO
VCEO
VEBO
IC
Value
-40
-40
-5
Unit
V
Collector-Emitter Voltage
Emitter-Base Voltage
V
V
Continuous Collector Current (Note 3)
Peak Pulse Current
-1
A
-2
A
ICM
Peak Base Current
-1
A
IBM
Thermal Characteristics @TA = 25°C unless otherwise specified
Characteristic
Collector Power Dissipation (Note 3)
Symbol
Value
350
Unit
mW
°C/W
°C
PD
Thermal Resistance, Junction to Ambient (Note 3)
Operating and Storage Temperature Range
357
RθJA
-55 to +150
TJ,TSTG
Notes:
3. For the device mounted on 15mm x 15mm x 1.6mm FR4 PCB with high coverage of single sided 1oz copper, in still air conditions.
0.4
0.3
0.2
0.1
0.0
400
350
300
250
200
150
100
50
D=0.5
D=0.2
D=0.1
Single Pulse
D=0.05
10
0
0
25
50
75
100 125 150
100µ 1m 10m 100m
1
100
1k
Pulse Width (s)
Temperature (°C)
Transient Thermal Impedance
Derating Curve
10
Single Pulse. Tamb=25°C
1
0.1
10m
100m
1
10
100
1k
Pulse Width (s)
Pulse Power Dissipation
ZXTP2041F
Datasheet Number: DS33721 Rev. 6 - 2
2 of 6
www.diodes.com
December 2010
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTP2041F
Electrical Characteristics @TA = 25°C unless otherwise specified
Characteristic
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage (Note 4)
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Symbol
V(BR)CBO
V(BR)CEO
V(BR)EBO
ICBO
Min
-40
-40
-5
-
Typ.
Max
-
-
Unit
V
Test Condition
IC = -100µA
-
-
-
-
-
-
-
-
-
-
-
-
V
IC = -10mA
IE = -100µA
VCB = -30V
VEB = -4V
VCE = -30V
-
V
-100
-100
-100
-
nA
nA
nA
Emitter Cutoff Current
-
IEBO
Emitter Cutoff Current
-
ICES
300
300
250
160
30
-
I
I
I
I
I
I
I
I
C = -1mA, VCE = -5V
C = -100mA, VCE = -5V
C = -500mA, VCE = -5V
C = -1A, VCE = -5V
800
-
DC current transfer Static ratio (Note 4)
-
hFE
-
-
C = -2A, VCE = -5V
-0.20
-0.35
-0.50
-1.1
-1.0
C = -100mA, IB = -1mA
C = -500mA, IB = -20mA
C = -1A, IB = -100mA
-
Collector-Emitter Saturation Voltage (Note 4)
-
V
VCE(sat)
-
-
Base-Emitter Saturation Voltage (Note 4)
Base-Emitter Turn-on Voltage (Note 4)
-
-
-
V
V
VBE(sat)
VBE(on)
IC = -1A, IB = -100mA
IC = -1A, VCE = -5V
-
IC = -50mA, VCE = -10V,
f = 100MHz
VCB = -10V, f = 1MHz,
Transitional Frequency
150
300
-
MHz
pF
fT
Output capacitance
Delay Time
-
-
-
-
-
-
10
-
Cobo
t(d)
t(r)
34.9
19.2
249
62
Rise Time
Switching Time
-
VCC = -10V, IC = -500mA,
B1 = -IB2 =-25mA
ns
Storage Time
-
I
t(s)
Fall Time
-
t(f)
Notes:
4. Measured under pulsed conditions. Pulse width = 300μs. Duty cycle 2%.
ZXTP2041F
Datasheet Number: DS33721 Rev. 6 - 2
3 of 6
www.diodes.com
December 2010
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTP2041F
Typical Characteristics
ZXTP2041F
Datasheet Number: DS33721 Rev. 6 - 2
4 of 6
www.diodes.com
December 2010
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTP2041F
Package Outline Dimensions
SOT23
A
Dim
A
B
C
D
F
G
H
J
K
Min
0.37
1.20
2.30
0.89
0.45
1.78
2.80
0.013 0.10
0.903 1.10
-
0.45
0.085 0.18
0° 8°
Max
0.51
1.40
2.50
1.03 0.915
0.60 0.535
Typ
0.40
1.30
2.40
C
B
2.05
3.00
1.83
2.90
0.05
1.00
0.400
0.55
0.11
-
H
G
M
K
J
K1
K1
L
M
-
D
F
0.61
L
α
All Dimensions in mm
Suggested Pad Layout
Y
Dimensions Value (in mm)
Z
X
Y
C
E
2.9
0.8
0.9
2.0
1.35
Z
C
E
X
ZXTP2041F
Datasheet Number: DS33721 Rev. 6 - 2
5 of 6
www.diodes.com
December 2010
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTP2041F
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2010, Diodes Incorporated
www.diodes.com
ZXTP2041F
Datasheet Number: DS33721 Rev. 6 - 2
6 of 6
www.diodes.com
December 2010
© Diodes Incorporated
