1SS404

型号:

1SS404

描述:

硅外延平面二极管[ Silicon Epitaxial Planar Diode ]

品牌:

LGE[ LGE ]

页数:

1 页

PDF大小:

236 K

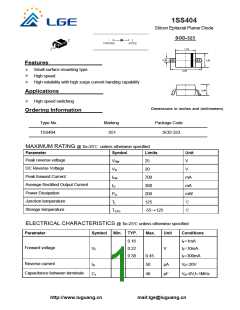

1SS404
Silicon Epitaxial Planar Diode
SOD-323
Features
Small surface mounting type.
—
—
High speed.
—
High reliability with high surge current handing capability
Applications
—
High speed switching
Dimensions in inches and (millimeters)
Ordering Information
Type No.
1SS404
Marking
S51
Package Code
SOD-323
MAXIMUM RATING @ Ta=25unless otherwise specified
Parameter
Symbol
VRM
VR
Limits
Unit
V
Peak reverse voltage
25
DC Reverse Voltage
Peak forward Current
Average Rectified Output Current
Power Dissipation
20
V
IFM
700
mA
mA
mW
IO
300
PD
200
Junction temperature
Storage temperature
Tj
125
TSTG
-55~+125
ELECTRICAL CHARACTERISTICS @ Ta=25unless otherwise specified
Parameter
Symbol Min. TYP.
Max.
Unit
Conditions
0.16
IF=1mA
Forward voltage
VF
0.22
0.38
V
IF=10mA
IF=300mA
0.45
50
Reverse current
IR
μA
VR=20V
Capacitance between terminals
CT
46
pF
VR=0V,f=1MHz
http://www.luguang.cn
mail:lge@luguang.cn
