VXC1-1133

型号：

VXC1-1133

描述：

低噪声双通道100 MHz的时钟发生器[ Low-Noise Two-Channel 100-MHz Clock Generator ]

品牌：

TI[ TEXAS INSTRUMENTS ]

页数：

20 页

PDF大小：

620 K

下载PDF手册

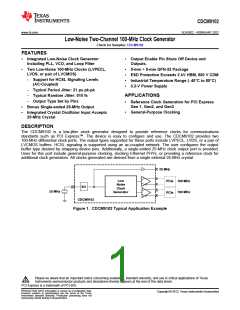

CDCM9102
www.ti.com
SCAS922 –FEBRUARY 2012
Low-Noise Two-Channel 100-MHz Clock Generator
Check for Samples: CDCM9102
1
FEATURES
2
•
Integrated Low-Noise Clock Generator
Including PLL, VCO, and Loop Filter
•
Output Enable Pin Shuts Off Device and
Outputs.
•
Two Low-Noise 100-MHz Clocks (LVPECL,
LVDS, or pair of LVCMOS)
•
•
•
•
5-mm × 5-mm QFN-32 Package
ESD Protection Exceeds 2 kV HBM, 500 V CDM
Industrial Temperature Range (–40°C to 85°C)
3.3-V Power Supply
–
Support for HCSL Signaling Levels
(AC-Coupled)
–
–
–
Typical Period Jitter: 21 ps pk-pk
Typical Random Jitter: 510 fs
Output Type Set by Pins
APPLICATIONS
•
Reference Clock Generation for PCI Express
Gen 1, Gen2, and Gen3
•
•
Bonus Single-ended 25-MHz Output
•
General-Purpose Clocking
Integrated Crystal Oscillator Input Accepts
25-MHz Crystal
DESCRIPTION
The CDCM9102 is a low-jitter clock generator designed to provide reference clocks for communications
standards such as PCI Express™. The device is easy to configure and use. The CDCM9102 provides two
100-MHz differential clock ports. The output types supported for these ports include LVPECL, LVDS, or a pair of
LVCMOS buffers. HCSL signaling is supported using an ac-coupled network. The user configures the output
buffer type desired by strapping device pins. Additionally, a single-ended 25-MHz clock output port is provided.
Uses for this port include general-purpose clocking, clocking Ethernet PHYs, or providing a reference clock for
additional clock generators. All clocks generated are derived from a single external 25-MHz crystal.
25 MHz
Low
Noise
PCIe 100 MHz
XO
Clock
25 MHz
100 MHz
PCIe
Generator
CDCM9102
Figure 1. CDCM9102 Typical Application Example
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PCI Express is a trademark of PCI-SIG .
2
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
Copyright © 2012, Texas Instruments Incorporated
CDCM9102
SCAS922 –FEBRUARY 2012
www.ti.com
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
REGCAP1
Vreg
REGCAP2
Vreg
OE
OSCOUT
OUT1P
OUT1N
OUT0P
OUT0N
Low
Noise
Clock
XIN
XO
Generator
CDCM9102
RESET
OS1 OS0
Figure 2. CDCM9102 Block Diagram
white space
white space
white space
TOP VIEW
24 23 22 21 20 19 18 17
25
26
27
28
16
15
14
13
NC
NC
NC
NC
VDD4
NC
GND
NC
CDCM9102
29
30
31
32
12
NC
NC
NC
NC
RESET
OS0
11
GND
(thermal pad)
10
OS1
9
VDD3
1
2
3
4
5
6
7
8
Figure 3. Pin Diagram
2
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
Product Folder Link(s): CDCM9102
CDCM9102
www.ti.com
SCAS922 –FEBRUARY 2012
PIN FUNCTIONS
NAME
QFN32 PIN NO.
DESCRIPTION
POWER SUPPLIES
GND
Thermal pad, 14, 22
Power supply ground and thermal relief
Power Supply, OUT1 clock port
VDD2
1
VDD1
4
Power Supply, OUT0 clock port
VDD3
9
Power supply, low-noise clock generator
Power supply, low-noise clock generator
Power supply, low-noise clock generator
Power supply, crystal oscillator input
VDD4
16
18
20
19
17
VDD5
VDD6
REGCAP1
REGCAP2
Capacitor for internal regulator, connect 10-μF Y5V capacitor to GND
Capacitor for internal regulator, connect 10-μF Y5V capacitor to GND
DEVICE CONFIGURATION AND CONTROL
NC
8, 13, 15, 24–32
No connection permitted
OE
7
Output enable/shutdown control input (see Table 1)
Output format select control inputs (see Table 2)
OS1
10
11
12
OS0
RESET
Device reset input (active-low) (see Table 3)(1)
Parallel resonant crystal input (25 MHz)
CRYSTAL OSCILLATOR
XIN
21
DEVICE OUTPUTS
OUT0P
6
5
Output 0 – positive terminal (100 MHz)
Output 0 – negative terminal (100 MHz)
Output 1 – positive terminal (100 MHz)
Output 1 – negative terminal (100 MHz)
Oscillator output port (25 MHz)
OUT0N
OUT1P
3
OUT1N
2
OSCOUT
23
(1) For proper device startup, it is recommended that a capacitor be installed from pin 12 to GND. See STARTUP TIME ESTIMATION
section for more details.
ORDERING INFORMATION
TA
PACKAGED DEVICES
FEATURES
CDCM9102RHBT
32-pin QFN (RHB) package, small tape and reel
32-pin QFN (RHB) package, tape and reel
–40°C to 85°C
CDCM9102RHBR
ABSOLUTE MAXIMUM RATINGS
over operating free-air temperature range (unless otherwise noted)(1)
MIN
–0.5
–0.5
–0.5
TYP
MAX
4.6
UNIT
V
VDDx
VIN
Supply voltage range(2)
(3)
Input voltage range
VDDx + 0.5
VDDx + 0.5
20
V
VOUT
IIN
IOUT
Tstg
Output voltage range(3)
V
Input current
mA
mA
°C
Output current
50
Storage temperature range
–65
150
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating
Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) Supply voltages must be applied simultaneously.
(3) The input and output negative voltage ratings may be exceeded if the input and output clamp–current ratings are observed
Copyright © 2012, Texas Instruments Incorporated
Submit Documentation Feedback
3
Product Folder Link(s): CDCM9102
CDCM9102
SCAS922 –FEBRUARY 2012
www.ti.com
DISSIPATION RATINGS(1)(2)
PARAMETER
TEST CONDITIONS
VALUE, 4 × 4 Vias on Pad
UNIT
ºC/W
ºC/W
θJA
θJP
Junction-to-ambient thermal resistance
0 LFM
35
4
(3)
Junction-to-thermal pad (top) thermal resistance
(1) The package thermal resistance is calculated in accordance with JESD 51 and JEDEC 2S2P (high-K board).
(2) Connected to GND with sixteen thermal vias (0.3 mm in diameter)
(3) θJP (junction-to-pad) is used for the QFN package, because the primary heat flow is from the junction to the GND pad of the QFN
package.
ELECTRICAL CHARACTERISTICS
RECOMMENDED OPERATING CONDITIONS
MIN
3
TYP
MAX UNIT
POWER SUPPLIES
VDDX
DC power-supply voltage
3.3
3.6
85
V
TEMPERATURE
TA
Ambient temperature
–40
°C
DEVICE CURRENT CONSUMPTION
TA = –40°C to 85°C, VDDx = 3.3 V, OE = 1, values represent cumulative current/power on all VDDx pins.
EXTERNAL
RESISTOR POWER
(mW)
CURRENT
(mA)
DEVICE POWER
(mW)
BLOCK
CONDITION
Entire device, core
current
85
280
LVPECL
LVDS
28
42.4
50
Output Buffers
20
66
LVCMOS
V × ƒout × (CL + 20 × 10–12) × 103
V2 × ƒout × (CL + 20 × 10–12) × 103
DIGITAL INPUT CHARACTERISTICS – RESET, OE, OS1, OS0
TA = –40°C to 85°C
PARAMETER
LVCMOS INPUTS
TEST CONDITIONS
MIN
TYP
MAX UNIT
VIH
VIL
IIH
Input high voltage
Input low voltage
Input high current
Input low current
Input capacitance
Input pullup resistor
0.6 VDD
V
0.4 VDD
V
VDD = 3.6 V, VIL = 0 V
200
–200
10
µA
µA
pF
kΩ
IIL
VDD = 3 V, VIH = 3.6 V
CIN
RPU
8
150
4
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
Product Folder Link(s): CDCM9102
CDCM9102
www.ti.com
SCAS922 –FEBRUARY 2012
CRYSTAL-OSCILLATOR INPUT-PORT CHARACTERISTICS (XIN)
VDD = 3.3 V, TA = –40°C to 85°C
PARAMETER
TEST CONDITIONS
MIN
TYP
25
8
MAX UNIT
CRYSTAL CHARACTERISTICS (External 25 MHz Crystal)
fXTAL
Crystal input frequency
Fundamental mode
MHz
ESR
Effective series resistance of crystal
On-chip load capacitance
50
10
1
Ω
pF
CIN
XTALDL
CSHUNT
Maximum drive level - XTAL
Maximum shunt capacitance
0.1
mW
pF
7
CLOCK OUTPUT BUFFER CHARACTERISTICS (OUTPUT MODE = LVPECL)
VDD1, VDD2 = 3.3 V; TA = –40°C to 85°C
PARAMETER
Output high voltage
Output low voltage
TEST CONDITIONS
MIN
TYP
MAX UNIT
VOH
VOL
V
DD – 1.18
V
DD – 0.73
DD – 1.55
V
V
DD – 2
V
V
V
|VOD
|
Differential output voltage
Output rise/fall time
Output duty cycle
0.6
1.23
175
55%
20
tR/tF
20% to 80%
ps
ODC
45%
tSKEW
Skew between outputs
ps
CLOCK OUTPUT BUFFER CHARACTERISTICS (OUTPUT MODE = LVDS)
VDD1, VDD2 = 3.3V; TA = –40°C to 85°C
PARAMETER
Differential output voltage
VOD magnitude change
Common-mode voltage
VOS magnitude change
Output rise/fall time
TEST CONDITIONS
MIN
TYP
MAX UNIT
|VOD
|
0.247
0.454
50
V
mV
V
ΔVOD
VOS
1.125
45%
1.375
50
ΔVOS
tR/tF
mV
ps
20% to 80%
255
55%
30
ODC
tSKEW
Output duty cycle
Skew between outputs
ps
CLOCK OUTPUT BUFFER CHARACTERISTICS (OUTPUT MODE = LVCMOS)
VDD1, VDD2 = 3.3V; TA = –40°C to 85°C
PARAMETER
Output high voltage
Output low voltage
TEST CONDITIONS
VCC = 3 V to 3.6 V, IOH = –100 µA
VCC = 3 V to 3.6 V, IOH = 100 µA
20% to 80%
MIN
TYP
MAX UNIT
VOH
V
DD – 0.5
V
VOL
0.3
V
tSLEW
ODC
tSKEW
Output rise/fall slew rate
Output duty cycle
2.4
V/ns
45%
55%
50
Skew between outputs
ps
OUTPUT JITTER PERFORMANCE
fOUT = 100 MHz, VDD = 3.3 V, TA = 25°C, jitter integration bandwidth 10 kHz–20 MHz
LVCMOS OUTPUT MODE
LVPECL OUTPUT MODE
LVDS OUTPUT MODE
Random jitter Period jitter
Random jitter Period jitter
Random jitter
(fs)
Period jitter
(ps pk-pk)
(fs)
(ps pk-pk)
24.5
(fs)
(ps pk-pk)
20.7
507
510
533
26.5
Copyright © 2012, Texas Instruments Incorporated
Submit Documentation Feedback
5
Product Folder Link(s): CDCM9102

CDCM9102
SCAS922 –FEBRUARY 2012
www.ti.com
TEST CONFIGURATIONS
LVCMOS
5 pF
Figure 4. LVCMOS Output Test Load
Phase Noise Analyzer
RF
50 W
LVCMOS
50 W
Figure 5. LVCMOS AC Configuration for Device Test
Oscilloscope
CH2
CH1
50 W
50 W
LVPECL
50 W (2)
V
- 2 V
DD
Figure 6. LVPECL DC Configuration for Device Test
Phase Noise Analyzer
RF
50 W
LVPECL
50 W
150 W (2)
Figure 7. LVPECL AC Configuration for Device Test
6
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
Product Folder Link(s): CDCM9102
CDCM9102
www.ti.com
SCAS922 –FEBRUARY 2012
Oscilloscope
CH2
CH1
50 W
50 W
LVDS
100 W
Figure 8. LVDS DC Configuration for Device Test
Phase Noise Analyzer
RF
50 W
50 W
50 W
LVDS
50 W
Figure 9. LVDS AC Configuration for Device Test
Copyright © 2012, Texas Instruments Incorporated
Submit Documentation Feedback
7
Product Folder Link(s): CDCM9102
CDCM9102
SCAS922 –FEBRUARY 2012
www.ti.com
PERFORMANCE CHARACTERISTICS
Figure 10. CDCM9102 Typical Phase Noise Performance (LVPECL Mode)
FUNCTIONAL DESCRIPTION
DEVICE CONFIGURATION
Table 1. CDCM9102 Pin Control of Output Enable
OE (Pin 7)
MODE
Power down
Normal
DEVICE CORE
Power down
Active
OUTPUT
Hi-Z
0
1
Active
Table 2. CDCM9102 Pin Configuration of Output Type
CONTROL PINS
OUTPUT MODE
OS1 (Pin 10)
OS0 (Pin 11)
0
0
1
1
0
1
0
1
LVCMOS, OSCOUT = OFF
LVDS, OSCOUT = OFF
LVPECL, OSCOUT = OFF
LVPECL, OSCOUT = ON
8
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
Product Folder Link(s): CDCM9102
CDCM9102
www.ti.com
SCAS922 –FEBRUARY 2012
Table 3. CDCM9102 Device Reset
RESET (Pin 12)
OPERATING MODE
Device reset
DEVICE OUTPUTS
0
0 → 1
1
Hi-Z
Hi-Z
Clock generator calibration
Normal
Active
white space
white space
white space
Copyright © 2012, Texas Instruments Incorporated
Submit Documentation Feedback
9
Product Folder Link(s): CDCM9102
CDCM9102
SCAS922 –FEBRUARY 2012
www.ti.com
APPLICATION INFORMATION
CRYSTAL INPUT (XIN) INTERFACE
The CDCM9102 implements a Colpitts oscillator; therefore, one side of the crystal connects to the XIN pin and
the other crystal terminal connects to ground. The device requires the use of a fundamental-mode crystal, and
the oscillator operates in parallel resonance mode. The correct load capacitance is necessary to ensure that the
circuit oscillates properly. The load capacitance comprises all capacitances in the oscillator feedback loop (the
capacitances seen between the terminals of the crystal in the circuit). It is important to account for all sources of
capacitance when calculating the correct value for the external discrete load capacitance shown in Figure 11.
XIN
(Pin 21)
XO
25 MHz
C
C
C
C
IN
L
STRAY
PARASITIC
Figure 11. Configuration of Circuit for CDCM9102 XIN Oscillator
The CDCM9102 has been characterized with 10-pF parallel-resonant crystals. The input stage of the crystal
oscillator in the CDCM9102 is designed to oscillate at the correct frequency for all parallel-resonant crystals with
low-pull capability and rated with a load capacitance that is equal to the sum of the on-chip load capacitance at
the XIN pin (CIN = 10 pF maximum), crystal stray capacitance, and board parasitic capacitance between the
crystal and XIN pin. To minimize stray and parasitic capacitances, minimize the trace distance routed from the
crystal to the XIN pin and avoid other active traces and/or active circuitry in the area of the crystal oscillator
circuit. Table 4 lists crystal types that have been evaluated with the CDCM9102.
Table 4. CDCM9102 Crystal Recommendations
MANUFACTURER
Vectron
PART NUMBER
VXC1-1133
218-3
Fox
Saronix
FP2650002
A mismatch of the load capacitance results in a frequency error according to Equation 1:
C
S
C
S
Δf
=
-
f
2 C + C
(
2 C + C
O) ( La
)
Lr
O
(1)
where:
Δƒ is the frequency error required by the application.
f is the fundamental frequency of the crystal.
CS is the motional capacitance of the crystal. This is a parameter in the data sheet of the crystal.
C0 is the shunt capacitance of the crystal. This is a parameter in the data sheet of the crystal.
CLr is the rated load capacitance of the crystal. This is a parameter in the data sheet of the crystal.
CLa is the actual load capacitance implemented on the PCB (CIN + stray capacitance + parasitic capacitance
+ CL).
The difference between the rated load capacitance (from the crystal datasheet) and the actual load capacitance
(CLa = CIN + CL + CSTRAY + CPARASITIC) should be minimized. A crystal with a low pull-ability rating (low CS) is
ideal.
Design Example:
Desired frequency tolerance Δf ≤ ±80 ppm
Crystal Vendor Parameters:
Intrinsic Frequency Tolerance = ±30 ppm
10
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
Product Folder Link(s): CDCM9102



CDCM9102
www.ti.com
SCAS922 –FEBRUARY 2012
C0 = 7 pF (shunt capacitance)
CS = 10 fF (motional capacitance)
CLr = 12 pF (load capacitance)
Substituting these parameters into Equation 1 yields a maximum value of CLa = 17 pF in order to achieve the
(1)
desired Δf (±50 ppm). Recall that CLa = CIN + CL + CSTRAY + CPARASITIC = 8 pF + (CL + CSTRAY + CPARASITIC
)
.
Ideally, the load presented to this crystal should be 12 pF; therefore the sum of (CL + CSTRAY + CPARASITIC) must
be less than 9 pF. Stray and parasitic capacitance must be controlled. This is because the Colpitts oscillator is
particularly sensitive to capacitance in parallel with the crystal; therefore, good layout practice is essential. It is
recommended that the designer extract the stray and parasitic capacitance from the printed circuit board design
tool and adjust CL accordingly to achieve CLr = CLa. In common scenarios, the external load capacitor is often
unnecessary; however, it is recommended that pads be implemented to accommodate an external load capacitor
so that the ppm error can be minimized.
STARTUP TIME ESTIMATION
The CDCM9102 contains a low-noise clock generator that calibrates to an optimal operating point at device
power up. In order to ensure proper device operation, the oscillator must be stable prior to the low-noise clock
generator calibration procedure. Quartz-based oscillators can take up to 2 ms to stabilize; therefore it is
recommended that the application ensure that the RESET pin is de-asserted at least 5 ms after the power supply
has finished ramping. This can be accomplished by controlling the RESET pin directly, or by applying a 47-nF
capacitor to ground on the RESET pin (this provides a delay because the RESET pin includes a 150-kΩ pullup
resistor.
The CDCM9102 startup time can be estimated based on parameters defined in Table 5 and graphically shown in
Figure 12.
Table 5. CDCM9102 Startup Time Dependencies
Parameter
Definition
Description
Formula / Method of Determination
1
The reciprocal of the applied reference
frequency in seconds
tREF
=
= 0.04 μs
tREF
Reference clock period
fREF
Power-supply rise time to low limit of
power-on-reset trip point
tpul
Power-up time (low limit)
Power-up time (high limit)
Time required for power supply to ramp to 2.27 V
Time required for power supply to ramp to 2.64 V
Power supply rise time to high limit of
power-on-reset trip point
tpuh
After POR releases, the Colpitts oscillator is
enabled. This start-up time is required for the
oscillator to generate the requisite signal
levels for the delay block to be clocked by the
reference input.
500 μs best case and 800 μs worst case (for a crystal
input)
trsu
Reference start-up time
Delay time
Internal delay time generated from the
reference clock. This delay provides time for
the reference oscillator to stabilize.
tdelay
tdelay = 16,384 × tREF = 655 µs
VCO calibration time generated from the
reference clock. This process selects the
operating point for the VCO based on the PLL
settings.
tVCO_CAL
VCO calibration time
PLL lock time
tVCO_CAL = 550 × tREF = 22 µs
Time requried for PLL to lock within ±10 ppm
of fREF
tPLL_LOCK
The PLL settles in 12.5 μs
(1) CIN = 8 pF (typical), 10 pF (maximum). See the Crystal Oscillator Input Port Characteristics (XIN) table.
Copyright © 2012, Texas Instruments Incorporated
Submit Documentation Feedback
11
Product Folder Link(s): CDCM9102

CDCM9102
SCAS922 –FEBRUARY 2012
www.ti.com
Reference
Start-Up
Power Up
VCO Calibration
PLL Lock
Delay
2.64
2.27
tpd
tpuh
Time - (S)
trsu
tdelay
tVCO_CAL
tPLL_LOCK
Figure 12. CDCM9102 Start-Up Time Dependencies
The CDCM9102 startup time limits, tMAX and tMIN, can now be calculated as follows
tMAX = tpuh + trsu + tdelay + tVCO_CAL + tPLL_LOCK
tMIN = tpul + trsu + tdelay + tVCO_CAL + tPLL_LOCK
THERMAL MANAGEMENT
To ensure optimal performance and reliability, good thermal design practices are important when using the
CDCM9102. Die temperature should be limited to a maximum of 125°C. That is, as an estimate, TA (ambient
temperature) plus device power consumption times θJA should not exceed 125°C.
The device package has an exposed pad that provides the primary heat removal path as well as an electrical
grounding to the printed circuit board (PCB). To maximize the removal of heat from the package, a thermal
landing pattern including multiple vias to a ground plane must be incorporated on the PCB within the footprint of
the package. The exposed pad must be soldered down to ensure adequate heat conduction out of the package.
A recommended land and via pattern is shown in Figure 13.
5.0 mm,min
0.33 mm, typ
2.1 mm, typ
Figure 13. Recommended PCB Layout for CDCM9102
POWER SUPPLY FILTERING
PLL-based frequency synthesizers are very sensitive to noise on the power supply, which can dramatically
increase the jitter of the PLL. This is especially true for analog-based PLLs. Thus, it is essential to reduce noise
from the system power supply, especially when jitter/phase noise is very critical to applications. A PLL has
attenuated jitter due to power supply noise at frequencies beyond the PLL bandwidth due to attenuation by the
loop response.
Filter capacitors are used to eliminate the low-frequency noise from the power supply, where the bypass
12
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
Product Folder Link(s): CDCM9102

CDCM9102
www.ti.com
SCAS922 –FEBRUARY 2012
capacitors provide the very low-impedance path for high-frequency noise and guard the power supply system
against induced fluctuations. The bypass capacitors also provide a source of instantaneous current as required
by the device output stages. Therefore, bypass capacitors must have low ESR. To properly use the bypass
capacitors, they must be placed very close to the power supply pins and must be laid out with short loops to
minimize inductance.
Figure 14 shows a general recommendation for decoupling the power supply. The CDCXM9102 power supplies
fall into one of two categories: analog supplies (VDD3, VDD4, and VDD5), and input/output supplies (VDD1,
VDD2, and VDD6). Short the analog supplies together to form the analog supply node; likewise, short the
input/output supplies together to form the I/O supply node. Isolate the analog node from the PCB power supply
and I/O node by inserting a ferrite bead. This helps isolate the high-frequency switching noises generated by the
clock drivers and I/O from the sensitive analog supply node. Choosing an appropriate ferrite bead with low dc
resistance is important, as it is imperative to maintain a voltage at the power-supply pin of the CDCM9102 that is
over the minimum voltage needed for its proper operation.
PCB
Supply
Analog Node
I/O Node
Ferrite Bead
0.1 µF
(´3)
10 µF
10 µF
0.1 µF
(´3)
Figure 14. CDCM9102 Power Supply Decoupling – Power Pin Bypass Concept
OUTPUT TERMINATION
The CDCM9102 is a 3.3-V clock driver which has the following options for the output type: LVPECL, LVDS, and
LVCMOS.
LVPECL TERMINATION
The CDCM9102 is an open emitter for LVPECL outputs. Therefore, proper biasing and termination is required to
ensure correct operation of the device and to optimize signal integrity. The proper termination for LVPECL is
50 Ω to (Vcc-2) V but this dc voltage is not readily available on a board. Thus a Thevenin’s equivalent circuit is
worked out for the LVPECL termination in both direct-coupled (dc) and ac-coupled cases, as shown in Figure 15
and Figure 16. It is recommended to place all resistive components close to either the driver end or the receiver
end. If the supply voltages of the driver and receiver are different, ac coupling is required.
V
DDOUT
130 W (2)
LVPECL
LVPECL
82 W (2)
Figure 15. LVPECL Output Termination (DC-Coupled)
Copyright © 2012, Texas Instruments Incorporated
Submit Documentation Feedback
13
Product Folder Link(s): CDCM9102


CDCM9102
SCAS922 –FEBRUARY 2012
www.ti.com
V
b
50 W (2)
LVPECL
150 W (2)
Figure 16. LVPECL Output Termination (AC-Coupled)
LVDS TERMINATION
The proper LVDS termination for signal integrity over two 50-Ω lines is 100 Ω between the outputs on the
receiver end. Either a direct-coupled (dc) termination or ac-coupled termination can be used for LVDS outputs,
as shown in Figure 17 and Figure 18. It is recommended to place all resistive components close to either the
driver end or the receiver end. If the supply voltages of the driver and receiver are different, ac coupling is
required.
100 W
LVDS
LVDS
Figure 17. LVDS Output Termination (DC Coupled)
100 W
LVDS
Figure 18. LVDS Output Termination (AC Coupling)
LVCMOS TERMINATION
Series termination is a common method to maintain the signal integrity for LVCMOS drivers, if connected to a
receiver with a high-impedance input. For series termination, a series resistor, Rs, is placed close to the driver,
as shown in Figure 19. The sum of the driver impedance and Rs should be close to the transmission-line
impedance, which is usually 50 Ω. Because the LVCMOS driver in the CDCM9102 has an impedance of 30 Ω,
Rs is recommended to be 22 Ω to maintain proper signal integrity.
LVCMOS
LVCMOS
22 W
Figure 19. LVCMOS Output Termination
14
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
Product Folder Link(s): CDCM9102



CDCM9102
www.ti.com
SCAS922 –FEBRUARY 2012
INTERFACING BETWEEN LVPECL and HCSL (PCI Express)
Certain PCI Express applications require HCSL signaling. Because the common-mode voltage for LVPECL and
HCSL are different, applications requiring HCSL signaling must use ac coupling as shown in Figure 20. The
150-Ω resistors ensure proper biasing of the CDCM9102 LVPECL output stage. The 471-Ω and 56-Ω resistor
network biases the HCSL receiver input stage.
V
DDHCSL
471 W (2)
HCSL
LVPECL
56 W (2)
150 W (2)
Figure 20. Interfacing Between LVPECL and HCSL
Copyright © 2012, Texas Instruments Incorporated
Submit Documentation Feedback
15
Product Folder Link(s): CDCM9102

PACKAGE OPTION ADDENDUM
www.ti.com
17-Mar-2012
PACKAGING INFORMATION
Status (1)
Eco Plan (2)
MSL Peak Temp (3)
Samples
Orderable Device
Package Type Package
Drawing
Pins
Package Qty
Lead/
Ball Finish
(Requires Login)
CDCM9102RHBR
CDCM9102RHBT
ACTIVE
ACTIVE
QFN
QFN
RHB
RHB
32
32
3000
250
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-2-260C-1 YEAR
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-2-260C-1 YEAR
(1) The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2) Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability
information and additional product content details.
TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that
lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between
the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight
in homogeneous material)
(3) MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information
provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and
continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.
TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
Addendum-Page 1
PACKAGE MATERIALS INFORMATION
www.ti.com
14-Jul-2012
TAPE AND REEL INFORMATION
*All dimensions are nominal
Device
Package Package Pins
Type Drawing
SPQ
Reel
Reel
A0
B0
K0
P1
W
Pin1
Diameter Width (mm) (mm) (mm) (mm) (mm) Quadrant
(mm) W1 (mm)
CDCM9102RHBR
CDCM9102RHBT
QFN
QFN
RHB
RHB
32
32
3000
250
330.0
180.0
12.4
12.4
5.3
5.3
5.3
5.3
1.5
1.5
8.0
8.0
12.0
12.0
Q2
Q2
Pack Materials-Page 1
PACKAGE MATERIALS INFORMATION
www.ti.com
14-Jul-2012
*All dimensions are nominal
Device
Package Type Package Drawing Pins
SPQ
Length (mm) Width (mm) Height (mm)
CDCM9102RHBR
CDCM9102RHBT
QFN
QFN
RHB
RHB
32
32
3000
250
367.0
210.0
367.0
185.0
35.0
35.0
Pack Materials-Page 2
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other
changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest
issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and
complete. All semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale
supplied at the time of order acknowledgment.
TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms
and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary
to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily
performed.
TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and
applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or
other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information
published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or
endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the
third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration
and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered
documentation. Information of third parties may be subject to additional restrictions.
Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service
voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice.
TI is not responsible or liable for any such statements.
Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements
concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support
that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which
anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause
harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use
of any TI components in safety-critical applications.
In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to
help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and
requirements. Nonetheless, such components are subject to these terms.
No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties
have executed a special agreement specifically governing such use.
Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in
military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components
which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and
regulatory requirements in connection with such use.
TI has specifically designated certain components which meet ISO/TS16949 requirements, mainly for automotive use. Components which
have not been so designated are neither designed nor intended for automotive use; and TI will not be responsible for any failure of such
components to meet such requirements.
Products
Applications
Audio
www.ti.com/audio
amplifier.ti.com
dataconverter.ti.com
www.dlp.com
Automotive and Transportation www.ti.com/automotive
Communications and Telecom www.ti.com/communications
Amplifiers
Data Converters
DLP® Products
DSP
Computers and Peripherals
Consumer Electronics
Energy and Lighting
Industrial
www.ti.com/computers
www.ti.com/consumer-apps
www.ti.com/energy
dsp.ti.com
Clocks and Timers
Interface
www.ti.com/clocks
interface.ti.com
logic.ti.com
www.ti.com/industrial
www.ti.com/medical
Medical
Logic
Security
www.ti.com/security
Power Mgmt
Microcontrollers
RFID
power.ti.com
Space, Avionics and Defense
Video and Imaging
www.ti.com/space-avionics-defense
www.ti.com/video
microcontroller.ti.com
www.ti-rfid.com
www.ti.com/omap
OMAP Applications Processors
Wireless Connectivity
TI E2E Community
e2e.ti.com
www.ti.com/wirelessconnectivity
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2012, Texas Instruments Incorporated
厂商 型号 描述 页数 下载

VECTRON

 		VXC1 VXC1 7 ×5× 1.7毫米4片[ VXC1 7 x 5 x 1.7mm 4 pads ] 2 页

VECTRON

 		VXC1-1133-26M5625000 7 ×5× 1.7毫米4片[ 7 x 5 x 1.7mm 4 pads ] 2 页

VECTRON

 		VXC1-1134-25M000000 7 ×5× 1.7毫米4片[ 7 x 5 x 1.7mm 4 pads ] 2 页

VECTRON

 		VXC1-1134-25M0000000 7 ×5× 1.7毫米4片[ 7 x 5 x 1.7mm 4 pads ] 2 页

VECTRON

 		VXC4 VXC4 7 ×5× 1.1毫米4片[ VXC4 7 x 5 x 1.1mm 4 pads ] 2 页

VITESSE

 		VXC4-1034R-25M000 7 ×5× 1.1毫米4垫【 50 PPM的在-20℃至+ 70℃， 30 Ohms最大在100微瓦[ 7 x 5 x 1.1 mm 4 pads 【 50 PPM at -20C to +70C 30 Ohms Maximum at 100 uW ] 1 页

VECTRON

 		VXCO-2600-AEA-G 压控晶体振荡器[ Voltage Controlled Crystal Oscillator ] 4 页

VECTRON

 		VXCO-2600-AEA-J 压控晶体振荡器[ Voltage Controlled Crystal Oscillator ] 4 页

VECTRON

 		VXCO-2600-AEA-K 压控晶体振荡器[ Voltage Controlled Crystal Oscillator ] 4 页

VECTRON

 		VXCO-2600-AEA-M 压控晶体振荡器[ Voltage Controlled Crystal Oscillator ] 4 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.200705s
