VX-501_12

型号：

VX-501_12

描述：

压控晶体振荡器[ Voltage Controlled Crystal Oscillator ]

品牌：

VECTRON[ Vectron International, Inc ]

页数：

6 页

PDF大小：

408 K

下载PDF手册

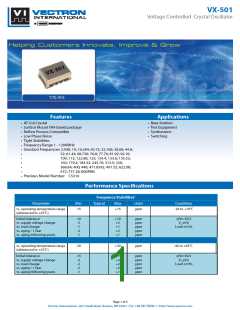

VX-501
Voltage Controlled Crystal Oscillator
VX-501
Features
Applications
• AT-Cut Crystal
• Base Stations
• Test Equipment
• Synthesizers
• Switching
• Surface Mount FR4 based package
• Reflow Process Compatible
• Low Phase Noise
• Tight Stabilities
• Frequency Range 1 - 1200MHz
• Standard Frequencies 2.048; 10; 16,384; 30,72; 32,768; 38,88; 44.8;
•
•
•
•
•
52; 61.44; 68.736; 76.8; 77.76; 81.92; 92.16;
100; 112; 122.88; 125; 134.4; 153.6; 155.52;
160; 179.2; 184.32; 245.76; 312.5; 320;
368.64; 400; 448; 471.8592; 491.52; 622.08;
672; 737.28; 800MHz
• Previous Model Number: C5310
Performance Specifications
Frequency Stabilities1
Parameter
Min
Typical
Max
+15
Units
Condition
vs. operating temperature range
(referenced to +25°C)
-15
ppm
-20 to +70°C
Initial tolerance
vs. supply voltage change
vs. load change
vs. aging / 1 Year
vs. aging (following years)
-10
-3
-1
-3
-1
+10
+3
+1
+3
+1
ppm
ppm
ppm
ppm
ppm
@Vc=Vs/2
VS ±5%
Load ±10%
vs. operating temperature range
(referenced to +25°C)
-30
+30
ppm
-40 to +85°C
Initial tolerance
vs. supply voltage change
vs. load change
vs. aging / 1 Year
vs. aging (following years)
-15
-3
-2
-3
-1
+15
+3
+2
+3
+1
ppm
ppm
ppm
ppm
ppm
@Vc=Vs/2
VS ±5%
Load ±10%
Page 1 of 5
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Performance Specifications
Supply Voltage (Vs)
Parameter
Supply voltage (standard)
Current consumption
Current consumption
Supply voltage
Min
Typical
3.3
Max
3.465
40
Units
VDC
mA
Condition
3.135
@ HCMOS, Sinewave
90
mA
@ PECL, LVDS
4.75
5
5.25
VDC
mA
Current consumption
Current consumption
30
@ HCMOS, Sinewave
@ PECL, LVDS
80
mA
RF Output
Signal
HCMOS
Load
15
50
pF
ns
%
Rise and Fall time
Duty cycle
Signal
5
@ 15 pF 10 to 90%
@ Vs / 2
40
45
40
60
PECL
Load
Ω
ns
%
Rise and Fall time
Duty cycle
Signal
1
20 to 80%
10 to 90%
55
LVDS
Load
100
Ω
ns
%
Rise and Fall time
Duty cycle
Signal
1
60
Sinewave
Load
50
0
Ω
Output Power
-3
3
dBm
Frequency Tuning (EFC)
Tuning Range
Linearity
±75.0
±90
±200.0
10 %
Positive
ppm
Tuning Slope
0
0.5
1.65
2.5
3.3
4.5
VDC
VDC
with Vs = 3.3V
with Vs = 5V
Control Voltage Range
Frequency Control Input
Impedance
10
kΩ
Additional Parameters
Phase Noise
-78
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
ps RMS
10 Hz
100 Hz
1 kHz
10 kHz
100 kHz
-110
-138
-155
-161
0.2
@100MHz
LVCMOS
3.3V
Jitter
@ 12kHz .. 20MHz
Phase Noise
-75
-105
-130
-145
-153
0.1
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
ps RMS
10 Hz
100 Hz
1 kHz
10 kHz
100 kHz
@ 153.6
MHz
PECL
3.3V
Jitter
@ 12kHz .. 20MHz
Phase Noise
-59
-90
-118
-137
-144
0.1
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
ps RMS
10 Hz
100 Hz
1 kHz
10 kHz
100 kHz
@ 300
MHz
LVDS
3.3V
Jitter
@ 12kHz .. 20MHz
Phase Noise
-60
-95
-121
-141
-150
0.03
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
ps RMS
10 Hz
100 Hz
1 kHz
10 kHz
100 kHz
@ 491.52
MHz
PECL
3.3V
Jitter
@ 12kHz .. 20MHz
Page 2 of 5
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Performance Specifications
Additional Parameters
Subharmonics
Weight
-40
dBc
For f > 160 MHz
2.0 g
Handling & Processing Note
Processing & Packing
Absolute Maximum Ratings
Supply voltage (Vs)
6.0
+85
V
Operable Temperature Range
Storage Temperature Range
-40
-55
°C
°C
+125
Cross Reference List
TypicalPhaseNoiseand Jitter
Phase Noise
Phase Noise
VX-501 @ 100 MHz LVCMOS
VX-501 @ 153.6 MHz LVPECL
Phase Noise
Phase Noise
VX-501 @ 300 MHz LVDS
VX-501 @ 491.52 MHz LVPECL
Page 3 of 5
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Enclosure
Package Codes
Package Codes
Type
Height “H”
5.9
Type
Height “H”
G223B
G218B
G218E
G218C
5.9
4.7
2.8
Pin Connections
Pin Connections
1
2
3
4
Control Voltage (Vc)
Ground
1
2
3
4
5
Control Voltage (Vc)
N.C. / Enable (Option)
Ground
RF Output
Supply Voltage Input (Vs)
RF Output
RF Output complementary (PECL / LVDS)
N.C. (CMOS)
6
Supply Voltage Input (Vs)
Marking
Enable true table (optional)
VX-501-xxxx
Frequency
AYYWW
HCMOS
LVPECL / LVDS
Pin 2
High
Open
Low
Pin 4
Data
Data
Pin 5
N.C.
N.C.
N.C.
Pin 4
Pin 5
No Data
Data
No Data
Compl. Data
Compl. Data
High Tristate
Data
Page 4 of 5
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Standard Shipping Method
Lage im Gurt
Position in tape
Pin 1
Abwickelrichtun
Unwinding direc
A
X
B
Gurtunterseite
Tape buttom side
K
Gurtoberseite
Tape upper side
*bei W ≤ 24 mm nur untere Lochreihe
∗by W ≤ 24 mm only lower hole line
P
Enclosure Type
G218B/G223B
Tape Width W (mm)
24
Quantity per meter
83.3
Quantity per reel
850
Dimension P
12
Recommended Reflow Profile
Profile Feature
Pb-Free Assembly/
Sn-Pb Assembly
Profile Feature
Pb-Free Assembly/
Sn-Pb Assembly
Average ramp-up rate (TL to TP)
3°C/second max.
Time 25°C to Peak Temperature
8 minutes max.
Preheat -Temperature Min TSmin
-Temperature Min TSmax
150°C
200°C
60-180 seconds
Time maintained above
-Temperature (TL)
-Time (tL)
217°C
60-150 seconds
-Time (min to max) tS
TSmax to TL -Ramp-up Rate
3°C/second max
Time maintained above
-Temperature (TL)
-Time (tL)
217°C
60-150 seconds
Time within 5°C of actual Peak
Temperature (tP)
20-40 seconds
Peak Temperature (TP)
max 260°C
Ramp-down Rate
6°C/ second max
Note: All temperatures refer to topside of the package, measured on the package body surface.
Page 5 of 5
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Ordering Information
VX-501 0 - E A J - 105 0 - 52M0
Frequency
Model Code
Enable
0: No Enable
1: Enable
Height
0: 5.9 mm (G218B / G223B)
1: 4.7 mm (G218E)
2: 2.8 mm (G218C)
Stability Code
E-305: ±30ppm
J-105: ±15ppm
Supply Voltage
D: 5V
E: 3.3V
Temperature Range
E: -40°C to +85°C
J: -20°C to +70°C
RF Output Code
A: HCMOS
C: PECL
D: LVDS
E: Sinewave
Notes:
1. Contact factory for improved stabilities or additional product options. Not all options and codes are available at all
frequencies.
2. Unless other stated all values are valid after warm-up time and refer to typical conditions for supply voltage, frequency
control voltage, load, temperature (25°C).
3. Phase noise degrades with increasing output frequency.
4. Subject to technical modification.
5. Contact factory for availability.
For Additional Information, Please Contact
USA:
Europe:
Asia:
Vectron International
267 Lowell Road
Hudson, NH 03051
Tel: 1.888.328.7661
Vectron International
Landstrasse, D-74924
Neckarbischofsheim, Germany
Tel: +49 (0) 7268-801-0
Vectron International
1F-2F, No 8 Workshop, No 308 Fenju Road
WaiGaoQiao Free Trade Zone
Pudong, Shanghai, China 200131
Tel: 86.21.5048.0777
Fax: 1.888.329.8328
Fax: +49 (0) 7268-801-281
Fax: 86.21.5048.1881
Disclaimer
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application.
No rights under any patent accompany the sale of any such product(s) or information.
Rev: 05/2012
Page 6 of 5
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
