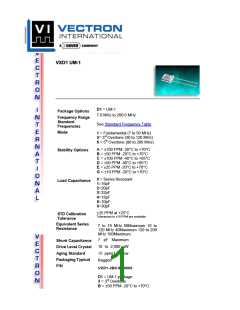

D1 = UM-1
Package Options
7.0 MHz to 200.0 MHz
Frequency Range
Standard
Frequencies
See Standard Frequency Table
Mode
1 = Fundamental (7 to 50 MHz)
3= 3rd Overtone (30 to 120 MHz)
5 = 5th Overtone (80 to 200 MHz)
A = ±100 PPM -20°C to +70°C
B = ±50 PPM -20°C to +70°C
C = ±100 PPM -40°C to +85°C
D = ±50 PPM -40°C to +85°C
E = ±25 PPM -20°C to +70°C
G = ±10 PPM -20°C to +70°C
Stability Options
0 = Series Resonant
1=16pF
Load Capacitance
2=20pF
3=32pF
4=18pF
5=10pF
6=30pF
±25 PPM at +25°C
STD Calibration
Tolerance
Tolerances to ±10 PPM are available
Equivalent Series
Resistance
7 to 16 MHz 80Maximum 16 to
120 MHz 40Maximum 120 to 200
MHz 100Maximum
7 pF Maximum
Shunt Capacitance
Drive Level Crystal
Aging Standard
Packaging Typical
P/N
10 to 2,000 uW
st
<5 ppm/1 year
Bagged
VXD1-3B0-80M000
D1 = UM-1 package
3 = 3rd Overtone
B = ±50 PPM -20°C to +70°C
