WSMS5515_12

型号:

WSMS5515_12

描述:

功率金属Strip®仪表分流电阻非常低的值(低至0.00010欧姆)[ Power Metal Strip® Meter Shunt Resistor, Very Low Value (down to 0.00010 Ohms) ]

品牌:

VISHAY[ VISHAY ]

页数:

3 页

PDF大小:

76 K

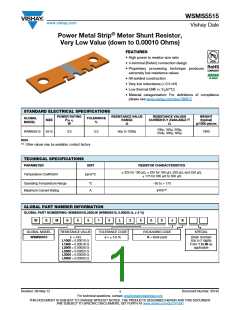

WSMS5515
www.vishay.com
Vishay Dale
Power Metal Strip® Meter Shunt Resistor,
Very Low Value (down to 0.00010 Ohms)
FEATURES
• High power to resistor size ratio
• 4-terminal (Kelvin) connection design
• Proprietary processing technique produces
extremely low resistance values
• All welded construction
• Very low inductance (< 0.5 nH)
• Low thermal EMF (< 3 μV/°C)
• Material categorization: For definitions of compliance
please see www.vishay.com/doc?99912
STANDARD ELECTRICAL SPECIFICATIONS
POWER RATING
RESISTANCE VALUE
RESISTANCE VALUES
CURRENTLY AVAILABLE (1)
WEIGHT
(typical)
g/1000 pieces
GLOBAL
MODEL
TOLERANCE
%
SIZE
P70 °C
RANGE
W
100μ, 160μ, 200μ,
250μ, 300μ, 500μ
WSMS5515
5515
3.0
5.0
50μ to 1000μ
7800
Note
(1)
Other values may be available, contact factory
TECHNICAL SPECIFICATIONS
PARAMETER
UNIT
RESISTOR CHARACTERISTICS
325 for 100 μ, 225 for 160 μ, 200 μ, and 250 μ,
175 for 300 μto 500 μ
Temperature Coefficient
ppm/°C
Operating Temperature Range
Maximum Current Rating
°C
A
- 65 to + 170
(P/R)1/2
GLOBAL PART NUMBER INFORMATION
GLOBAL PART NUMBERING: WSMS5515L2500JK (WSMS5515, 0.00025 , 5 %)
W
S
M
S
5
5
1
5
L
2
5
0
0
J
K
GLOBAL MODEL
RESISTANCE VALUE
TOLERANCE CODE
PACKAGING CODE
SPECIAL
WSMS5515
L = m
J = 5.0 %
K = Bulk pack
(Dash number)
(Up to 2 digits)
From 1 to 99 as
applicable
L1000 = 0.00010 
L1600 = 0.00016 
L2000 = 0.00020 
L2500 = 0.00025 
L3000 = 0.00030 
L5000 = 0.00050 
Revision: 09-May-12
Document Number: 30135
1
For technical questions, contact: ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
WSMS5515
www.vishay.com
DIMENSIONS in inches
Vishay Dale
1.441
B
1.005
0.724
0.156
0.079
CALIBRATION CUT
0.142
0.079
0.142
0.488
0.079
0.138
0.295
0.056
0.590
1.575
0.295
2.165 0.010
R 0.020 (2)
R 0.020 (2)
R 0.078 REF. (1)
Ø 0.244 THRU (2)
R 0.028 (4)
DERATING
TOLERANCES ON DECIMALS
XXX 0.005
120
100
80
RESISTANCE VALUE RESISTOR THICKNESS ELEMENT
)
100
160
200
250
300
500
(inches)
0.033
0.051
0.051
0.033
0.033
0.059
MATERIAL
Mn-Cu
Mn-Cu
Mn-Cu
Mn-Cu
Mn-Cu
Fe-Cr
60
40
20
0
- 65- 50 - 25
0
25
50
75 100 125 150 175
Ambient Temperature in °C
70
PERFORMANCE
TEST
CONDITIONS OF TEST
TEST LIMITS
Thermal Shock
Short Time Overload
- 55 °C to + 150 °C, 1000 cycles, 15 min at each extreme
5 x rated power for 5 s
0.5 % R
0.5 % R
0.5 % R
1.0 % R
0.5 % R
0.5 % R
0.5 % R
1.0 % R
0.5 % R
Low Temperature Operation
High Temperature Exposure
Bias Humidity
- 65 °C for 45 min
1000 h at + 170 °C
+ 85 °C, 85 % RH, 10 % bias, 1000 h
100 g’s for 6 ms, 5 pulses
Mechanical Shock
Vibration
Frequency varied 10 Hz to 2000 Hz in 1 min, 3 directions, 12 h
1000 h at + 70 °C, 1.5 h “ON”, 0.5 h “OFF”
MIL-STD-202, method 106, 0 % power, 7b not required
Load Life
Moisture Resistance
Revision: 09-May-12
Document Number: 30135
2
For technical questions, contact: ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
