型号：

VX-722

描述：

双频HPLL VCXO[ Dual Frequency HPLL VCXO ]

品牌：

VECTRON[ Vectron International, Inc ]

页数：

9 页

PDF大小：

727 K

下载PDF手册

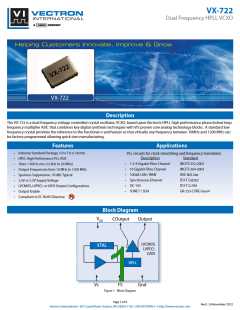

VX-722
Dual Frequency HPLL VCXO
VX-722
Description
Features
Applications
The VX-722 is a dual frequency voltage controlled crystal oscillator, VCXO, based upon Vectron’s HPLL high performance phase locked loop
frequency multiplier ASIC that combines key digital synthesis techniques with VI’s proven core analog technology blocks. A standard low
frequency crystal provides the reference to the fractional-n synthesizer so that virtually any frequency between 10MHz and 1200 MHz can
be factory programmed allowing quick turn manufacturing.
Features
Applications
tꢀ Industry Standard Package, 5.0 x 7.0 x 1.8 mm
tꢀ HPLL High Performance PLL ASIC
tꢀ Jitter < 500 fs-rms (12 kHz to 20 MHz)
tꢀ Output Frequencies from 10 MHz to 1200 MHz
tꢀ Spurious Suppression, 70 dBc Typical
tꢀ 2.5V or 3.3V Supply Voltage
PLL circuits for clock smoothing and frequency translation
Description
tꢀ 1-2-4 Gigabit Fibre Channel
tꢀ 10 Gigabit Fibre Channel
tꢀ 10GbE LAN / WAN
tꢀ Synchronous Ethernet
tꢀ OC-192
Standard
INCITS 352-2002
INCITS 364-2003
IEEE 802.3ae
ITU-T G.8262
ITU-T G.709
tꢀ LVCMOS, LVPECL or LVDS Output Configurations
tꢀ Output Enable
tꢀ SONET / SDH
GR-253-CORE Issue4
tꢀ Compliant to EC RoHS Directive
Block Diagram
VDD
COutput
Output
LVCMOS
LVPECL
LVDS
XTAL
HPLL
Vc
FS
Gnd
Figure 1 - Block Diagram
Page 1 of 9
Rev2: 14 November 2012
Vectron Internaꢀonal • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • hꢁp://www.vectron.com
VX-722 Dual Frequency HPLL VCXO
Performance Specificaꢀons
Electrical Performance
Symbol Min
Supply
VDD
Parameter
Test Conditions
Typ
Max
Units
V
Voltage1
Current
3.3V Option
2.5V Option
2.97
2.25
3.3
2.5
3.63
2.75
LVCMOS
LVDS
LVPECL
-
-
-
90
99
120
98
108
130
IDD
mA
°C
V
Operating Temperature1, 3
Output Enable (OE)
-40
-
-
+85
-
TOP
VIH
VIL
VIH
VIL
0.75 x VDD
-
-
-
-
0.5
-
Frequency Select (FS)
0.75 x VDD
-
V
0.5
Frequency
Nominal Frequency1
LVPECL/LVDS
LVCMOS
10
10
-
-
1200
160
MHz
fN
Absolute Pull Range1, 2, 3
Linearity2, 4
VC = 0.1xVDD to 0.9xVDD
20% to 80% full output
APR
Lin
50
-
-
-
-
ppm
%
10
Gain Transfer2,
Temperature Stability1, 6
10 to 90% of VDD
TA = -40 to +85°C
-
-
+100
20
-
-
ppm/V
ppm
KV
fSTAB
Outputs
VO
LVPECL Output
mid-level
VDD-1.42
VDD-1.25
V
-
-
swing (diff)
mid-level
VOD
1.1
1.4
1.9
1.8
VPP
V
LVDS Output
VO
1.6
450
-
swing (diff)
VOD
300
600
VDD
mVPP
V
LVCMOS Output
VOH
0.9 x VDD
VOL
-
-
0.1 x VDD
V
Rise/Fall Time(20/80%)2,5
Symmetry2,3
LVPECL/LVDS
LVCMOS with CL = 15
-
-
-
-
350
1.2
ps
ns
tR/tf
LVPECL: VDD-1.3 V (diff)
LVDS: 1.6 V (diff)
LVCMOS: VDD/2
SYM
45
50
55
%
Spurious Suppression6
Jitter 6 (Performance Option N)
Jitter 6 (Performance Option A)
65
-
70
-
-
dBc
12 kHz to 20 MHz
12 kHz to 20 MHz
фJ
фJ
1000
500
fs-rms
fs-rms
-
-
Control Voltage
Input Impedance (Output Enabled)6
Modulation Bandwidth
500
-
10.0
-
-
-
kΩ
kHz
V
ZC
BW
VC
-
Control Voltage Tuning Range
0
VDD
1] See Standard Frequencies and Ordering Information (Pg 8).
2] Parameters are tested with production test circuit (See Figure 2 for LVCMOS, Figure 3 for LVPECL and figure 4 for LVDS).
3] Parameters are tested at ambient temperature with test limits guard-banded for specified operating temperature.
4] Measured as the maximum deviation from the best straight-line fit, per MIL-0-55310.
5] Parameters are described with waveform diagram below (Figure 5).
6] Not tested in production, guaranteed by design, verified at qualification.
Page 2 of 9
Rev2: 14 November 2012
Vectron Internaꢀonal • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • hꢁp://www.vectron.com
VX-722 Dual Frequency HPLL VCXO
Test Circuits & Output Waveform
+3.3V
+3.3V
10nF
1nF
10nF
1nF
VC
VC
1
2
3
6
5
4
1
2
3
6
5
4
10nF
10nF
NC
FS
FS
Scope
Scope
39ꢀ
10nF
200ꢀ
200ꢀ
10kꢀ
10kꢀ
VMD
10kꢀ
10nF
10nF
VMD
Figure 3 - LVPECL Production Test Circuit
Figure 2 - LVCMOS Production Test Circuit
+3.3V
10nF
VC
tF
tR
1nF
1
2
3
6
5
4
80%
Vs
10nF
10nF
FS
Scope
20%
10kꢀ
10kꢀ
VMD
On Time
10nF
Period
Figure 4 - LVDS Production Test Circuit
Figure 5 - Waveform Diagram
Absolute Maximum Ratings
Parameter
Power Supply
Input Current
Symbol
VDD
Ratings
0 to 3.8
100
Unit
V
IIN
mA
mA
V
Output Current
Voltage Control Range
Output Enable
IOUT
25
VC
0 to VDD
0 to VDD
-55 to 125
260 / 40
OE
V
Storage Temperature
TSTR
°C
Soldering Temperature / Duration
TPEAK / tP
°C / sec
Page 3 of 9
Vectron Internaꢀonal • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • hꢁp://www.vectron.com
Rev2: 14 November 2012
VX-722 Dual Frequency HPLL VCXO
LVPECL Applicaꢀon Diagrams
+3.3V
+3.3V
10nF
1nF
10nF
1nF
VC
VC
+3.3V
1
2
3
6
5
4
1
2
3
6
5
4
130ꢀ
82ꢀ
130ꢀ
82ꢀ
10nF
10nF
10nF
10nF
FS
FS
240ꢀ
240ꢀ
Figure 6 - Single Resistor Terminaꢀon Scheme
Figure 7 - Pull Up Pull Down Terminaꢀon
Resistor values are typically 120 to 240 ohms for 3.3V operaꢀon and 82 to 120 ohms for 2.5V Resistor values are typically for 3.3V operaꢀon
operaꢀon. For 2.5V operaꢀon, the resistor to ground is 62 ohms and the resistor to supply is 240 ohms
There are numerous applicaꢀon notes on terminaꢀng and interfacing PECL logic and the two most common methods are a single resistor to ground, Figure 6,
and a pull-up/pull-down scheme as shown in Figure 7. An AC coupling capacitor is opꢀonal, depending on the applicaꢀon and the input logic requirements of
the next stage.
One of the most important consideraꢀons is terminaꢀng the Output and Complementary Outputs equally. An unused output should not be leꢂ un-
terminated, and if one of the two outputs is leꢂ open it will result in excessive jiꢁer on both. PC board layout must take this and 50 ohm impedance matching
into account. Load matching and power supply noise are the main contributors to jiꢁer related problems.
LVDS Applicaꢀon Diagrams
+3.3V
+3.3V
10nF
1nF
10nF
1nF
VC
VC
1
2
3
6
5
4
1
2
3
6
5
4
10nF
10nF
Receiver
100ꢀ
Receiver
FS
FS
100ꢀ
Figure 8 - LVDS to LVDS, internal 100Ω
Figure 9 - LVDS to LVDS, External 100Ω and AC block ing caps
Some LVDS structures have an internal 100 ohm resistor on the
input and do not need addiꢀonal components.
One of the most important consideraꢀons is terminaꢀng the Output and Complementary Outputs equally. An unused output should not be leꢂ un-
terminated, and if one of the two outputs is leꢂ open it will result in excessive jiꢁer on both. PC board layout must take this and 50 ohm impedance matching
into account. Load matching and power supply noise are the main contributors to jiꢁer related problems.
Page 4 of 9
Rev2: 14 November 2012
Vectron Internaꢀonal • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • hꢁp://www.vectron.com
VX-722 Dual Frequency HPLL VCXO
Typical Characteristics
Figure 10 - Typical Phase Noise/Jitter Performance - INTEGER Mode
Figure 11 - Typical VC Pull
Page 5 of 9
Rev2: 14 November 2012
Vectron Internaꢀonal • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • hꢁp://www.vectron.com
VX-722 Dual Frequency HPLL VCXO
Reliability
VI qualification includes aging at various extreme temperatures, shock and vibration, temperature cycling, and IR reflow
simulation. The VX-722 family is capable of meeting the following qualification tests:
Environmental Compliance
Parameter
Mechanical Shock
Mechanical Vibration
Solderability
Conditions
MIL-STD-883, Method 2002
MIL-STD-883, Method 2007
MIL-STD-883, Method 2003
MIL-STD-883, Method 1014
MIL-STD-883, Method 2016
IPC/JEDEC J-STD-020, MSL1
Gross and Fine Leak
Resistance to Solvents
Moisture Sensitivity Level
Handling Precautions
Although ESD protection circuitry has been designed into the VX-722 proper precautions should be taken when handling and
mounting. VI employs a human body model (HBM) and a charged-device model (CDM) for ESD susceptibility testing and design
protection evaluation.
ESD Ratings
Model
Minimum
1000V
Conditions
MIL-STD-883, Method 3015
Human Body Model
Charged Device Model
Machine Model
900V
JEDEC, JESD22-C101
200 V
JEDEC, JESD22-A115-A
Reflow Profile (IPC/JEDEC J-STD-020)
Parameter
PreHeat Time
Symbol
Value
60 sec Min, 180 sec Max
tS
RUP
tL
Ramp Up
3 °C/sec Max
Time Above 217 °C
Time To Peak Temperature
Time at 260 °C
60 sec Min, 150 sec Max
480 sec Max
TAMB-P
tP
20 sec Min, 40 sec Max
6 °C/sec Max
Ramp Down
RDN
The device has been qualified to meet the JEDEC standard
for Pb-Free assembly. The temperatures and time intervals
listed are based on the Pb-Free small body requirements.
The temperatures refer to the topside of the package,
measured on the package body surface. The VX-722 device is
hermetically sealed so an aqueous wash is not an issue.
Terminal Plating: Electrolytic Ni > 1.9μm
Electrolytic Au > 0.7μm
Page 6 of 9
Vectron Internaꢀonal • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • hꢁp://www.vectron.com
Rev2: 14 November 2012
VX-722 Dual Frequency HPLL VCXO
Outline & Marking Diagram
Suggested Pad Layout
1.96
XX/XX
3.66
1.78
Y = Year
WW = Week
C = Option Codes
XX/XX = Frequency1/Frequency2
(See Ordering Info)
2.54
mm
[inch]
5.08
Pin Out
Frequency Select
Voltage Range
Pin
1
Symbol
VC
Function
Control Voltage
FS
Result
F2
H
M
L
(5VCC / 6) to VCC
2
FS
Frequency Select1
Case and Electrical Ground
Output
(VCC /2) 15% (VCC /2)
Output Disable
3
GND
Output
Gnd to (VCC /6)
F1
4
5
COutput
(N/A for
Complementary Output
(N/C for LVCMOS)
LVCMOS)
6
Power Supply Voltage
VDD
1: Frequency Select is internally pulled to VDD with a 30 kꢀ resistor.
Tape & Reel (EIA-481-2-A)
Tape Dimensions (mm)
Reel Dimensions (mm)
Dimension
Tolerance
VX-722
W
Typ
16
F
Do
Typ
1.5
Po
Typ
4
P1
Typ
8
A
B
C
Typ
13
D
N
Min
50
W1
Typ
16.4
W2
Max
22.4
# Per
Reel
Typ
7.5
Typ
178
Min
1.5
Min
20.2
200
Page 7 of 9
Rev2: 14 November 2012
Vectron Internaꢀonal • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • hꢁp://www.vectron.com
VX-722 Dual Frequency HPLL VCXO
Standard Frequency Table
Standard Factory Configurable Frequencies (MHz)
18.7500000
EE
39.0625000
HH
73.7280000
K8
173.370748
173.437500
176.838175
182.016000
182.857142
184.000000
184.320000
187.500000
195.000000
200.000000
200.192000
201.416020
212.500000
219.429571
240.000000
243.000000
245.760000
250.000000
252.571428
256.000000
262.144000
292.571429
300.000000
307.200000
311.040000
312.500000
318.750000
320.000000
322.265650
328.710950
333.257150
334.663300
336.081350
353.676350
368.640000
375.000000
382.800000
400.000000
409.600000
491.520000
500.000000
505.000000
531.000000
531.250000
568.928600
569.196400
588.000000
595.056000
600.000000
614.400000
ND
NP
NA
N8
NM
NG
NH
N5
N7
NE
N6
N1
NF
NL
NR
NC
N9
NT
NJ
622.080000
624.693800
624.704800
625.000000
627.329600
629.987800
637.500000
640.000000
644.531250
645.120000
647.239400
647.250800
649.970300
657.421875
665.625600
666.514286
669.128100
669.326582
669.642900
670.838600
672.000000
672.156250
672.162712
673.456600
684.255400
687.700000
690.569196
693.468750
693.482991
693.750000
696.390625
696.421478
696.421875
704.380600
707.352700
707.500000
710.948600
712.520000
716.573200
718.750000
719.734400
737.280000
739.200000
742.500000
748.070900
750.000000
768.000000
777.600000
779.568600
780.881000
P2
PD
P6
P3
P7
PA
PG
PN
P4
RJ
PE
PK
PF
PB
PC
P5
R2
R3
R1
R7
RT
TX
R5
RA
R9
TV
R4
RV
R6
R8
RW
V1
TY
TG
TC
V2
T2
781.250000
796.875000
800.000000
805.664100
809.063500
819.200000
821.777300
850.000000
983.400000
1,000.0000
T9
TB
TK
TA
TE
TH
TF
TJ
19.2000000
DD
39.3216000
HD
74.1250000
K1
19.3926580
19.4400000
19.5312500
19.6608000
19.6989680
19.7190000
19.9218750
20.0000000
20.1416000
20.4800000
20.5444340
20.7135000
20.8285720
20.8286000
20.9165460
21.0050840
22.0000000
22.1047720
22.2171000
22.5792000
24.0000000
24.5760000
24.7040000
25.0000000
25.1658000
25.6000000
25.9200000
26.0000000
27.0000000
27.6480000
28.7040000
29.4912000
29.5000000
30.0000000
30.7200000
30.8800000
31.2500000
32.0000000
32.7680000
33.0000000
33.3330000
34.3680000
34.5600000
36.8640000
37.0560000
37.1250000
37.5000000
38.8800000
DX
D6
DZ
DB
DK
DH
ED
E2
E3
E4
EF
E1
EG
EB
EH
EJ
39.8437500
40.0000000
40.2830630
40.9600000
41.0888870
41.6571440
41.6600000
41.8329130
42.0000000
42.0101690
42.5000000
42.6600000
44.2095440
44.4343000
44.6218000
44.7360000
44.9280000
45.1584000
45.8240000
46.0379460
46.7200000
46.8750000
48.0000000
49.1520000
49.4080000
50.0000000
50.0480000
51.2000000
51.8400000
52.0000000
53.3300000
54.7460000
55.0000000
60.0000000
61.3800000
61.4400000
62.2080000
62.5000000
62.9145000
63.3600000
63.8976000
64.0000000
64.1520000
65.5360000
66.0000000
70.0000000
70.6560000
71.6100000
HJ
JF
KK
J1
74.1758000
74.2500000
75.0000000
76.8000000
77.7600000
78.0000000
78.1250000
78.6432000
79.6875000
80.0000000
80.5664130
82.1777380
82.9440000
83.3142880
83.6658250
84.0203380
86.6853740
88.4190880
95.7000000
97.5000000
100.000000
105.000000
106.250000
108.000000
110.000000
112.000000
114.000000
120.000000
122.880000
124.416000
125.000000
130.000000
131.072000
139.264000
150.000000
150.144000
153.600000
155.520000
156.250000
159.375000
160.000000
161.132813
164.355475
166.628572
167.331646
168.040678
170.000000
172.500000
KA
K7
KH
K4
K2
LH
K3
K5
KG
K9
KJ
KL
K6
KN
KR
KU
LJ
KM
KP
LM
KT
JB
KV
JC
JZ
KX
LF
JW
J3
TU
TM
Recent Adds:
174.703083
175.000000
698.812330
NX
W2
VC
E9
EK
E5
E8
EC
E6
E7
F7
JE
JG
JM
LG
JK
JY
JV
J7
KW
LK
KE
L8
NK
NB
NN
PT
RX
P1
L6
L9
LA
L1
PU
PV
PP
PW
PX
PY
RB
RC
RD
RY
RF
RU
RR
RE
PM
RK
V3
F8
J2
F6
JD
KD
LL
J4
L2
F2
L3
F3
LC
LB
L7
F4
FB
F1
JP
JU
JL
L4
F5
LD
LN
L5
F9
JX
JR
KY
J5
HE
H1
HF
H8
H2
H3
H7
HC
H6
HB
HG
H4
H9
HK
H5
M8
M6
MA
M2
M3
M7
M1
M4
M9
M5
N2
N3
N4
NU
TW
T1
J8
J9
T5
LE
JJ
T3
TL
JN
JT
JH
J6
PH
P8
TT
V4
T6
PJ
P9
T7
JA
KB
KC
KF
RH
PL
TN
T4
PR
RG
T8
TD
Page 8 of 9
Vectron Internaꢀonal • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • hꢁp://www.vectron.com
Rev2: 14 November 2012
VX-722 Dual Frequency HPLL VCXO
Ordering Information
VX - 722 - E C E - K E N A - F1/F2
Product Family
VX: VCXO
Frequency (See Table)
F1, F2
Performance Options
N: Standard
A: < 500 fs-rms Jitter
Package
722: 5 x 7 x 1.8 mm
Dual
Future
N: N/A
Supply
E: 3.3 V
H: 2.5 V
Stability
X: Standard
E: 20ppm Temperature Stability
Output
A: LVCMOS
C: LVPECL
D: LVDS
Operating Temperature
T: 0/70°C
E: -40/85 °C
Absolute Pull Range
K: 50 ppm
Example: VX-722-ECE-KXCN-PH/T6
For Additional Information, Please Contact
USA:
Europe:
Asia:
Vectron International
267 Lowell Road
Hudson, NH 03051
Tel: 1.888.328.7661
Vectron International
Vectron International
Landstrasse, D-74924
Neckarbischofsheim, Germany
Tel: +49 (0) 3328.4784.17
1589 Century Avenue, the 19th Floor
Chamtime International Financial Center
Shanghai, China
Tel: 86.21.6081.2888
Fax: 86.21.6163.3598
Fax: 1.888.329.8328
Fax: +49 (0) 3328.4784.30
Disclaimer
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application.
No rights under any patent accompany the sale of any such product(s) or information.
Page 9 of 9
Rev2: 14 November 2012
Vectron Internaꢀonal • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • hꢁp://www.vectron.com
厂商 型号 描述 页数 下载

OMRON

 		VX-01-1A2 速动开关[ Snap Action Switch ] 8 页

OMRON

 		VX-01-1A3 速动开关[ Snap Action Switch ] 8 页

OMRON

 		VX-01-1C22 速动开关[ Snap Action Switch ] 8 页

OMRON

 		VX-01-1C23 速动开关[ Snap Action Switch ] 8 页

OMRON

 		VX-01-2A3 [ Snap Acting/Limit Switch ] 7 页

OMRON

 		VX-01-2C22 [ Snap Acting/Limit Switch ] 7 页

OMRON

 		VX-01-2C23 [ Snap Acting/Limit Switch ] 7 页

OMRON

 		VX-01-3A2 [ Snap Acting/Limit Switch ] 7 页

OMRON

 		VX-01-3A3 [ Snap Acting/Limit Switch ] 7 页

OMRON

 		VX-01-3C23 [ Snap Acting/Limit Switch ] 7 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.195532s
