XW2B-20J6-8A

型号：

XW2B-20J6-8A

描述：

自2001年以来， CJ1M系列PLC是在全球范围内广泛应用的控制。[ Since 2001, CJ1M-series PLCs are in control of a wide variety of applications worldwide. ]

品牌：

OMRON[ OMRON ELECTRONICS LLC ]

页数：

29 页

PDF大小：

2910 K

下载PDF手册

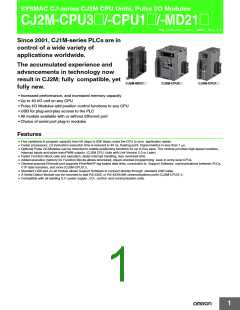

CJ2M-CPU3
Since 2001, CJ1M-series PLCs are in
control of a wide variety of
applications worldwide.
@
SYSMAC CJ-series CJ2M C/P-UCUnPitsU, P1ulse I/O Modules
@
/-MD21
@
CSM_CJ2M-CPU3__-CPU1__-MD21__DS_E_4_1
The accumulated experience and
advancements in technology now
result in CJ2M; fully compatible, yet
fully new.
CJ2M-MD21@
CJ2M-CPU3@
CJ2M-CPU1@
• Increased performance, and increased memory capacity
• Up to 40 I/O unit on any CPU
• Pulse I/O Modules add position control functions to any CPU
• USB for plug-and-play access to the PLC
• All models available with or without Ethernet port
• Choice of serial port plug-in modules
Features
• Five variations in program capacity from 5K steps to 60K steps; scale the CPU to your application needs.
• Faster processors; LD instruction execution time is reduced to 40 ns, floating point trigonometrics in less than 1 μs.
• Optional Pulse I/O Modules can be mounted to enable positioning functions for up to four axes. The module provides high-speed counters,
interrupt inputs and pulse train/PWM outputs. (CJ2M CPU Units with Unit Version 2.0 or Later)
• Faster Function Block calls and execution, faster interrupt handling, less overhead time.
• Added execution memory for Function Blocks allows structured, object-oriented programming even in entry-level CPUs.
• General-purpose Ethernet port supports EtherNet/IP tag-based data links, connection to Support Software, communications between PLCs,
FTP data transfers, and more (CJ2M-CPU3@).
• Standard USB port on all models allows Support Software to connect directly through standard USB cable.
• A Serial Option Module can be mounted to add RS-232C or RS-422A/485 communications ports (CJ2M-CPU3@).
• Compatible with all existing CJ1 power supply-, I/O-, control- and communication units.
1
CJ2M-CPU3@/-CPU1@/-MD21@
Ordering Information
International Standards
• The standards are abbreviated as follows: U: UL, U1: UL (Class I Division 2 Products for Hazardous Locations), C: CSA, UC: cULus,
UC1: cULus (Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, and CE: EC Directives.
• Contact your OMRON representative for further details and applicable conditions for these standards.
CJ2M CPU Units (Built-in EtherNet/IP)
Current
consumption (A)
Specifications
LD
Product name
Model
Standards
I/O capacity/
Mountable Units
(Expansion Racks)
Option
board
slot
Program
capacity
Data memory
capacity
instruction EtherNet/IP
execution
time
5 V
24 V
function
160K words
60K steps
30K steps
20K steps
10K steps
5K steps
CJ2M-CPU35
CJ2M-CPU34
CJ2M-CPU33
CJ2M-CPU32
CJ2M-CPU31
CJ2M (Built-in
EtherNet/IP)
CPU Units
(DM: 32K words,
EM: 32K words ×
4 banks)
2,560 points/
40 Units
(3 Expansion
Racks max.)
0.7
(See
note.)
UC1, N, L,
CE
0.04 μs
YES
YES
−
64K words
(DM: 32K words,
EM: 32K words ×
1 bank)
Note: Add 0.005A, 0.030A and 0.075A when using Serial Communications Option Boards (CP1W-CIF01/11/12), respectively.
Add 0.15A/Unit when using NT-AL001 RS-232C/RS-422A Adapters.
Add 0.04A/Unit when using CJ1W-CIF11 RS-422A Adapters.
Add 0.20A/Unit when using NV3W-M@20L Programmable Terminals.
CJ2M CPU Units
Current
consumption (A)
Specifications
LD
Product name
Model
Standards
I/O capacity/
Mountable Units
(Expansion Racks)
Option
board
slot
Program
capacity
Data memory
capacity
instruction EtherNet/IP
execution
time
5 V
24 V
function
160K words
60K steps
30K steps
20K steps
10K steps
5K steps
CJ2M-CPU15
CJ2M-CPU14
CJ2M-CPU13
CJ2M-CPU12
CJ2M-CPU11
(DM: 32K words,
EM: 32K words ×
4 banks)
CJ2M CPU
Units
2,560 points/
40 Units
0.5
(See
note.)
UC1, N, L,
CE
0.04 μs
−
−
−
(3 Expansion
Racks max.)
64K words
(DM: 32K words,
EM: 32K words ×
1 bank)
Note: Add 0.15A/Unit when using NT-AL001 RS-232C/RS-422A Adapters.
Add 0.04A/Unit when using CJ1W-CIF11 RS-422A Adapters.
Add 0.20A/Unit when using NV3W-M@20L Programmable Terminals.
Serial Communications Option Boards (Only CJ2M-CPU3@)
The serial communications port can be equipped by installing the serial communications option board to the option board slot in front of CPU unit.
Current
consumption (A)
Serial communications
Product name
Specifications
Model
Standards
mode
5 V
24 V
RS-232COption
Board
One RS-232C port
Connector: D-Sub, 9 pin, female
Maximum transmission distance: 15m
One RS-232C connector (D-Sub, 9 pin, male) is included.
(Plug: XM2A-0901, Hood: XM2S-0911-E)
0.005
−
CP1W-CIF01
RS-422A/485
Option Board
Host Link, 1:N NT Link, No-
protocol, Serial PLC Link
Slave, Serial PLC Link Master,
Serial Gateway converted to
CompoWay/F, and Tool Bus *
One RS-422A/485 port
Terminal block: using ferrules
Maximum transmission distance: 50m
0.030
0.075
−
−
CP1W-CIF11 UC1, N, L,
CE
RS-422A/485
Isolated-type
Option Board
One RS-422A/485 port (Isolated)
Terminal block: using ferrules
Maximum transmission distance: 500m
CP1W-CIF12
Note: It is not possible to use a CP-series Ethernet Option Board (CP1W-CIF41), LCD Option Board (CP1W-DAM01) with a CJ2M CPU Unit.
* The following modes cannot be used: 1:1 NT Link, Serial Gateway converted to Host Link FINS, 1:1 Link Master, and 1:1 Link Slave.
2
CJ2M-CPU3@/-CPU1@/-MD21@
Pulse I/O Modules (Only CJ2M CPU Unit with Unit Version 2.0 or Later)
Optional Pulse I/O Modules can be mounted to enable pulse I/O. Up to two Pulse I/O Modules can be mounted to the left side of a CJ2M CPU Unit.
Current
consumption (A)
Product name
Specifications
Model
Standards
5 V
24 V
Pulse I/O Modules
Sinking outputs, MIL connector
10 inputs (including four interrupt/quickresponse inputs and two high-speed counter inputs) 0.08
6 outputs (including two pulse outputs and two PWM outputs)
---
CJ2M-MD211
CJ2M-MD212
UC1, N, L,
CE
Sourcing outputs, MIL connector
10 inputs (including four interrupt/quickresponse inputs and two high-speed counter inputs) 0.08
6 outputs (including two pulse outputs and two PWM outputs)
---
Note: Connectors are not provided with Pulse I/O Modules. Purchase the following Connector, an OMRON Cable with Connectors for Connector
Terminal Block Conversion Units, or an OMRON Cable with Connectors for Servo Relay Units.
Connecting to Pulse I/O Modules
On wiring, refer to Pulse I/O Modules Connector Wiring Methods.
Product name
Applicable Connector
Specifications
MIL Flat Cable Connectors (Pressure-fitted Connectors)
Slim type (M3 screw terminals, 40-pin)
Model
Standards
---
XG4M-4030-T
XW2D-40G6
XW2B-40G4
Through type (M3 screw terminals, 40-pin)
Through type (M3.5 screw terminals, 40-pin)
Connector-Terminal Block Conversion
Units
---
XW2B-40G5
XW2Z-100K
Cable length: 1 m
Cable length: 1.5 m XW2Z-150K
Cable for Connector-Terminal Block
Conversion Unit
Cable length: 2 m
Cable length: 3 m
Cable length: 5 m
XW2Z-200K
XW2Z-300K
XW2Z-500K
Servo Relay Unit for 1 axis
Servo Relay Unit for 2 axes
XW2B-20J6-8A
XW2B-40J6-9A
Servo Relay Units
---
3
CJ2M-CPU3@/-CPU1@/-MD21@
Product name
Specifications
Model
Standards
Cable length: 0.5 m XW2Z-050J-A33
Cable for Pulse I/O Modules
Cable length: 1 m
Cable length: 1 m
Cable length: 2 m
XW2Z-100J-A33
XW2Z-100J-B31
XW2Z-200J-B31
OMNUC G5/G Series
Servo Driver Connecting Cables
Cable for Pulse I/O Modules
Cable length: 0.5 m XW2Z-050J-A33
Cable length: 1 m
Cable length: 1 m
Cable length: 2 m
XW2Z-100J-A33
XW2Z-100J-B32
XW2Z-200J-B32
SMARTSTEP2
Servo Driver Connecting Cables
Cable for Pulse I/O Modules
Servo Driver Connecting Cables
Cable for Pulse I/O Modules
Servo Driver Connecting Cables
Cable length: 1 m
XW2Z-100J-A26
Cables for Servo Relay Units
---
SMARTSTEP Junior
Cable length: 1 m
Cable length: 2 m
XW2Z-100J-B17
XW2Z-200J-B17
Cable length: 1 m
XW2Z-100J-A26
SMARTSTEP A Series
Cable length: 1 m
Cable length: 2 m
XW2Z-100J-B5
XW2Z-200J-B5
Cable for Pulse I/O Modules
Cable length: 0.5 m XW2Z-050J-A27
Cable length: 1 m
Cable length: 1 m
Cable length: 2 m
XW2Z-100J-A27
XW2Z-100J-B4
XW2Z-200J-B4
OMNUC W Series
Servo Driver Connecting Cables
4
CJ2M-CPU3@/-CPU1@/-MD21@
Accessories
The following accessories come with CPU Unit:
Item
Specification
Battery
CJ1W-BAT01
CJ1W-TER01 (necessary to be mounted at the right end of CPU Rack)
End Cover
End Plate
PFP-M (2 pcs)
Serial Port (RS-232C) Connector
(see note)
Connector set for serial port connection (D-SUB 9-pin male connector)
Note: Connector is provided with CJ2M-CPU1@.
General Specifications
Item
CJ2M-
CPU1@
Mounted in a panel
CPU3@
Enclosure
Grounding
Less than 100 Ω
CPU Unit Dimensions
Weight
90 mm × 75 mm × 31 mm
130 g or less
90 mm × 75 mm × 62 mm
190 g or less (see note)
5 VDC, 0.7 A
Current Consumption
Ambient Operating Temperature
Ambient Operating Humidity
Atmosphere
5 VDC, 0.5 A
0 to 55°C
10% to 90% (with no condensation)
Must be free from corrosive gases.
−20 to 70°C (excluding battery)
2,000 m or less
Ambient Storage Temperature
Altitude
Pollution Degree
2 or less: Conforms to JIS B3502 and IEC 61131-2.
2 kV on power supply line (Conforms to IEC 61000-4-4.)
Category II: Conforms to JIS B3502 and IEC 61131-2.
Zone B
Noise Immunity
Operation
Environment
Overvoltage Category
EMC Immunity Level
Conforms to IEC60068-2-6
5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz
Acceleration of 9.8 m/s2 for 100 min in X, Y, and Z directions (10 sweeps of 10 min each =
100 min total)
Vibration Resistance
Shock Resistance
Conforms to IEC60068-2-27
147 m/s2, 3 times in X, Y, and Z directions (100 m/s2 for Relay Output Units)
Life
5 years at 25°C
Battery
Model
CJ1W-BAT01
Applicable Standards
Conforms to cULus, NK, LR, and EC Directives.
Note: Without a Serial Option Board.
5
CJ2M-CPU3@/-CPU1@/-MD21@
Performance Specifications
CJ2M-
CPU13/33
20K steps
Items
CPU11/31
5K steps
CPU12/32
10K steps
CPU14/34
30K steps
CPU15/35
60K steps
User Memory
I/O Bits
2,560 bits
Normal Mode:
CJ2M-CPU3@: 270 μs *
CJ2M-CPU1@: 160 μs *
Overhead Processing Time
Execution Time
* The following time must be added when using EtherNet/IP tag data links for the CJ2M-CPU3@.
100 μs + (Number of words transferred × 1.8 μs)
The following time must be added when using Pulse I/O Modules with a CJ2M CPU Unit:
10 μs × Number of Pulse I/O Modules
Basic Instructions : 0.04 μs min.
Special Instructions : 0.06 μs min.
Processing
Speed
I/O Interrupts and
External Interrupts
Interrupt task startup time: 31 μs
Return time to cyclic task : 10 μs
Interrupts
Minimum time interval : 0.4 ms (set in 0.1 ms increments)
Interrupt task startup time: 30 μs
Return time to cyclic task : 11 μs
Scheduled
Interrupts
Total per CPU Rack or Expansion Rack: 10 Units max.;
Total per PLC: 40 Units max.
No limit
Maximum Number of Connectable Units
Basic I/O Units
However, a maximum of two CJ1W-INT01 Interrupt Input Units can be mounted.
Units for up to 96 unit numbers can be mounted. (Unit numbers run from 0 to 95. Units are allocated between
1 and 8 unit numbers.)
Special I/O Units
CJ2M-CPU3@: 15 Units max.
CJ2M-CPU1@: 16 Units max.
CPU Bus Units
2 Units max. *
Pulse I/O Modules
* Supported only by CJ2M CPU Units with unit version 2.0 or later. A Pulse I/O Module must be mounted.
Slots for which interrupts can be
Slots 0 to 4 on CPU Rack
used
Maximum Number of Expansion Racks
I/O Area
3 max.
2,560 bits (160 words) : Words CIO 0000 to CIO 0159
3,200 bits (200 words) : Words CIO 1000 to CIO 1199
6,400 bits (400 words) : Words CIO 1500 to CIO 1899
15,360 bits (960 words): Words CIO 2000 to CIO 2959
20 inputs, 12 outputs (CIO 2960 to CIO 2963)
1,440 bits (90 words) : Words CIO 3100 to CIO 3189
9,600 bits (600 words) : Words CIO 3200 to CIO 3799
Link Area
CPU Bus Unit Area
Special I/O Unit Area
Pulse I/O Area
Serial PLC Link Words
DeviceNet Area
CIO Area
3,200 bits (200 words) : Words CIO 1300 to CIO 1499 (Cannot be used for external I/O.)
37,504 bits (2,344 words): Words CIO 3800 to CIO 6143 (Cannot be used for external I/O.)
Internal I/O Area
Work Area
8,192 bits (512 words): Words W000 to W511 (Cannot be used for external I/O.)
8,192 bits (512 words): Words H000 to H511
Bits in this area maintain their ON/OFF status when PLC is turned OFF or operating mode is changed.
Words H512 to H1535: These words can be used only for function blocks. They can be used only for function
block instances (i.e., they are allocated only for internal variables in function blocks).
Holding Area
Read-only: 31,744 bits (1,984 words)
• 7,168 bits (448 words): Words A0 to A447
• 24,576 bits (1,536 words): Words A10000 to A11535 *
Read/write: 16,384 bits (1,024 words) in words A448 to A1471 *
Auxiliary Area
* A960 to A1471 and A10000 to A11535 cannot be accessed by CPU Bus Units, Special I/O Units, PTs, and
Support Software that do not specifically support the CJ2 CPU Units.
Temporary Area
Timer Area
Counter Area
16 bits: TR0 to TR15
4,096 timer numbers (T0000 to T4095 (separate from counters))
4,096 counter numbers (C0000 to C4095 (separate from timers))
32k words *
• DM Area words for Special I/O Units: D20000 to D29599 (100 words × 96 Units)
• DM Area words for CPU Bus Units: D30000 to D31599 (100 words × 16 Units)
* Bits in the EM Area can be addressed either by bit or by word. These bits cannot be addressed by CPU Bus
Units, Special I/O Units, PTs, and Support Software that do not specifically support the CJ2 CPU Units.
32k words/bank × 4 banks max.: E00_00000 to E3_32767 max. *
* Bits in the EM Area can be addressed either by bit or by word. These bits cannot be addressed by CPU Bus
Units, Special I/O Units, PTs, and Support Software that do not specifically support the CJ2 CPU Units.
DM Area
EM Area
32K words × 1 bank
Bank 0 hex
32K words × 4 banks
Bank 0 to 3 hex
Force-S/R Enabled Banks *1
IR0 to IR15
Index Registers
These are special registers for storing PLC memory addresses for indirect addressing. (Index Registers can
be set so that they are unique in each task or so that they are shared by all tasks.)
Cyclic Task Flag Area
Memory Card
128 flags
128 MB, 256 MB, or 512 MB
PROGRAM Mode: Programs are not executed. Preparations can be executed prior to program execution in
this mode.
MONITOR Mode: Programs are executed, and some operations, such as online editing, and changes to
Operating Modes
present values in I/O memory, are enabled in this mode.
Programs are executed. This is the normal operating mode.
RUN Mode:
*1. Force-setting/resetting bits in the EM Area is possible only for banks specified for the EM Area force-set/reset function.
6
CJ2M-CPU3@/-CPU1@/-MD21@
CJ2M-
Items
CPU11/31
Normal Mode
CPU12/32
CPU13/33
CPU14/34
CPU15/35
Execution Mode
Ladder Logic (LD),
Sequential Function Charts (SFC),
Structured Text (ST), and
Instruction Lists (IL)
Programming Languages
Maximum number of definitions
Maximum number of instances
256
2,048
2,048
Function
Blocks
256
FB Program Area
20K steps
Cyclic tasks
Type of Tasks
Interrupt tasks (Power OFF interrupt tasks, scheduled interrupt tasks, I/O interrupt tasks, and external interrupt
tasks, and input interrupt tasks *2)
Tasks
Cyclic tasks: 128
Interrupt tasks: 256
Number of Tasks
Type of Symbols
(Interrupt tasks can be defined as cyclic tasks to create extra cyclic tasks. Therefore, the total number of cyclic
tasks is actually 384 max.)
• Local symbols: Can be used only within a single task in the PLC.
• Global symbols: Can be used in all tasks in the PLC.
• Network symbols (tags)*: I/O memory in the CPU Unit can be externally accessed using symbols,
depending on parameter settings.
* Supported only by the CJ2M-CPU3@.
• BOOL (bit)
• UINT (one-word unsigned binary)
• UDINT (two-word unsigned binary)
• ULINT (four-word unsigned binary)
• INT (one-word signed binary)
• DINT (two-word signed binary)
• LINT (four-word signed binary)
• UINT BCD (one-word unsigned BCD) *3
• UDINT BCD (two-word unsigned BCD) *3
• ULINT BCD (four-word unsigned BCD) *3
• REAL (two-word floating-point)
• LREAL (four-word floating-point)
• CHANNEL (word) *3
Data Type of Symbols
Symbols
(Variables)
• NUMBER (constant or number) *3
• WORD (one-word hexadecimal)
• DWORD (two-word hexadecimal)
• LWORD (four-word hexadecimal)
• STRING (1 to 255 ASCII characters)
• TIMER (timer) *4
• COUNTER (counter) *4
• User defined data types (data structures)
Maximum Size of Symbol
32k words
Array Symbols (Array Variables)
Number of Array Elements
One-dimensional arrays
32,000 elements max.
Number of Registrable Network
Symbols (Tags) *5
2,000 max.
Length of Network Symbol (Tag)
Name *5
Encoding of Network Symbols (Tags)
Memory Capacity
255 bytes max.
UTF-8
*5
8,000 words
(The EM Area can be specified from the CX-Programmer to use up to 32K words multiplied by the number of
banks supported by the CPU Unit model.)
Number of Samplings
Sampling Cycle
Bits = 31, one-word data =16, two-word data = 8, four-word data = 4
1 to 2,550 ms (Unit: 1 ms)
Data
Tracing
ON/OFF of specified bit
Data comparison of specified word
Trigger Conditions
Data size: 1 word, 2 words, 4 words
Comparison Method: Equals (=), Greater Than (>), Greater Than or Equals (≥), Less Than (<), Less Than or
Equals (≤), Not Equal (≠)
Delay Value
−32,768 to +32,767 ms
Memory Card (128, 256, or 512 Mbytes) (Use the Memory Cards provided by OMRON.)
EM file memory (Part of the EM Area can be converted for use as file memory.)
File Memory
Source/
Function block program memory,
Comment comment file, program index file,
Capacity: 1 Mbytes
Memory
symbol tables
Logical Ports
8 ports (Used for SEND, RECV, CMND, PMCR, TXDU, and RXDU instructions.)
64 ports (Used for SEND2, RECV2, CMND2, and PMCR2 instructions.)
LogicalPortsfor
Communications
Extended Logical
Ports
Commu-
nications
Class 3
(Connection Type)
Number of connections: 64
CIP
Communications
Specification
UCMM (Non-
Maximum number of clients that can communicate at the same time: 32
connection Type) Maximum number of servers that can communicate at the same time: 40
*2. Supported only by CJ2M CPU Units with unit version 2.0 or later. A Pulse I/O Module must be mounted.
*3. Cannot be used in Function blocks.
*4. Can be used only in Function blocks.
*5. Supported only by the CJ2M-CPU3@.
7
CJ2M-CPU3@/-CPU1@/-MD21@
CJ2M-
Item
CPU11/31
CPU12/32
CPU13/33
CPU14/34
CPU15/35
Peripheral (USB) Port
Baud Rate
USB 2.0-compliant B-type connector
12 Mbps max.
Transmission Distance
5 m max.
• CJ2M-CPU1@ interface: Conforms to EIA RS-232C.
• CJ2M-CPU3@: No serial ports with default system
One of the following Serial Option Boards can be mounted.
• CP1W-CIF01 RS-232C Option Board
Serial Port
• CP1W-CIF11 RS-422A/485 Option Board (not isolated, max. transmission distance: 50 m)
• CP1W-CIF12 RS-422A/485 Option Board (isolated, max. transmission distance: 500 m)
Communications Method
Synchronization Method
Baud Rate
Half-duplex
Start-stop
0.3, 0.6, 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, or 115.2 (kbps)
Transmission Distance
EtherNet/IP Port *6
Media Access Method
Modulation
15 m max.
−
CSMA/CD
Baseband
Transmission Paths
Baud Rate
Star
100 Mbps (100Base-TX)
Transmission Media
Transmission Distance
Shielded twisted-pair (STP) cable; Categories: 5, 5e
100 m (between ethernet switch and node)
Number of Cascade Connections
No restrictions if ethernet switch is used.
CIP Communications: Tag Data Links
Number of Connections
32
1 to 10,000 ms (Unit: 0.5 ms)
Can be set for each connection. (Data will be refreshed at the set interval, regardless of the number
of nodes.)
Packet Interval (Refresh period)
Permissible Communications Band 3,000 packets per second *7
Commu-
nications
Number of Registerable Tag
Type of Tags
32
CIO, DM, EM, HR, WR, and Network symboles
Number of Tags per Connection
8 (Seven tags if PLC status is included in the segment.)
Maximum Link Data Size per Node
(total size of all tags)
640 words
640 words *8
Maximum Data Size per Connection
Number of Registrable Tag Set
Maximum Tag Set Size
(Data is synchronized within each connection.)
32 (1 connection = 1 segment)
640 words *8
(One word is used when PLC status is included in the segment.)
Maximum Number of Tags
Refreshable in a Single Cycle of
CPU Unit *9
Output/send (CPU Unit to EtherNet/IP): 32
Input/receive (EtherNet/IP to CPU Unit): 32
Data Size Refreshable in a Single
Cycle of CPU Unit *9
Output/send (CPU to EtherNet/IP) : 640 words
Input/receive (EtherNet/IP to CPU): 640 words
Change of Tag Data Link Parameter
Settings during Operation
OK *10
Multi-cast Packet Filter *11
OK
CIP Communications: Explicit
Messages
−
Class 3 (Connection Type)
Number of connections: 128
Maximum number of clients that can communicate at the same time : 16
Maximum number of servers that can communicate at the same time: 16
UCMM (Non-connection Type)
OK
CIP Routing
(CIP routing is enabled for the following remote Units: CJ1W-EIP21, CJ2H-CPU6@-EIP, CJ2M-
CPU3@, and CS1W-EIP21.)
FINS Communications
FINS/UDP
−
OK
FINS/TCP
16 connections max.
Conforms to A5.
EtherNet/IP Conformance Test
10Base-T/100Base-TX
Auto Negotiation/Fixed Setting
EtherNet/IP Interface
*6. The EtherNet/IP port is built into CJ2M-CPU3@ only.
*7. "Packets per second" is the number of communications packets that can be processed per second.
*8. Unit version 2.0 of built-in EtherNet/IP section: 20 words.
*9. If the maximum number is exceeded, refreshing will require more than one CPU Unit cycle.
*10.When changing parameters, however, the EtherNet/IP port where the change is made will be restarted. In addition, a timeout will temporarily
occur at the other node that was communicating with that port, and it will then recover automatically.
*11.The EtherNet/IP port supports an IGMP client, so unnecessary multicast packets are filtered by using an Ethernet switch that supports IGMP
snooping.
8
CJ2M-CPU3@/-CPU1@/-MD21@
Function Specifications
Functions
Description
A minimum cycle time can be set.
(0.2 to 32,000 ms; Unit: 0.1 ms)
Minimum Cycle Time
The minimum cycle time setting can be changed in MONITOR mode.
Cycle Time
Management Cycle Time Monitoring
The cycle time is monitored.
(0.01 to 40,000 ms; Unit: 0.01 ms)
Instructions with long execution times can be executed over multiple cycles to prevent
fluctuations in the cycle time.
Background Processing
Cyclic Refreshing Cyclic refreshing of Basic I/O Units, Special I/O Units, and CPU Bus Units
Immediate
Refreshing
BasicI/OUnits,
I/O refreshing by immediate refreshing instructions
I/O Refreshing
Special I/O
Units, and CPU
Bus Units
Refreshing by
I/O refreshing by IORF instruction
IORF
Unit Recognition at Startup
Input Response Time Setting
The number of units recognized when the power is turned ON is displayed.
The input response times can be set for Basic I/O Units. The response time can be
increased to reduce the effects of chattering and noise at input contacts. The response
time can be decreased to enable detecting shorter input pulses.
All of the outputs on Basic I/O Units can be turned OFF when an error occurs in RUN or
MONITOR mode.
Load OFF Function
Basic I/O Units
Unit (I/O)
Management
Alarm information can be read from Basic I/O Units and the number of Units recognized
can be read.
Basic I/O Unit Status Monitoring
Reading/writing data using
instructions for specific Units
Special instructions can be used to read/write required data for specific Units at high
speed.
Special I/O
Units and CPU
Bus Units
Unit Restart Bits to Restart Units
Automatic I/O Allocation at Startup
A Special I/O Unit or CPU Bus Unit can be restarted.
I/O words can be automatically allocated to the Basic I/O Units that are connected in the
PLC to start operation automatically without registering Units into I/O tables.
Configuration
Management
The current unit configuration can be registered in I/O tables to prevent it from being
changed, to reserve words, and to set words.
I/O Table Creation
Rack/Slot First Word Settings
The first words allocated to a Units on the Racks can be set.
The status of I/O memory can be held when the operating mode is changed or power is
Holding I/O Memory when Changing Operating Modes turned ON. The forced-set/reset status can be held when the operating mode is changed
or power is turned ON.
Files (such as program files, data files, and symbol table files) can be stored in Memory
Card, EM File Memory, or Comment Memory.
File Memory
Memory
Management
The user program and Parameter Area can be backed up to an internal flash memory
when they are transferred to the CPU Unit.
Built-in Flash Memory
EM File Function
Parts of the EM Area can be treated as file memory.
I/O comments can be stored as symbol table files in a Memory Card, EM file memory,
or comment memory.
Storing Comments
EM Configuration
EM Area can be set as trace memory or EM file memory.
A program file and parameter files can be read from a Memory Card when the power is
turned ON.
Automatic File Transfer at Startup
Memory
Cards
Program Replacement during PLC Operation
User programs can be transferred from a Memory Card to CPU Unit during operation.
Function for Reading and Writing Data from a Memory Data in I/O memory in the CPU Unit can be written to a Memory Card in CSV/TXT format.
Card Data in CSV/TXT format in the Memory Card can be read to I/O memory in the CPU Unit.
9
CJ2M-CPU3@/-CPU1@/-MD21@
Function
Description
Communications
Peripheral (USB)
Port
−
Bus for communications with various kinds of Support Software running on a personal
computer. High-speed communications are supported.
Peripheral Bus
Serial Port (Option) *12
Application is possible when a Serial Communications Option Board is mounted.
Host Link commands or FINS commands placed between Host Link headers and terminators
can be sent from a host computer or PT to read/write I/O memory, read/control the operating
mode, and perform other operations for PLC.
Host Link (SYSWAY) Communications
I/O instructions for communications ports (such as TXD/RXD instructions) can be used for
data transfer with peripheral devices such as bar code readers and printers.
No-protocol Communications
NT Link Communications
I/O memory in the PLC can be allocated and directly linked to various PT functions, including
status control areas, status notification areas, touch switches, lamps, memory tables, and
other objects.
Bus for communications with various kinds of Support Software running on a personal
computer. High-speed communications are supported.
Peripheral Bus
Serial Gateway
Serial PLC Links
This gateway enables receiving and automatically converting FINS to the CompoWay/F.
Data is exchanged between CPU Units using serial ports without communications
programming. PTs set to the 1:N NT Link protocol can be included in the network.
100Base-TX/10Base-T
Protocols: TCP/IP, UDP, ARP, ICMP (ping only), BOOTP
Applications: FINS, CIP, SNTP, DNS (Client), FTP (Server)
EtherNet/IP Port *13
CIP
Tag Data Links
Programless cyclic data exchanges with the devices on the EtherNet/IP network.
Any CIP commands can be received from the devices on the EtherNet/IP network.
Communications
Service
Message Communications
FINS
Communications Message Communications
Service
Any FINS commands can be transferred with the devices on the EtherNet/IP network.
Tasks can be executed at a specified interval (minimum of 0.2 ms, Unit: 0.1 ms).
Scheduled Interrupts
When MSKS(690) is executed, the internal timer is restarted and the time to first interrupt is
set to a fixed value.
Resetting and restarting with MSKS(690)
Reading present value of internal timer with
MSKS(690)
MSKS(690) can be used to read the time that has elapsed until the schedule interrupt is started
or since the previous scheduled interrupt.
Interrupt
Power OFF Interrupts
I/O Interrupt Tasks
A task can be executed when CPU Unit's power turns OFF.
A task can be executed when an input signal is input to an Interrupt Input Unit.
A task can be executed when interrupts are requested from a Special I/O Unit or a CPU Bus Unit.
External Interrupt Tasks
Clock data is stored in memory.
Accuracy (Accuracy depends on the temperature.)
Ambient temperature of 55°C : −3.5 to +0.5 min error per month
Ambient temperature of 25°C : −1.5 to +1.5 min error per month
Ambient temperature of 0°C : −3 to +1 min error per month
Clock Function
Operation Start Time Storage
Operation Stop Time Storage
The time when operating mode was last changed to RUN mode or MONITOR mode is stored.
The last time a fatal error occurred or the last time the operating mode was changed to
PROGRAM mode is stored.
Clock
Startup Time Storage
The time when the power was turned ON is stored.
Power Interruption Time Storage
Total Power ON Time Calculation
Power ON Clock Data Storage
User Program Overwritten Time Storage
Parameter Date Storage
The time when the power is turned OFF is stored.
The total time that the PLC has been ON is stored in increments of 10 hours.
A history of the times when the power was turned ON is stored.
The time that the user program was last overwritten is stored.
The time when the Parameter Area was overwritten is stored.
Holding Area data, DM Area data, EM Area data, Counter Completion Flags, and counter
present values are held even when power is turned OFF. CIO Area, Work Area, some Auxiliary
Area data, and Timer Completion Flags, timer present values, index registers, and data
registers can be protected by turning ON the IOM Hold Bit in the Auxiliary Area, and by also
setting the IOM Hold Bit to “Hold” in the PLC Setup.
Memory Protection
Power
Supply
Management
The detection time for power interruptions can be set.
AC power supply: 10 to 25 ms (variable)
DC power supply: 2 to 5 ms (CJ1W-PD022) or 2 to 20 ms (CJ1W-PD025)
Power OFF Detection Time Setting
The detection of power interruptions can be delayed: 0 to 10 ms
(Not supported by the CJ1W-PD022.)
Power OFF Detection Delay Time
Number of Power Interruptions Counter
The number of times power has been interrupted is counted.
*12.A Serial Option Board is required to use a serial port for the CJ2M-CPU3@ CJ2M CPU Unit.
*13.Supported only by the CJ2M-CPU3@.
10
CJ2M-CPU3@/-CPU1@/-MD21@
Function
Description
Function Blocks
Standard programming can be encapsulated as function blocks.
Languages in Function Block Definitions
Ladder programming or structured text
The program can be changed during operation (in MONITOR or PROGRAM mode), except for
block programming areas.
Online Editing
Specified bits can be set or reset.
Force-set/reset to the EM Area is enabled by specifying a start bank in parameter setting.
Force-Set/Reset
Differentiate Monitoring
Data Tracing
ON/OFF changes in specified bits can be monitored.
The specified I/O memory data can be stored in the trace memory in the CPU Unit. The
triggers can be set.
Debugging
The trace data can be uploaded during data tracing using CX-Programmer, which enables
continuously logging the data by constantly uploading the trace data.
Continuous Tracing
Automatically starting tracing when operation Data tracing can be automatically started when operation is started (i.e., when the operating
starts
mode is changed from PROGRAM mode to MONITOR or RUN mode).
Storing Location of Error when an Error Occurs
The location and task number where execution stopped for a program error is recorded.
The programs can be checked for items such as no END instruction and FALS/FAL errors at
startup.
Program Check
A function is provided to store predefined error codes in CPU Unit, error information, and time
at which the error occurred.
Error Log
CPU Error Detection
CPU Unit WDT errors are detected.
Errors can be generated for user-specified conditions: Non-fatal errors (FAL) and fatal errors
(FALS).
User-defined Failure Diagnosis
Program section time diagnosis and program section logic diagnosis are supported (FPD
instruction).
Load OFF Function
RUN Output
This function turns OFF all outputs from Output Units when an error occurs.
The RUN output from the CJ1W-PA205R turns ON while CPU Unit is in RUN mode or
MONITOR mode.
This function provides alarm information from Basic I/O Units that have load short-circuit
protection.
Basic I/O Load Short-circuit Detection
Failure Point Detection
The time and logic of an instruction block can be analyzes using the FPD instruction.
This function indicates when the CPU Unit is on standby because all Special I/O Units and
CPU Bus Units have not been recognized at the startup in RUN or MONITOR mode.
CPU Standby Detection
System FAL Error Detection This function generates a non-fatal (FAL) error when the user-defined conditions are met in
(User-defined non-fatal error) program.
Duplicate Refreshing Error
Detection
This function detects an error when an immediate refreshing Instruction in an interrupt task is
competing with I/O refreshing of a cyclic task.
Basic I/O Unit Error Detection This function detects the errors in Basic I/O Units.
Backup Memory Error
Detection
This function detects errors in the memory backup of the user programs and parameter area
(backup memory).
Self-
diagnosis
and
PLC Setup Error Detection
This function detects setting errors in the PLC Setup.
This function detects an error when there is an error in data exchange between the CPU Unit
and a CPU Bus Unit.
CPU Bus Unit Error Detection
Restoration
Non-fatal Error
Detection
Special I/O Unit Error
Detection
This function detects an error when there is an error in data exchange between the CPU Unit
and a Special I/O Unit.
Tag Memory Error Detection *14 This function detects errors in tag memory.
This function detects an error when a battery is not connected to the CPU Unit or when the
battery voltage drops.
Battery Error Detection
CPU Bus Unit Setting Error
Detection
This function detects an error when the model of a CPU Bus Unit in the registered I/O tables
does not agree with the model that is actually mounted in the PLC.
Special I/O Unit Setting Error This function detects an error when the model of a Special I/O Unit in the registered I/O tables
Detection does not agree with the model of Unit that is actually mounted.
Option Board Error Detection *14 This function detects the errors in Serial Option Board mounting status.
Memory Error Detection
This function detects errors that occur in memory of the CPU Unit.
This function detects when an error occurs in data transfers between the Units mounted in
Rack slots and the CPU Unit and detects when the End Cover is not connected to the CPU
Rack or an Expansion Rack.
I/O Bus Error Detection
This function detects an error when the same unit number is set for two or more Units, the
same word is allocated to two or more Basic I/O Units, or the same rack number is set for two
or more Racks.
Unit/Rack Number
Duplication Error
Fatal Error
Detection
Too Many I/O Points Error
Detection
This function detects an error when the total number of I/O points set in the I/O tables or the
number of Units per Rack exceeds the specified range.
This function detects an error when the number of Units in the registered I/O tables does not
agree with the actual number of Units that is mounted, or an Interrupt Unit has been connected
in the wrong position, i.e., not in slot 0 to 4.
I/O Setting Error Detection
*14.Supported only by the CJ2M-CPU3@.
11
CJ2M-CPU3@/-CPU1@/-MD21@
Function
Program Error Detection
Description
This function detects errors in programs.
Instruction Processing
Error Detection
This function detects an error when the given data value is invalid when executing an
instruction, or execution of instruction between tasks was attempted.
Indirect DM/EM BCD
Error Detection
This function detects an error when an indirect DM/EM address in BCD mode is not BCD.
Illegal Area Access Error This function detects an error when an attempt is made to access an illegal area with an
Detection
instruction operand.
No END Error Detection
This function detects an error when there is no END instruction at the end of the program.
This function detects an error when there are no tasks that can be executed in a cycle, there
is no program for a task, or the execution condition for an interrupt task was met but there is
no interrupt task with the specified number.
Fatal Error
Detection
Task Error Detection
Self-
diagnosis
and
Differentiation Overflow
Error Detection
This function detects an error when too many differentiated instructions are entered or deleted
during online editing (131,072 times or more).
Invalid Instruction Error
Detection
This function detects an error when an attempt is made to execute an instruction that is not
defined in the system.
Restoration
User Program Area
This function detects an error when instruction data is stored after the last address in user
Overflow Error Detection program area.
Cycle Time Exceeded Error
Detection
This function monitors the cycle time (10 to 40,000 ms) and stops the operation when the set
value is exceeded.
System FALS Error Detection This function generates a fatal (FALS) error when the user-defined conditions are met in
(User-defined Fatal Error)
program.
Fatal Error
Detection
(Continued from
previous page)
This function detects an error when a user program includes a function that is not supported
by the current unit version.
Version Error Detection
Memory Card Transfer Error This function detects an error when the automatic file transfer from Memory Card fails at
Detection
startup.
This function collectively backs up the data in CPU Unit (user programs, parameters, and I/O
memory) and internal backup data in the I/O Units.
Simple Backup Function
A function that allows the PLC to use Network Communications Instruction to send required
FINS commands to a computer connected via a Host Link
Unsolicited Communications
Host Link communications can be used for remote programming and remote monitoring
through a Controller Link, Ethernet, DeviceNet, or SYSMAC LINK Network. Communications
across network layers can be performed.
Remote Programming and Monitoring
Maintenance
Controller Link or Ethernet : 8 layers
DeviceNet or SYSMAC LINK : 3 layers
Direct
Serial
Connection
This function enables automatically connecting to the PLC online when the CX-Programmer
is directly connected by a serial connection (peripheral (USB) port or serial port).
Automatic Online Connection via
Network
Via
Networks
This function enables connecting the CX-Programmer online to a PLC that is connected via an
EtherNet/IP network.
This function protects reading and displaying programs and tasks using passwords.
Write protection: Set using the DIP switch.
Read Protection using Password
Read protection: Set a password using the CX-Programmer.
FINS Write Protection
Unit Name Function
This function prohibits writing by using FINS commands sent over the network.
Security
This function allows the users to give any names to the Units. Names are verified at online
connection to prevent wrong connection
This function sets operation protection by identifying hardware using the user programs
according to lot numbers stored in the Auxiliary Area.
Hardware ID Using Lot Numbers
12
CJ2M-CPU3@/-CPU1@/-MD21@
Specifications for Pulse I/O Functions
The following functions of CJ2M can be used by installing one or two Pulse I/O Modules. Each module has 10 high-speed inputs and 6 high-speed
outputs. Pulse I/O Modules can be installed on CJ2M CPU Units with Unit Version 2.0 or Later.
•
The inputs can be used as general-purpose inputs, interrupt inputs, quick-response inputs, high-speed counters, or origin search inputs.
• The outputs can be used as general-purpose outputs, pulse outputs, origin search outputs, or PWM outputs.
One Pulse I/O Module can be mounted
CJ2M CPU Unit
(Standard or Simple Model)
Two Pulse I/O Modules can be mounted
CJ2M CPU Unit
(Standard or Simple Model)
Pulse I/O Module
Pulse I/O Module
Connected
Connected
Connected
Note: The Pulse I/O Module closest
to the CPU Unit is Pulse I/O
Module 0 and the other one
is Pulse I/O Module 1.
Pulse I/O Module 0
Pulse I/O Module 1
Pulse I/O Module 0
Performance Specifications
Item
Description
CJ2M-MD211 (Sinking-type)
CJ2M-MD212 (Sourcing-type )
Model of Pulse I/O Modules
External Interface
40-pin MIL connector
Can be used as normal inputs, interrupt inputs, quick-response inputs, or high-speed counter inputs.
(Function of each input must be selected in the PLC Setup.)
Input method: Line-driver input or 24-VDC input (selected by wiring)
Pulse Inputs
20 max. (10 per Pulse I/O Module)
Input constants: Set in the PLC Setup (0, 0.5, 1, 2, 4, 8, 16, or 32 ms). Default: 8 ms
Normal Inputs
Interrupt Inputs and
Quick-response Inputs
8 max. (4 per Pulse I/O Module)
Input signal minimum ON pulse width: 30 μs
4 max. (2 per Pulse I/O Module)
Input method: Differential-phase (×4) pulses, pulse + direction, up/down pulses, or increment pulse
Maximum response frequency: 50 kHz for differential phases or 100 kHz for single phase
Counting mode: Linear mode or circular (ring) mode
Count value: 32 bits
Counter reset: Phase Z + software reset or software reset
Control method: Target-value comparison or range comparison
Gate function: Supported
High-speed Counter Inputs
Pulse I/O
Can be used as normal outputs, pulse outputs, or PWM outputs. (Function of each output must be selected
in the PLC Setup.)
Output method: Sinking or sourcing transistor outputs (The method is determined by Pulse I/O Module model.)
Pulse Outputs
Normal Outputs
12 max. (6 per Pulse I/O Module)
4 max. (2 per Pulse I/O Module)
Output method: CW/CCW or pulse + direction (The method is determined by the I/O wiring and the
instructions used in the ladder program.)
Output frequency: 1 pps to 100 kpps (in increments of 1 pps)
Output Mode: Continuous mode (for speed control) or independent mode (for position control)
Output pulses: Relative coordinates: 0000 0000 to 7FFF FFFF hex (0 to 2,147,483,647 pulses)
Absolute coordinates: 8000 0000 to 7FFF FFFF hex (−2,147,483,648 to 2,147,483,647)
Acceleration/deceleration curves: Linear or S-curve
Pulse Outputs
Origin search function: Supported
4 max. (2 per Pulse I/O Module)
Output frequency: 0.1 to 6,553.5 Hz (in 0.1-Hz increments) or 1 to 32,800 Hz (in 1-Hz increments)
Duty ratio: 0.0% to 100.0% (in 0.1% increments)
PWM Outputs
Function Specifications
Functions
Description
Normal Inputs
Input signals are read during I/O refreshing and stored in I/O memory.
An interrupt task can be started when an input signal turns ON or turns OFF.
Interrupt Inputs
Pulse Input
Functions
Quick-response Inputs Input signals that are shorter than the cycle time are read and stored in I/O memory.
High-speed Counter Inputs High-speed pulse signals are counted. Interrupt tasks can also be started.
Pulse I/O
Functions
Normal Outputs
Pulse Outputs
PWM Outputs
The status of I/O memory is output during I/O refreshing.
Pulse
Output
Functions
A pulse signal is output with the specified frequency and number of pulses at a fixed duty ratio (50%).
A pulse signal is output at the specified duty ratio.
The origin point of the machine is determined according to the specified origin search parameters while
actually outputting pulses and using the origin and origin proximity input signals as conditions. (Pulse inputs
and outputs are also used for this function.)
Origin Searches
Input Interrupt Function
A task is started for an interrupt input from a Pulse I/O Module or for a high-speed counter input.
Interrupt tasks are executed when the interrupt input turns ON or turns OFF.
Direct Mode: An interrupt task is executed each time an input signal changes.
Counter Mode: Changes in the input signal are counted up or down and the interrupt task is executed when
the counter counts out. (The maximum response frequency is 3 kHz.)
Input Interrupts
Interrupt
An interrupt task is executed when preset comparison conditions for a high-speed counter are met.
Target-value comparison: The interrupt task is executed when the count matches a specified value.
Range comparison: The interrupt task is executed when the count enters or leaves a specified range of values.
High-speed Counter Interrupts
13
CJ2M-CPU3@/-CPU1@/-MD21@
Allocating Functions I/O signals
Pulse I/O Module 0 (on the right)
Terminal symbol
IN 00
IN 01
IN 02
IN 03
IN 04
IN 05
IN 06
IN 07
IN 08
IN 09
OUT 00 OUT 01 OUT 02 OUT0 3 OUT 04 OUT 05
Address
2960
2961
Bit
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
Normal
input 0
Normal
input 1
Normal
input 2
Normal
input 3
Normal Normal Normal Normal Normal Normal
Normal inputs
---
---
---
---
---
---
---
---
---
---
---
---
input 4 input 5
input 6
input 7
input 8
input 9
Interrupt inputs
(Direct Mode/
Counter Mode)
Interrupt Interrupt Interrupt Interrupt
input 0
---
---
---
---
---
---
---
---
input 1
input 2
input 3
Quick
Quick
Quick
Quick
Quick response
inputs
response response response response
input 0
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
Inputs
input 1
input 2
Highspeed Highspeed
counter 1 counter 0
(phase- Z/ (phase- Z/
reset) reset)
input 3
High-
High-
High-
High-
speed
speed
speed
speed
counter 1 counter 1 counter 0 counter 0
(phase-A, (phase-B, (phase-A, (phase-B,
increment, decrement, increment, decrement,
High-speed
counters
---
---
---
---
or count
input)
ordirection or count
input) input)
ordirection
input)
Normal Normal Normal Normal Normal Normal
output 0 output 1 output 2 output 3 output 4 output 5
Normal outputs
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
Pulse
Pulse
Pulse
Pulse
CW/CCW
outputs
---
---
---
---
---
---
---
---
output0 output0 output1 output1
---
---
---
---
(CW)
Pulse
(CCW) (CW)
Pulse Pulse
(CCW)
Pulse
Out
puts
Pulse +
Pulse
direction
out
---
---
---
---
---
---
---
---
output0 output1 output0 output1
outputs
pulse)
(pulse) (direction) (direction)
puts
Variable
duty
ratio
PWM
output 0 output 1
PWM
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
outputs
Origin
Origin
Origin
Origin
Origin
Origin
Pulse
output 0 output 1
error error
counter counter
Pulse
search 0 search 0 search 1 search 1 search0 search1
(Origin
Input
(Origin
Proximity Input
Input
Signal)
(Origin
(Origin
Proximity ning
Input
Signal)
(Positio (Positio
ning
Complet Complet
ed ed
Signal) Signal)
Origin search
Signal)
Signal)
---
---
---
---
---
reset
reset
output
output
(operatio (operatio
n modes n modes
1 and 2) 1 and 2)
Pulse I/O Module 1 (on the left)
Terminal symbol
IN 10
IN 11
IN 12
IN 13
IN 14
IN 15
IN 16
IN 17
IN 18
IN 19 OUT 10 OUT 11 OUT 12 OUT 13 OUT 14 OUT 15
Address
2962
2963
Bit
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
Normal
Normal
Normal
Normal
Normal Normal Normal Normal Normal Normal
Normal inputs
---
---
---
---
---
---
---
---
---
---
---
---
input 10 input 11 input 12 input 13 input 14 input 15 input 16 input 17 input 18 input 19
Interrupt inputs
(Direct Mode/
Counter Mode)
Interrupt Interrupt Interrupt Interrupt
---
---
---
---
---
---
---
---
---
---
---
---
input 4
Quick
input 5
Quick
input 6
Quick
input 7
Quick
Quick response
inputs
response response response response
input 4
---
---
---
---
---
---
---
---
---
---
---
---
Inputs
input 5
input 6
Highspeed Highspeed
counter 3 counter 2
(phase- Z/ (phase- Z/
reset) reset)
input 7
High-
speed
High-
speed
High-
speed
High-
speed
counter 3 counter 3 counter 2 counter 2
(phase-A, (phase-B, (phase-A, (phase-B,
increment, decrement, increment, decrement,
High-speed
counters
---
---
---
---
or count
input)
ordirection or count
input) input)
ordirection
input)
Normal Normal Normal Normal Normal Normal
output 6 output 7 output 8 output 9 output 10 output 11
Normal outputs
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
Pulse
Pulse
Pulse
Pulse
CW/CCW
outputs
---
---
---
---
---
---
---
---
output2 output2 output3 output3
---
---
---
---
(CW)
Pulse
(CCW) (CW)
Pulse Pulse
(CCW)
Pulse
Out
puts
Pulse +
Pulse
direction
out
---
---
---
---
---
---
---
---
output2 output3 output2 output3
outputs
pulse)
(pulse) (direction) (direction)
puts
Variable
duty
ratio
PWM
output 2 output 3
PWM
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
outputs
Origin
Origin
Origin
Origin
Origin
Origin
Pulse
output 2 output 3
error error
counter counter
Pulse
search 2 search 2 search 3 search 3 search2 search3
(Origin
Input
Signal)
(Origin
Proximity Input
Input
Signal)
(Origin
(Origin
Proximity ning
Input
Signal)
(Positio (Positio
ning
Complet Complet
ed ed
Signal) Signal)
Origin search
Signal)
---
---
---
---
---
reset
reset
output
output
(operatio (operatio
n modes n modes
1 and 2) 1 and 2)
14
CJ2M-CPU3@/-CPU1@/-MD21@
Specifications of Pulse Input Functions
Interrupt Inputs
Item
Number of interrupt inputs
Allocated bit
Direct Mode
Counter Mode
Max. 8 inputs
CIO 2960 and CIO 2962, bits 00 to 03
ON-to-OFF or OFF-to-ON transitions
140 to 147 (fixed)
Interrupt detection method
Interrupt task numbers
Incrimenting or decrementing
(Set with the MSKS(690) instruction.)
Counting method
---
0001 to FFFF hex (16 bits)
(Set in A532 to A535 and A544 to A547.)
Counting range
---
---
---
Response frequency
Single-phase: 3 kHz x 8 inputs
Storage locations for PVs for interrupt inputs
in Counter Mode
A536 to A539 and A548 to A551
Quick-response inputs
Item
Specifications
Number of Quick-response inputs
Max. 8 inputs
Signals that are shorter than the cycle time are latched for one PLC cycle, so they can be detected in the PLC program.
Minimum detectable pulse width is 30 μs.
Quick-response inputs
High-speed Counter Inputs
Item
Description
Number of High-speed Counter Inputs
Pulse input method (counting mode)
Max. 4 inputs
Incremental pulse inputs
Differential phase input (4×) Up/down inputs
Pulse + direction inputs
Increment pulse
Phase A
Phase B
Phase Z
Up pulse
Down pulse
Reset
Pulse
Input signals
---
---
Direction
Reset
Frequency and number of high-speed
counters
100 kHz, 2 inputs × 2 I/O
Modules
50 kHz, 2 inputs × 2 I/O
Modules
100 kHz, 2 inputs
× 2 I/O Modules
100 kHz, 2 inputs
× 2 I/O Modules
Counting mode
Linear mode or ring mode
Linear mode:
8000 0000 to 7FFF FFFF hex
0000 0000 to FFFF FFFF hex (for increment pulse)
Count value
Ring mode:
0000 0000 to Max. ring value
High-speed counter 0: A271 (upper 4 digits) and A270 (lower 4 digits)
High-speed counter 1: A273 (upper 4 digits) and A272 (lower 4 digits)
High-speed counter 2: A317 (upper 4 digits) and A316 (lower 4 digits)
High-speed counter 3: A319 (upper 4 digits) and A318 (lower 4 digits)
Refreshed during overseeing processing. Use PRV(881) to read the most recent PVs.
High-speed counter PV storage locations
Data format: 8 digit hexadecimal
• Linear mode:
8000 0000 to 7FFF FFFF hex
0000 0000 to FFFF FFFF hex (for increment pulse)
0000 0000 to Max. ring value
• Ring mode:
Target value comparison Up to 48 target values and corresponding interrupt task numbers can be registered.
Control method
Up to 8 or up to 32 ranges can be registered, with a separate upper limit, lower limit, and interrupt task number for each
Range Comparison
range.
• Phase-Z + Software reset
The counter is reset when the phase-Z input goes ON while the Reset Bit (A531.00 to A531.03) is ON.
Counter reset method
• Software reset
The counter is reset when the Reset Bit (A531.00 to A531.03) is turned ON.
Operation can be set to stop or continue the comparison operation when the high-speed counter is reset.
15
CJ2M-CPU3@/-CPU1@/-MD21@
Specifications of Pulse Output Functions
Position Control and Speed Control
Item
Specifications
Number of Pulse Outputs
Output mode
Max. 4 outputs (Pulse Output 00 to 03)
Continuous mode (for speed control) or independent mode (for position control)
Positioning (independent mode) instructions PULS (886) and SPED (885), PULS (886) and ACC (888), or PULS2 (887) instruction
Speed control (continuous mode)
SPED (885) and ACC (888) instructions
instructions
Origin (origin search and origin return)
ORG (889) instruction
instructions
Interrupt feeding instruction
Output frequency
IFEED (892) instruction
1 pps to 100 kpps (1 pps units), two pulse outputs × 2 Pulse I/O Modules
Frequency acceleration and deceleration
rates
Set in increments of 1 pps for acceleration/deceleration rates from 1 to 65,535 pps (every 4 ms).
The acceleration and deceleration rates can be set independently only with the PLS2 (887) instruction.
Changing SVs during instruction execution The target frequency, acceleration/deceleration rate, and target position can be changed.
Pulse output method
CW/CCW or pulse + direction
Relative coordinates: 0000 0000 to 7FFF FFFF hex (Accelerating or decelerating in either direction: 2,147,483,647)
Absolute coordinates: 8000 0000 to 7FFF FFFF hex (−2,147,483,648 to 2,147,483,647)
Number of output pulses
Absolute coordinates are specified automatically when the origin location has been defined by changing the pulse
output PV with the INI (880) instruction or performing an origin search with the ORG(889) instruction. Relative
coordinates must be used when the origin is undefined.
Relative/absolute coordinate specifications
for pulse output PVs
The pulse type can be specified with an operand in the PULS (886) or PLS2 (887) instruction.
Absolute pulses can be used when absolute coordinates are specified for the pulse output PV, i.e. the origin location
has been defined. Absolute pulse cannot be used when relative coordinates are specified, i.e., when the origin location
is undefined. An instruction error will occur.
Relative pulse/absolute pulse specifications
Pulse output PV's storage location
The following Auxiliary Area words contain the pulse output PVs
Pulse output 0: A277 (leftmost 4 digits) and A276 (rightmost 4 digits)
Pulse output 1: A279 (leftmost 4 digits) and A278 (rightmost 4 digits)
Pulse output 2: A323 (leftmost 4 digits) and A322 (rightmost 4 digits)
Pulse output 3: A325 (leftmost 4 digits) and A324 (rightmost 4 digits)
The PVs are refreshed during regular I/O refreshing.
Variable-duty Pulse Outputs (PWM)
Item
Specifications
Number of PWM Outputs
Duty ratio
Max. 4 outputs (PWM Output 00 to 03)
0.0% to 100.0% in 0.1% increments
Frequency
0.1 Hz to 6,553.5 Hz (Set in 0.1-Hz increments.)
1 Hz to 32,800 Hz (Set in 1-Hz increments.)
Output mode
Instruction
Continuous Mode
PWM (891) instruction
16
CJ2M-CPU3@/-CPU1@/-MD21@
Specifications of Pulse I/O Modules
Input Specifications (IN00 to IN09/IN10 to IN19 )
Normal Inputs
IN00 to IN05 and
IN10 to IN15
IN06 to IN09 and
IN16 to IN19
IN00 to IN05 and
IN10 to IN15
IN06 to IN09 and
IN16 to IN19
Inputs
Input form
24 VDC inputs
6.0 mA typical
Line driver inputs
13 mA typical
Input current
5.5 mA typical
10 mA typical
RS-422A or RS-422 line driver (conforming to AM26LS31),
Power supply voltage of 5 V 5%
Input voltage range
24 VDC +10%/−15%
Input impedance
3.6 kΩ
4.0 kΩ
---
Number of circuits
ON voltage/current
OFF voltage/current
ON response time
OFF response time
1 common, 1 circuit
17.4 VDC min., 3 mA min.
1 mA max. at 5 VDC max.
---
---
8 ms max. (The input time constant can be set to 0, 0.5, 1, 2, 4, 8, 16, or 32 ms in the PLC Setup.)
8 ms max. (The input time constant can be set to 0, 0.5, 1, 2, 4, 8, 16, or 32 ms in the PLC Setup.)
Input Circuit Configuration
Item
Specifications
Input
IN00 to IN05/IN10 to IN15
IN06 to IN09/IN16 to IN19
24 V
24 V
LD+
LD+
Circuit configuration
Interrupt Input and Quick-response Input Specifications (IN00 to IN03 and IN10 to IN13)
Item
Specifications
ON response time
OFF response time
30 μs max.
150 μs max.
30 μs min.
150 μs min.
ON
Response pulse
OFF
17
CJ2M-CPU3@/-CPU1@/-MD21@
High-speed Counter Input Specifications (IN06 to IN09 and IN16 to IN19)
24-VDC input
Line driver input
Phase-A/Phase-B encoder input, Single-phase
60-kHz pulse input with 50% duty ratio
Rise time and fall time: 3.0 μs max.
Encoder input phase A or B, single-phase
60-kHz pulse input with 50% duty ratio
16.6 μs min.
8.3 μs min.
8.3 μs min.
ON
ON
50%
50%
OFF
OFF
Phase-A/Phase-B encoder inputs, Differential
Phase-A/Phase-B encoder inputs, Differential
phases, 30 kHz
phases, 30 kHz
Set to 60 kHz
Changes in phases A and B must be
separated by at least 4.0 μs.
Changes in phases A and B must be separated by at least
4.0 μs.
33.3 μs min.
ON
ON
50%
50%
OFF
OFF
ON
ON
50%
50%
OFF
OFF
T1
T2
T3 T4
T1
T2
T3 T4
T1, T2, T3, T4: 4.0 μs min.
Single-phase 100-kHz pulse input with
50% duty ratio
Phase-A/Phase-B encoder input, Single-phase
100-kHz pulse input with 50% duty ratio
Rise time and fall time: 2.5 μs max.
ON
ON
50%
50%
OFF
OFF
2.5 μs max. 2.5 μs max.
Differential-phase 50-kHz pulse input
Changes in phases A and B must be separated
by at least 2.5 μs.
Phase-A/Phase-B encoder inputs, Differential
phases, 50 kHz
Set to 100 kHz
Changes in phases A and B must be
separated by at least 2.5 μs.
ON
ON
50%
50%
OFF
ON
OFF
ON
50%
50%
OFF
OFF
T1
T2
T3 T4
T1
T2
T3 T4
Encoder input phase Z (IN02/IN03 or IN12/IN13)
Encoder input phase Z (IN02/IN03 or IN12/IN13)
Maintain an ON time of 30 μs min.
and an OFF time of 150 μs min.
Maintain an ON time of 30 μs min.
and an OFF time of 150 μs min.
ON
Phase Z/reset input
ON
50%
50%
OFF
OFF
18
CJ2M-CPU3@/-CPU1@/-MD21@
Output Specifications (OUT00 to OUT05 and OUT10 to OUT15)
Item
Specifications
Output Specifications
Rated voltage
Sinking-type (CJ2M-MD211)
5 to 24 VDC
Sourcing-type (CJ2M-MD212)
Allowable voltage range
4.75 to 26.4 VDC
Maximum switching
current
0.3 A/output, 1.8 A/Unit
Number of circuits
6 outputs (6 outputs/common)
Maximum inrush current 3.0 A/output, 10 ms max.
2.0 A/output, 10 ms max.
Leakage current
Residual voltage
ON response time
OFF response time
Fuse
0.1 mA max.
0.6 V max.
0.1 ms max.
0.1 ms max.
None
External supply power
(power supply input for
outputs)
10.2 to 26.4 VDC, 20 mA min.
Rated
voltage
circuit
+V
COM
OUT
Circuit configuration
OUT
Isolation
circuit
Isolation
circuit
Rated
voltage
circuit
COM
Pulse Outputs (OUT00 to OUT03 and OUT10 to OUT13)
Item
Specifications
Output Specifications
Rated voltage
Sinking-type (CJ2M-MD211)
5 to 24 VDC
Sourcing-type (CJ2M-MD212)
Allowable voltage range
4.75 to 26.4 VDC
Maximum switching
capacity
30 mA
7 mA
Minimum switching
capacity
Maximum output
frequency
100 kHz
ON
OFF
90%
90%
Output waveform
10%
10%
ON
OFF
4 μs min.
2 μs min.
2 μs min.
4 μs min.
PWM Outputs (OUT04, OUT05, OUT14, and OUT15)
Item
Specifications
Sourcing-type (CJ2M-MD212)
Output Specifications
Rated voltage
Sinking-type (CJ2M-MD211)
5 to 24 VDC
Allowable voltage range
4.75 to 26.4 VDC
Maximum switching
capacity
6.5535 kHz or less: 300 mA, 6.5535 to 32.8 kHz: 100 mA
32,800 Hz
Maximum output
frequency
PWM output accuracy
(for ON pulse width of
2 μs or longer)
ON duty at 6.5535 kHz or less: -0.2% to +1%,
ON duty at 32.8 kHz: -1% to +5%
(at switching current of 30 mA)
ON duty at 6.5535 kHz or less: 0.5%,
ON duty at 32.8 kHz: +2.5%
(at switching current of 30 mA)
ON
OFF
50%
ON
50%
Output waveform
OFF
tON
tON
tON
tON
T
X 100%
ON duty =
X 100%
ON duty =
T
T
T
19
CJ2M-CPU3@/-CPU1@/-MD21@
Unit Versions
Units
Models
Unit version
CPU: Unit version 1.0 (Built-in EtherNet/IP section: Unit version 2.0)
CJ2M-CPU3@
CPU: Unit version 2.0 (Built-in EtherNet/IP section: Unit version 2.0)
CPU: Unit version 2.0 (Built-in EtherNet/IP section: Unit version 2.1)
CPU: Unit version 1.0
CJ2M CPU Units
CJ2M-CPU1@
CPU: Unit version 2.0
Function Support by Unit Version
Functions Supported for Unit Version 2.0 or Later
The following tables show the relationship between unit versions and CX-Programmer versions.
CPU Unit
CJ2M CPU Unit
Model
CJ2M-CPU@@
Unit Version
Unit version 2.0 or higher
Unit version 1.0
Function
OK
−
* A Pulse I/O Module must be mounted for CJ2M CPU Units with unit version 2.0 or later.
Unit Versions and Programming Devices
The following tables show the relationship between unit versions and CX-Programmer versions.
Unit Versions and Programming Devices
Required Programming Device
CPU Unit
Functions
CX-Programmer
Ver. 9.1 or higher
Programming
Console
Ver. 9.0 or lower
Ver. 9.12 or higher
CJ2M-CPU@@
Functions for unit version 1.0
−
−
−
OK *1
−
OK
OK
OK
Unit version 1.0
Using new functions
− *3
Functions
CJ2M-CPU@@
Unit version 2.0
added for unit
version 2.0
Not using new
functions
OK *2
*1. CX-Programmer version 9.1 or higher is required to use CJ2M CPU Units.
*2. It is not necessary to upgrade the version of the CX-Programmer if functionality that was enhanced for the upgrade of the CPU Unit will not be
used.
*3. A Programming Console cannot be used with a CJ2M CPU Unit.
Device Type Setting
The unit version does not affect the setting made for the device type on the CX-Programmer. Select the device type as shown in the following table
regardless of the unit version of the CPU Unit.
Device type setting on
CX-Programmer Ver. 9.1 or higher
Series
CPU Unit group
CJ2M CPU Units
CPU Unit model
CJ2M-CPU3@
CJ2M-CPU1@
CJ Series
CJ2M
20
CJ2M-CPU3@/-CPU1@/-MD21@
External Interface
CJ2M-CPU3@ (CJ2M with Built-in EtherNet/IP)
A CJ2M-CPU3@ provides two communications ports for external interfaces: a peripheral (USB) port and an EtherNet/IP port.
The Pulse I/O functions of the CJ2M can be used by mounting a Pulse I/O Module. Up to two Pulse I/O Modules can be connected to the left side
of a CJ2M CPU Unit.
Serial ports can be added by mounting a Serial Communications Option Board (sold separately) in an option slot.
Battery Compartment
LED Indicators
DIP Switch
(inside the battery compartment)
Memory Card Indicators
Simple Backup/Memory Card
Power Supply Switch
Peripheral (USB) Port
Connect to PC with CX-Programmer
Memory Card Connector
Memory Card Eject Button
EtherNet/IP Port
Connected to the information management
system such as Host Computer
Attachable
Option board slot
Add a serial option board (option)
Pulse I/O Module (2 units max.)
CJ2M-MD21@
COMM
COMM
CP1W-CIF01
RS-232C
CP1W-CIF11/CIF12
RS-422A/485
Option Board
Option Board
CJ2M-CPU1@
A CJ2M-CPU1@ provides two communications ports for external interfaces: a peripheral (USB) port and a serial port.
The Pulse I/O of the CJ2M can be used by mounting a Pulse I/O Module. Up to two Pulse I/O Modules can be connected to the left side of a CJ2M
CPU Unit.
LED Indicator
Battery Compartment
DIP Switch
(inside the battery compartment)
Memory Card Indicators
Peripheral (USB) Port
Connect to PC with CX-Programmer
Simple Backup/Memory Card
Power Supply Switch
Built-in Serial Port
Connect to Host Computers,
general-purpose external device,
Memory Card Connector
Attachable
Programmable Terminals, and other devices.
Memory Card Eject Button
Pulse I/O Module (2 units max.)
CJ2M-MD21@
21
CJ2M-CPU3@/-CPU1@/-MD21@
Peripheral (USB) Port
Item
Baud Rate
Specification
12 Mbps max.
Transmission Distance
Interface
5 m max.
USB 2.0-compliant B-type connector
Peripheral Bus
Protocol
EtherNet/IP Port
Item
Media Access Method
Modulation
Specification
CSMA/CD
Baseband
Transmission Paths
Baud Rate
Star
100 Mbps (100Base-TX)
Transmission Media
Transmission Distance
Number of Cascade Connections
Shielded twisted-pair (STP) cable; Categories: 5, 5e
100 m (between ethernet switch and node)
No restrictions if ethernet switch is used.
CIP Communications (tag data links, Explicit Messages).
FINS communications
Communications
Built-in Serial Port (Only CJ2M-CPU1@)
Item
Specification
Communications method
Synchronization
Baud rate
Half duplex
Start-stop
0.3/0.6/1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2 kbps *
Transmission distance
Interface
15 m max.
EIA RS-232C
Protocol
Host Link, NT Link, 1:N, No-protocol, or Peripheral Bus
* Baud rates for the RS-232C are specified only up to 19.2 kbps. The CJ Series supports serial communications from 38.4 kbps to 115.2 kbps,
but some computers cannot support these speeds. Lower the baud rate if necessary.
Pin No.
Signal
Name
Protection earth
Send data
Direction
1
2
3
4
5
6
7
8
9
FG
−
SD (TXD)
RD (RXD)
RS (RTS)
CS (CTS)
5 V
Output
Input
Output
Input
−
Receive data
Request to send
Clear to send
Power supply
Data set ready
6
9
DR (DSR)
ER (DTR)
SG (0 V)
FG
Input
5
Data terminal ready Output
Signal ground
−
−
Connector hood
Protection earth
Note: Do not use the 5-V power from pin 6 of the RS-232C port for anything but CJ1W-CIF11 RS-422A Conversion Adapter, NT-AL001 RS-232C/
RS-422A Conversion Adapter and NV3W-M_20L Programmable Terminal. The external device or the CPU Unit may be damaged.
22
CJ2M-CPU3@/-CPU1@/-MD21@
Serial Option Board (Only CJ2M-CPU3@)
A Serial Option Board can be used with a CJ2M-CPU3@ CJ2M CPU Unit.
Model
CP1W-CIF01
Port
One RS-232C port
Maximum transmission distance
Connection method
Connector: D-sub, 9-pin female
15 m
50 m
500 m
One RS-422A/485 port (not
isolated)
CP1W-CIF11
CP1W-CIF12
Terminal block: Using ferrules
Terminal block: Using ferrules
One RS-422A/485 port (isolated)
CP1W-CIF01 RS-232C Option Board
Front
Back
Communications Status Indicator
CPU Unit Connector
COMM
RS-232 Connector
●RS-232C Connector
Pin No.
Signal
Name
Protection earth
Send data
Direction
1
2
3
4
5
6
7
8
9
FG
−
SD (TXD)
RD (RXD)
RS (RTS)
CS (CTS)
5 V
Output
Input
Output
Input
−
Receive data
Request to send
Clear to send
Power supply
Data set ready
5
1
DR (DSR)
ER (DTR)
SG (0 V)
FG
Input
6
9
Data terminal ready Output
Signal ground
−
−
Connector hood
Protection earth
Note: Do not use the 5-V power from pin 6 of the RS-232C port for anything but CJ1W-CIF11 RS-422A Conversion Adapter, NT-AL001 RS-232C/
RS-422A Conversion Adapter and NV3W-M_20L Programmable Terminal. The external device or the CPU Unit may be damaged.
CP1W-CIF11/CIF12 RS-422A/485 Option Board
Front
Back
Communications Status Indicator
CPU Unit
Connector
COMM
+
+
RDA- RDB SDA- SDB FG
DIP Switch for
Operation Settings
RS-422A/485 Connector
●RS-422A/485 Terminal Block
Tighten the terminal block screws
to a torque of 0.28 N·m.
FG
SDB+
RDA-
RDB+
SDA-
23
CJ2M-CPU3@/-CPU1@/-MD21@
Connector Pin Allocations of Pulse I/O Module (40 pins)
Connector on Sinking-type I/O Module (CJ2M-MD211)
Pin layout
Terminal symbol
Input signal type
24 VDC
LD+
Pin
*
Terminal symbol
Input signal type
24 VDC
LD+
Pin
*
1
3
5
7
9
A1
A2
A3
A4
A5
A6
A7
A8
A9
2
4
6
8
B1
B2
B3
B4
B5
B6
B7
B8
B9
IN00/IN10
IN01/IN11
0 V/LD−
24 VDC
LD+
0 V/LD−
24 VDC
LD+
IN02/IN12
IN04/IN14
IN06/IN16
IN08/IN18
IN03/IN13
IN05/IN15
IN07/IN17
IN09/IN19
10
12
14
16
18
20
22
24
26
28
30
32
34
36
0 V/LD−
24 VDC
LD+
11
13
15
17
19
21
23
25
27
29
31
33
35
0 V/LD−
24 VDC
LD+
1
2
3
4
5
6
7
8
9
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
0 V/LD−
24 VDC
LD+
0 V/LD−
24 VDC
LD+
A10
A11
A12
A13
A14
A15
A16
A17
A18
B10
B11
B12
B13
B14
B15
B16
B17
B18
0 V/LD−
24 VDC
LD+
0 V/LD−
24 VDC
LD+
0 V/LD−
---
0 V/LD−
---
OUT00/OUT10
OUT02/OUT12
OUT04/OUT14
OUT01/OUT11
OUT03/OUT13
OUT05/OUT15
---
---
---
---
Power supply input +V for
outputs
Power supply input +V for
outputs
---
---
37
39
A19
A20
---
---
38
40
B19
B20
COM
COM
* Terminals numbers on the XW2D-@@G@ Connector-Terminal Block Conversion Unit.
Sourcing-type I/O Module (CJ2M-MD212)
Pin layout
Terminal symbol
Input signal type
24 VDC
LD+
Pin
*
Terminal symbol
Input signal type
24 VDC
LD+
Pin
*
B1
1
3
5
7
9
A1
A2
A3
A4
A5
A6
A7
A8
A9
2
IN00/IN10
IN01/IN11
4
B2
0 V/LD−
24 VDC
LD+
0 V/LD−
24 VDC
LD+
6
B3
8
B4
IN02/IN12
IN04/IN14
IN06/IN16
IN08/IN18
IN03/IN13
IN05/IN15
IN07/IN17
IN09/IN19
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
B5
0 V/LD−
24 VDC
LD+
11
13
15
17
19
21
23
25
27
29
31
33
35
37
0 V/LD−
24 VDC
LD+
B6
1
2
3
4
B7
5
6
7
8
B8
9
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
0 V/LD−
24 VDC
LD+
0 V/LD−
24 VDC
LD+
B9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
0 V/LD−
24 VDC
LD+
0 V/LD−
24 VDC
LD+
0 V/LD−
---
0 V/LD−
---
OUT00/OUT10
OUT02/OUT12
OUT04/OUT14
COM
OUT01/OUT11
OUT03/OUT13
OUT05/OUT15
COM
---
---
---
---
---
---
Power supply input −V for
outputs
Power supply input −V
for outputs
---
39
A20
---
40
B20
* Terminals numbers on the XW2D-@@G@ Connector-Terminal Block Conversion Unit.
24
CJ2M-CPU3@/-CPU1@/-MD21@
Pulse I/O Module MIL connector Wiring Methods
To connect to a Terminal Block, use an OMRON Cable preassembled with the special connector or attach the special connector (sold separately)
to a cable yourself.
Using User-made Cables with Connector
Connector Models
Compatible Connector Specifications
• MIL Flat Cable Connectors (40-pin Pressure-fitted Connectors)
Socket
Stain relief
Name
OMRON model number
XG4M-4030
Socket
Stain Relief
XG4M-4004
XG4M-4030-T
XY3A-200@
Set model number
Recommended Flat Cable
• MIL Loose Wire Crimp Connectors (40-pin Pressure-fitted Connectors)
Hood Cover
Partial Cover
Socket
Name
OMRON model number
AWG24
XG5M-4032-N
XG5M-4035-N
XG5W-0031-N
XG5W-0034-N
XG5S-4022
Socket
AWG26 to AWG28
AWG24
Spare Contacts
(See note 1.)
AWG26 to AWG28
Hood Cover (See note 2.)
Partial Cover (See note 2.)
(2 required for each socket)
XG5S-2001
Note: 1. Contacts are included with the Socket.
2. Select either the Hood Cover or the Partial Cover.
Wiring
We recommend using a cable with wires sized between 28 and 24 AWG (0.2 to 0.08 mm2). Use a wire with an outer diameter of 1.61 mm max.
Compatible Terminal Blocks
Recommended Cable
Compatible Terminal Block
XW2D-40G6
Number of pins
Size
Small
Temperature (°C)
XW2Z-@@@K
XW2B-40G5
40
0 to 55
Standard
XW2B-40G4
25
CJ2M-CPU3@/-CPU1@/-MD21@
Using preassembled cables and terminal blocks.
Connection of Pulse I/O module to a General-purpose Terminal Block
CJ2M CPU Unit
Pulse I/O Module
Special Connecting Cable
XW2Z-@@@K
Connector-Terminal Block
Conversion Unit
XW2@-40G@
Terminal Block
Connection of Pulse I/O module to a Servo Drive Terminal Block
CJ2M CPU Unit
Pulse I/O Module
Connecting Cables for Pulse I/O Module
• For OMNUC G5/G Series: XW2Z-@@@J-A33
• For SMARTSTEP2: XW2Z-@@@J-A33
Servo Relay Unit for 1 axis
XW2B-20J6-8A
Servo Drive Connecting Cables
• For OMNUC G5/G Series: XW2Z-@@@J-B31
• For SMARTSTEP2: XW2Z-@@@J-B32
Servo Driver
• OMNUC G5/G Series: R88D-GT
• SMARTSTEP2: R7D-BP
26
CJ2M-CPU3@/-CPU1@/-MD21@
Dimensions
(Unit: mm)
CJ2M-CPU3@
76.2
2.7
90
2.7
62
75
84.5
CJ2M-CPU1@
76.2
2.7
90
2.7
75
31
84.5
CJ2M-MD211/MD212
20
2.7
66.2
90
2.7
65
83.8
27
CJ2M-CPU3@/-CPU1@/-MD21@
Related Manuals
Cat. No.
Model
Manual
Application
Description
Describes the following for CJ2 CPU Units:
• Overview and features
CJ2H-CPU6@-EIP
CJ2H-CPU6@
CJ2M-CPU@@
CJ-series CJ2 CPU Unit
Hardware User’s
Manual
• Basic system configuration
Hardware specifications for CJ2
CPU Units
W472
• Part nomenclature and functions
• Mounting and setting procedure
• Remedies for errors
• Also refer to the Software User’s Manual (W473).
Describes the following for CJ2 CPU Units:
• CPU Unit operation
CJ2H-CPU6@-EIP
CJ2H-CPU6@
CJ2M-CPU@@
• Internal memory
CJ-series CJ2 CPU Unit Software specifications for CJ2
Software User’s Manual CPU Units
W473
W486
• Programming
• Settings
• Functions built into the CPU Unit
Also refer to the Hardware User’s Manual (W472)
Provides the following information on the CJ2M CPU Units:
• Specifications and wiring methods
• I/O functions
• Quick-response inputs
CJ2M-CPU@@
+
CJ2M-MD21@
CJ-series CJ2M CPU
Information on using Pulse I/O
Unit Pulse I/O Module
on CJ2M CPU Units
User's Manual
• Interrupt functions
• High-speed counters
• Pulse outputs
• PWM outputs
When programming, use this manual together with the
Instructions Reference Manual (Cat. No. W474).
CJ2H-CPU6@-EIP
CJ2H-CPU6@
CJ2M-CPU3@
CJ2M-CPU1@
CS/CJ/NSJ-series
Instructions Reference
Manual
Describes each programming instruction in detail.
Also refer to the Software User’s Manual (W473) when you
do programming.
CS1G/H-CPU@@H
CS1G/H-CPU@@-V1
CJ1G/H-CPU@@H
CJ1G-CPU@@
W474
Information on instructions
CJ1M-CPU@@
NSJ@-@@@@(@)-@@@
CJ2H-CPU6@-EIP
CJ2H-CPU6@
CJ2M-CPU@@
CS1G/H-CPU@@H
CS1G/H-CPU@@-V1
CS1D-CPU@@H
CS1D-CPU@@S
CS1W-SCU@@-V1
CS1W-SCB@@-V1
CJ1H-CPU@@H-R
CJ1G/H-CPU@@H
CJ1G-CPU@@P
Describes C-mode commands and FINS commands
Refer to this manual for a detailed description of commands
for communications with the CPU Unit using C mode
commands or FINS commands.
CS/CJ/CP/NSJ-series
Communications
Command Reference
Manual
Note: This manual describes the communications
commands that are addressed to CPU Units. The
communications path that is used is not relevant and
can include any of the following: serial ports on CPU
Units, communications ports on Serial
Information on communications
for CS/CJ/CP-series CPU Units
and NSJ-series Controllers
W342
CJ1M-CPU@@
Communications Units/Boards, and Communications
Units. For communications commands addressed to
Special I/O Units or CPU Bus Units, refer to the
operation manual for the related Unit.
CJ1G-CPU@@
CJ1W-SCU@@-V1
CP1H-X@@@@-@
CP1H-XA@@@@-@
CP1H-Y@@@@-@
CP1E-E/N@@D@-@
NSJ@-@@@@(@)-@@@
CS and CJ Series
EtherNet/IP Units
CS1W-EIP21, CJ1W-
EIP21, CJ2H-CPU6@-
EIP, CJ2M-CPU3@
Operation Manual
CJ2H-CPU6@-EIP
CJ2M-CPU3@
CS1W-EIP21
Information for EtherNet/IP
function of CJ2M built-in
Ethernet port
Describes EtherNet/IP port/units. A basic setting, a tag data
link, FINS communication, and other function are described.
W465
CJ1W-EIP21
CXONE-AL@@C-V@/
AL@@D-V@
Installing software from the CX- Provides an overview of the CX-One FA Integrated Tool
W463
W446
CX-One Setup Manual
One
Package and describes the installation procedure.
CX-Programmer
Operation Manual
CX-Programmer
Operation Manual
Functions Blocks/
Structured Text
Support Software for Windows
computers
Describes operating procedures for the CX-Programmer.
Also refer to the Software User’s Manual (W473) and
Instructions Reference Manual (W474) when you do
programming.
W447
W469
WS02-CXPC@-V@
CX-Programmer operating
procedure
CX-Programmer
Operation Manual SFC
Programming
Operating procedures for CX-
Simulator Simulation Support
Software for Windows
computers
Using simulation in the CX-
Programmer with CX-
Programmer version 6.1 or
higher
Describes the operating procedures for the CX-Simulator.
When you do simulation, also refer to the CX-Programmer
Operation Manual (W446), Software User’s Manual (W473),
and CS/CJ/NSJ series Instructions Reference Manual
(W474).
CS/CJ/CP/NSJ-series
CX-Simulator Operation
Manual
W366
W464
WS02-SIMC1-E
CS/CJ/CP/NSJ-series
CX-Integrator Network
Configuration Software
Operation Manual
CXONE-AL@@C-V@/
CXONE-AL@@D-V@
Network setup and monitoring
Describes the operating procedures for the CX-Integrator.
28
Read and Understand This Catalog
Please read and understand this catalog before purchasing the products. Please consult your OMRON representative if you have any questions or
comments.
Warranty and Limitations of Liability
WARRANTY
OMRON's exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified)
from date of sale by OMRON.
OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NON-INFRINGEMENT, MERCHANTABILITY, OR
FITNESS FOR PARTICULAR PURPOSE OF THE PRODUCTS. ANY BUYER OR USER ACKNOWLEDGES THAT THE BUYER OR USER ALONE HAS
DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE. OMRON DISCLAIMS ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED.
LIMITATIONS OF LIABILITY
OMRON SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS
IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT
LIABILITY.
In no event shall the responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted.
IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE PRODUCTS UNLESS
OMRON'S ANALYSIS CONFIRMS THAT THE PRODUCTS WERE PROPERLY HANDLED, STORED, INSTALLED, AND MAINTAINED AND NOT
SUBJECT TO CONTAMINATION, ABUSE, MISUSE, OR INAPPROPRIATE MODIFICATION OR REPAIR.
Application Considerations
SUITABILITY FOR USE
OMRON shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of products in the customer's
application or use of the products.
At the customer's request, OMRON will provide applicable third party certification documents identifying ratings and limitations of use that apply to the
products. This information by itself is not sufficient for a complete determination of the suitability of the products in combination with the end product,
machine, system, or other application or use.
The following are some examples of applications for which particular attention must be given. This is not intended to be an exhaustive list of all possible
uses of the products, nor is it intended to imply that the uses listed may be suitable for the products:
Outdoor use, uses involving potential chemical contamination or electrical interference, or conditions or uses not described in this catalog.
Nuclear energy control systems, combustion systems, railroad systems, aviation systems, medical equipment, amusement machines, vehicles,
safety equipment, and installations subject to separate industry or government regulations.
Systems, machines, and equipment that could present a risk to life or property.
Please know and observe all prohibitions of use applicable to the products.
NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY WITHOUT ENSURING THAT THE
SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCTS ARE PROPERLY RATED AND
INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.
PROGRAMMABLE PRODUCTS
OMRON shall not be responsible for the user's programming of a programmable product, or any consequence thereof.
Disclaimers
CHANGE IN SPECIFICATIONS
Product specifications and accessories may be changed at any time based on improvements and other reasons.
It is our practice to change model numbers when published ratings or features are changed, or when significant construction changes are made.
However, some specifications of the products may be changed without any notice. When in doubt, special model numbers may be assigned to fix or
establish key specifications for your application on your request. Please consult with your OMRON representative at any time to confirm actual
specifications of purchased products.
DIMENSIONS AND WEIGHTS
Dimensions and weights are nominal and are not to be used for manufacturing purposes, even when tolerances are shown.
PERFORMANCE DATA
Performance data given in this catalog is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the
result of OMRON’s test conditions, and the users must correlate it to actual application requirements. Actual performance is subject to the OMRON
Warranty and Limitations of Liability.
ERRORS AND OMISSIONS
The information in this document has been carefully checked and is believed to be accurate; however, no responsibility is assumed for clerical,
typographical, or proofreading errors, or omissions.
2011.9
In the interest of product improvement, specifications are subject to change without notice.
OMRON Corporation
Industrial Automation Company
http://www.ia.omron.com/
(c)Copyright OMRON Corporation 2011 All Right Reserved.
厂商 型号 描述 页数 下载

OMRON

 		XW2B 简化了连接器和接线盒的更换，并且需要更少的面板布线。[ Simplifies Connector and terminal block replacement, and requires less in-panel wiring. ] 10 页

OMRON

 		XW2B-1 [ ACCY EXPANSION UNIT FOR XW2B ] 11 页

OMRON

 		XW2B-20G4 螺丝接线端子电缆[ Screw Terminal Block Cables ] 13 页

OMRON

 		XW2B-20G5 螺丝接线端子电缆[ Screw Terminal Block Cables ] 13 页

OMRON

 		XW2B-20G5-D 螺丝接线端子电缆[ Screw Terminal Block Cables ] 13 页

OMRON

 		XW2B-20J6-1B 多应用控制器：从高性能计算机C ONTROL高度可靠的过程控制[ Multi-application Controllers: From High-performance Machine C ontrol to Highly Reliable Process Control ] 70 页

OMRON

 		XW2B-20J6-3B 简化电机控制和欧姆龙位置控制PLC模块之间的接线[ Simplify Wiring between Motor Controls and Omrons Position Control PLC Modules ] 12 页

OMRON

 		XW2B-20J6-6 [ Multi-application Controllers: From High-performance Machine C ontrol to Highly Reliable Process Control ] 70 页

OMRON

 		XW2B-20X5 [ INTERFACE MOD RCPT 34POS ] 11 页

OMRON

 		XW2B-20Y4 [ Simplifies Connector and terminal block replacement, and requires less in-panel wiring. ] 10 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.195170s
