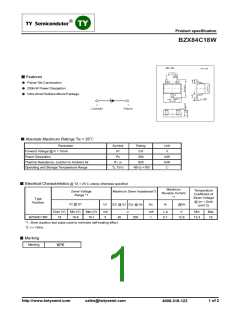

Product specification
BZX84C18W
Features
Planar Die Construction
200mW Power Dissipation
Ultra-Small Surface Mount Package
Absolute Maximum Ratings Ta = 25
Parameter
Forward Voltage @ IF = 10mA
Symbol
VF
Rating
0.9
Unit
V
Power Dissipation
PD
200
mW
K/W
Thermal Resistance, Junction to Ambient Air
Operating and Storage Temperature Range
R
JA
625
Tj, TSTG
-65 to +150
Electrical Characteristics @ TA = 25 C unless otherwise specified
Maximum
Temperature
Coefficient of
Zener Voltage
@ IZT = 5mA
(mV/ C)
Zener Voltage
Range *1
Maximum Zener Impedance*2
Reverse Current
*1
Type
Number
VZ @ IZT
IZT
ZZT @ IZT ZZK @ IZK
IZK
IR
@VR
Nom (V) Min (V)
18 16.8
Max (V)
19.1
mA
5
mA
1
V
Min
Max
16
A
BZX84C18W
45
200
0.1
12.6
12.4
*1. Short duration test pulse used to minimize self-heating effect.
*2. f = 1KHz.
Marking
Marking
KP6
http://www.twtysemi.com
1 of 2
