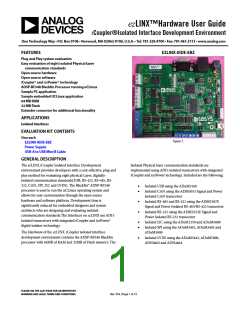

ezLINX™Hardware User Guide
iCoupler®Isolated Interface Development Environment
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
FEATURES
EZLINX-IIIDE-EBZ
Plug and Play system evaluation
Easy evaluation of eight isolated Physical layer
communication standards
Open source hardware
Open source software
iCoupler® and isoPower® technology
ADSP-BF548 Blackfin Processor running uCLinux
Sample PC application
Sample embedded UCLinux application
64 MB RAM
32 MB Flash
Extender connector for additional functionality
APPLICATIONS
Isolated Interfaces
EVALUATION KIT CONTENTS
One each
EZLINX-IIIDE-EBZ
Power Supply
Figure 1.
USB-A to USB Mini B Cable
GENERAL DESCRIPTION
The ezLINX iCoupler Isolated Interface Development
environment provides developers with a cost-effective, plug and
play method for evaluating eight physical Layer, digitally-
isolated communication standards(USB, RS-422, RS-485, RS-
232, CAN, SPI, I2C and LVDS). The Blackfin® ADSP-BF548
processor is used to run the uCLinux operating system and
allows for easy customization through the open source
hardware and software platform. Development time is
significantly reduced for embedded designers and system
architects who are designing and evaluating isolated
communication standards.The Interfaces on ezLINX use ADI's
isolated transceivers with integrated iCoupler and isoPower®
digital isolator technology.
Isolated Physical layer communication standards are
implemented using ADI's isolated transceivers with integrated
iCoupler and isoPower technology. Included are the following:
•
•
Isolated USB using the ADuM3160
Isolated CAN using the ADM3053 Signal and Power
Isolated CAN transceiver
•
•
Isolated RS-485 and RS-422 using the ADM2587E
Signal and Power Isolated RS-485/RS-422 transceiver
Isolated RS-232 using the ADM3252E Signal and
Power Isolated RS-232 transceiver
•
•
Isolated I2C using the ADuM1250 and ADuM5000
Isolated SPI using the ADuM3401, ADuM3402 and
ADuM5000
The Hardware of the ezLINX iCoupler isolated interface
development environment contains the ADSP-BF548 Blackfin
processor with 64MB of RAM and 32MB of Flash memory. The
•
Isolated LVDS using the ADuM3442, ADuM5000,
ADN4663 and ADN4664
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. PrA | Page 1 of 15





ezLINX™Hardware User Guide
iCoupler®Isolated Interface Development Environment
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
TABLE OF CONTENTS
Features .............................................................................................. 1
Applications....................................................................................... 1
Evaluation Kit Contents................................................................... 1
ezLINX-IIIDE-EBZ.......................................................................... 1
General Description......................................................................... 1
Revision History ............................................................................... 2
System Architecture.......................................................................... 3
Isolated CAN................................................................................. 3
Isolated RS-485 and RS-422........................................................ 4
Isolated USB .................................................................................. 5
Isolated RS-232 ............................................................................. 6
Isolated I2C .....................................................................................6
Isolated SPI.....................................................................................7
Isolated LVDS ................................................................................9
Power Input................................................................................. 10
3.3V Power Supply ..................................................................... 10
1.2V, 2.5V and 5V Power Supplies ............................................11
Extender Connector................................................................... 12
RS-232 Console .......................................................................... 12
Ordering Information.................................................................... 14
Ordering Guide .......................................................................... 14
REVISION HISTORY
5/12—Revision PrA: Preliminary Version
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. PrA | Page 2 of 15

ezLINX™Hardware User
iCoupler® Isolated Interface Development
Guide
Environment
SYSTEM ARCHITECTURE
SV(91), is added for additional functionality. The Ethernet
option is not fitted on the standard ezLINX hardware.
The system architecture Block diagram of the ezLINX hardware
is shown in Figure 2. An extender connector, Hirose FX8 120P-
Figure 2. ezLINX Hardware Block diagram
The 5V supply is connected to VCC(pin 8) to power the
isoPower isolated Power supply of the ADM3053. This
generates an isolated 5V on the Visoout pin(pin 12) of the
ADM3053 and needs to is connected to the Visoin pin(pin 19).
The 3.3Vsupply is connected to the VIO pin(pin 6) to power the
iCoupler signal isolation that needs to be compatible with the
3.3V logic of the Blackfin ADSP-BF548. The RS pin(pin 18) is
connected through a 0Ω resistor to CAN_ISO_GND in order to
de-activate slew rate limiting,
ISOLATED CAN
The Isolated CAN port is implemented using the ADM3053
Signal and Power isolated CAN transceiver. The ADM3053
connects to CAN0 of the ADSP-BF548 and is capable of
functioning at data rates of up to 1Mbit/s. Figure 3 shows a
circuit diagram of the implementation of the ADM3053 on the
ezLINX hardware.
The CAN Node can be configured using jumpers JP17 and
JP18. When both jumpers JP17 and JP18 is fitted, the CAN
node is split terminated with 120Ω and a common mode
capacitor o f 47nF. If termination is not required, remove JP17
and JP18. Table x show jumper configurations for all the
interfaces on ezLINX.
A four pin screw terminal connector, J8 is used for easy access
to the CANH(Pin 1), CANL(Pin 3) and CAN_ISO_GND(Pin 2
and 4) connections.
Application note AN-1123 provides more information on
implementing CAN Nodes.
Rev. PrA | Page 3 of 15



iCoupler® Isolated Interface
Development Environment
ezLINX™Hardware User Guide
Figure 3. ADM3053 Isolated CAN Implementation
JP19. When JP40 is connected a pull-up resistor on the RxD pin
of 10kΩ will be connected. Table x show jumper configurations
for all the interfaces on ezLINX.
ISOLATED RS-485 AND RS-422
The Isolated RS-485 and RS-422 port is implemented using the
ADM2587E Signal and Power isolated CAN transceiver. The
ADM2587E connects to UART2 of the ADSP-BF548 and is
capable of functioning at data rates of up to 500kbit/s. Figure 4
shows a circuit diagram of the implementation of the ADM3053
on the ezLINX hardware.
The 3.3V supply is connected to VCC(pin 2 and 8) to power the
isoPower isolated Power supply and iCoupler signal isolation of
the ADM2587E. This generates an isolated 3.3V on the Visoout
pin(pin 12) of the ADM2587E and is connected to the Visoin
pin(pin 19).
The RS-485 Node can be configured using jumpers JP3, JP4,
JP19 and JP40. To configure the node as a half-duplex RS-485
node, connect JP3 and JP4. When JP3 and JP4 are fitted, it will
connect A to Y and B to Z. When JP3 and JP4 are removed, the
node will be configured as a full duplex RS-485 node or as a RS-
422 node. When JP19 is fitted, the A and B pins will be
A six pin screw terminal connector, J7 is used for easy access to
the A(Pin 2), B(Pin 3), Z(Pin 4), Y(Pin 5) and RS-
485_ISO_GND(Pin 1 and 6) connections.
Application note AN-960 provides more information on circuit
implementation of RS-485 and RS-422 applications.
terminated with 120Ω. If termination is not required, remove
Rev. PrA | Page 4 of 15


ezLINX™Hardware User
iCoupler® Isolated Interface Development
Guide
Environment
Figure 4. ADM2587E Isolated RS-485 and RS-422 implementation
The VBUS1 and VDD1 of the ADuM3160 is powered from the bus
power 5. VBUS2 and VDD2 is powered from 3.3V generated by
the ezLINX power supply.
ISOLATED USB
The Isolated USB port is implemented using the ADuM3160
Full speed USB Isolator. The ADuM3160 connects to the
integrated USB PHY of the ADSP-BF548 and is capable of
functioning at data rates of up to12Mbit/s. Figure 5 shows a
circuit diagram of the implementation of the ADuM3160 on the
ezLINX hardware.
A mini USB-B connector is used for easy connection to a USB
master.
Figure 5. ADuM3160 Isolated USB Implementation
Rev. PrA | Page 5 of 15



iCoupler® Isolated Interface
Development Environment
ezLINX™Hardware User Guide
The VCC of the ADM3252E is powered with 3.3V and will
generate an isolated 3.3V on VISO using ADI’s isoPower
technology.
ISOLATED RS-232
The Isolated RS-232 port is implemented using the ADM3252E
Signal and Power isolated RS-232 transceiver. The ADM3252E
connects to UART3 of the ADSP-BF548 and is capable of
functioning at data rates of up to 460kbit/s. Figure 6 shows a
circuit diagram of the implementation of the ADM3252E on the
ezLINX hardware.
A three pin screw terminal connector, J6 is used for easy access
to the TOUT1(pin 2), RIN1(pin 3) and RS232_ISO_GND(Pin
1) connections.
The Isolated RS-232 JP2 jumper when fitted will implement a
loopback of the transmitter output(TOUT1) to the receiver
input(RIN1).
Figure 6. ADM3252E Isolated RS-232 Implementation
V
DD1 of the ADuM1250 and VDD1 of the ADuM5000 is powered
ISOLATED I2C
by 3.3V. The ADuM5000 will generate an isolated 3.3V and is
used to supply power to VDD2 of the ADuM1250.
The Isolated I2C port is implemented using the ADuM1250 I2C
Isolator and ADuM5000 isoPower Isolated DC to DC converter.
The ADuM1250 connects to TW1 of the ADSP-BF548 and is
capable of functioning at a maximum frequency of 1MHz.
Figure 7 shows a circuit diagram of the implementation of the
ADuM1250 and ADuM5000 on the ezLINX hardware.
A three pin screw terminal connector, J22 is used for easy access
to the SDA(Pin 1), SCL(Pin 2) and I2C_ISO_GND(Pin 3)
connections.
Rev. PrA | Page 6 of 15



ezLINX™Hardware User
iCoupler® Isolated Interface Development
Guide
Environment
Figure 7. ADuM1250 and ADuM5000 Isolated I2C Implementation
an isolated 3.3V and is used to supply power to VDD2 of the
ADuM3401 and ADuM3402.
ISOLATED SPI
Two Isolated SPI ports are implemented using the ADuM3401,
ADuM3402 iCoupler signal isolators and the ADuM5000
isoPower Isolated DC to DC converter. The ADuM3401 of the
isolate d SPI1 is connected to SPI0 of the ADSP-BF548. The
ADuM3402 is used for isolating the SPI slave select lines. Figure
8 shows a circuit diagram of the implementation of Isolated
SPI1 using the ADuM3401, ADuM3402 and ADuM5000 on the
ezLINX hardware.
Two seven pin screw terminal connectors, J10 and J25 are used
for easy access to the SPISCK(Pin 1), SPIMOSI(Pin 2),
SPISEL1/SPISS(Pin 3), SPIMISO(Pin 4). SPISEL2(Pin 5),
SPISEL3(Pin 6) and SPI_ISO_GND(Pin 7).
To connect Isolated SPI1 as a master, connect jumpers JP5, JP7,
JP9, JP11, JP13 and JP15 while leaving jumpers JP6, JP8, JP10,
JP12, JP14 and JP16 open. To connect Isolated SPI1 as a slave,
connect jumpers JP6, JP8, JP10, JP12, JP14 and JP16 while
leaving jumpers JP5, JP11, JP13 and JP15 open.
The ADuM3401 of the isolate d SPI2 is connected to SPI2 of the
ADSP-BF548. The ADuM3402 is used for isolating the SPI slave
select lines. Figure 9 shows a circuit diagram of the
implementation of Isolated SPI2 using the ADuM3401,
ADuM3402 and ADuM5000 on the ezLINX hardware.
To connect Isolated SPI2 as a master, connect jumpers JP22,
JP24, JP26, JP28, JP30 and JP32 while leaving jumpers JP23,
JP25, JP27, JP29, JP31 and JP33 open. To connect Isolated SPI1
as a slave, connect jumpers JP23, JP25, JP27, JP29, JP31 and
JP33 while leaving jumpers JP22, JP24, JP26, JP28, JP30 and
JP32 open.
V
DD1 of the ADuM3401, ADuM3402 and VDD1 of the
ADuM5000 are powered by 3.3V. The ADuM5000 will generate
Rev. PrA | Page 7 of 15


iCoupler® Isolated Interface
Development Environment
ezLINX™Hardware User Guide
Figure 8. ADuM3401, ADuM3402, ADuM5000 Isolated SPI Implementation
Rev. PrA | Page 8 of 15

ezLINX™Hardware User
iCoupler® Isolated Interface Development
Guide
Environment
Figure 9. ADuM3401, ADuM3402, ADuM5000 Isolated SPI Implementation
the ADuM3442, ADN4663, ADN4664 and ADuM5000 on the
ezLINX hardware.
ISOLATED LVDS
The Isolated LVDS port is implemented using the ADuM3442
iCoupler signal isolator, the ADN4664 dual LVDS receiver, the
ADN4663 dual LVDS transmitter and the ADuM5000
isoPower Isolated DC to DC converter. The ADuM3442 is
connected to SPORT2 of the ADSP-BF548. Figure 10 shows a
circuit diagram of the implementation of Isolated LVDS using
VDD1 of the ADuM3442, and VDD1 of the ADuM5000 are
powered by 3.3V. The ADuM5000 will generate an isolated 3.3V
and is used to supply power to VDD2 of the ADuM3442, VCC of
the ADN4663 and the ADN4664.
A 32 pin header connector is used for easy access to the Isolated
LVDS signals.
Rev. PrA | Page 9 of 15


iCoupler® Isolated Interface
Development Environment
ezLINX™Hardware User Guide
Figure 10. ADuM3442, ADN4663, ADN4664 and ADuM5000 Isolated LVDS Implementation
connects through a protection circuit as shown in Figure 11 to
the UNREG_IN node of the circuit.
POWER INPUT
An AC/DC desktop power supply is used to supply 7.5V input
to the barrel connector J1 on the ezLINX hardware. This supply
Figure 11. Power Input
Mosfet to generate the regulated 3.3V Power Supply for the
ezLINX hardware. The circuit implementation of the 3.3V
power supply is shown in Figure 12.
3.3V POWER SUPPLY
The ADP1864 Constant Frequency Current-Mode Step-Down
DC-to-DC Controller is used with an external P-Channel
Rev. PrA | Page 10 of 15




ezLINX™Hardware User
iCoupler® Isolated Interface Development
Guide
Environment
Figure 12. 3.3V Power Supply
the 3.3V input to 2.5V, See Figure 14. The ADP3335 low
dropout regulator is used to regulate the UNREG_IN input to
5 V, S e e Figure 15.
1.2V, 2.5V AND 5V POWER SUPPLIES
A P-Channel mosfet is used to regulate the 3.3V input to 1.2V,
See Figure 13. The ADP1706 Linear regulator is used to regulate
Figure 13. 1.2V Power Supply
Figure 14. 2.5V Power Supply
Figure 15. 5V Power Supply
Rev. PrA | Page 11 of 15





iCoupler® Isolated Interface
Development Environment
ezLINX™Hardware User Guide
shows the circuit implementation of the extender connector J23
and J26. Connector J26 is a three pin header connector and
allows for the CAN1 signals of the ADSP-BF548 to be routed to
an external daughter board.
EXTENDER CONNECTOR
The Hirose FX8 120P-SV(91) extender connector is used for
daughter board connections. This allows for additional
functionality to be added to the ezLINX hardware. Figure 16
Figure 16. Extender Connector using Hirose FX8 120P-SV(91)
to UART1 of the ADSP-BF548. The RS-232 signals connect to a
DB-9 connector, J4. A circuit implementation of the RS-232
console is shown in Figure 17.
RS-232 CONSOLE
The RS-232 console connector is used for accessing the console
of the uCLinux kernel running on the ADSP-BF548 processor.
It uses the ADM3202 RS-232 line driver and receiver to connect
Rev. PrA | Page 12 of 15



ezLINX™Hardware User
iCoupler® Isolated Interface Development
Guide
Environment
Figure 17. RS-232 Console Implementation
Rev. PrA | Page 13 of 15

iCoupler® Isolated Interface
Development Environment
ezLINX™Hardware User Guide
ORDERING INFORMATION
ORDERING GUIDE
Model
ezLINX-IIIDE-EBZ1
1 Z = RoHS Compliant part.
Description
iCoupler Isolated Interface Development Environment Evaluation Board
Rev. PrA | Page 14 of 15


ezLINX™Hardware User
iCoupler® Isolated Interface Development
Guide
Environment
NOTES
ESD Caution
ESD (electrostatic discharge) sensitive device. Charged devices and circuit boards can discharge without detection. Although this product features patented or proprietary protection
circuitry, damage may occur on devices subjected to high energy ESD. Therefore, proper ESD precautions should be taken to avoid performance degradation or loss of functionality.
Legal Terms and Conditions
By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions
set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you
have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”) and Analog Devices, Inc.
(“ADI”), with its principal place of business at One Technology Way, Norwood, MA 02062, USA. Subject to the terms and conditions of the Agreement, ADI hereby grants to Customer a free, limited, personal,
temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY. Customer understands and agrees that the Evaluation Board is provided
for the sole and exclusive purpose referenced above, and agrees not to use the Evaluation Board for any other purpose. Furthermore, the license granted is expressly made subject to the following additional
limitations: Customer shall not (i) rent, lease, display, sell, transfer, assign, sublicense, or distribute the Evaluation Board; and (ii) permit any Third Party to access the Evaluation Board. As used herein, the term
“Third Party” includes any entity other than ADI, Customer, their employees, affiliates and in-house consultants. The Evaluation Board is NOT sold to Customer; all rights not expressly granted herein, including
ownership of the Evaluation Board, are reserved by ADI. CONFIDENTIALITY. This Agreement and the Evaluation Board shall all be considered the confidential and proprietary information of ADI. Customer may
not disclose or transfer any portion of the Evaluation Board to any other party for any reason. Upon discontinuation of use of the Evaluation Board or termination of thisAgreement, Customer agrees to promptly
return the Evaluation Board to ADI. ADDITIONAL RESTRICTIONS. Customer may not disassemble, decompile or reverse engineer chips on the Evaluation Board. Customer shall inform ADI of any occurred
damages or any modifications or alterations it makes to the Evaluation Board, including but not limited to soldering or any other activity that affects the material content of the Evaluation Board. Modifications to
the Evaluation Board must comply with applicable law, including but not limited to the RoHS Directive. TERMINATION. ADI may terminate this Agreement at any time upon giving written notice to Customer.
Customer agrees to return to ADI the Evaluation Board at that time. LIMITATION OF LIABILITY. THE EVALUATION BOARD PROVIDED HEREUNDER IS PROVIDED “AS IS” AND ADI MAKES NO WARRANTIES OR
REPRESENTATIONS OF ANY KIND WITH RESPECT TO IT. ADI SPECIFICALLY DISCLAIMS ANY REPRESENTATIONS, ENDORSEMENTS, GUARANTEES, OR WARRANTIES, EXPRESS OR IMPLIED, RELATED TO THE
EVALUATION BOARD INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, TITLE, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT OF INTELLECTUAL PROPERTY
RIGHTS. IN NO EVENT WILL ADI AND ITS LICENSORS BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES RESULTING FROM CUSTOMER’S POSSESSION OR USE OF THE
EVALUATION BOARD, INCLUDING BUT NOT LIMITED TO LOST PROFITS, DELAY COSTS, LABOR COSTS OR LOSS OF GOODWILL. ADI’S TOTAL LIABILITY FROM ANY AND ALL CAUSES SHALL BE LIMITED TO THE
AMOUNT OF ONE HUNDRED US DOLLARS ($100.00). EXPORT. Customer agrees that it will not directly or indirectly export the Evaluation Board to another country, and that it will comply with all applicable
United States federal laws and regulations relating to exports. GOVERNING LAW. This Agreement shall be governed by and construed in accordance with the substantive laws of the Commonwealth of
Massachusetts (excluding conflict of law rules). Any legal action regarding this Agreement will be heard in the state or federal courts having jurisdiction in Suffolk County, Massachusetts, and Customer hereby
submits to the personal jurisdiction and venue of such courts. The United Nations Convention on Contracts for the International Sale of Goods shall not apply to thisAgreement and is expressly disclaimed.
©2012 Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.
UG10615-0-4/12(0)
Rev. PrA | Page 15 of 15
厂商 型号 描述 页数 下载

ETC

 		EZLC-4421HB [ WIRELESS PRODUCT SELECTOR GUIDE ] 12 页

ETC

 		EZLC-4421LB [ WIRELESS PRODUCT SELECTOR GUIDE ] 12 页

ETC

 		EZLC4431B1-D434 [ WIRELESS PRODUCT SELECTOR GUIDE ] 12 页

ETC

 		EZLC4431B1-D868 [ WIRELESS PRODUCT SELECTOR GUIDE ] 12 页

ETC

 		EZLC4432B1-D470 [ WIRELESS PRODUCT SELECTOR GUIDE ] 12 页

BANNER

 		EZLSA-K30LGR [ EZ-LIGHT® for EZ-SCREEN LS® ] 2 页

BANNER

 		EZLSA-K30LXR [ EZ-LIGHT® for EZ-SCREEN LS® ] 2 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.181650s
