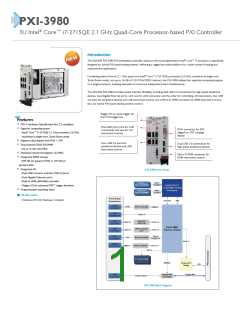

PXI Controller
Specifications
Model Name
PXI-3980
Core Features
CPU
Intel® Core™ i7-2715QE 2.1 GHz
5 GT/s
Intel® QM67 Express chipset
DMI
Chipset
Memory
Up to 16 GB SO-DIMM memory
Supports dual-channel DDR3 SDRAM, 1066/1333 MHz
Display
DVI
DVI output provides up to 1920 x 1200 bpp at 60Hz resolution or up to 2048 x 1536 bpp at 75Hz
Analog VGA output provides up to 1920 x 1200 bpp at 60Hz resolution or up to 2048 x 1536 bpp at 75Hz
VGA
I/O Connectivity
Ethernet
One Intel® 82579LM Gigabit Ethernet PHY and One Intel® I210 Gigabit Ethernet Controller
Two RJ-45 connectors with speed/link/active LED on the faceplate
2 x USB 3.0 and 4 x USB 2.0 on the faceplate
USB
On-board IEEE488 GPIB controller
GPIB
Micro-D 25-pin connector on the faceplate (ACL-IEEE488-MD1-A cable required)
SMB connector on the faceplate to route an external trigger signal to/from PXI trigger bus
Trigger I/O
Storage
500 GB (or greater) SATA hard drive
120 GB MLC
HDD
SSD
Mechanical and Environmental
Dimensions
60.5 mm x 128.7 mm x 213.2 mm (2.35” x 5.01” x 8.31”)
1 system slot plus 2 controller expansion slots
1.1 kg (2.3 lbs)
Slot Requirements
Weight
0 to 50°C (32˚F to 122˚F) (w/ HDD)
Operating Temp.
0 to 55°C (32˚F to 131˚F) (w/ SSD)
-20 to 70°C (-4˚F to 158˚F )
Storage Temp.
Relative Humidity
Shock
5 to 95%, non-condensing
30 G, half-sine, 11 ms pulse duration
Operating: 5 to 500 Hz, 0.21 Grms, 3 axes (w/HDD)
5 to 500 Hz, 0.3 Grms, 3 axes (w/SSD)
Non-operating: 5 to 500 Hz, 2.46 Grms, 3 axes (w/ both HDD & SSD)
EN 61326-1, FCC Class A
Vibration
Emissions Compliance
CE Compliance
Immunity: EN 61326-1
Note1. Depends on model ordered
Ordering Information
Cable Accessory
■ PXI-3980
3U PXI Intel® Core™ i7-2715QE 2.1 GHz system
controller with 4 GB memory & 500 GB HDD
■ PXI-3980/M8G
3U PXI Intel® Core™ i7-2715QE 2.1 GHz system
controller with 8 GB memory & 500 GB HDD
■ PXI-3980/SSD
3U PXI Intel® Core™ i7-2715QE 2.1 GHz system
controller with 4 GB memory & 120 GB SSD
■ꢀACL-IEEE488-MD1-A
25-pin Micro-D to GPIB Cable, 1 Meter Length
■ PXI-3980/M8G/SSD
3U PXI Intel® Core™ i7-2715QE 2.1 GHz system
controller with 8 GB memory & 120 GB SSD
NOTE: 16 GB memory configuration available on request, please contact
ADLINK Sales
Updated May 27, 2013. ©2013 ADLINK Technology, Inc. All Rights Reserved. All specifications are subject to change without further notice.
