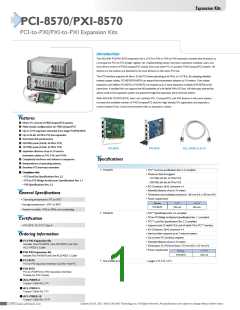

Expansion Kits
PCI-8570/PXI-8570
PCI-to-PXI/PXI-to-PXI Expansion Kits
Introduction
The ADLINK PCI/PXI-8570 expansion kit is a PCI-to-PXI or PXI-to-PXI expansion module that functions as
a transparent PCI-to-PCI bridge register set. Implementing master and slave extension modules, users can
have direct control of PXI/CompactPCI chassis from any other PC or another PXI/CompactPCI system. All
devices on the system are deemed to be local devices on the same PCI bus.
The PCI interface supports 64-bit or 32-bit PCI buses operating at 66 MHz or 33 MHz. By adopting shielded
twisted copper cables, PCI-8570/PXI-8570 can expand the transmission distance to 10 meters. One master
expansion card (either PCI-8570 or PXI-8570) can expand up to 2 slave expansion modules (PXI-8570) at the
same time. A bundled link can support the full bandwidth of a 64-bit/66 MHz PCI bus. All interrupts asserted by
add-in cards in the expansion system are passed through the expansion set to the host system.
With ADLINK PCI/PXI-8570, users can combine PCI, CompactPCI, and PXI devices in the same system,
increase the available number of PXI/CompactPCI slots for high-density I/O application and separate a
control system from a harsh environment with an expansion chassis.
Features
■ Direct PC control of PXI/CompactPCI systems
■ Multi-chassis configurations for PXI/CompactPCI
■ Up to 2 PCI segments extended from single PCI/PXI-8570
■ Up to 64-bit, 66 MHz PCI bus expansion
■ StarFabric link performance
■ 528 MB/s peak (64-bit, 66 MHz PCI)
■ 132 MB/s peak (32-bit, 33 MHz PCI)
■ expansion distance of up to 10 meters
(extension cables at 2 M, 5 M, and 10 M)
■ Completely hardware and software transparent
■ Independence of operating systems
■ Seamless PCI interrupt extension
PCI-8570
PXI-8570
ACL-PXIES-2/-5/-10
Specifications
■
PCI-8570
• PCI™ local bus specifications Rev. 2.2 compliant
• Maximum data throughput
■ Compliant with
ꢀ
ꢀ
ꢀ
•ꢀPCI local Bus Specifications Rev. 2.2
•ꢀPCI-to-PCI Bridge Architecture Specifications Rev. 1.1
•ꢀPXI Specifications Rev. 2.2
-
132 MB/s (32-bit, 33 MHz PCI)
-
528 MB/s (64-bit, 66 MHz PCI)
• I/O Connector: RJ-45 connector x 4
• Extended distance of up to 10 meters
• Dimensions (not including connectors): 160 mm (H) x 100 mm (W)
• Power requirement:
General Specifications
ꢀ
ꢀ
ꢀ
•ꢀOperating temperature: 0°C to 50°C
•ꢀStorage temperature: -20°C to 80°C
Device
+5 V
+3.3 V
250 mA
PCI-8570
190 mA
•ꢀRelative humidity: 10% to 90%, non-condensing
ꢀ
■
PXI-8570
• PXI™ Specifications Rev. 2.2 compliant
• PCI-to-PCI Bridge Architecture Specifications Rev. 1.1 compliant
• PCI™ Local Bus Specifications Rev. 2.2 compliant
• Supports both 32-bit/66 MHz and 64-bit/66 MHz PCI™ interface
• I/O Connector: RJ-45 connector x 4
Certification
ꢀ
•ꢀEMC/EMI: CE, FCC Class A
• Internal arbiter supports up to 7 external masters
• Up to seven PCI clock/bus requests
Ordering Information
■ PCI-PXI Expansion Kit
Includes One PCI-8570, One PXI-8570, and One
ACL-PXIES-2 Cable
• Extended distance of up to 10 meters
• Dimensions: 3U PXI form factor 175 mm (W) x 107 mm (H)
• Power requirement
Device
+3.3 V
540 mA
■ PXI-PXI Expansion Kit
Includes Two PXI-8570 and One ACLPXIES- 2 Cable
PXI-8570
■ PCI-8570
PCI-to-PXI Expansion Interface Card for Host PC
ꢀ
■
ACL-PXIES-2/-5/-10
• Length: 2 M, 5 M, 10 M
■ PXI-8570
PCI-to-PXI/PXI-to-PXI Expansion Interface
Module for PXI Chassis
■ ACL-PXIES-2
Copper Cable Kit, 2 M
■ ACL-PXIES-5
Copper Cable Kit, 5 M
■ ACL-PXIES-10
Copper Cable Kit, 10 M
5-7
