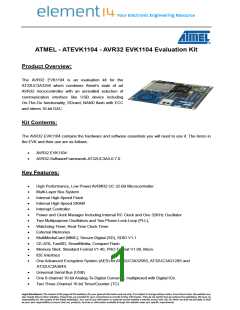

ATMEL - ATEVK1104 - AVR32 EVK1104 Evaluation Kit
Product Overview:
The AVR32 EVK1104 is an evaluation kit for the
AT32UC3A3256 which combines Atmel’s state of art
AVR32 microcontroller with an unrivalled selection of
communication interface like USB device including
On-The-Go functionality, SDcard, NAND flash with ECC
and stereo 16-bit DAC.
Kit Contents:
The AVR32 EVK1104 contains the hardware and software essentials you will need to use it. The items in
the EVK and their use are as follows.
AVR32 EVK1104
AVR32-SoftwareFramework-AT32UC3A3-0.7.0
Key Features:
High Performance, Low Power AVR®32 UC 32-Bit Microcontroller
Multi-Layer Bus System
Internal High-Speed Flash
Internal High-Speed SRAM
Interrupt Controller
Power and Clock Manager Including Internal RC Clock and One 32KHz Oscillator
Two Multipurpose Oscillators and Two Phase-Lock-Loop (PLL),
Watchdog Timer, Real-Time Clock Timer
External Memories
MultiMediaCard (MMC), Secure-Digital (SD), SDIO V1.1
CE-ATA, FastSD, SmartMedia, Compact Flash
Memory Stick: Standard Format V1.40, PRO Format V1.00, Micro
IDE Interface
One Advanced Encryption System (AES) for AT32UC3A3256S, AT32UC3A3128S and
AT32UC3A364S
Universal Serial Bus (USB)
One 8-channel 10-bit Analog-To-Digital Converter, multiplexed with Digital IOs.
Two Three-Channel 16-bit Timer/Counter (TC)
