1SS270A

型号:

1SS270A

描述:

硅外延平面二极管[ SILICON EPITAXIAL PLANAR DIODE ]

品牌:

SEMTECH[ SEMTECH CORPORATION ]

页数:

2 页

PDF大小:

166 K

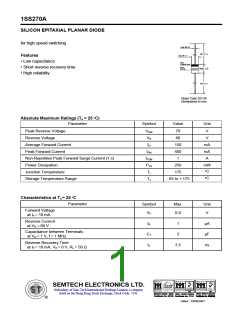

1SS270A
SILICON EPITAXIAL PLANAR DIODE
for high speed switching
Max. 0.45
Min. 27.5
Max. 2.9
Min. 27.5
Max. 1.9
Features
• Low capacitance
• Short reverse recovery time
• High reliability
Black
Cathode Band
Black
Part No.
XXX
Glass Case DO-34
Dimensions in mm
O
Absolute Maximum Ratings (Ta = 25 C)
Parameter
Symbol
Value
Unit
Peak Reverse Voltage
VRM
VR
IO
70
V
V
Reverse Voltage
60
Average Forward Current
Peak Forward Current
150
mA
mA
A
IFM
IFSM
Ptot
Tj
450
Non-Repetitive Peak Forward Surge Current (1 s)
Power Dissipation
1
250
mW
O
C
Junction Temperature
175
O
C
Storage Temperature Range
Ts
- 65 to + 175
O
Characteristics at Ta = 25 C
Parameter
Symbol
VF
Max.
0.8
Unit
V
Forward Voltage
at IF = 10 mA
Reverse Current
at VR = 60 V
IR
CT
trr
1
3
µA
pF
ns
Capacitance between Terminals
at VR = 1 V, f = 1 MHz
Reverse Recovery Time
at IF = 10 mA, VR = 6 V, RL = 50
3.5
SEMTECH ELECTRONICS LTD.
(Subsidiary of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
®
Dated : 25/06/2007
1SS270A
SEMTECH ELECTRONICS LTD.
(Subsidiary of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
®
Dated : 25/06/2007
