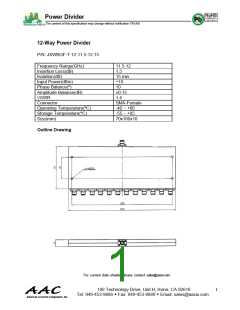

Power Divider
The content of this specification may change without notification 7/01/09
12-Way Power Divider
P/N: JXWBGF-T-12-11.5-12-15
Frequency Range(GHz)
Insertion Loss(dB)
Isolation(dB)
Input Power(dBm)
Phase Balance(º)
Amplitude Balance(dB)
VSWR
11.5-12
1.5
15 min
+10
10
±0.15
1.4
Connector
SMA-Female
-40 ~ +80
-55 ~ +85
70x160x10
Operating Temperature(ºC)
Storage Temperature(ºC)
Size(mm)
Outline Drawing
For current data sheets, please contact: sales@aacix.com
