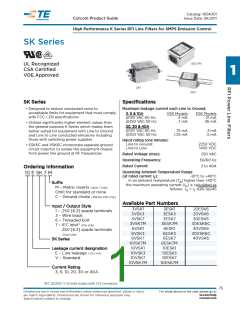

Catalog: 1654001
Issue Date: 06.2011
Corcom Product Guide
High Performance K Series RFI Line Filters for SMPS Emission Control
SK Series
SK7/7M
UL Recognized
CSA Certified
VDE Approved
1
SK1
SK3
SK Series
Specifications
• Designed to reduce conducted noise to
acceptable limits for equipment that must comply
with FCC / EN specifications
Maximum leakage current each Line to Ground:
3, 6 & 10A
@120 VAC 60 Hz:
@250 VAC 50 Hz:
VSK Models
.4 mA
ESK Models
.21 mA
.7 mA
.36 mA
• Utilizes significantly higher element values than
the general purpose K Series which makes them
better suited for equipment with Line to Ground
and Line to Line conducted emissions including
those with switching power supplies
20, 30 & 40A
@120 VAC 60 Hz:
@250 VAC 50 Hz:
.75 mA
1.25 mA
.3 mA
.5 mA
Hipot rating (one minute):
Line to Ground:
Line to Line:
2250 VDC
1450 VDC
• ESK6C and VSK6C incorporate separate ground
circuit inductor to isolate the equipment chassis
from power line ground at RF frequencies
Rated Voltage (max):
250 VAC
50/60 Hz
3 to 40A
Operating Frequency:
Rated Current:
Ordering Information
10 E SK 7 M
Operating Ambient Temperature Range
(at rated current I ):
-10°C to +40°C
In an ambient temperature (T ) higher than +40°C
r
a
Suffix
the maximum operating current (I ) is calculated as
o
M – Metric inserts (style 7 only)
Omit for standard or none
C – Ground choke (30ESK/VSK only)
follows: I = I (85-Ta)/45
o
r
Available Part Numbers
Input / Output Style
1 – .250 [6.3] spade terminals
3 – Wire leads
6 – Threaded bolt
7 – IEC inlet* (line side)
.250 [6.3] spade terminals
(load side)
3VSK1
3VSK3
3ESK1
3ESK3
20ESK6
20VSK6
30ESK6
30ESK6C
30VSK6
30VSK6C
40VSK6
3VSK7
3ESK7
3VSK7M
6VSK1
3ESK7M
6ESK1
6VSK3
6ESK3
6VSK7
6ESK7
SK Series
6VSK7M
10VSK1
10VSK3
10VSK7
10VSK7M
6ESK7M
10ESK1
10ESK3
10ESK7
10ESK7M
Leakage current designation
E – Low leakage (<0.5 mA)
V – Standard
Current Rating
3, 6, 10, 20, 30 or 40A
*IEC 60320-1 C14 inlet mates with C13 connector
75
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
