1SS380

型号:

1SS380

描述:

硅外延平面二极管[ Silicon Epitaxial Planar Diodes ]

品牌:

LGE[ LGE ]

页数:

1 页

PDF大小:

192 K

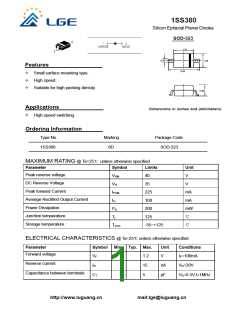

1SS380
Silicon Epitaxial Planar Diodes
SOD-323
Features
—
—
—
Small surface mounting type.
High speed.
Suitable for high packing density.
Applications
Dimensions in inches and (millimeters)
—
High speed switching.
Ordering Information
Type No.
Marking
6D
Package Code
SOD-323
1SS380
MAXIMUM RATING @ Ta=25unless otherwise specified
Parameter
Symbol
VRM
VR
Limits
Unit
V
Peak reverse voltage
40
DC Reverse Voltage
Peak forward Current
Average Rectified Output Current
Power Dissipation
35
V
IFSM
IO
225
mA
mA
mW
100
PD
200
Junction temperature
Storage temperature
Tj
125
TSTG
-55~+125
ELECTRICAL CHARACTERISTICS @ Ta=25unless otherwise specified
Parameter
Symbol Min. Typ. Max.
Unit
V
Conditions
IF=100mA
VR=20V
Forward voltage
VF
IR
1.2
15
5
Reverse current
nA
Capacitance between terminals
CT
pF
VR=0.5V,f=1MHz
http://www.luguang.cn
mail:lge@luguang.cn
