BZX84C5V6

型号:

BZX84C5V6

描述:

bq2026评估软件[ bq2026 Evaluation Software ]

品牌:

TI[ TEXAS INSTRUMENTS ]

页数:

12 页

PDF大小:

249 K

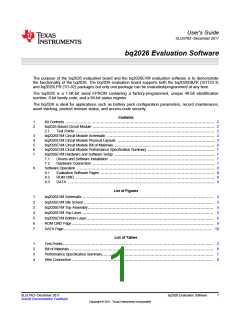

User's Guide
SLUU763December 2011
bq2026 Evaluation Software
The purpose of the bq2026 evaluation board and the bq2026EVM evaluation software is to demonstrate
the functionality of the bq2026. The bq2026 evaluation board supports both the bq2026DBZR (SOT23-3)
and bq2026LPR (TO-92) packages but only one package can be evaluated/programmed at any time.
The bq2026 is a 1.5K-bit serial EPROM containing a factory-programmed, unique 48-bit identification
number, 8-bit family code, and a 64-bit status register.
The bq2026 is ideal for applications such as battery pack configuration parameters, record maintenance,
asset tracking, product revision status, and access-code security.
Contents
1
2
Kit Contents .................................................................................................................. 2
bq2026-Based Circuit Module ............................................................................................. 2
2.1
Test Points .......................................................................................................... 2
3
4
5
6
7
bq2026EVM Circuit Module Schematic .................................................................................. 2
bq2026EVM Circuit Module Physical Layouts .......................................................................... 3
bq2026EVM Circuit Module Bill of Materials ............................................................................ 6
bq2026EVM Circuit Module Performance Specification Summary ................................................... 7
bq2026EVM Hardware and Software Setup ............................................................................ 7
7.1
7.2
Drivers and Software Installation` ................................................................................ 7
Hardware Connection ............................................................................................. 7
8
Software Operation ......................................................................................................... 8
8.1
8.2
8.3
Evaluation Software Pages ....................................................................................... 8
ROM CMD .......................................................................................................... 8
DATA ................................................................................................................ 9
List of Figures
1
2
3
4
5
6
7
bq2026EVM Schematic ....................................................................................................
bq2026EVM Silk Screen ...................................................................................................
bq2026EVM Top Assembly................................................................................................
bq2026EVM Top Layer.....................................................................................................
bq2026EVM Bottom Layer.................................................................................................
ROM CMD Page ............................................................................................................
2
3
4
5
6
9
DATA Page................................................................................................................. 10
List of Tables
1
2
3
4
Test Points...................................................................................................................
Bill of Materials ..............................................................................................................
Performance Specification Summary.....................................................................................
Wire Connection ............................................................................................................
2
6
7
8
1
SLUU763December 2011
bq2026 Evaluation Software
Submit Documentation Feedback
Copyright © 2011, Texas Instruments Incorporated
Kit Contents
www.ti.com
1
Kit Contents
1. bq2026EVM REVA board
2. Personal computer (PC) interface board EV2300
3. USB cable (type A-B)
2
bq2026-Based Circuit Module
The bq2026-based circuit module is ideal for programming the 1.5K-bit EPROM and the STATUS bytes of
the bq2026 IC. The circuit module includes a SOT23 single socket, a bq2026 IC, a Zener diode for host
protection during EPROM programming, and a programming circuit that generates a 12-V pulse when
used with a power supply and a control signal. In a typical application, only the bq2026 IC and a pullup
resistor is required.
2.1 Test Points
Table 1. Test Points
Test Point
Signal Name
Description
Device ground
J1-1
J1-2
J1-3
J2-1
J2-2
J3
VSS
PROG
SDQ
12V
Input for timing of EPROM programming pulse
SDQ single-wire communication bus
High voltage for EPROM programming
Programming ground
VSS
Connect for EPROM programming
3
bq2026EVM Circuit Module Schematic
The schematic shows the circuit for the bq2026 implementation.
Figure 1. bq2026EVM Schematic
2
bq2026 Evaluation Software
SLUU763December 2011
Submit Documentation Feedback
Copyright © 2011, Texas Instruments Incorporated
www.ti.com
bq2026EVM Circuit Module Physical Layouts
4
bq2026EVM Circuit Module Physical Layouts
This section contains the board layout and assembly drawings for the bq2026EVM circuit module.
Figure 2. bq2026EVM Silk Screen
3
SLUU763December 2011
bq2026 Evaluation Software
Submit Documentation Feedback
Copyright © 2011, Texas Instruments Incorporated
bq2026EVM Circuit Module Physical Layouts
www.ti.com
Figure 3. bq2026EVM Top Assembly
4
bq2026 Evaluation Software
SLUU763December 2011
Submit Documentation Feedback
Copyright © 2011, Texas Instruments Incorporated
www.ti.com
bq2026EVM Circuit Module Physical Layouts
Figure 4. bq2026EVM Top Layer
5
SLUU763December 2011
bq2026 Evaluation Software
Submit Documentation Feedback
Copyright © 2011, Texas Instruments Incorporated
bq2026EVM Circuit Module Bill of Materials
www.ti.com
Figure 5. bq2026EVM Bottom Layer
5
bq2026EVM Circuit Module Bill of Materials
Table 2 presents the bill of materials required for the bq2026EVM circuit module.
Table 2. Bill of Materials
Count RefDes
Description
Size
MFR
Part Number
2
1
3
1
1
1
0
1
1
1
0
0
2
D1, D2
J3
Diode, Zener, 5.6-V, 350-mW
Header, 2-pin, 100-mil spacing, (36-pin strip)
Resistor, Chip, 100-Ω, 1/16-W, 5%
Resistor, Chip, 100-kΩ, 1/16-W, 5%
Resistor, Chip, 10-kΩ, 1/16-W, 5%
Resistor, Chip, 15-kΩ, 1/16-W, 5%
Resistor, Chip, 2.7-kΩ, 1/16-W, 5%
Socket, SOT-23, 6P
SOT-23
0.100 x 2
603
Diodes, Inc.
Sullins
Std
BZX84C5V6
PTC36SAAN
Std
R1, R2, R6
R3
603
Std
Std
R4
603
Std
Std
R5
603
Std
Std
R7*, R8*
XU1
603
Std
Std
SOT-23-6
0.400 x 0.500
0.27 x 0.25 inch
0.038
WELLS-CTI
Molex
OST
499-P44-20
22-05-3041
ED1514
5001
J1
Header, Friction Lock Ass'y, 4-pin Right Angle
Terminal Block, 2-pin, 6-A, 3.5-mm
Test Point, Black, 1-mm
J2
GND*
SDQ*
U2,U3*
Keystone
Keystone
Tyco
Test Point, Red, 1-mm
0.038
5000
Socket Pin - Install First
DIA_038, PIN_013-020, EXP_146,
B125
50935
1
1
1
1
Q1
Q2
--
MOSFET, N-ch, 60-V, 115-mA, 1.2-Ω
MOSFET, Pch, -20-V, 3.7-A, 65 mΩ
PCB, 2 In x 1.25 In x 0.125 In
Shunt, 100-mil, Black
SOT23
SOT23
Vishay-Liteon 2N7002-7-F
IR
IRLML6402
Any
3M
bq2026EVM Board
929950-00
N/A
0.1
6
bq2026 Evaluation Software
SLUU763December 2011
Submit Documentation Feedback
Copyright © 2011, Texas Instruments Incorporated

www.ti.com
bq2026EVM Circuit Module Performance Specification Summary
Table 2. Bill of Materials (continued)
Count RefDes
Description
Size
MFR
Part Number
1
U1
bq2026, IC, 1.5K Serial EPROM With SDQ Interface SOT-23
TI
bq2026DBZR
6
7
bq2026EVM Circuit Module Performance Specification Summary
Table 3. Performance Specification Summary
Specification
Min
2.65
11.5
Typ
Max
Unit
Voltage Pullup (VUP
)
5.5
12
V
V
Programming Voltage(VPP
)
bq2026EVM Hardware and Software Setup
7.1 Drivers and Software Installation`
This section describes how to install the bq2026EVM PC software and how to connect the different
components of the EVM.
Perform the following steps to install the bq2026 evaluation software:
1. Insert the CD ROM into a CD ROM drive.
2. Select the CD ROM drive using My Computer or File Manager.
3. Select the ReadMeFirst.txt file.
4. Select the Software/EV2300 Drivers directory of the CD, and run SETUP.EXE.
5. Plug the EV2300 into a USB port.
6. Wait until system prompt new hardware found appears. Choose select location manually, and use the
browse button to point to C:\WINDOWS\TI\USB1.
7. Answer continue to the warning that drivers are not certified with Microsoft.
8. After installation finishes, another system prompt new hardware found appears. Repeat preceding
procedure, but point to C:\WINDOWS\TI\USB2.
9. Answer continue to the warning that drivers are not certified with Microsoft. Installation of drivers is
now finished.
10. For Windows 98, point to directory TIUSBWin98.
11. After installing the USB drivers for EV2300, double-click on the Setup.exe icon that is under the
Software/bq2026 Evaluation Software folder.
12. Follow the instructions on screen during the installation of evaluation software.
13. The setup program installs a Windows application group.
7.2 Hardware Connection
The bq2026EVM has three hardware components:
1. The bq2026EVM circuit module
2. The PC interface board, (EV2300)
3. The PC
Perform the following steps to configure the hardware for interface to the PC:
1. Connect the bq2026EVM board with the EV2300 PC interface board using Table 4 as a pin connection
guide.
2. Connect the USB cable to the EV2300 and the PC USB port.
The bq2026EVM is now set up for normal operation.
7
SLUU763December 2011
bq2026 Evaluation Software
Submit Documentation Feedback
Copyright © 2011, Texas Instruments Incorporated
Software Operation
www.ti.com
Table 4. Wire Connection
bq2026EVM REVA
EV2300
HDQ
SDQ
VSS
GND
PROG
VOUT
To program the EPROM of bq2026EVM, a 12-V pulse must be generated on the SDQ line. The
bq2026EVM board has an additional circuit included that permits generating this pulse when using a
power supply set to 12 V and the VOUT output of the EV2300. The evaluation software controls this pulse
for EPROM programming.
When programming the EPROM, it is expected that a 12-V supply be connected to the bq2026EVM board
at the 12-V input terminal of the bq2026EVM board. Ensure that the ground of the power supply is
connected to VSS of the board.
A jumper (J3) must be connected when using the EPROM programming circuit.
7.2.1
7.2.2
Normal Operation
Normal operation includes performing any of the ROM commands, reading the 1.5K-bit EPROM and
reading the EPROM Status Memory.
EPROM Programming
To program EPROM registers, a 12-V pulse must be sent across the SDQ line during a write command.
See the bq2026 data sheet (SLUS938) for a specific description of EPROM programming requirements.
When programming EPROM registers, the following must be ensured:
J3 jumper is connected.
VOUT output of EV2300 is connected to PROG input of bq2026EVM board.
Power supply set to 12 V is connected across the 12-V and VSS inputs of bq2026EVM board.
8
Software Operation
Run the program from the Start Programs Texas Instruments bq2026 Evaluation Software menu
sequence.
8.1 Evaluation Software Pages
This section describes the function of each page of the evaluation program.
8.2 ROM CMD
This page provides all the ROM commands for bq2026 (see Figure 6).
8.2.1
Sections Within the ROM CMD Page
Read ROM The ID ROM of the device on the SDQ communication line is displayed when READ ID is
clicked.
8
bq2026 Evaluation Software
SLUU763December 2011
Submit Documentation Feedback
Copyright © 2011, Texas Instruments Incorporated
www.ti.com
Software Operation
Figure 6. ROM CMD Page
8.3 DATA
This page (see Figure 7) allows the user to program the 1.5K-bit EPROM with desired values and to
program the STATUS bytes. It requires that the hardware is set up as described in the EPROM
programming of this user's guide.
8.3.1
1.5K-Bit EPROM
The EPROM memory map is organized in six pages of 32 bytes each. All registers can be read by clicking
on the Read Memory button. As the registers of a specific page are being read, the page number is
highlighted in red.
The two methods of programming the EPROM using the evaluation program follow.
1. Click on a specific grid that corresponds to the register that needs to be written. Write the hexadecimal
value of the data that needs to be written, and then press ENTER.
2. The other method of programming the EPROM is by importing a data file that contains all the values to
be programmed. The data file has the file extension .epr. An example of a data file is included with the
evaluation program. To create additional data files, modify the example file so that the values on the
right side of the file represent the desired values. Save the file with a different name ensuring that the
extension .epr is used. To import a file into the grid, go to File Open Data File, and select the
appropriate file. Once the file is opened, the grid is filled in with the values contained in the data file.
9
SLUU763December 2011
bq2026 Evaluation Software
Submit Documentation Feedback
Copyright © 2011, Texas Instruments Incorporated
Software Operation
www.ti.com
Click on the Write Memory button so that the values are programmed into the EPROM.
A data file can also be saved by going to File|Save Data File. The data that is saved in the file is the data
displayed on the grids representing the EPROM memory map.
8.3.2
Status Bytes
This section allows the user to read or write the EPROM Status bytes of the bq2026. The registers are
programmed by clicking on the appropriate grid, entering the desired value, and pressing ENTER.
Note that the status registers are EPROM. Once a bit has been cleared, it cannot be set.
Figure 7. DATA Page
10
bq2026 Evaluation Software
SLUU763December 2011
Submit Documentation Feedback
Copyright © 2011, Texas Instruments Incorporated
Evaluation Board/Kit Important Notice
Texas Instruments (TI) provides the enclosed product(s) under the following conditions:
This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION
PURPOSES ONLY and is not considered by TI to be a finished end-product fit for general consumer use. Persons handling the
product(s) must have electronics training and observe good engineering practice standards. As such, the goods being provided are
not intended to be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations,
including product safety and environmental measures typically found in end products that incorporate such semiconductor
components or circuit boards. This evaluation board/kit does not fall within the scope of the European Union directives regarding
electromagnetic compatibility, restricted substances (RoHS), recycling (WEEE), FCC, CE or UL, and therefore may not meet the
technical requirements of these directives or other related directives.
Should this evaluation board/kit not meet the specifications indicated in the Users Guide, the board/kit may be returned within 30
days from the date of delivery for a full refund. THE FOREGOING WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY
SELLER TO BUYER AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies TI from all
claims arising from the handling or use of the goods. Due to the open construction of the product, it is the users responsibility to
take any and all appropriate precautions with regard to electrostatic discharge.
EXCEPT TO THE EXTENT OF THE INDEMNITY SET FORTH ABOVE, NEITHER PARTY SHALL BE LIABLE TO THE OTHER
FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
TI currently deals with a variety of customers for products, and therefore our arrangement with the user is not exclusive.
TI assumes no liability for applications assistance, customer product design, software performance, or infringement of
patents or services described herein.
Please read the Users Guide and, specifically, the Warnings and Restrictions notice in the Users Guide prior to handling the
product. This notice contains important safety information about temperatures and voltages. For additional information on TIs
environmental and/or safety programs, please contact the TI application engineer or visit www.ti.com/esh.
No license is granted under any patent right or other intellectual property right of TI covering or relating to any machine, process, or
combination in which such TI products or services might be or are used.
FCC Warning
This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION
PURPOSES ONLY and is not considered by TI to be a finished end-product fit for general consumer use. It generates, uses, and
can radiate radio frequency energy and has not been tested for compliance with the limits of computing devices pursuant to part 15
of FCC rules, which are designed to provide reasonable protection against radio frequency interference. Operation of this
equipment in other environments may cause interference with radio communications, in which case the user at his own expense
will be required to take whatever measures may be required to correct this interference.
EVM Warnings and Restrictions
It is important to operate this EVM within the input voltage range of 2.65 V to 5.5 V and the output voltage range of 0 V to 5.5 V .
Exceeding the specified input range may cause unexpected operation and/or irreversible damage to the EVM. If there are
questions concerning the input range, please contact a TI field representative prior to connecting the input power.
Applying loads outside of the specified output range may result in unintended operation and/or possible permanent damage to the
EVM. Please consult the EVM User's Guide prior to connecting any load to the EVM output. If there is uncertainty as to the load
specification, please contact a TI field representative.
During normal operation, some circuit components may have case temperatures greater than 70°C. The EVM is designed to
operate properly with certain components above 70°C as long as the input and output ranges are maintained. These components
include but are not limited to linear regulators, switching transistors, pass transistors, and current sense resistors. These types of
devices can be identified using the EVM schematic located in the EVM User's Guide. When placing measurement probes near
these devices during operation, please be aware that these devices may be very warm to the touch.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2011, Texas Instruments Incorporated
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements,
and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should
obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are
sold subject to TIs terms and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TIs standard
warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where
mandated by government requirements, testing of all parameters of each product is not necessarily performed.
TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and
applications using TI components. To minimize the risks associated with customer products and applications, customers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right,
or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a
warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual
property of the third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied
by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive
business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional
restrictions.
Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all
express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not
responsible or liable for any such statements.
TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably
be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing
such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products
and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be
provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in
such safety-critical applications.
TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are
specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military
specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at
the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.
TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are
designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated
products in automotive applications, TI will not be responsible for any failure to meet such requirements.
Following are URLs where you can obtain information on other Texas Instruments products and application solutions:
Products
Audio
Applications
www.ti.com/audio
amplifier.ti.com
dataconverter.ti.com
www.dlp.com
Communications and Telecom www.ti.com/communications
Amplifiers
Data Converters
DLP® Products
DSP
Computers and Peripherals
Consumer Electronics
Energy and Lighting
Industrial
www.ti.com/computers
www.ti.com/consumer-apps
www.ti.com/energy
dsp.ti.com
www.ti.com/industrial
www.ti.com/medical
www.ti.com/security
Clocks and Timers
Interface
www.ti.com/clocks
interface.ti.com
logic.ti.com
Medical
Security
Logic
Space, Avionics and Defense www.ti.com/space-avionics-defense
Transportation and Automotive www.ti.com/automotive
Power Mgmt
Microcontrollers
RFID
power.ti.com
microcontroller.ti.com
www.ti-rfid.com
Video and Imaging
www.ti.com/video
OMAP Mobile Processors www.ti.com/omap
Wireless Connectivity www.ti.com/wirelessconnectivity
TI E2E Community Home Page
e2e.ti.com
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2011, Texas Instruments Incorporated
厂商 型号 描述 页数 下载

SEMTECH

BZX1.5C 硅平面齐纳二极管[ SILICON PLANAR ZENER DIODES ] 2 页

SEMTECH

BZX1.5C10 硅平面齐纳二极管[ SILICON PLANAR ZENER DIODES ] 2 页

SEMTECH

BZX1.5C100 硅平面齐纳二极管[ SILICON PLANAR ZENER DIODES ] 2 页

SEMTECH

BZX1.5C11 硅平面齐纳二极管[ SILICON PLANAR ZENER DIODES ] 2 页

SEMTECH

BZX1.5C110 硅平面齐纳二极管[ SILICON PLANAR ZENER DIODES ] 2 页

SEMTECH

BZX1.5C12 硅平面齐纳二极管[ SILICON PLANAR ZENER DIODES ] 2 页

SEMTECH

BZX1.5C120 硅平面齐纳二极管[ SILICON PLANAR ZENER DIODES ] 2 页

SEMTECH

BZX1.5C13 硅平面齐纳二极管[ SILICON PLANAR ZENER DIODES ] 2 页

SEMTECH

BZX1.5C130 硅平面齐纳二极管[ SILICON PLANAR ZENER DIODES ] 2 页

SEMTECH

BZX1.5C15 硅平面齐纳二极管[ SILICON PLANAR ZENER DIODES ] 2 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.257567s
